Product Number: 1245-229-201
The Metrol 1245-229-201 is a key-locking lever latch finished in black powder coat, designed to securely close and hold panels, doors, and covers while allowing quick, controlled access when required. Suitable for industrial equipment, electrical enclosures, cabinets, and machinery housings, it is built to prevent accidental opening caused by vibration or repeated handling.
Constructed with a die cast zinc body with mild steel zinc plated fixing components, the latch combines robust material integrity with corrosion resistance. The lever handle, housing, and trigger are all zinc die cast, and the unit has been salt spray tested to over 300 hours, confirming its suitability for demanding industrial environments. The key locking mechanism incorporates a shutter for added security, using the CH751 key type.

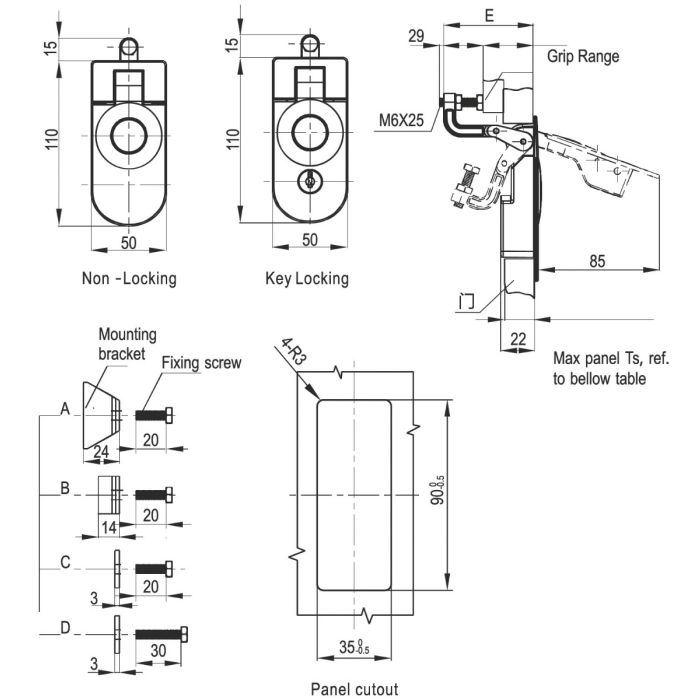

The latch accepts a panel cutout of 35 x 90 mm, accommodates panel thickness of 1–11 mm, and offers a grip range of 14–29 mm, providing flexibility across a range of enclosure and door thicknesses. It carries an IP40 ingress protection rating and is finished to a universal panel cutout specification, simplifying installation and replacement across compatible housings. The product is rated for a guaranteed one year from the Manufacturer, Metrol.
Latches are access hardware components designed to securely close and hold panels, doors, and covers while still allowing quick, controlled access when needed. Commonly used in industrial equipment, electrical enclosures, cabinets, and machinery housings, they help prevent accidental opening from vibration or handling and support repeatable day-to-day operation. Available in multiple styles and mounting options, latches can be selected to match different access frequency, security, and installation requirements.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking with Shutter |
| Colour/Finish | Black Powder Coated |
| Material | Die Cast Zinc Alloy, Mild Steel Zinc Plated Fixing Components |
| Panel Cutout | 35x90mm |
| Panel Thickness | 1 - 11mm |
| Grip Range | 14-29mm |
| IP Rating | IP40 |
| Model | 1245 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1245-229-202 | 1245-229-203 | 1245-329-201 | 1245-329-202 | 1245-329-203 |
| Type | Lever Latch | Lever Latch | Lever Latch | Lever Latch | Lever Latch |
| Size | 29mm | 29mm | 29mm | 29mm | 29mm |
| Grip Range | 14-29mm | 14-29mm | 14-29mm | 14-29mm | 14-29mm |
| Panel Thickness | 11 - 21mm | 21 - 31mm | 1 - 11mm | 11 - 21mm | 21 - 31mm |
| Size Range | 26-50mm | 26-50mm | 26-50mm | 26-50mm | 26-50mm |
A. The latch uses the CH751 key type and incorporates a shutter within the locking mechanism for additional security.
A. The 1245-229-201 accommodates a panel thickness of 1–11 mm and a grip range of 14–29 mm, making it suitable for a range of enclosure wall thicknesses.
A. Installation requires a panel cutout of 35 x 90 mm.
A. The latch carries an IP40 ingress protection rating.
A. The handle, housing, and trigger are die cast zinc alloy. The fixing components are mild steel with zinc plating for corrosion resistance.
A. Yes — the latch has been salt spray tested to over 300 hours, confirming its suitability for industrial environments where corrosion resistance is required.
A. It is designed for use on panels, doors, and covers in industrial equipment, electrical enclosures, cabinets, and machinery housings where secure closure and controlled access are needed.
A. The latch carries a guaranteed one year warranty from the manufacturer, Metrol.
