Product Number: 1439-110-S20

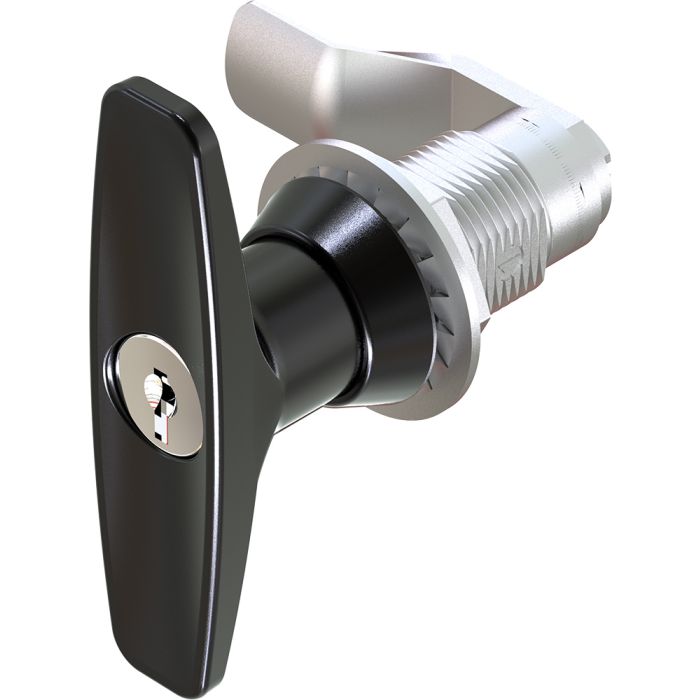

The 1439-110-S20 is a key locking compression latch from the 1439 model series, fitted with a T-handle and CH751 key lock cylinder with keys supplied. Designed for secure panel fastening applications, it accepts a panel cutout of 19.5 x 19.5 mm and accommodates panel thicknesses from 1 to 20 mm, with a barrel height of 32 mm.
The housing and cylinder are constructed with a die cast zinc body, finished in black powder coat. The cam and shaft are manufactured from mild steel with a zinc plate finish. The latch carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets. A range of cams are offered within the 1439 series.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Barrel Height | 32mm |
|---|---|
| Cam Option | Range available |
| Colour/Finish | Black Powder Coated |
| IP Rating | IP65 |
| Lock Types | Key Locking CH751 (Keys supplied) |
| Material | Zinc Die, Zinc Die Body, Zinc Die Handle |
| Model | 1439 |
| Panel Cutout | 19.5x19.5mm |
| Panel Thickness | 1 - 20mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 1409-110-3520 | 1421-04 | 1421-05 | 1421-08 | 1421-20 |
| Type | Compression Lock | Compression Lock | Compression Lock | Compression Lock | Compression Lock |
| Grip Range | 35.3-51mm | 3.2-6.4mm, 6.4-9.5mm, 9.5-12.7mm, 12.7-15.9mm, 15.9-19mm, 19-22.2mm, 22.2-25.4mm, 25.4-28.6mm | 3.2-6.4mm, 6.4-9.5mm, 9.5-12.7mm, 12.7-15.9mm, 15.9-19mm, 19-22.2mm, 22.2-25.4mm, 25.4-28.6mm | 3.2-6.4mm, 6.4-9.5mm, 9.5-12.7mm, 12.7-15.9mm, 15.9-19mm, 19-22.2mm, 22.2-25.4mm, 25.4-28.6mm | 3.2-6.4mm, 6.4-9.5mm, 9.5-12.7mm, 12.7-15.9mm, 15.9-19mm, 19-22.2mm, 22.2-25.4mm, 25.4-28.6mm |
| Panel Thickness | 1 - 27mm | 1 - 10mm | 1 - 10mm | 1 - 10mm | 1 - 10mm |
A. The latch uses a CH751 key lock cylinder. Keys are supplied with the unit.
A. The panel cutout required is 19.5 x 19.5 mm. The latch accommodates panel thicknesses from 1 mm to 20 mm, with a barrel height of 32 mm.
A. The housing and cylinder are die cast zinc alloy with a black powder coat finish. The cam and shaft are mild steel with a zinc plate finish.
A. The 1439-110-S20 carries an IP65 rating, providing protection against dust and low-pressure water jets.
A. Yes — a range of cam options is available within the 1439 model series. Contact us to confirm suitability for your application.
A. Standard UK mainland delivery is 3–5 working days. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
