Product Number: 1201-01-0320
| Swing Handle Lock Range (Click a part number to navigate to the product page) | |||
| Product Number | Colour / Finishing | Locking Type | Grip Height |
|---|---|---|---|
| 1222-1P01-10 | Black Powder Coated | Key Locking | 34mm |
| 1222-1P02-10 | Black Powder Coated | Key Locking | 34mm |
| 1201-01-0120 | Black | Key Locking | 20mm |
| 1201-02-0120 | Black | Key Locking | 20mm |
| 1201-01-0220 | Black | Key Locking | 20mm |
| 1201-02-0220 | Black | Key Locking | 20mm |
| 1201-02-0320 | Black | Key Locking | 20mm |
| 1101-1001-NC | Black | Key Locking | 18mm |
| 1101-1001-C | Black | Key Locking | 18mm |
| 1101-1P01-NC | Black | Key Locking | 18mm |
| 1101-1P01-C | Black | Key Locking | 18mm |
| 1201-01-0118 | Black | Key Locking | 18mm |
| 1208-101-20 | Black | Key Locking | 18mm |
| 1210-101-20 | Black | Key Locking | 18mm |
| 1201-01-0320 | Black | Key Locking | 18mm |
| 1103-1001-50-NP | Black E-Coated | Key Locking | 18mm |
| 1100-1P01-NCP.L0 | Black Powder Coated | Key Locking | 18mm |
| 1100-1P01-NC | Black Powder Coated | Key Locking | 18mm |
| 1100-1P02-NC | Black Powder Coated | Double Bit 4mm | 18mm |
| 1100-1P03-NC | Black Powder Coated | Square 7mm | 18mm |
| 1100-1P04-NC | Black Powder Coated | Triangle 8mm | 18mm |
| 1100-1P01-C | Black Powder Coated | Key Locking | 18mm |
| 1100-1P02-C | Black Powder Coated | Double Bit 4mm | 18mm |
| 1100-1P03-C | Black Powder Coated | Square 7mm | 18mm |
| 1100-1P04-C | Black Powder Coated | Triangle 8mm | 18mm |
| 1103-1001-10-P | Black Powder Coated | Key Locking | 18mm |
| 1103-1001-10-NP | Black Powder Coated | Key Locking | 18mm |
| 1507-12 | Black Textured Powder Coated | Key Locking | 18mm |
| 1120-1P01-NC | Polished | Key Locking | 18mm |
| 1120-1P02-NC | Polished | Key Locking | 18mm |
| 1120-1P03-NC | Polished | Double Bit 4mm | 18mm |
| 1120-1P04-NC | Polished | Square 7mm | 18mm |
| 1120-1P01-C | Polished | Key Locking | 18mm |
| 1120-1P02-C | Polished | Key Locking | 18mm |
| 1120-1P03-C | Polished | Double Bit 4mm | 18mm |
| 1120-1P04-C | Polished | Square 7mm | 18mm |
| 1205-304 | Polished | Padlockable | 18mm |
| 1205-316 | Polished | Padlockable | 18mm |
| 1102-1001-C | Black | Key Locking | 16mm |
| 1101-2001-NC | Black | Key Locking | - |
| 1101-2001-C | Black | Key Locking | - |
| 1113-2001-01 | Black | Key Locking | - |
| 1123-2001-S190 | Black Powder Coated | Key Locking | - |
| 1123-2000-S190 | Black Powder Coated | Non Locking | - |
| 1207-101-20 | Black Textured Powder Coated | Key Locking | - |
| 1207-101-20P | Black Textured Powder Coated | Key Locking | - |
| 1207-101-30 | Bright Chrome | Key Locking | - |
| 1207-101-30P | Bright Chrome | Key Locking | - |

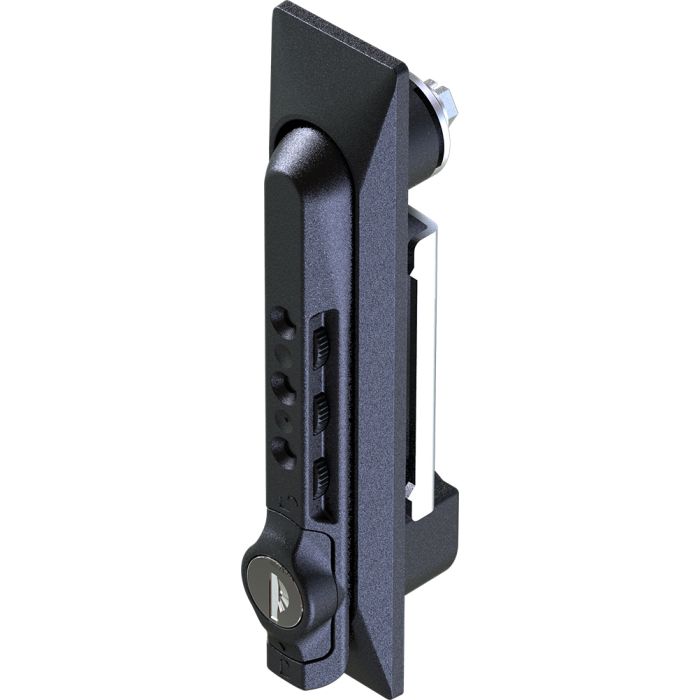

The Metrol 1201 Swing Handle is a durable locking solution for industrial cabinets, CNC machinery panels, meter boxes, loft hatches, external enclosures, and heavy-duty gate systems. Designed for secure single- or dual-point locking, it works with common cam locks, triangle locks, t-handle locks, cupboard-door locks, and stainless lock setups, while pairing well with heavy-duty hinges, surface-mount offset hinges, defender-style door hinges, and stainless-steel hatch hardware. Available in multiple key, tool-entry, and padlockable options, it’s ideal for replacing worn latch locks, loft catches, gate-latch mechanisms, and panel locks, making it a reliable choice for anyone needing strong enclosure hardware, machinery parts, or cabinet-locking components in tough UK environments.
Key Features:PartsForMachines is an e-commerce platform established in 2019 in Warwickshire, UK, supplying aftermarket parts and services for construction, agricultural, and industrial machinery. The catalog includes more than 500,000 products. Standard delivery: 1–3 working days within the UK mainland.
| Manufacturer | Metrol |
|---|---|
| Lock Types | Key Locking 333 (Keys supplied) |
| Colour/Finish | Black |
| Material | Nylon 6 GF30 |

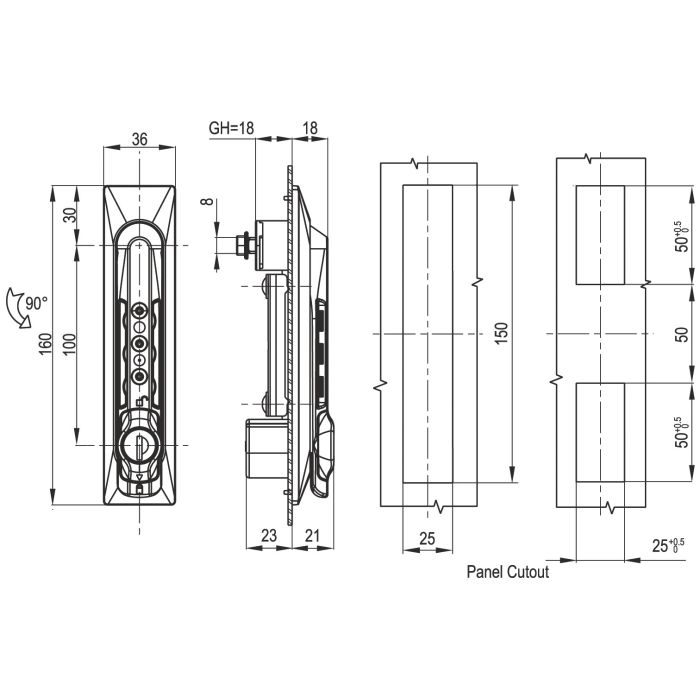

| Panel Cutout | 25x50mm |
| Panel Thickness | 1 - 3mm |
| Barrel Height | 18mm |
| IP Rating | IP65 |
| Cam Option | Range available |
| Model | 1201 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Quick delivery and the product at a very competitive price.
Highly Recommend
I ordered a starter motor for my Polaris ranger, best price around and prompt service.
thanks for sending the part so quickly, and was just the job
1st class,excellent service.
Excellent service
You stock the parts that I needed and delivered quickly and efficiently.
Worth the Money
Strong and Excellent Quality.
10 out of 10 from me!
Great price.
Great delivery.
Very easy transaction the machine arrived on time and well packaged,
Absolutely spot on!
Excellent website, easy ordering, great price, speedy delivery and an excellent machine at an excellent price!
Thanks very much!!
Great service with speedy delivery, easy ordering system and great during & after service support.
Standard Delivery: £4.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1100-1P01-NCP.L0 | 1507-12 | 1100-1P01-NC | 1100-1P02-NC | 1100-1P03-NC | 1100-1P04-NC | 1100-1P01-C | 1100-1P02-C | 1100-1P03-C | 1100-1P04-C | 1101-1001-NC | 1101-1001-C | 1101-2001-NC | 1101-2001-C | 1101-1P01-NC |
| Colour / Finishing | Black Powder Coated | Black Textured Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black Powder Coated | Black | Black | Black | Black | Black |
| Locking Operation Type | Key Locking | Key Locking | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Double Bit 4mm | Square 7mm | Triangle 8mm | Key Locking | Key Locking | Key Locking | Key Locking | Key Locking |
| Barrel Height | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | ||
A. Standard UK Mainland delivery is 3–5 working days.
A. These locks come with a 1-year warranty.
A. We accept returns within 30 days of purchase for items that are unused, undamaged, and in their original packaging. Returns are available only for UK-delivered orders and must include proof of purchase.
Before returning an item, please contact us at [email protected] to obtain a Return Merchandise Number (RMN). You may also be asked to share images of the product and its packaging for verification.
Items that do not meet these conditions will not be accepted for return. If your return is approved, we will initiate a refund to your credit card or original method of payment. A restocking fee of up to 15% of the order value may apply to each returned item.
A. Yes. If you already know the cam type, cam length, and key requirement, share them during checkout notes or message us on WhatsApp.
A. Available finishes include Black, Black E-Coated, Black Powder Coated (smooth/textured), Bright Chrome, Polished, and Textured Chrome Plated (model dependent).
A. Stainless steel 316 is recommended for corrosive, marine, or outdoor environments. Stainless steel 304 is suitable for mild to moderately harsh environments.
A. These locks are available in keyed and non-keyed (tool-operated) locking options.
A. Locks support multiple cam options to suit different panel thicknesses and engagement requirements.
A. Some lock models are supplied with standard (basic) cam options. This depends on the specific product.
A. Custom cam designs are not currently available. We offer multiple standard cam options for common panel thicknesses.
A. Keys depend on the selected locking operation. Locks can be supplied in keyed or non-keyed/tool-operated configurations.
A. Cam selection depends on:
Panel thickness
Required cam engagement
Door or enclosure design
If you’re unsure, share your enclosure details on WhatsApp and will guide you to the correct cam option and length.
A. Salt spray testing indicates corrosion resistance:
Salt spray tested to over 360 hrs
Black powder coated: over 300 hrs
Bright chrome: over 72 hrs
A. Locks are available in the following materials:
ABS plastic
Aluminium alloy
Die-cast zinc alloy
Steel
Stainless steel 304
Stainless steel 316
