Product Number: 2101-5761-20

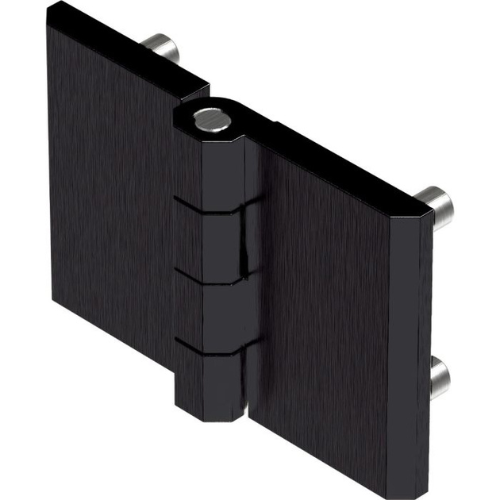

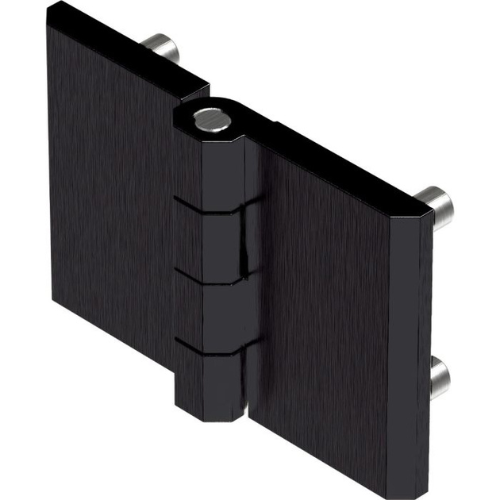

The 2101-5761-20 is a 50x76mm screw-on hinge from the Model 2101 series, finished in black powder coat and fitted with M6 threaded studs for direct panel or frame mounting. Constructed with a die cast zinc body with an SS316 stainless steel pin, it is suited to industrial enclosures, control panels, and equipment housings where corrosion resistance and structural integrity are required.
The hinge has an unhanded orientation, making it suitable for both left- and right-hand applications without the need to specify mounting side at the point of order. Load capacity is rated at 547 kg axial and 633 kg radial per hinge, reflecting the robustness of the die cast zinc alloy body and stainless steel pin construction.
The black powder coat finish provides a uniform, durable surface treatment consistent across the 2101 series. The M6 threaded studs allow secure fastening directly through matching tapped holes or with nuts, reducing the requirement for additional hardware in many standard enclosure assemblies.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Black Powder Coated |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |

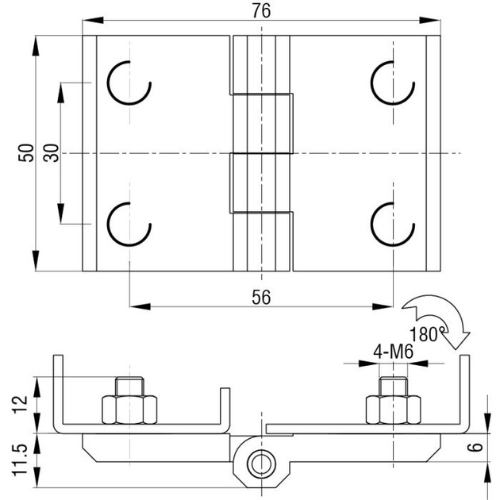

| Size | 50 × 76 mm |
| Axial Load Capacity | 547 kg per hinge |
| Radial Load Capacity | 633 kg per hinge |
| Model | 2101 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Hinge with M6 Stud, Black Powder Coated Finish, Size 50x76mm, Axial Load Capacity 547Kg Per Hinge, Metrol - 2101-5761-20
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2101-576-20 | 2101-576-30 | 2101-576-316 | 2101-5761-79 | 2101-6764-10 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 50x76mm | 50x76mm | 50x76mm | 50x76mm | |
| Material | Stainless steel | ||||
| Finish | Chrome | Chrome | |||
| Thread | M6 | ||||
A. The hinge is rated at 547 kg axial load capacity and 633 kg radial load capacity per hinge, as specified for the Model 2101 series.
A. The body is die cast zinc alloy with a mild steel zinc plated construction, and the pin is SS316 stainless steel. The exterior is finished in black powder coat.
A. No. The 2101-5761-20 has an unhanded orientation, meaning it is suitable for both left-hand and right-hand applications without requiring a separate variant.
A. The hinge is fitted with M6 threaded studs to allow direct bolted mounting to panels or enclosure frames.
A. The hinge measures 50x76mm, as stated in the product specification for model 2101-5761.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
