Product Number: 2101-5761-79

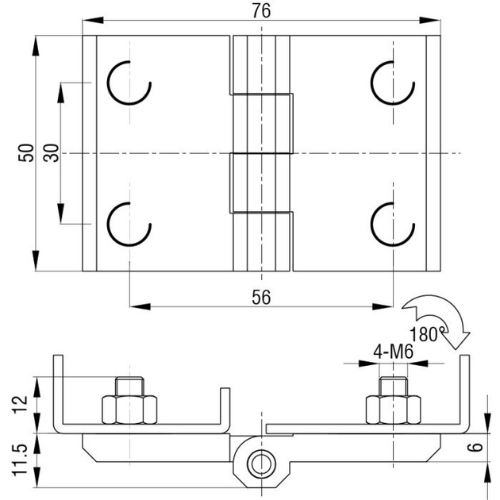

2101-5761-79 — the 2101-5761 is a 50x76mm screw-on hinge from the 2101 series, finished in bright chrome and fitted with M6 threaded studs for direct panel mounting. Designed for demanding industrial and structural applications, this hinge delivers an axial load capacity of 547kg and a radial load capacity of 633kg per hinge.
Constructed with a die cast zinc body with a mild steel zinc-plated body and an SS316 stainless steel pin, the 2101-5761 combines corrosion-resistant materials with robust mechanical performance. The bright chrome finish provides a clean, professional appearance alongside reliable surface protection. The hinge is unhanded, meaning it can be fitted in either orientation without the need to specify a left- or right-hand variant.
The M6 threaded stud fixing configuration suits applications where blind-side fastening is required or where a clean external face is preferred. With its substantial load ratings, this hinge is suited to heavier enclosures, access panels, industrial cabinets, and similar structural assemblies where both axial and radial forces must be reliably managed.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Colour/Finish | Bright Chrome |
|---|---|
| Material | Die Cast Zinc Alloy, SS316 Pin |
| Size | 50 × 76 mm |
| Axial Load Capacity | 547 kg per hinge |
| Radial Load Capacity | 633 kg per hinge |
| Model | 2101 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Screw On Hinge with M6 Stud, Bright Chrome Finish, Size 50x76mm, Axial Load Capacity 547Kg Per Hinge, Metrol - 2101-5761-79
|
Open Now |
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 2101-576-20 | 2101-576-30 | 2101-576-316 | 2101-5761-20 | 2101-6764-10 |
| Type | Hinge | Hinge | Hinge | Hinge | Hinge |
| Size | 50x76mm | 50x76mm | 50x76mm | 50x76mm | |
| Material | Stainless steel | ||||
| Finish | Chrome | ||||
| Thread | M6 | ||||
A. The 2101-5761 is rated at 547kg axial load capacity and 633kg radial load capacity per hinge.
A. The hinge body is die cast zinc alloy with mild steel zinc-plated components. The pin is SS316 stainless steel, and the threaded studs are included as supplied.
A. This variant has a bright chrome finish. The 2101 series is also available in a black powder coated finish.
A. No. The 2101-5761 is unhanded and can be fitted in either orientation without needing to select a left- or right-hand version.
A. The hinge is fitted with M6 threaded studs for panel mounting.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
