Product Number: 1437-110-S20

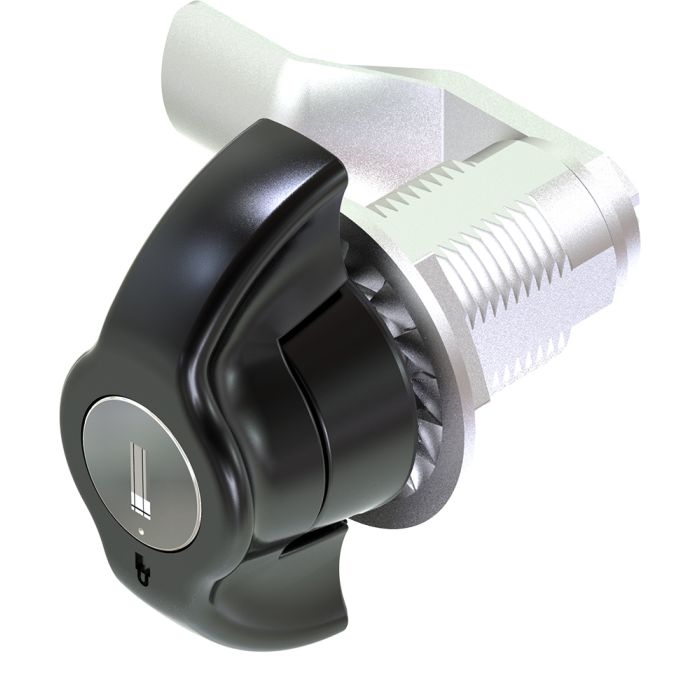

The 1437-110-S20 is a Model 1437 key locking wing knob compression latch with CH751 keying, designed for secure panel closure applications requiring both tool-free operation and positive key-controlled locking. Supplied with keys as standard, it is rated IP65 for dust and water ingress protection, making it suited to enclosures and equipment panels exposed to workshop or outdoor environments.
The latch housing and cylinder are constructed using zinc alloy die casting with a black powder coated finish, combining corrosion resistance with a durable appearance. The cam and shaft are mild steel with zinc plating. A range of cam profiles are available within the 1437 series, allowing selection to suit panel depth and engagement requirements.
The fixing aperture required is 19.5 x 19.5 mm and the latch accommodates panel thicknesses from 1 mm to 16 mm, covering a broad range of enclosure and cabinet construction gauges. Barrel height: 32 mm. The CH751 lock cylinder is key locking with keys supplied, providing controlled access without the need for a separate tool.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Barrel Height | 32mm |
|---|---|
| Cam Option | Range available |
| Colour/Finish | Black Powder Coated |
| IP Rating | IP65 |
| Lock Types | Key Locking CH751 (Keys supplied) |
| Material | Zinc Die, Zinc Die Body, Zinc Die Insert |
| Model | 1437 |
| Panel Cutout | 19.5x19.5mm |
| Panel Thickness | 1 - 16mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1421-05 | 1421-04 | 1421-20 | 1421-08 | 1422-060 | 1422-013 | 1422-047 | 1422-037 | 1422-068 | 1422-048 | 1422-038 | 1422-05 | 1422-20 | 1422-07 | 1423-048-30.S01 |
A. The latch uses a CH751 key locking cylinder. Keys are supplied as standard with the latch.
A. The required panel cutout is 19.5 x 19.5 mm. The latch accommodates panel thicknesses from 1 mm to 16 mm.
A. The 1437-110-S20 carries an IP65 rating, indicating protection against dust ingress and low-pressure water jets.
A. The housing and cylinder are die cast zinc alloy with a black powder coated finish. The cam and shaft are mild steel with zinc plating.
A. The barrel height is 32 mm.
A. Yes — a range of cam options is available within the 1437 series to suit different panel depths and engagement requirements.
