Product Number: 02316

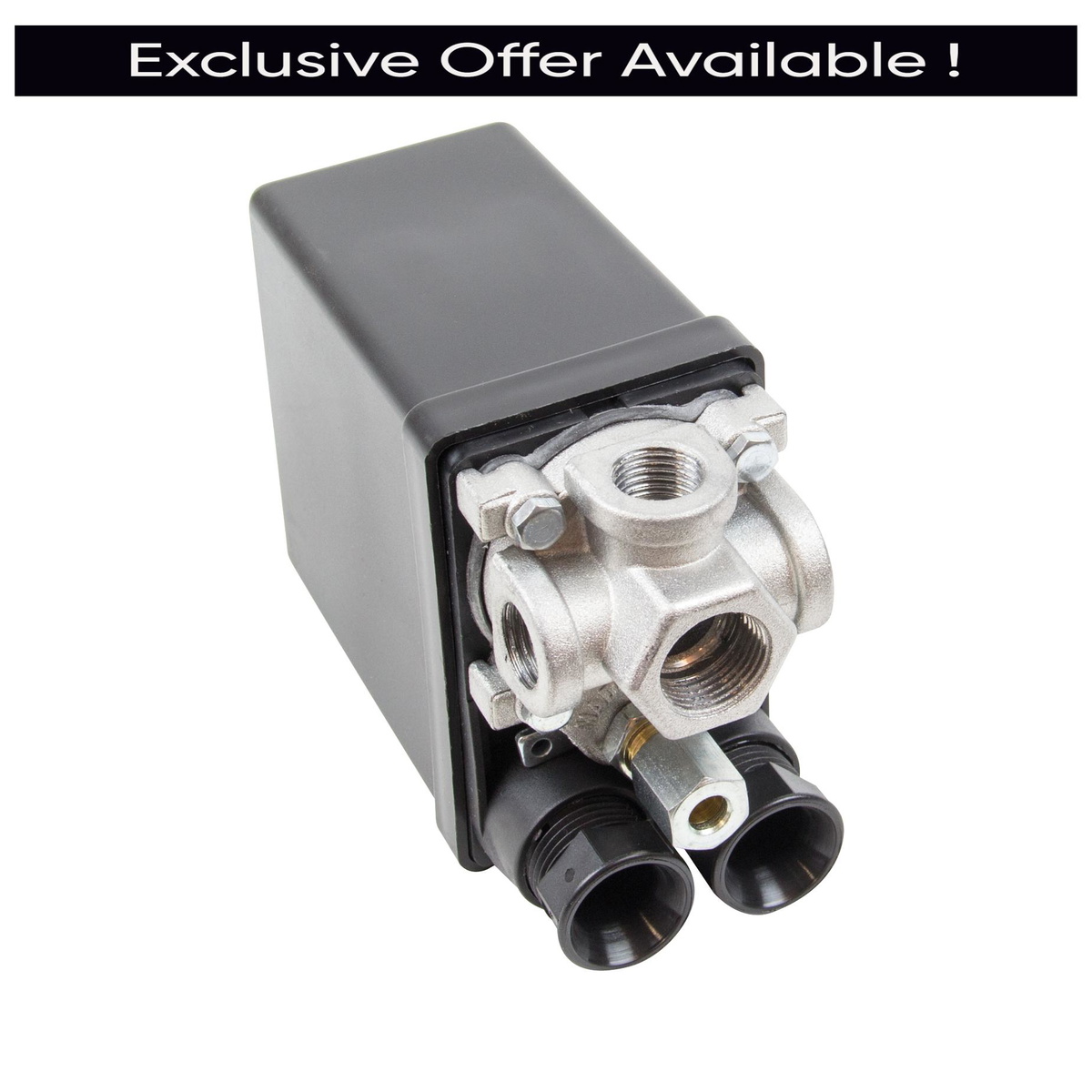

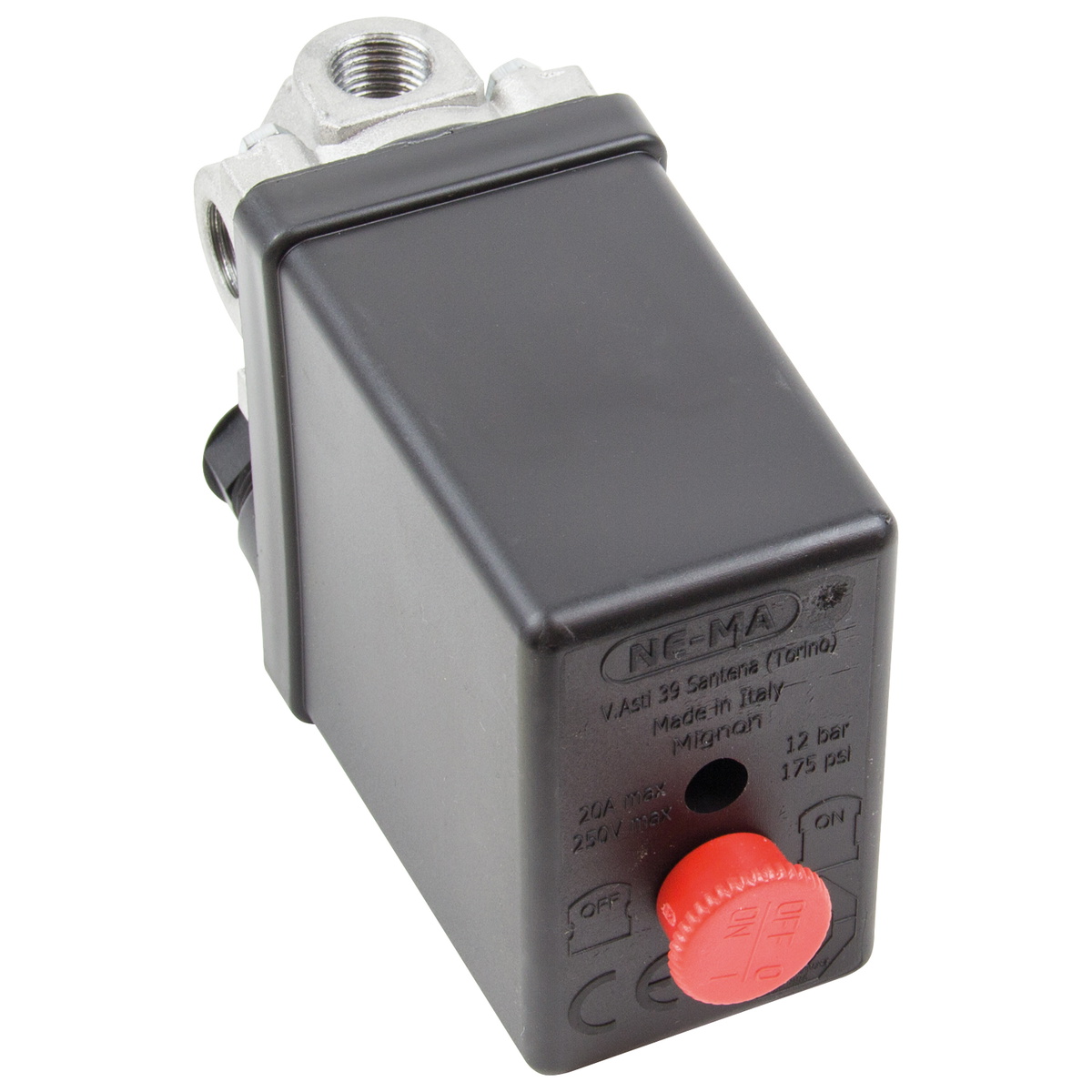

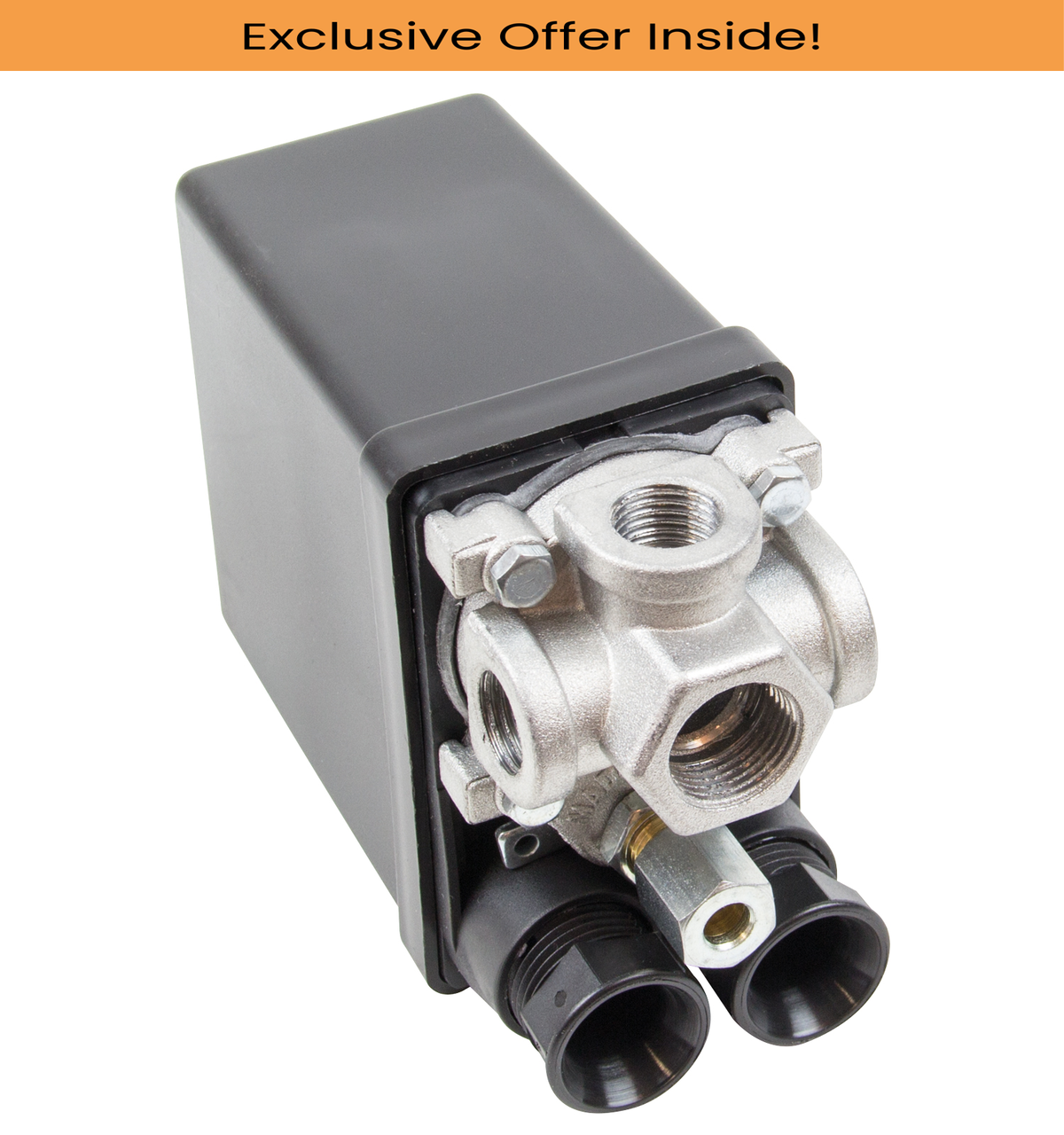

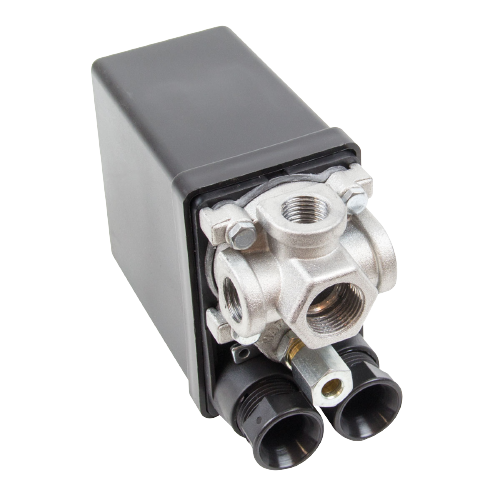

The SIP 02316 is a 3/8" BSP Mignon 4-Way Pressure Switch designed to maintain the correct operating pressure within an air compressor system. Rated at 230V / 20A and configured for single-phase operation, it is an important component for any air compressor, starting the compressor motor when pressure drops below the set level and stopping it once the required pressure is reached.
The switch features a bottom-entry 3/8" BSP inlet connection alongside three 1/4" BSP side ports, accommodating a range of standard air line configurations. The cut-off pressure is easily adjustable via the integrated pull-type switch mechanism, giving the operator direct control over system pressure without the need for additional tools. An integrated bleed facility with a 6mm pipe entry is also included, further supporting safe and controlled pressure management.
Built for long-lasting and reliable use, the two-pole, single-phase design suits direct replacement or installation in compressor systems drawing on a standard 230V supply. The Mignon 4-Way configuration and BSP port sizing make it compatible with a broad range of workshop air compressors requiring this switch format.
This product is a spare part intended to replace the original pressure switch on compatible air compressor units. As a replacement component, it is supplied as a single switch assembly ready for installation.
Additional Information:
The SIP 3/8" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached. This easy-to-install switch offers 3x 1/4" BSP port and adjustable cut-off pressure.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 02316 |
|---|---|
| Switch Type | Mignon 4-Way |
| Voltage / Current | 230v / 20A |
| Overload | N/A |
| Inlet Connection Size | 3/8" BSP |
|
Inlet Connection Type Bottom Entry
|
|
| Side Port Size | 3x 1/4" BSP |
| Switch Type | Pull |
| Phase Type | 1-phase |
| No. of Poles | 2 poles |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02315 | 02314 | EX-047-001 | 02357A | 02359 |
| Type | Switch | Switch | Cooling Fan | Mounting | Spare Part |
| Format | Single | ||||
A. The SIP 02316 is a Mignon 4-Way pressure switch with a bottom-entry 3/8" BSP inlet connection and three 1/4" BSP side ports. It operates on a pull-type switch mechanism and is rated at 230V / 20A, single-phase, with two poles.
A. The switch monitors system pressure and automatically starts the compressor motor when pressure falls below the set level, then stops the motor once the required pressure is reached. This maintains consistent operating pressure as demanded by the operator and connected air-powered equipment.
A. The cut-off pressure is adjustable via the built-in pull-type switch integrated into the unit, allowing the operator to set the desired pressure level without separate tooling.
A. The SIP 02316 is rated at 230V / 20A, is single-phase, and has 2 poles. It is designed for use with standard single-phase electric compressor motors on a 230V supply.
A. The inlet connection is 3/8" BSP, bottom entry. There are three side ports each sized at 1/4" BSP. An integrated bleed facility with a 6mm pipe entry is also featured.
A. Yes — the SIP 02316 is a replacement pressure switch component intended for installation in compatible air compressor units that use a Mignon 4-Way 3/8" BSP pressure switch format.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
