Product Number: 02314
Variations

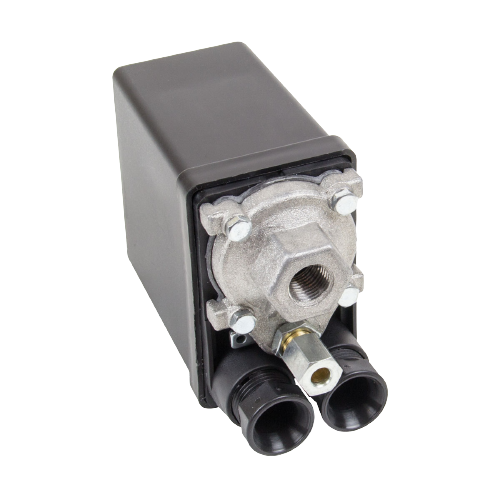

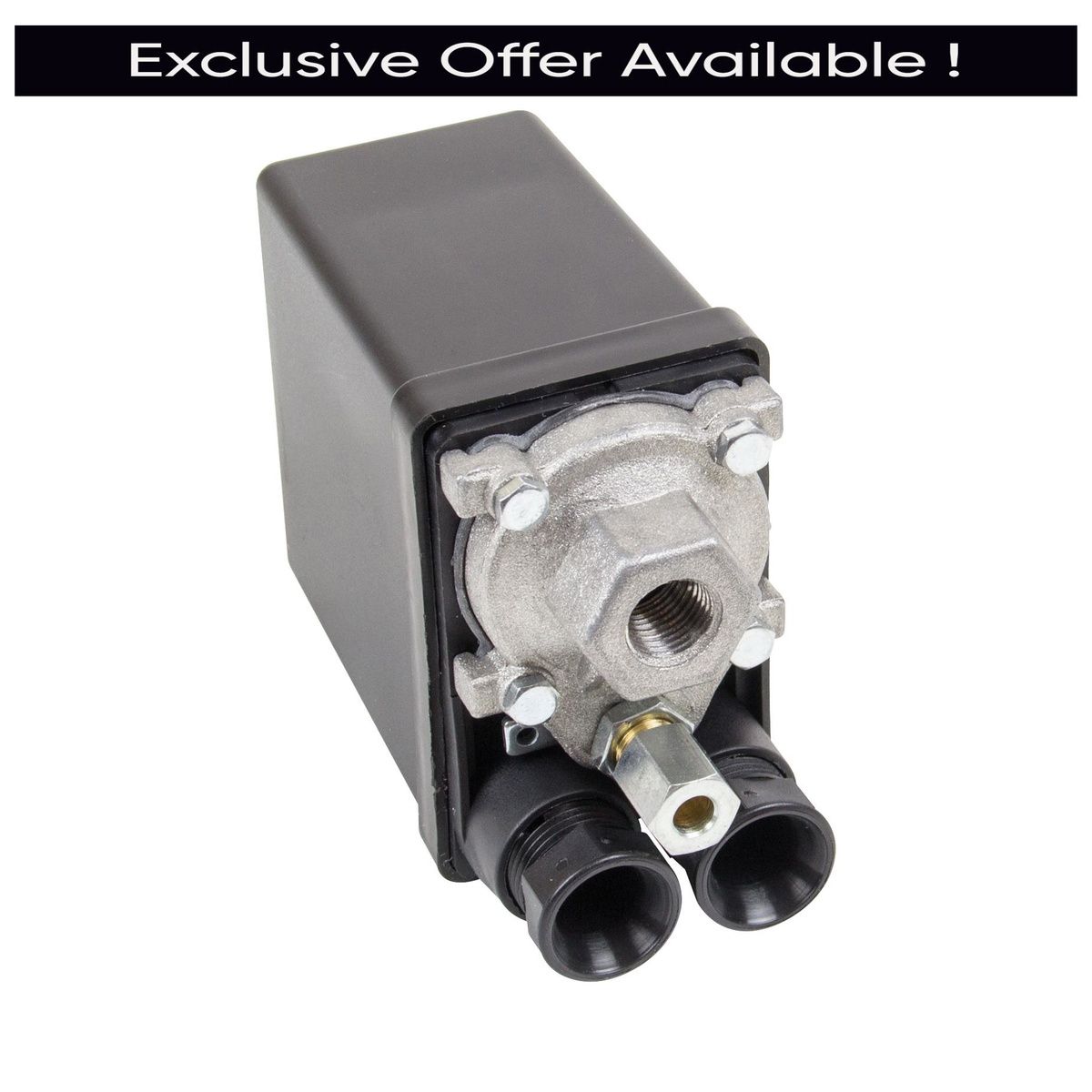

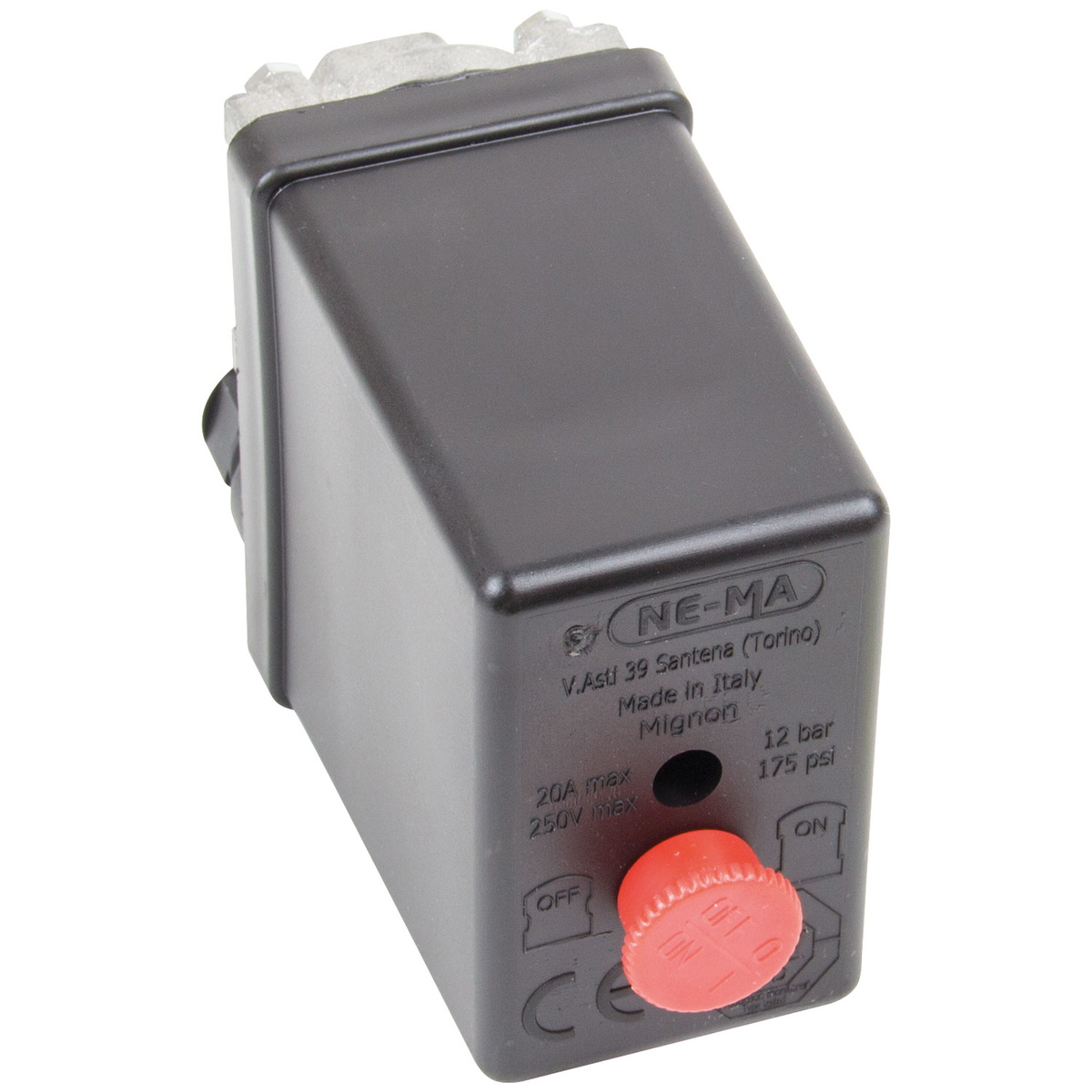

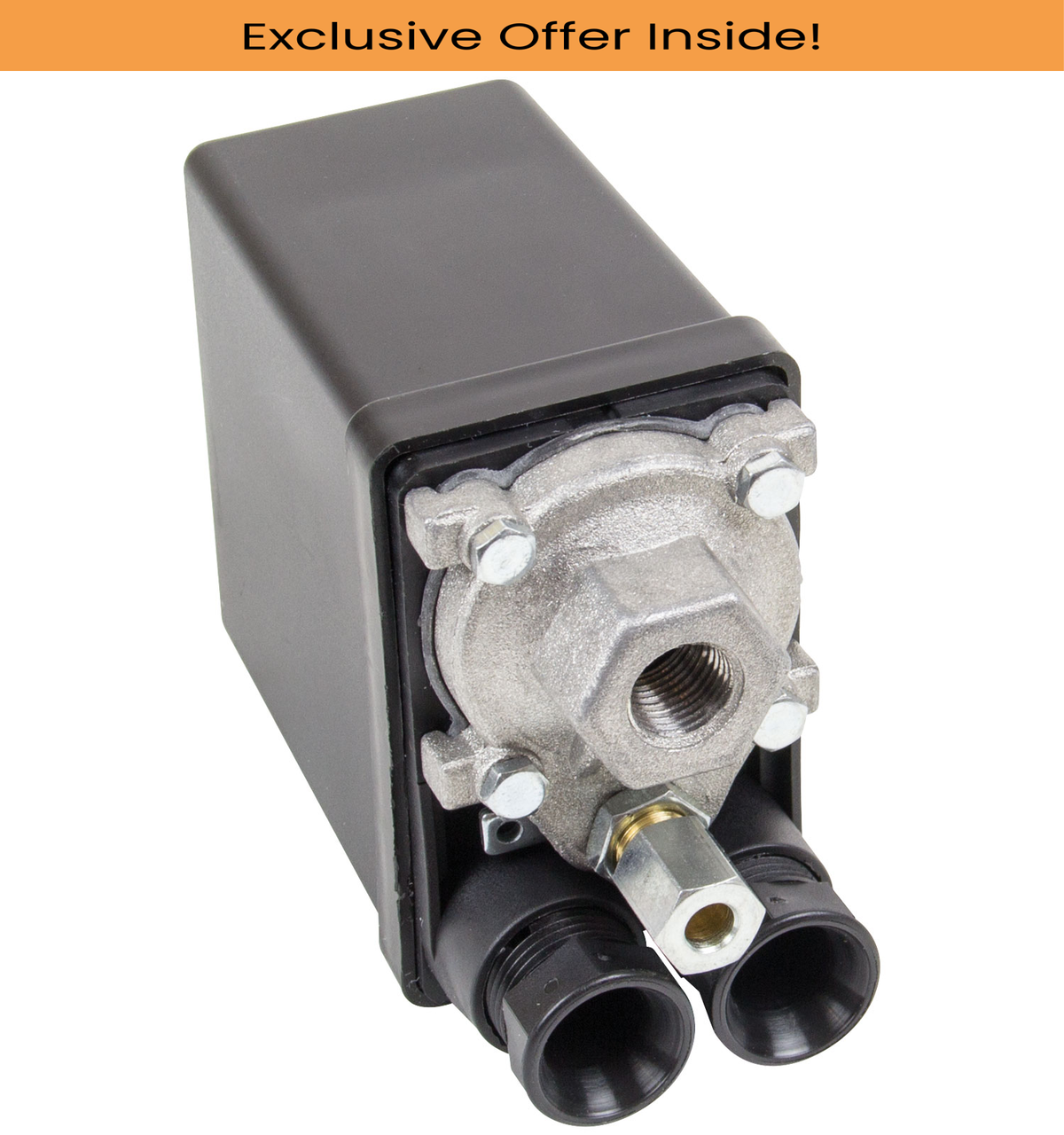

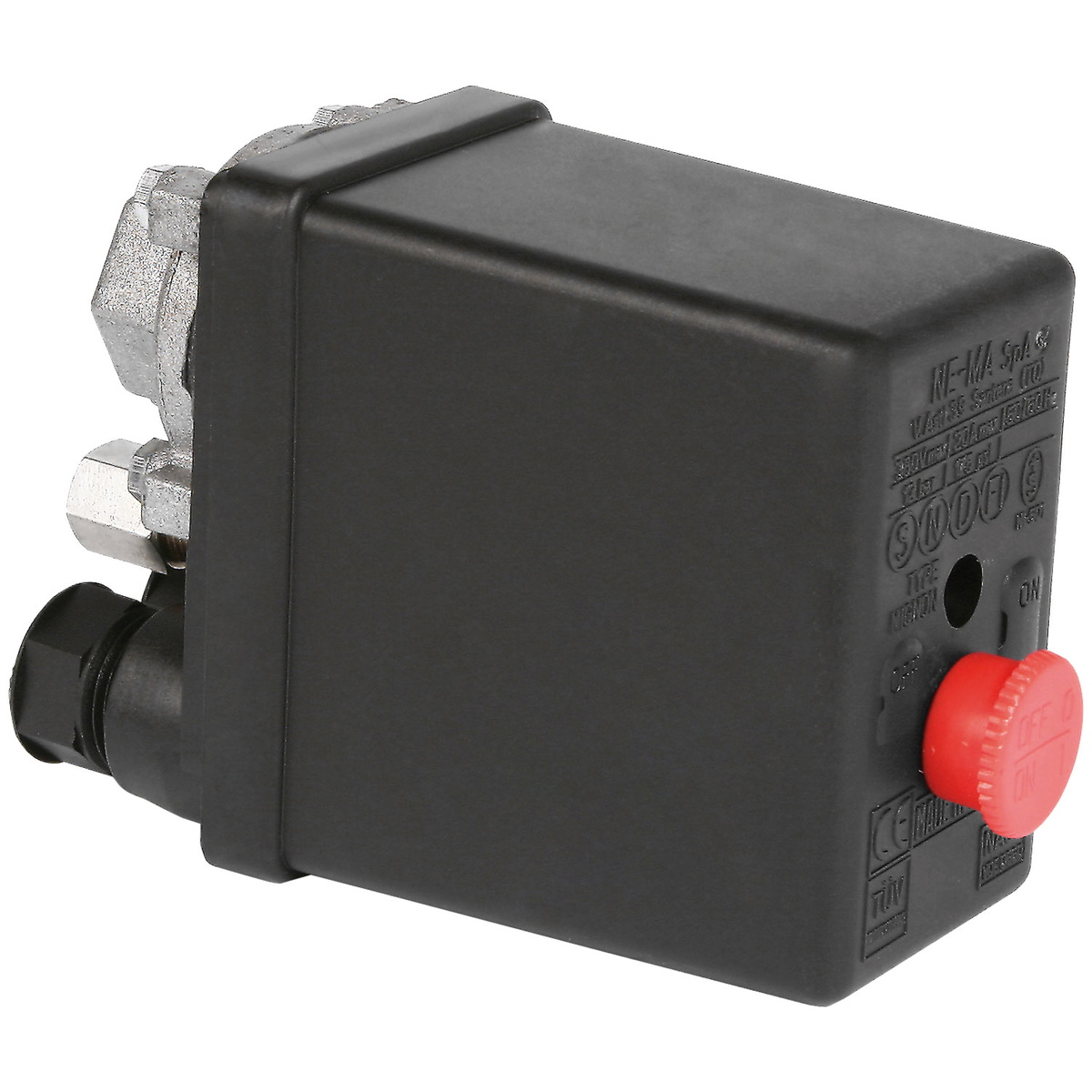

The SIP 02314 is a 1/4" BSP 1-way pressure switch designed to maintain the proper pressure level demanded by the operator and air-powered equipment within an air compressor system. Rated at 230V / 16A and configured for single-phase operation, it is a direct replacement component suited to compressors requiring a Mignon-type, 2-pole, pull-action switch.
This pressure switch functions by starting the compressor motor when system pressure falls below the required level and stopping it once the target pressure is reached. The cut-off pressure is easily adjustable via the built-in switch, giving the operator direct control over operating parameters. An integrated bleed facility with a 6mm pipe entry is included, and the inlet connection is bottom-entry type.
The 1/4" BSP bottom-entry inlet connection and single side port configuration make this switch compatible with a range of compressor pressure vessel fittings. With 2-pole protection and a Mignon switch type, it is engineered for dependable and long-lasting use within electric compressor motor control circuits. No overload protection is incorporated in this unit, as indicated by the N/A overload specification.
This switch is offered as a spare part for SIP air compressor systems. Operators requiring alternative pressure switch configurations should check the SIP spare parts range for variants suited to different connection sizes, port counts, or phase requirements.
The SIP 02314 is supplied as a single unit. No warranty information is stated in the available product data. Manufactured for the SIP range.
Additional Information:
The SIP 1/4" 1-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached. This pressure switch is easy-to-install and offers dependable and long-lasting use.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 02314 |
|---|---|
| Switch Type | Mignon |
| Voltage / Current | 230v / 16A |
| Overload | N/A |
| Inlet Connection Size | 1/4" BSP |
|
Inlet Connection Type Bottom Entry
|
|
| Side Port Size | None |
| Switch Type | Pull |
| Phase Type | 1-phase |
| No. of Poles | 2 poles |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02315 | 02316 | EX-047-001 | 02357A | 02359 |
| Type | Switch | Switch | Cooling Fan | Mounting | Spare Part |
| Format | Single | ||||
A. The SIP 02314 is a 1-way pressure switch designed for use with air compressors. It starts the compressor motor when system pressure drops below the required level and stops it once the set pressure is reached, helping to maintain the correct operating pressure for the operator and air-powered equipment.
A. The switch is rated at 230V / 16A, operates on a single-phase supply, and features a 2-pole configuration. The switch type is Mignon with a pull-action mechanism. No overload function is incorporated.
A. The SIP 02314 has a 1/4" BSP inlet connection with a bottom-entry configuration. It has no side ports. The integrated bleed facility includes a 6mm pipe entry.
A. The cut-off pressure is easily adjustable via the built-in switch on the unit, allowing the operator to set the required pressure level directly on the switch.
A. The SIP 02314 is a spare part designed for electric air compressor motor control circuits requiring a Mignon-type, 2-pole, pull-action, single-phase pressure switch with a 1/4" BSP bottom-entry inlet. Verify that your compressor requires these specifications before ordering.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
