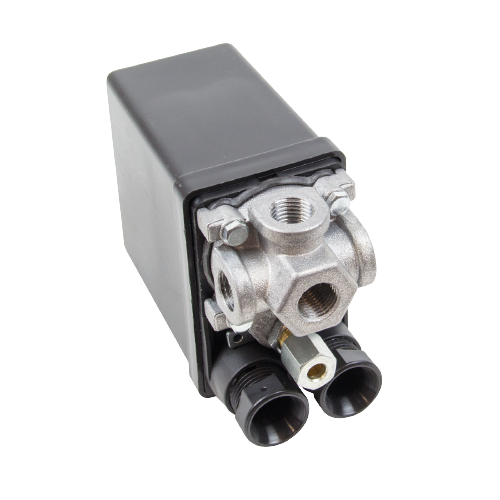

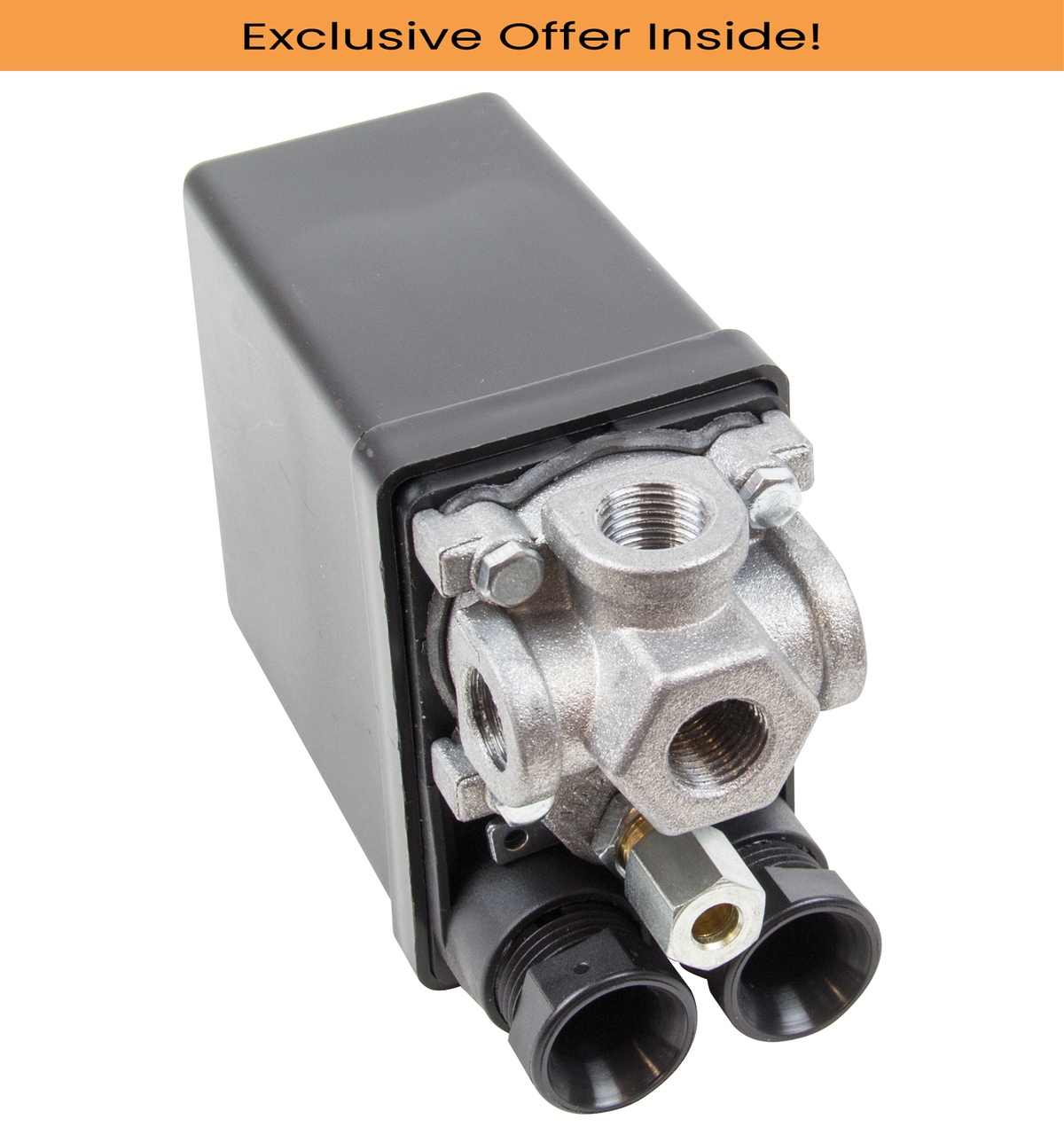

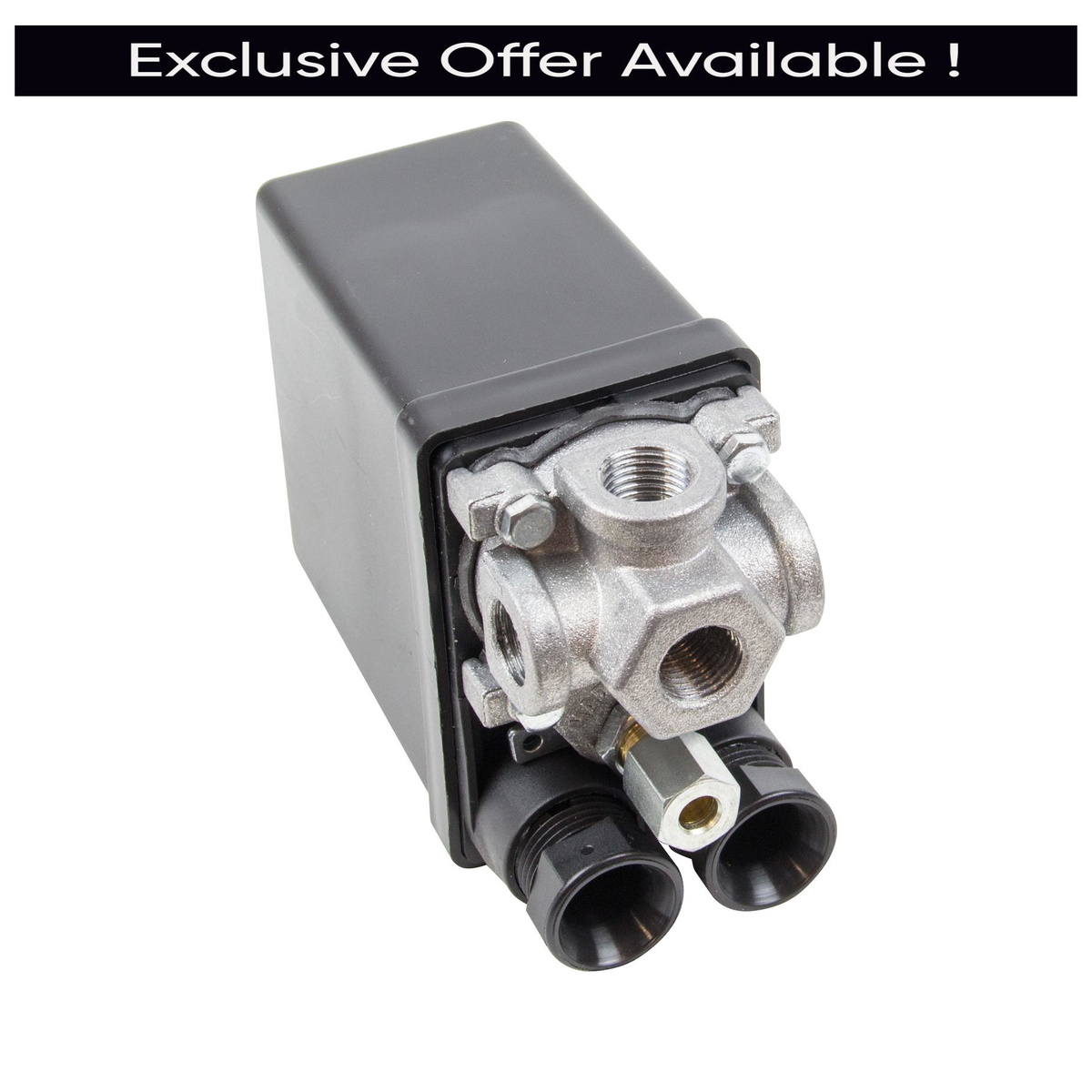

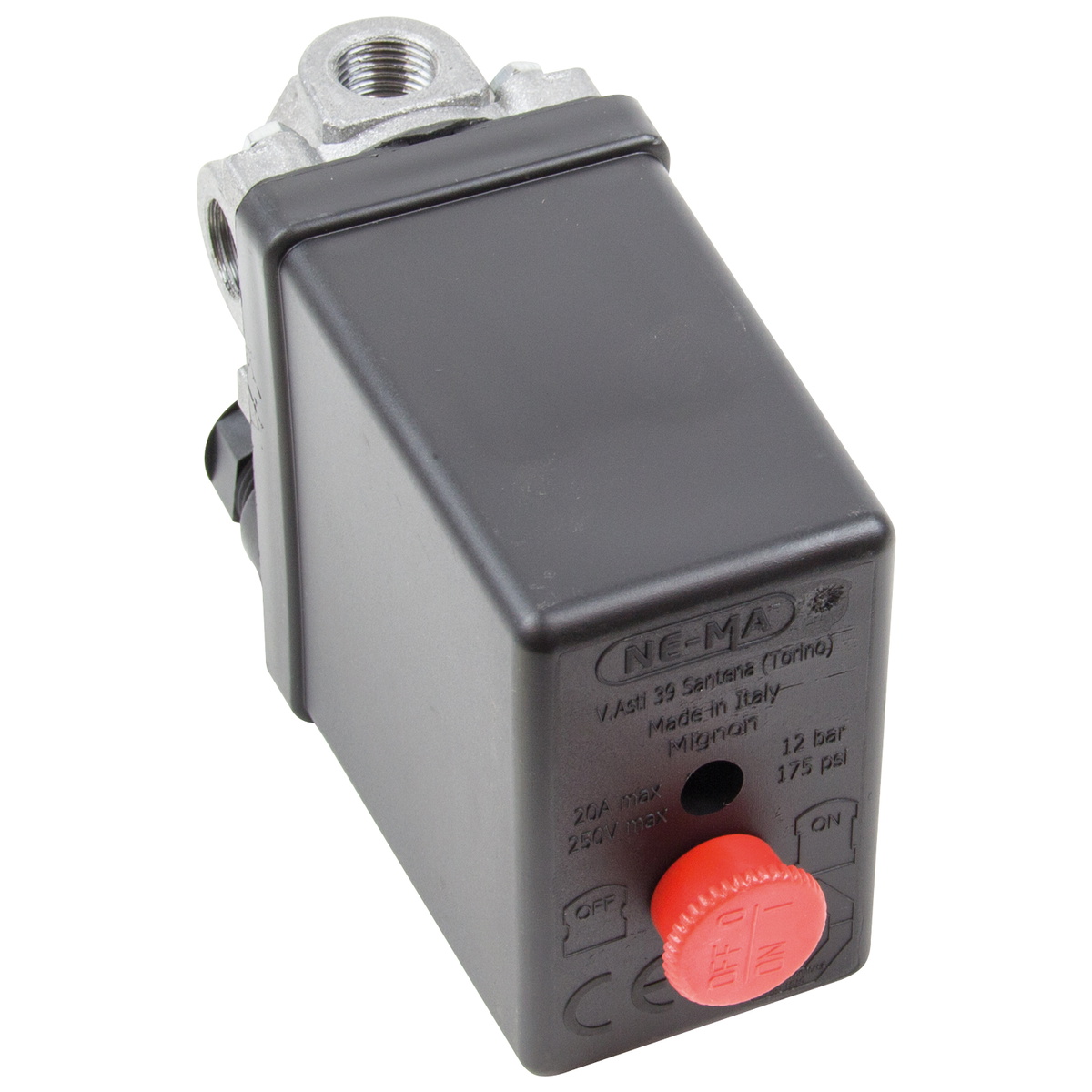

The SIP 02313 is a 1/4" BSP Mignon 4-Way Pressure Switch designed to start and stop electric compressor motors, maintaining the correct pressure level demanded by the operator and air-powered equipment. Rated at 230V / 16A and configured for single-phase, 2-pole operation, it is an important replacement component for any air compressor pressure control circuit.
The switch features a bottom-entry 1/4" BSP inlet connection alongside three 1/4" BSP side ports, giving four connection points in total for integration into a standard compressor manifold. Cut-off pressure is easily adjustable via the built-in pull-type switch mechanism, and an integrated bleed facility with 6mm pipe entry is included. The unit is manufactured for long-lasting and reliable use in workshop environments.
Fitted as a Mignon 4-Way type, the SIP 02313 starts the compressor motor automatically when system pressure drops below the set threshold and cuts the motor when the required pressure is reached. This automatic cycling protects both the motor and downstream air tools from over- or under-pressure conditions. The single-phase electrical rating makes it suitable for standard 230V workshop supplies.
This pressure switch is a direct spare part for SIP air compressors that use a 1/4" BSP Mignon 4-Way switch arrangement. Buyers should verify inlet connection size and voltage rating against their existing switch before ordering.
Additional Information:
The SIP 1/4" 4-Way Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached. This easy-to-install switch offers 3x 1/4" BSP ports and adjustable cut-off pressure.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 02313 |
|---|---|
| Switch Type | Mignon 4-Way |
| Voltage / Current | 230v / 16A |
| Overload | N/A |
| Inlet Connection Size | 1/4" BSP |
|
Inlet Connection Type Bottom Entry
|
|
| Side Port Size | 3x 1/4" BSP |
| Switch Type | Pull |
| Phase Type | 1-phase |
| No. of Poles | 2 poles |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | 02315 | 02359 | 04075 |
| Type | Switch | Spare Part | Coupler |
A. The SIP 02313 is designed to start the compressor motor when system pressure falls below the set level and stop it once the required pressure is reached, maintaining correct pressure for the operator and air-powered equipment.
A. The switch has a bottom-entry 1/4" BSP inlet connection and three 1/4" BSP side ports, providing four connection points in total.
A. Yes — the cut-off pressure is easily adjustable via the built-in pull-type switch mechanism.
A. The SIP 02313 features an adjustable cut-off pressure via its integrated built-in switch. For specific adjustment procedures, refer to the compressor manufacturer's service documentation for your machine model.
A. The switch is rated at 230V / 16A, single-phase, 2-pole. Overload rating is not applicable for this component.
A. Yes — the SIP 02313 includes an integrated bleed facility with a 6mm pipe entry.
A. It is a Mignon 4-Way type with a pull-type switch action.
