Product Number: 02315

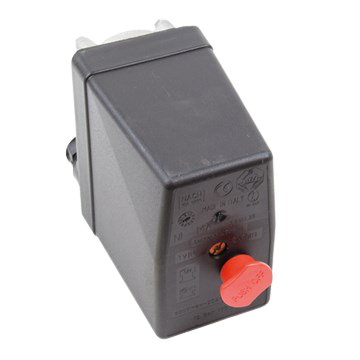

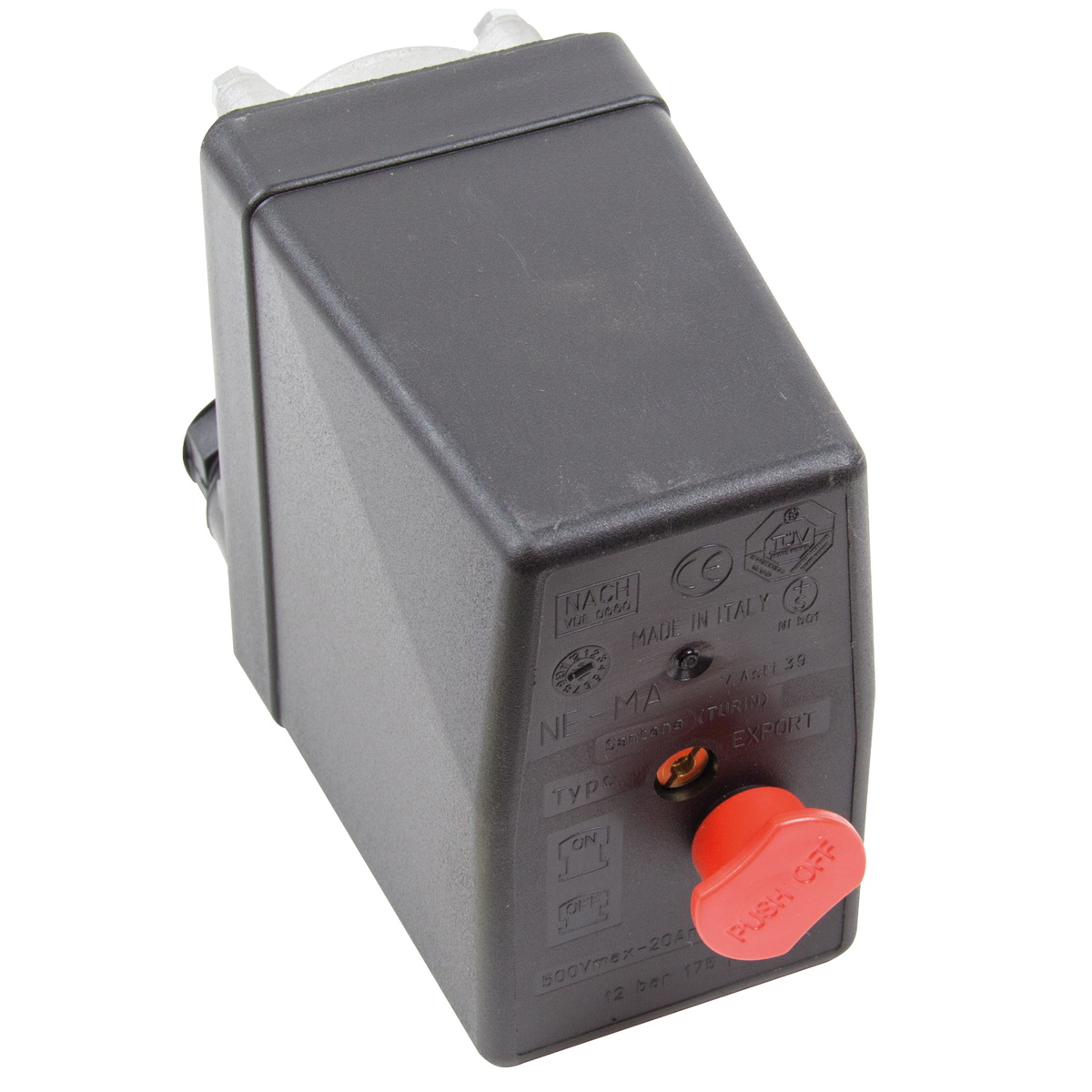

The SIP 02315 is a 1/4" BSP, 3-phase pressure switch designed to maintain the correct operating pressure within air compressor systems. Built for professional workshop environments where 3-phase power is standard, it starts the compressor motor when system pressure falls below the required level and stops it once the set pressure is reached, ensuring consistent, controlled air delivery.
This pressure switch offers an easily adjustable cut-off pressure via its built-in pull-type switch, giving operators direct control over the pressure range to suit their equipment. It features a bottom-entry inlet connection, an integrated bleed facility with 6 mm pipe entry, and is rated at 400 V / 20 A across 3 poles — making it suitable for 3-phase motor control duties in compressor installations.
Identified by switch type PS20 and carrying no side port, the 02315 is a 1-way configuration with a 1/4" BSP inlet. Its bottom-entry design suits typical compressor manifold installations. The switch is manufactured for dependable, long-lasting use and is described as easy to install, reducing downtime during maintenance or replacement tasks.
This item is a replacement spare component for air compressor systems. Operators seeking compatible compressor spares and accessories within the SIP range should refer to the linked parts on the product page or contact PFM with their machine model.
Additional Information:
The SIP 1/4" 1-Way 3-PHASE Pressure Switch is an important component for any air compressor, helping to maintain the proper pressure level demanded by the operator and air-powered equipment. This is achieved by starting the compressor motor when the pressure is lower, and stopping it when the required pressure is reached. This pressure switch is easy-to-install and offers dependable and long-lasting use.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 02315 |
|---|---|
| Switch Type | PS20 |
| Voltage / Current | 400v / 20A |
| Overload | N/A |
| Inlet Connection Size | 1/4" BSP |
|

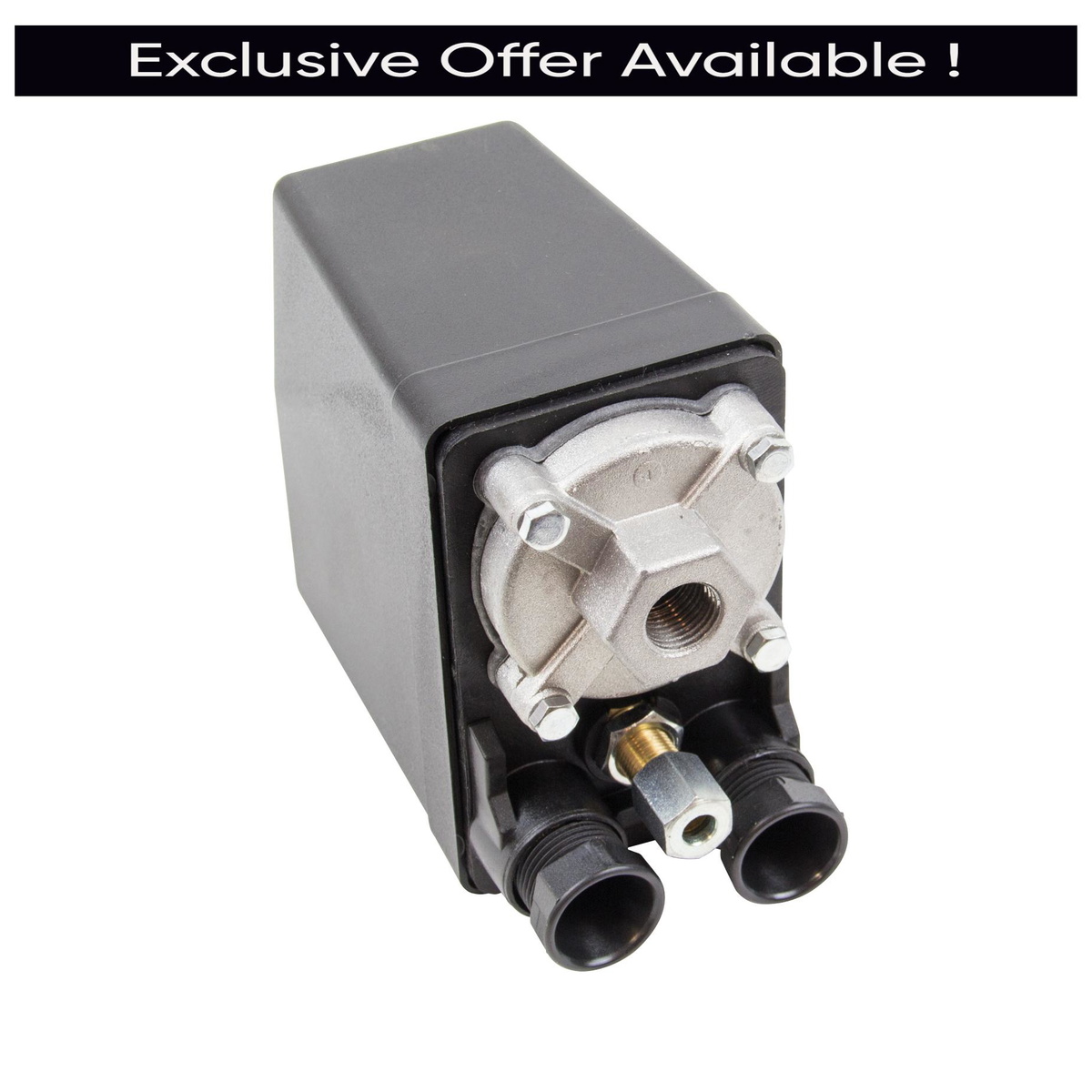

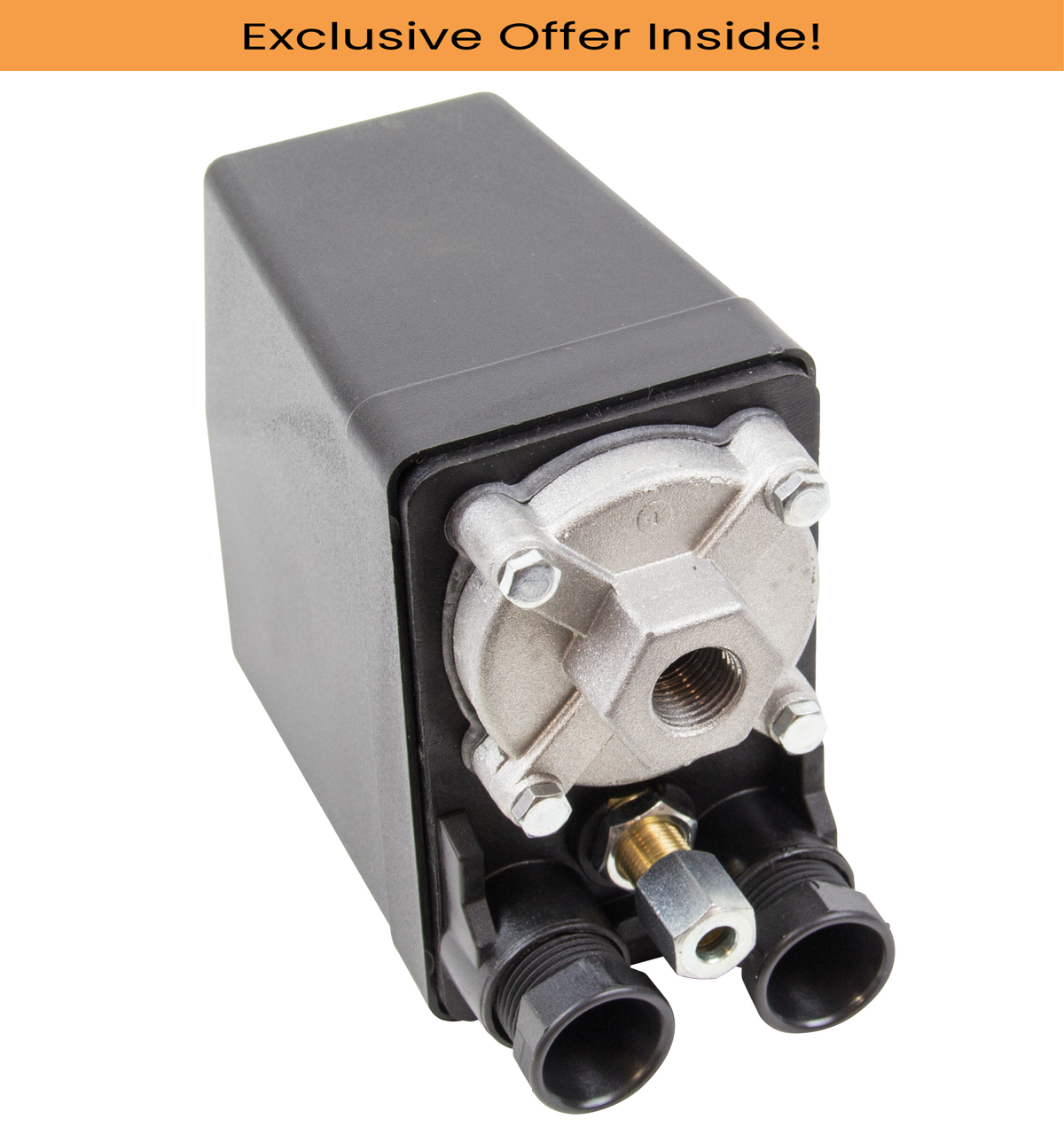

Inlet Connection Type Bottom Entry
|
|
| Side Port Size | None |
| Switch Type | Pull |
| Phase Type | 3-phase |
| No. of Poles | 3 poles |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 02313 | 02314 | 02316 | EX-047-001 | 02357A |
| Type | Switch | Switch | Switch | Cooling Fan | Mounting |
| Format | Single | ||||
A. It monitors air pressure within a compressor system, automatically starting the motor when pressure drops below the required level and stopping it once the set pressure is reached — maintaining consistent operating pressure for the operator and connected equipment.
A. The switch is rated at 400 V / 20 A and is configured for 3-phase power with 3 poles. It is identified as switch type PS20.
A. The inlet connection is 1/4" BSP with a bottom-entry configuration. There is no side port on this switch.
A. The cut-off pressure is adjusted via the built-in pull-type switch, allowing the operator to set the required pressure level directly on the unit.
A. Yes — the switch incorporates an integrated bleed facility with a 6 mm pipe entry.
A. No. The SIP 02315 is a 3-phase, 3-pole switch rated at 400 V and is intended for use with 3-phase compressor motors only. It is not suitable for single-phase installations.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
