Product Number: HBS97
Variations

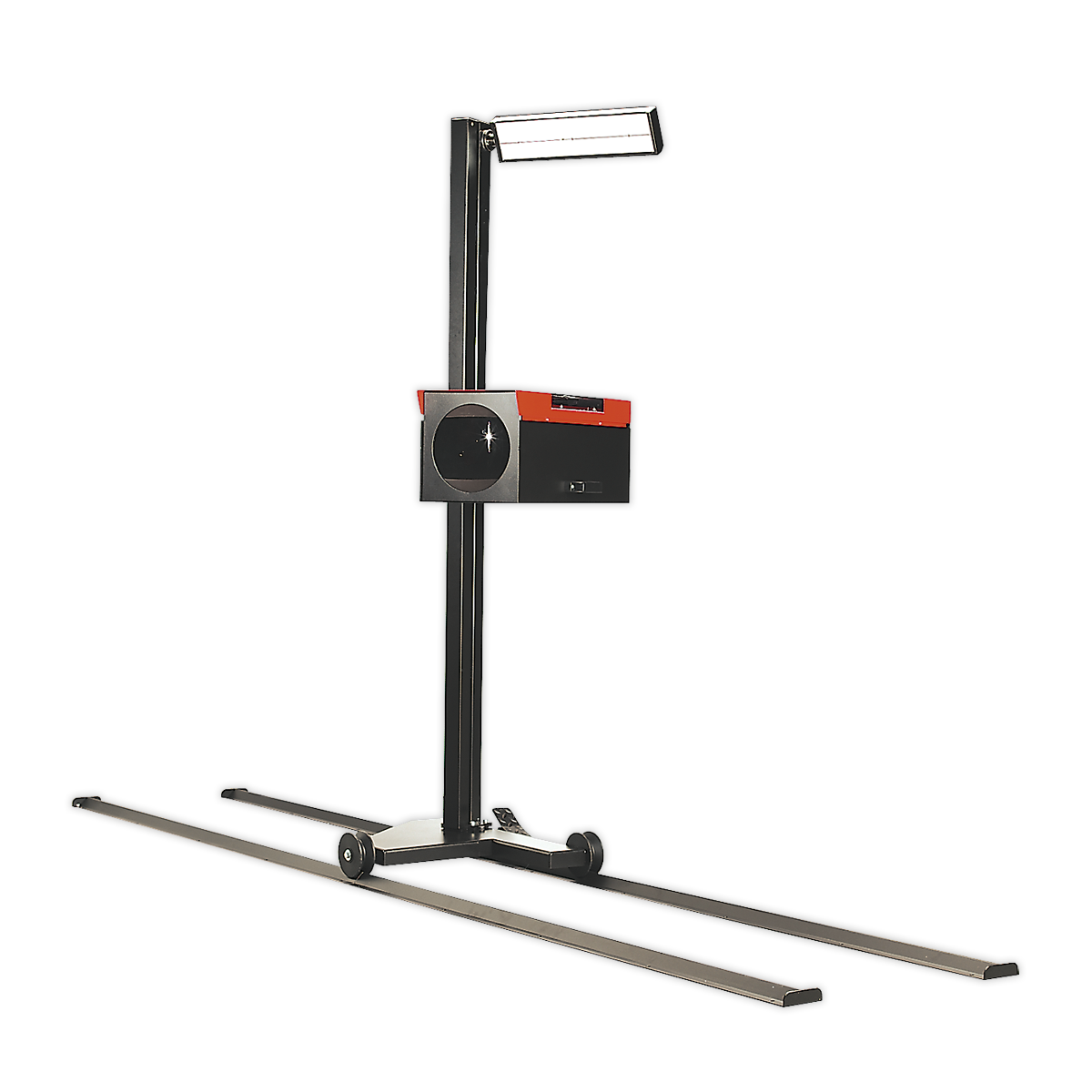

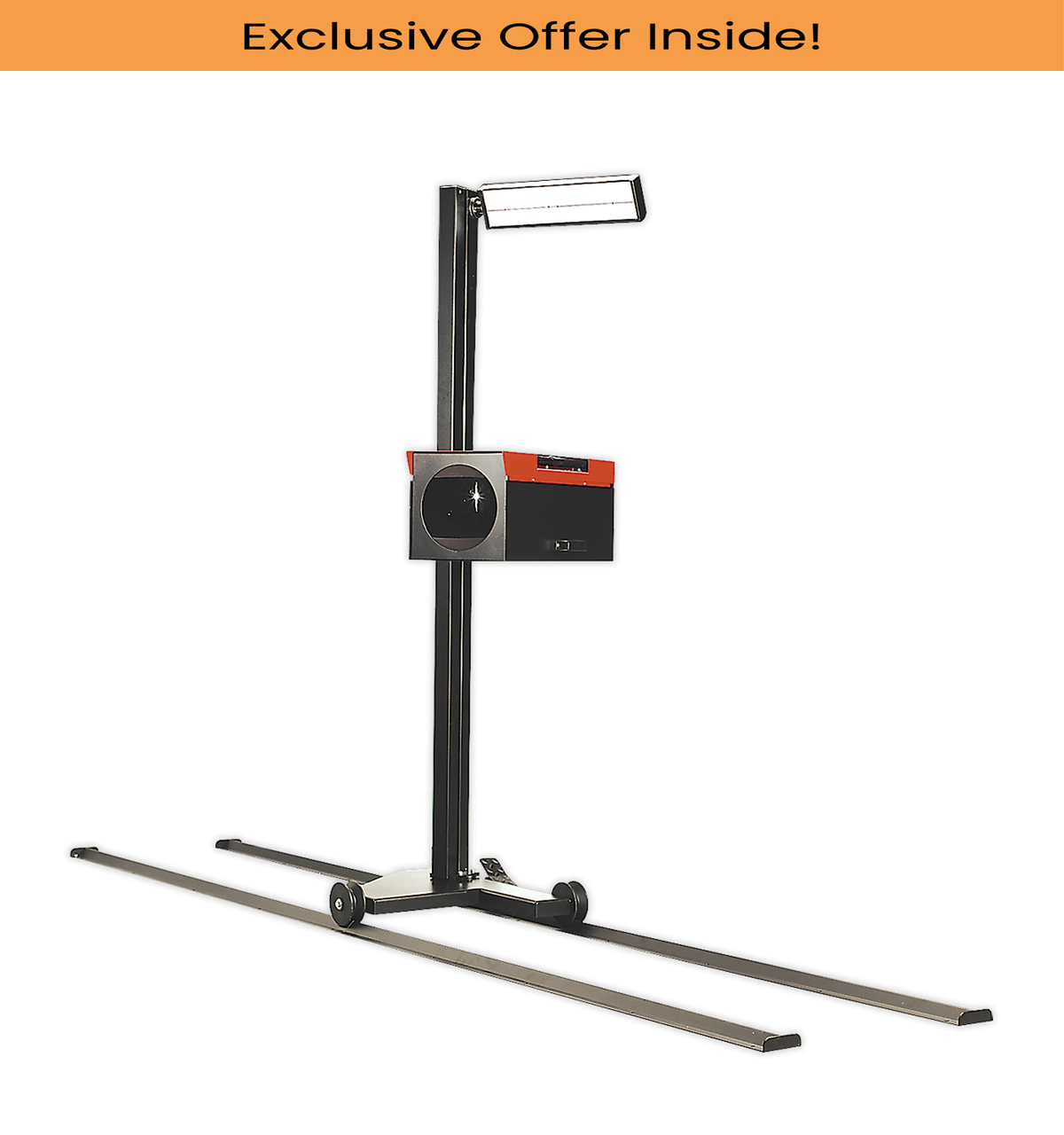

Incorrectly aimed headlamps are a common MOT failure point and a genuine road safety hazard. The Sealey HBS97 Headlamp Beam Setter gives testing stations and workshops the precision tooling needed to measure and assess headlamp alignment accurately and to official standards. DVSA approved for use in testing stations, it covers Classes I, II, III, IV, V, and VII and is suitable for all types of motorcycles, cars, and light commercial vehicles. The fixed aiming screen and internal analogue LUX metre allow accurate light intensity measurement without the need for external instruments. The unit stands 1750mm tall with a beam measurement range of 240mm to 1410mm in height, a focal length of 489mm, and overall dimensions of 690mm (L) x 660mm (W). Supplied complete with a 2970mm rail set ready for MOT use, plus instructions and a certificate of approval. Optional extension rails HBS97E (1520mm) and HBS97ES (700mm) are also available.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HBS97 |
|---|---|
| Brand | Sealey |
| Focal Length | 489mm |
| Height | 1750mm |
| Length | 690mm |
| Max. Height Beam Measurement | 1410mm |
| Min. Height Beam Measurement | 240mm |
| Nett Weight | 43.0kg |
| Optional Accessories | HBS97E - 1520mm Extension Rail, HBS97ES - 700mm Extension Rail |
| Rail Length | 2970mm |
| Width | 660mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
HBS97ES | Sealey HBS97ES Extension Rail Set for HBS97 Headlamp Beam Setter 700mm | 1 Unit |
£128.62
£126.10
|
Add |
|
HBS97E | Sealey HBS97E Extension Rail Set for HBS97 Series - 1520mm | 1 Unit |
£220.66
£216.33
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey HBS97.HGV Headlamp Beam Setter with Rails & Commercial Aiming Screen
£1,474.79
£1,445.87
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HBS97.HGV | 48325 | GO2114 | 53400800 | GO2100PRO | PPVT |
A. Yes. The HBS97 is DVSA approved for use in testing stations and is supplied with a certificate of approval.
A. The HBS97 covers Classes I, II, III, IV, V, and VII and is suitable for all types of motorcycles, cars, and light commercial vehicles.
A. Yes. The HBS97 is supplied with rails measuring 2970mm in length, ready for MOT station use.
A. The HBS97 measures headlamp beam height between a minimum of 240mm and a maximum of 1410mm.
A. The HBS97 features an internal analogue LUX metre for accurate light intensity measurement.
A. Yes. Two optional extension rail accessories are available: the HBS97E (1520mm extension rail) and the HBS97ES (700mm extension rail).
A. The HBS97 stands 1750mm tall and measures 690mm in length and 660mm in width, with a focal length of 489mm.
A. Two further versions are available within this product family: HBS97.HGV and HBS97R. Please contact Parts for Machines for confirmation of which variant best suits your requirements.
A. The HBS97 is supplied with rails for MOT use, instructions, and a certificate of approval.
