Product Number: HBS97.HGV
Variations

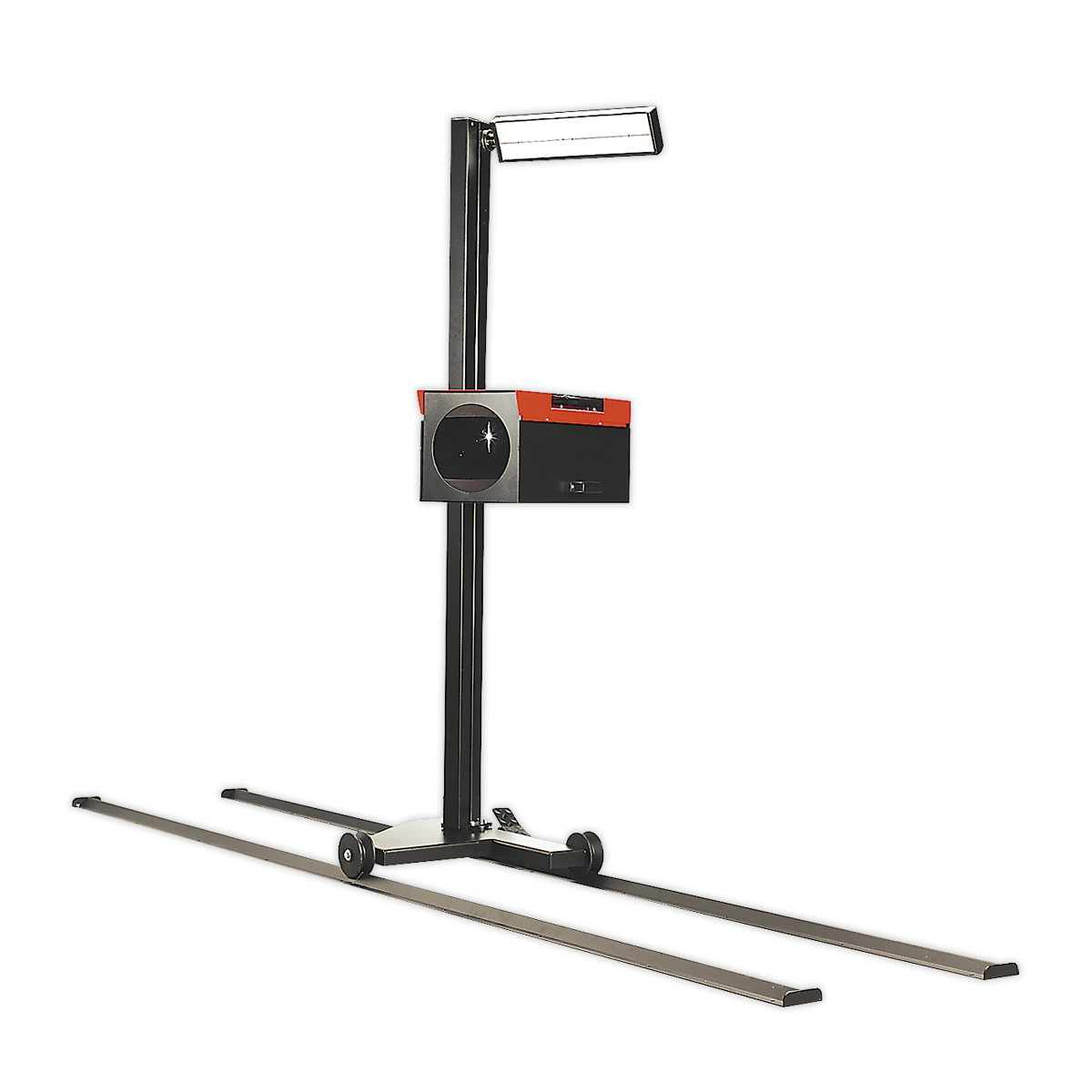

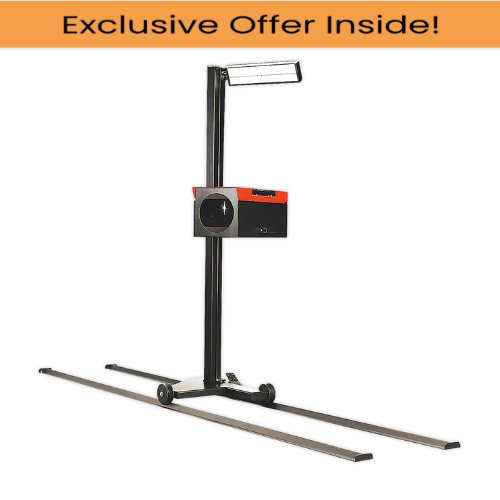

Running a test station that handles HGVs, PSVs and commercial vehicles alongside cars and motorcycles means your headlamp beam setting equipment must meet the full range of DVSA requirements and not all beam setters are approved for the job. The Sealey HBS97.HGV is DVSA Approved and covers Classes I through to VII plus HGV, making it suitable for MOT test stations that are also Class VI and HGV certified. The fixed aiming screen and internal analogue LUX metre provide accurate light intensity measurement across all vehicle types, from motorcycles through to heavy commercial vehicles. Beam height measurement ranges from 240mm to 1410mm, accommodating the variety of vehicle heights encountered in a full-service testing environment. The unit has a focal length of 489mm and overall dimensions of 690mm (L) x 660mm (W) x 1750mm (H), with a rail length of 2970mm providing a stable, consistent testing setup. Supplied complete with rails, instructions and certificate of approval.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | HBS97.HGV |
|---|---|
| Brand | Sealey |
| Focal Length | 489mm |
| Height | 1750mm |
| Length | 690mm |
| Max. Height Beam Measurement | 1410mm |
| Min. Height Beam Measurement | 240mm |
| Nett Weight | 43kg |
| Rail Length | 2970mm |
| Width | 660mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey HBS97 DVSA Approved Headlamp Beam Setter with Rails - MOT Use
£1,231.23
£1,207.09
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | HBS97 | 48325 | GO2114 | 53400800 | GO2100PRO | PPVT |
A. Yes, the Sealey HBS97.HGV is DVSA Approved for use in testing stations.
A. It covers Classes I, II, III, IV, V, VI, VII and HGV, making it suitable for motorcycles, cars, light commercial, PSV and commercial vehicles.
A. The HBS97.HGV is only suitable for MOT test stations that are also Class VI and HGV certified. If your station does not hold Class VI and HGV certification, please refer to the product label for guidance, or contact Parts for Machines for confirmation.
A. The minimum beam height measurement is 240mm and the maximum is 1410mm.
A. The focal length is 489mm and the rail length is 2970mm.
A. The unit is supplied with rails, instructions and a certificate of approval.
A. It features an internal analogue LUX metre for accurate light intensity measurement.
A. Yes, variants in the same product family include the HBS97 and HBS97R. Please contact Parts for Machines to confirm which variant best suits your testing station requirements.
A. The unit measures 690mm (L) x 660mm (W) x 1750mm (H).
