Sykes Pickavant 387800SP Super Heavy Duty Pneumatic Coil Spring Compressor Workstation

Product Number: 387800SP

£4,377.74 £4,291.90

OUT OF STOCK

PRE-BOOK FIND ALTERNATES

Variations

Standard Workstation

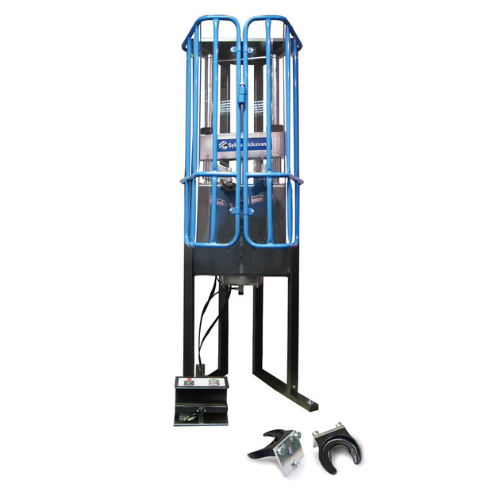

Sykes-Pickavant 387800SP Super Heavy Duty Pneumatic Coil Spring Compressor Workstation is designed for the toughest struts and coil springs found on cars, SUVs, 4WDs and light commercial vehicles. Using a powerful pneumatic cylinder operating at up to 8 bar, it can generate around 3000 kilograms of compression force with a 330 millimetre stroke, making it suitable for long, stiff springs that are difficult to compress with lighter equipment. A comprehensive safety concept includes a full protective cage with high strength polycarbonate panels, shock absorber drop guard and sturdy pedestal base to maximise operator safety. The station is supplied with small and medium clamping jaws, the GO338 upper top mount bracket and a vice for clamping absorber tubes from 40 to 60 millimetres. Mounted on a mobile base with handles and wheels, and with overall dimensions about 1803 by 871 by 690 millimetres, this three tonne spring compressor workstation is ideal for high volume suspension specialists.

Additional Information-

Universal piece of equipment for assembling and disassembling the strongest struts and coil springs on cars, 4WDs & LCVs

Pneumatic spring compressor from passenger cars to transporters

Comprehensive safety concept includes pneumatic cylinder, foot pedal, safety cage, shock absorber drop guard and pedestal to ensure maximum safety for the user.

The station includes one small clamping jaw , one medium clamping jaw, GO338 upper top mount bracket and a vice that allows the compression of almost all the coil springs of the market. Other optional special accessories deliverable.

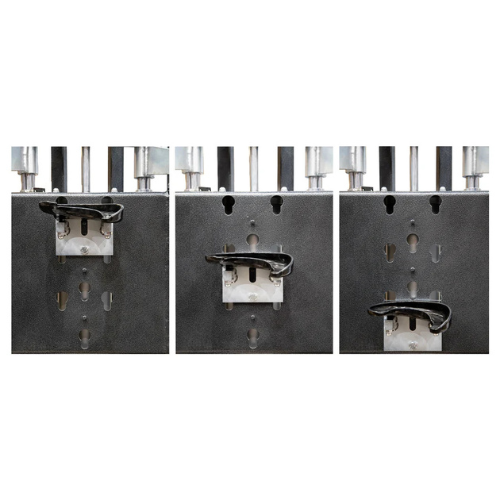

Two clamping jaw mounts on the basic unit permit a maximum opening width of up to 350 mm. Particularly important for many current models with extra-long vehicle springs.

Mirror for viewing from above makes the piston rod easier to position during installation.

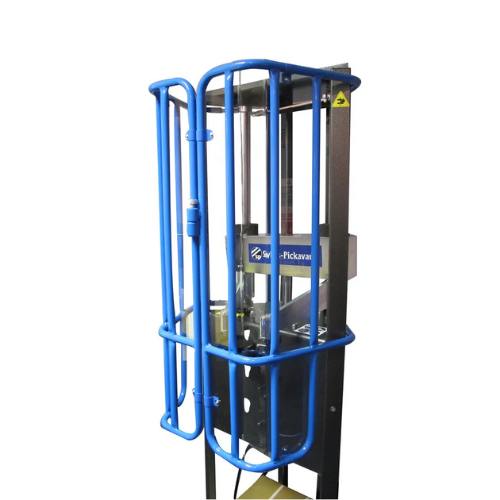

Protective cage with high-strength polycarbonate panels ensures a high level of protection in the event of incorrect operation or accidental splintering of the material.

The two infinitely adjustable upper gripper jaws can be set to the required coil diameter. They can be moved upwards and downwards, tilted and fixed in place for maximum adaptability to any type of spring.

The practical absorber drop guard keeps the absorber in position during installation.

The handles above the unit and the wheels make the unit easy to manoeuvre.

Contents:

Basic unit 3 Ton
Small clamping jaw, Ø 78 - 130 mm
Medium clamping jaw, Ø 105 - 185 mm

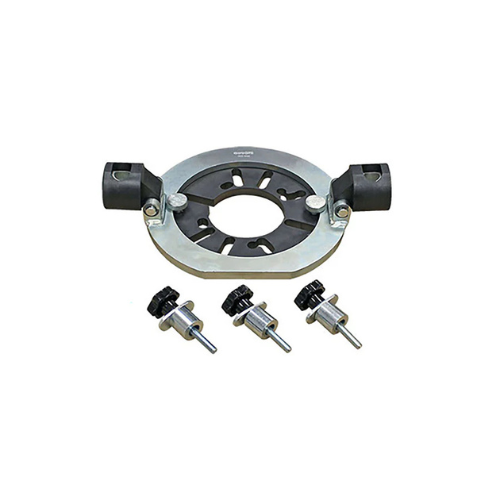

GO338 Upper Top Mount Bracket
Transport module with 2 steel wheels
Vice clamping jaw for absorber tube, Ø 40-60 mm

Technical data:

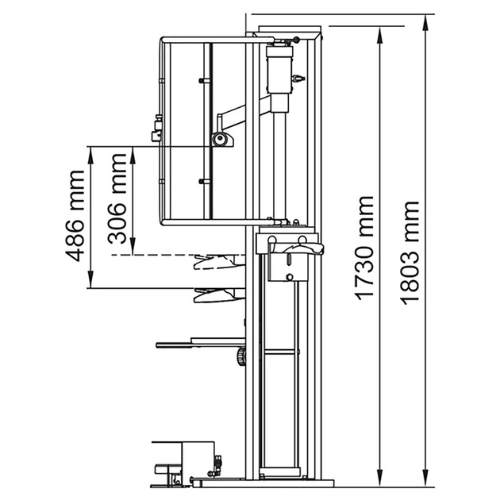

Dimensions: 1803 x 871 x 690 mm
Max Working Pressure: 8 bar (116 psi)
Compression Force: 3000 kg (30,000 Nm)
Cylinder Stroke: 330 mm
CE approved

About Parts For Machines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

PRE BOOK

Dimensions	1803 x 871 x 690 mm
Max Working Pressure	8 bar (116 psi)
Compression Force	3000 kg (30,000 Nm)
Cylinder Stroke	330 mm
