Product Number: CV4P
Variations

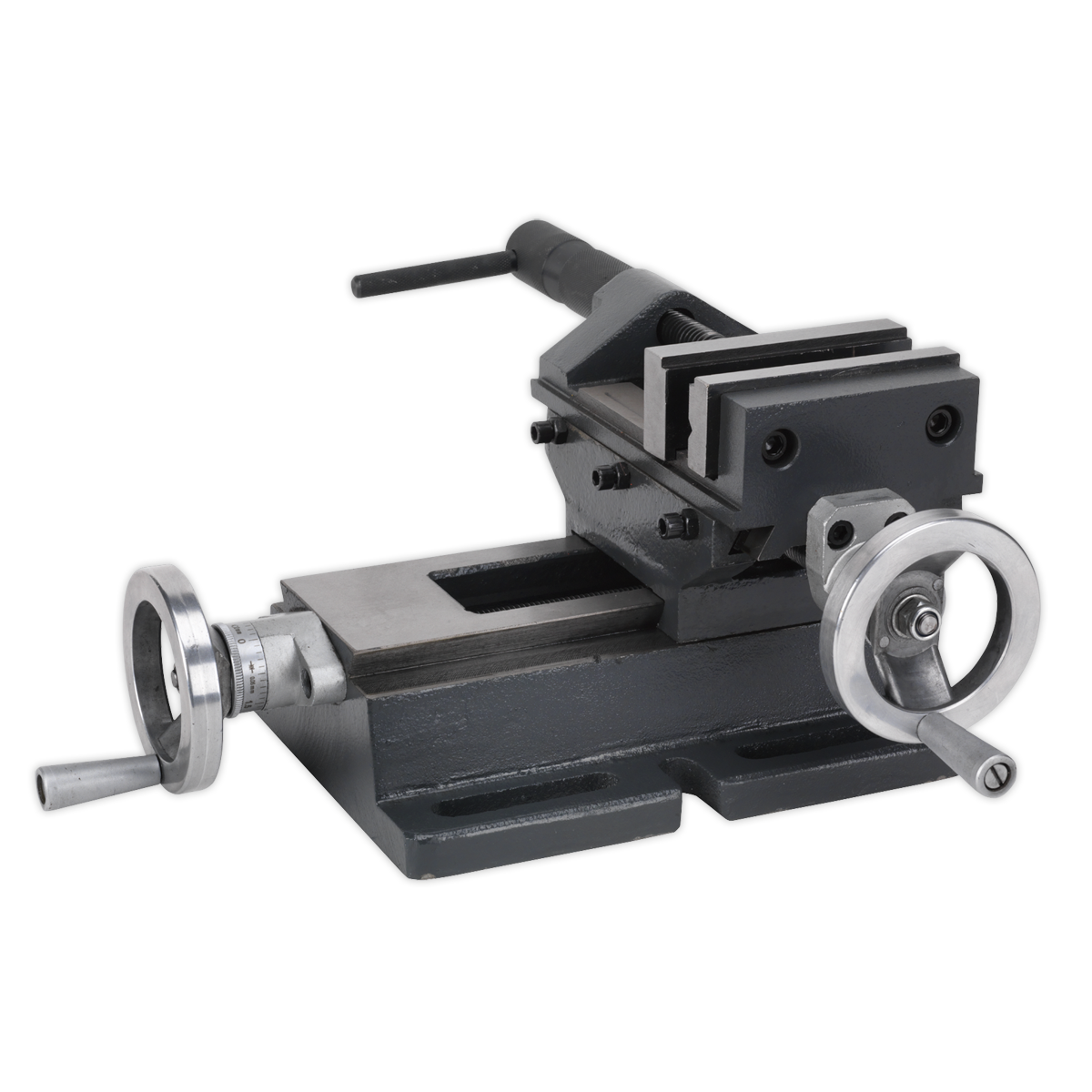

Standard machine vices can lack the precision needed for accurate drilling and milling work, where even a fraction of a millimetre of positional error can ruin a workpiece. The Sealey CV4P is a 100mm professional cross vice built from cast iron with a fixed base offering movement on both X and Y axes, providing the rigid, stable platform required for demanding machining operations. Finer threads and greater manufacturing tolerances deliver clear and accurate lateral and longitudinal scales reading to ±0.05mm, allowing precise positioning of the workpiece every time. Jaw width is 100mm, throat depth 35mm, and jaw opening 75mm. Lateral travel is 120mm and longitudinal travel is 80mm, with an overall height of 155mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | CV4P |
|---|---|
| Brand | Sealey |
| Jaw Opening | 75mm |
| Jaw Width | 100mm |
| Nett Weight | 10kg |
| Overall Height | 155mm |
| Throat Depth | 35mm |
| Travel | Longitudinal; 80mm, Lateral; 120mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Mechanical Vices at partsformachines.com: A Comprehensive Guide on how to select the best Vice suited to your needs Introduction: Vices are renowned for their exceptional quality, durability, and precision. These vices are essential tools for professionals in various industries, including automotive, manufacturing, an...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey CV6 Compound Cross Vice 150mm / 6" for Drilling & Milling
£174.48
£171.06
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53372000 Machine Vice 150 x 200
£1,313.43
£1,287.68
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53371000 Machine Vice 150 x 250
£1,456.61
£1,428.05
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53374000 Machine Vice 200 x 300
£1,881.45
£1,844.56
2% OFF
Free delivery in UK Mainland
|
Draper 4661 Quick Action Vice, 50mm / 2"
£136.33
£133.66
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||||
|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | CV6 | DS01 | 53372000 | 53371000 | 53374000 | 04661 | 45231 |
A. The CV4P has a jaw width of 100mm, a throat depth of 35mm, and a maximum jaw opening of 75mm.
A. The CV4P offers 120mm of lateral travel and 80mm of longitudinal travel.
A. The lateral and longitudinal scales are accurate to ±0.05mm, allowing precise setting of the workpiece.
A. The CV4P is described as ideal for drilling and milling operations.
A. The overall height is 155mm.
A. The fixed base construction uses cast iron for strength and durability.
A. Yes. The CV6P is a variant in the same professional cross vice range, offering a larger size.
A. Yes. The CV4 and CV6 are alternatives that perform a similar function as cross vices.
