Product Number: VS0110

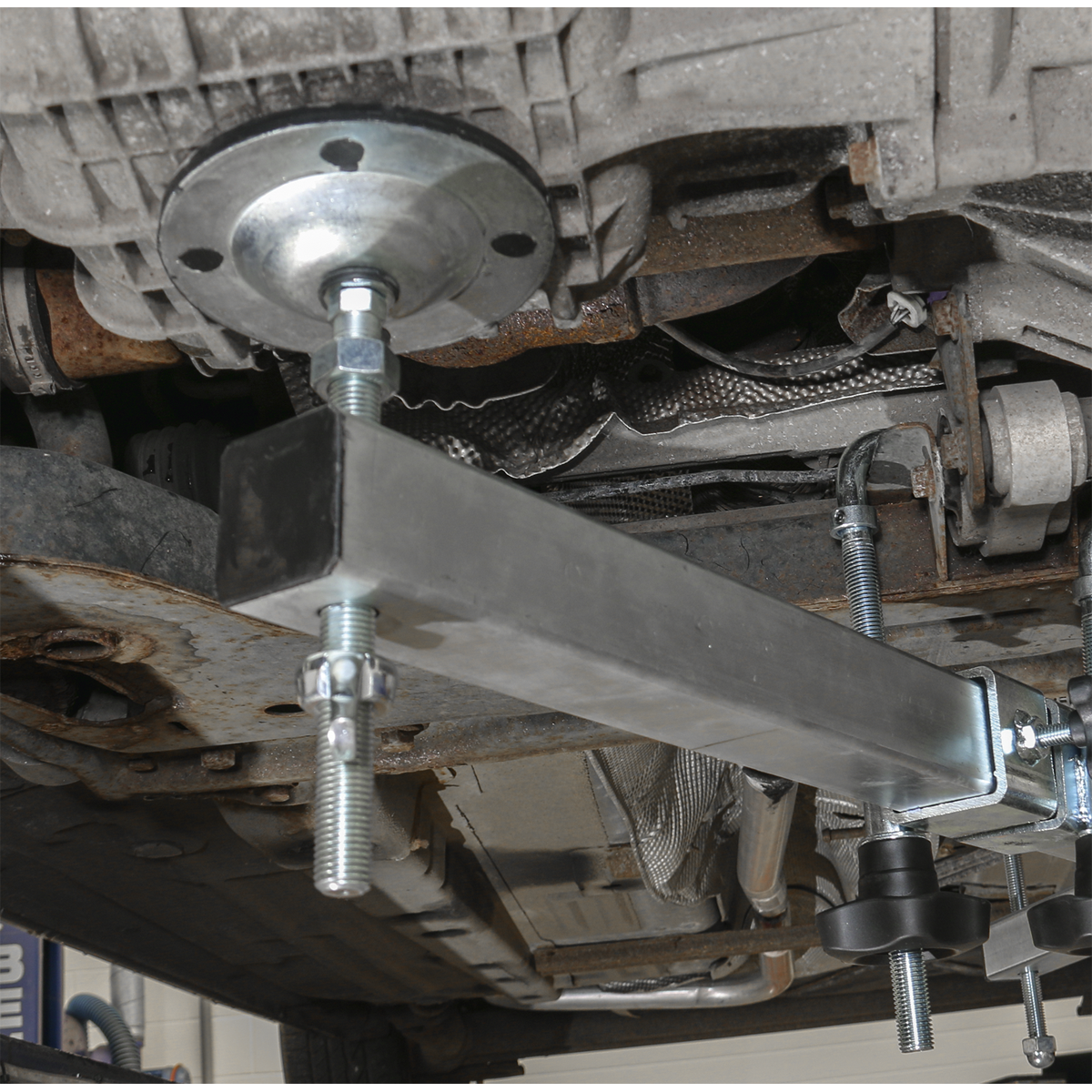

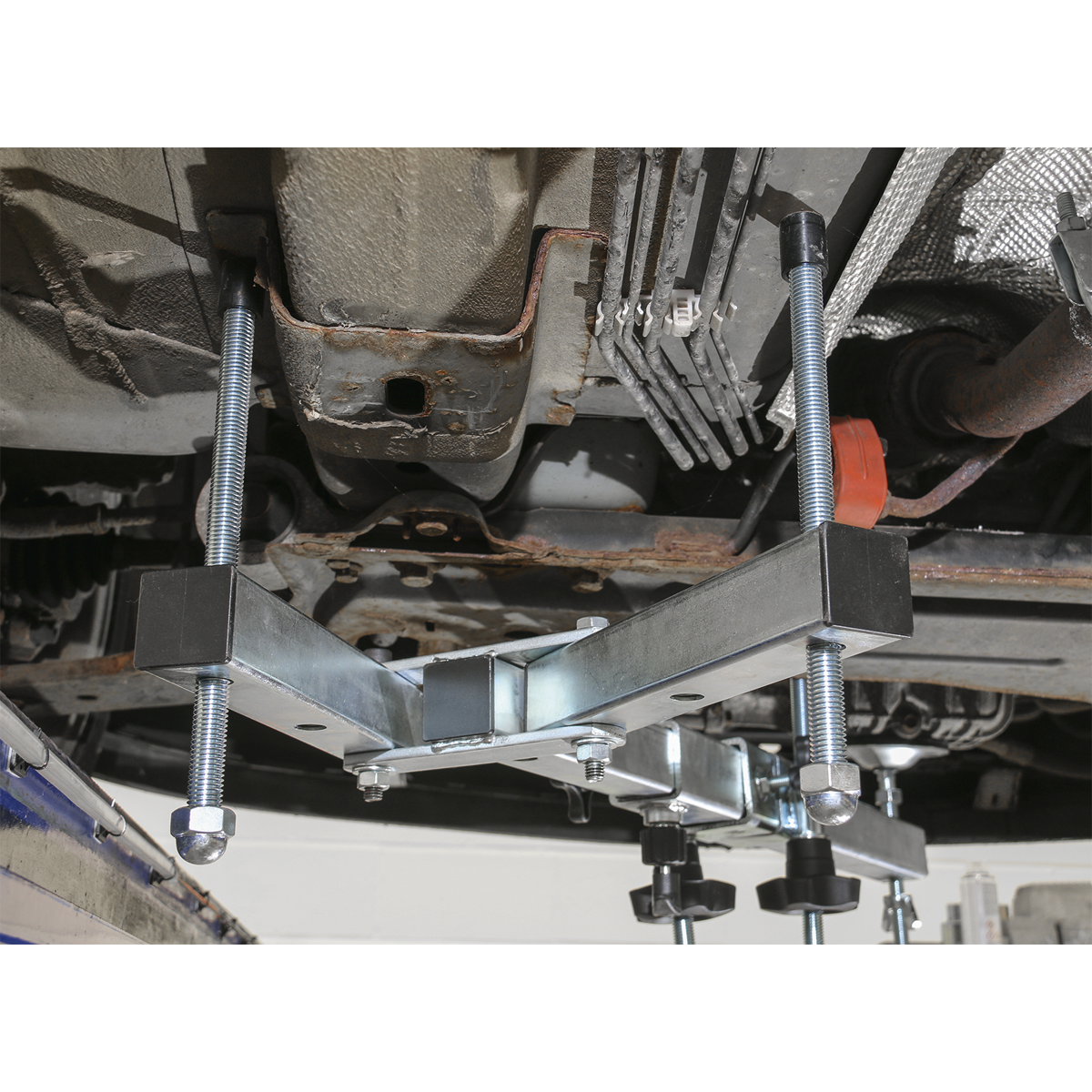

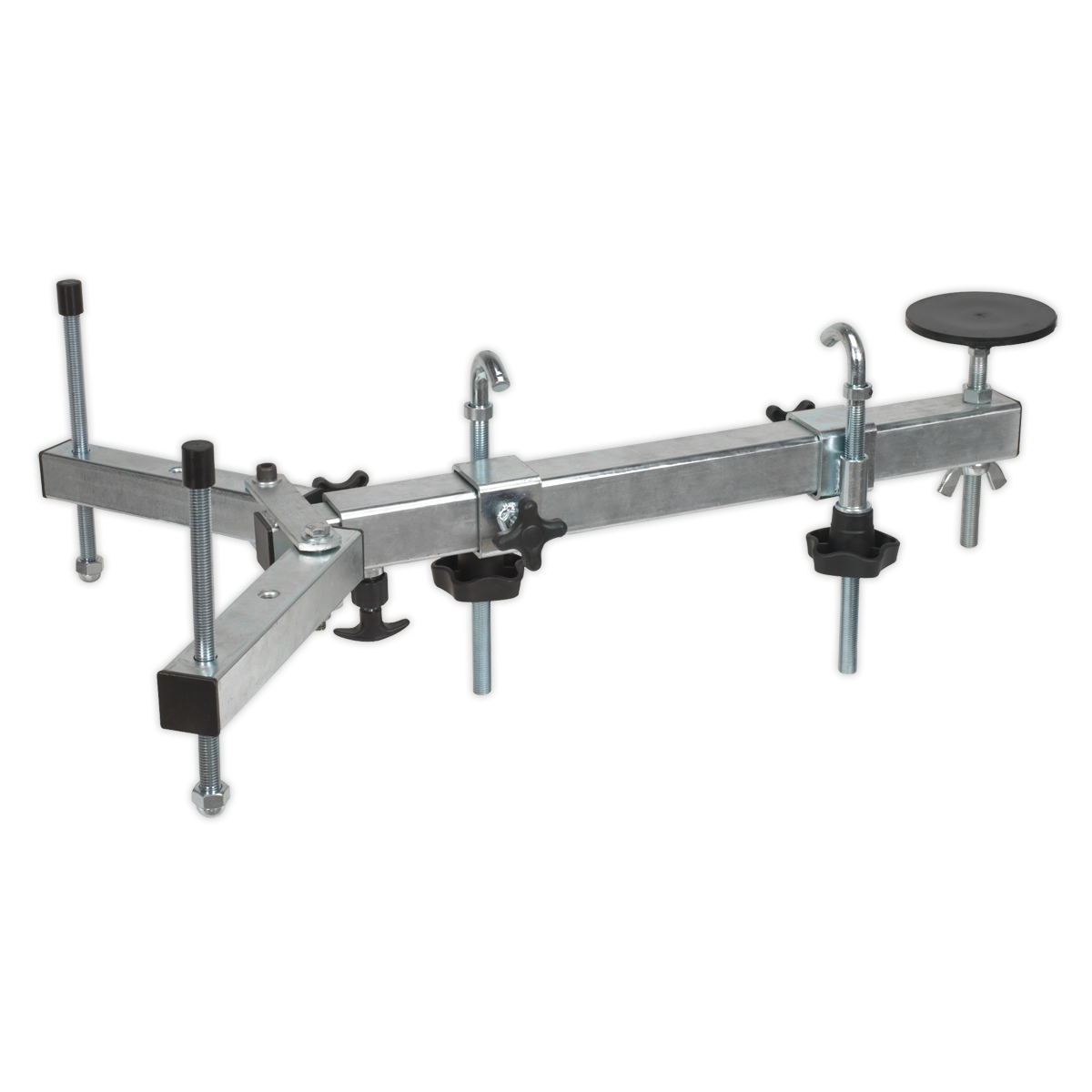

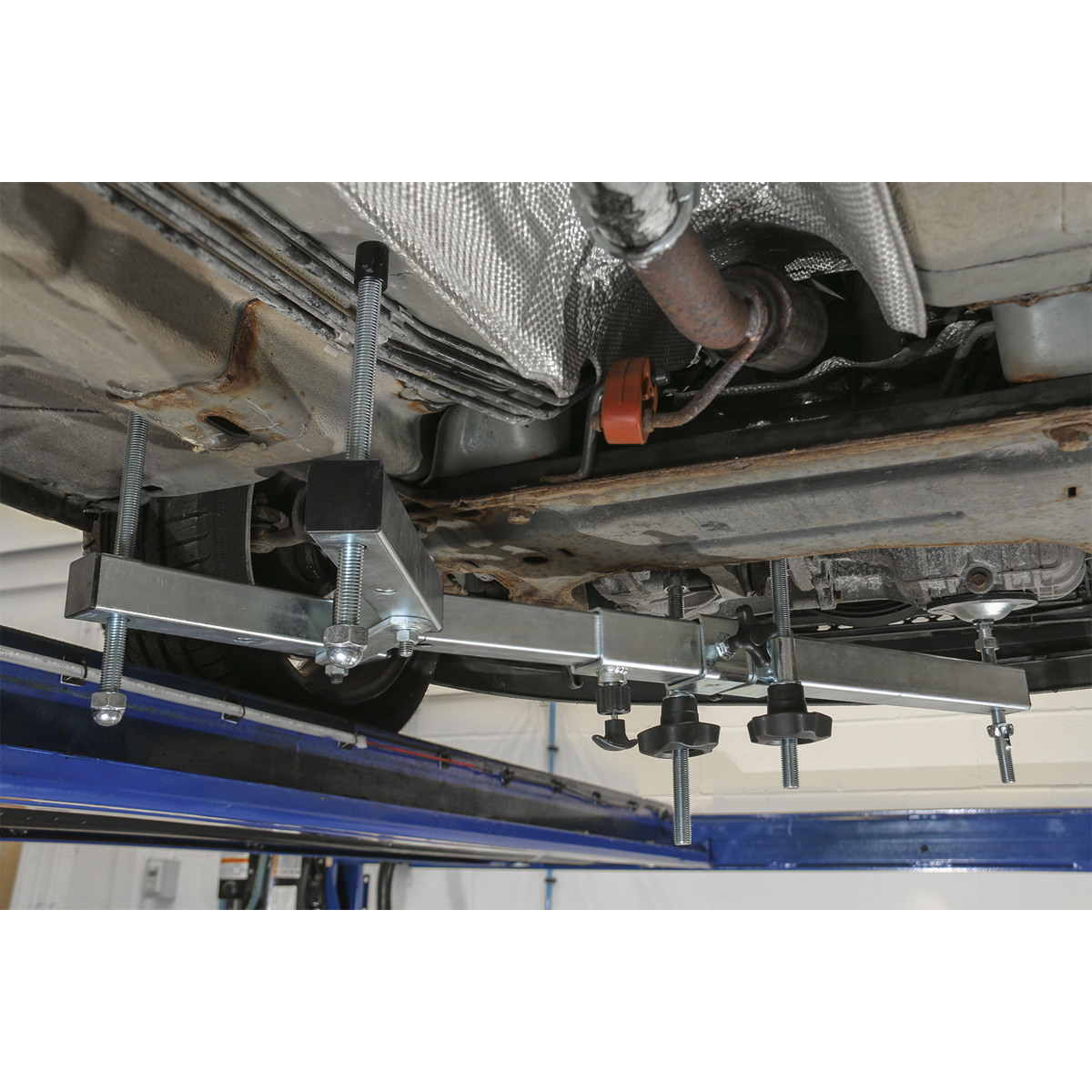

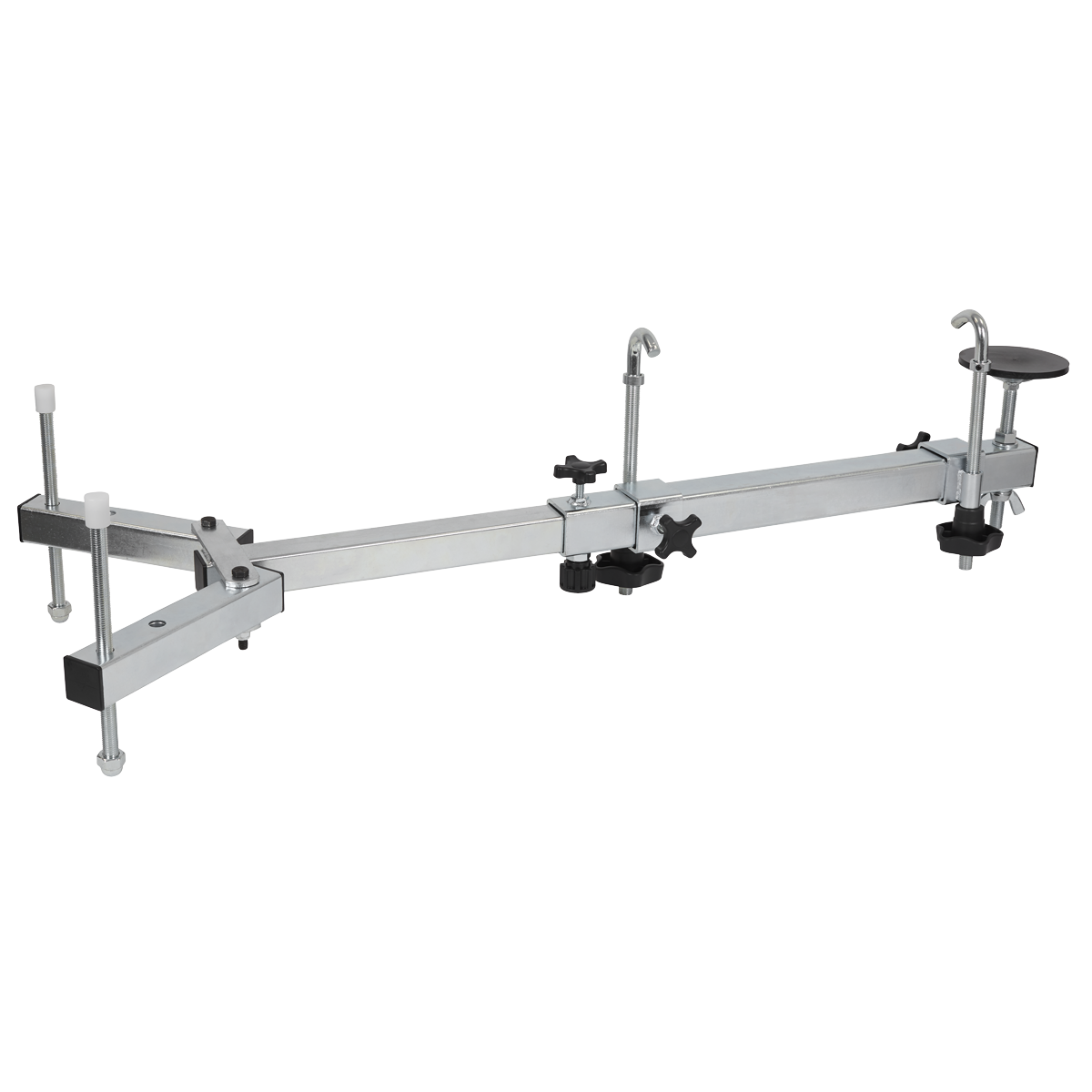

Removing an engine or gearbox without the right support risks damage to components and creates a genuine safety hazard. The Sealey VS0110 Under Vehicle Engine/Gearbox Support is designed specifically to hold the engine or gearbox securely in position while mountings are removed, making it an ideal aid when replacing clutches or timing belts. Rather than relying on a transmission jack or engine support beam, the VS0110 suspends beneath the vehicle using support hooks that counter-balance against the underside, keeping it firmly in place throughout the job. The unit is fully adjustable and suitable for most transverse and in-line engine configurations, with a rated capacity of 400kg. The frame adjusts between 640mm and 970mm in length, with a frame width of 537mm and a body width of 560mm. Inner and outer crossbeam support feet are spaced at 350mm and 480mm respectively, providing stable and adaptable positioning across a wide range of vehicles.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VS0110 |
|---|---|
| Brand | Sealey |
| Capacity | 300kg |
| Minimum/Maximum Length | 645/965mm |
| Nett Weight | 10.21kg |
| Width | 560mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey ES600 Heavy-Duty Engine Support Beam 600kg
£204.35
£200.34
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO640 UNIVERSAL ENGINE / GEARBOX SUPPORT 240KG
£546.82
£536.10
2% OFF
Free delivery in UK Mainland
|
|||||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | ES500 | ES502 | ES600 | 13349 | GO640 | ES300 | VS5214 | 20129 | 09807 |
A. The VS0110 has a rated capacity of 400kg.
A. The VS0110 adjusts between a minimum length of 640mm and a maximum length of 970mm.
A. It is fitted by suspending underneath the vehicle using support hooks, which counter-balance against the underside of the vehicle.
A. Yes, the VS0110 is fully adjustable and suitable for most transverse and in-line configurations.
A. It is designed to support the engine or gearbox when mountings are being removed, and is ideal when replacing clutches or timing belts.
A. Yes, the VS0110 is designed to remove the need for using a transmission jack or engine support beam during these tasks.
A. The frame width is 537mm, and the distance between inner and outer crossbeam support feet is 350mm and 480mm respectively.
A. Yes, alternative products that perform a similar function include the ES300, ES500, ES502, and ES600. Each is a different product suited to engine and gearbox support tasks - please check individual listings or contact Parts for Machines to confirm which best suits your requirements.
A. The overall width of the VS0110 is 560mm.
A. In-stock items placed before 2pm on a working day are dispatched the same day. You will receive tracking confirmation by email.
