Product Number: 13350
Variations

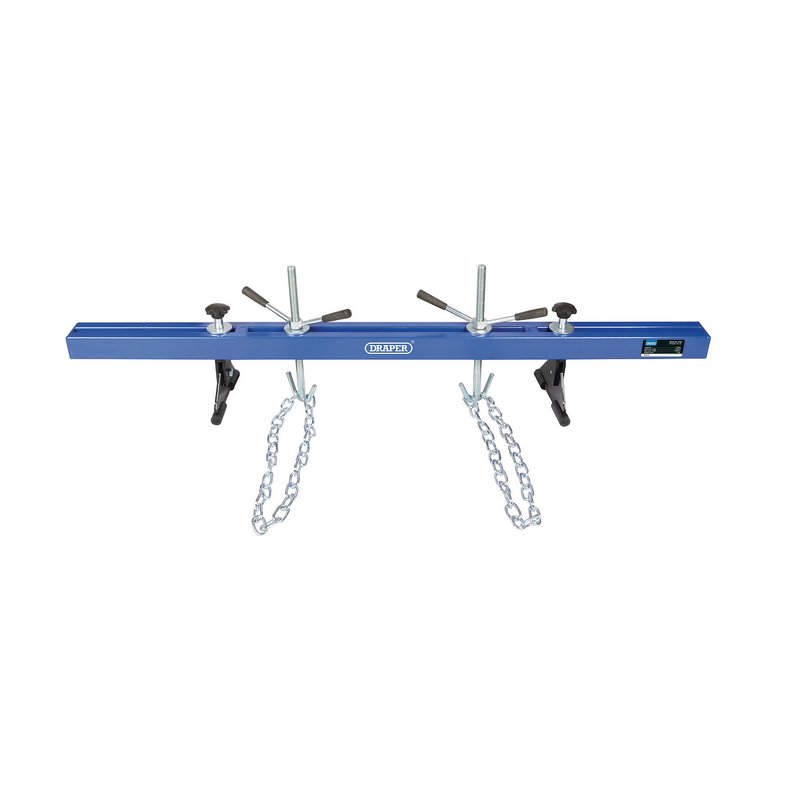

Replacing engine mounts demands precise, stable engine positioning — a task the Draper 13350 engine support beam is purpose-built to achieve. By spanning across the engine bay and bearing the engine's weight, it keeps the unit safely suspended while mounts are removed or replaced, eliminating the risk of the engine dropping or shifting during the procedure. The beam is equally suited to aiding the removal of transmission components and gearboxes, making it a versatile fixture in any professional workshop undertaking drivetrain work. Compatibility extends to most cars and light commercial vehicles, broadening its practical application across a varied workshop workload. Adjustable outer extension clamps allow the beam to span engine bays of varying widths, accommodating a minimum width of 730 mm and a maximum width of 1,480 mm. The overall beam length is 1,500 mm. Rubber feet on the clamps protect paintwork and bodywork from damage during fitment and use. The adjustable screw height range of 0–205 mm provides fine control over engine positioning, and the unit is supplied complete with two chains for securing the load. With a rated capacity of 500 kg and a total weight of 17 kg, the beam is manufactured to EN 13155 specification, providing a verified standard of safety and performance. This makes the Draper 13350 a dependable, standards-compliant choice for professional engine and gearbox support work.
This engine support beam is designed to position the engine when replacing the engine mounts. It is also suitable for aiding the removal of transmission components and gearboxes. Compatible with most cars and light commercial vehicles. Adjustable outer extension clamps with rubber feet to prevent damage to the paintwork. Supplied with two chains.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Capacity | 500kg |
|---|---|
| Min. width | 730mm |
| Max. width | 1,480mm |
| Adjustable screw height | 0-205mm |
| Overall beam length | 1,500mm |
| Chain quantity | 2 |
| Weight | 17kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant GO640 UNIVERSAL ENGINE / GEARBOX SUPPORT 240KG
£546.82
£536.10
2% OFF
Free delivery in UK Mainland
|
Sealey MES03 Engine Rebuild Stand - Multi-Cylinder 100kg
£177.76
£174.27
2% OFF
Free delivery in UK Mainland
|
Sealey MES02 Engine Rebuild Stand Multi-Cylinder 75kg Capacity
£126.35
£123.87
2% OFF
Free delivery in UK Mainland
|
Sealey ES480D Folding 360º Rotating Engine Stand 450kg
£422.26
£413.98
2% OFF
Free delivery in UK Mainland
|
Sealey ES900F Folding Engine Stand 900kg Capacity
£258.25
£253.19
2% OFF
Free delivery in UK Mainland
|
Sealey PH30 Fixed Frame Engine Crane 3 Tonne Extendable Legs
£820.38
£804.29
2% OFF
Free delivery in UK Mainland
|
|||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03692 | 09807 | SC10 | PH20 | GO640 | 13349 | VS5214 | MES03 | MES02 | ES350 | ES450 | ES550 | ES480D | ES900F | PH30 |
A. The Draper 13350 has a rated capacity of 500 kg.
A. The beam accommodates a minimum width of 730 mm and a maximum width of 1,480 mm, with an overall beam length of 1,500 mm.
A. The beam is positioned across the engine bay using the adjustable outer extension clamps, which grip the vehicle's bodywork and are protected by rubber feet to prevent paintwork damage. The two supplied chains are used to secure and suspend the engine or transmission component. The adjustable screw height of 0–205 mm allows fine vertical positioning of the load.
A. The Draper 13350 is compatible with most cars and light commercial vehicles.
A. It is designed to position the engine when replacing engine mounts and is also suitable for aiding the removal of transmission components and gearboxes.
A. The beam is manufactured to EN 13155 specification.
A. The Draper 13350 is supplied with two chains.
A. Yes — WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
