Product Number: 03690

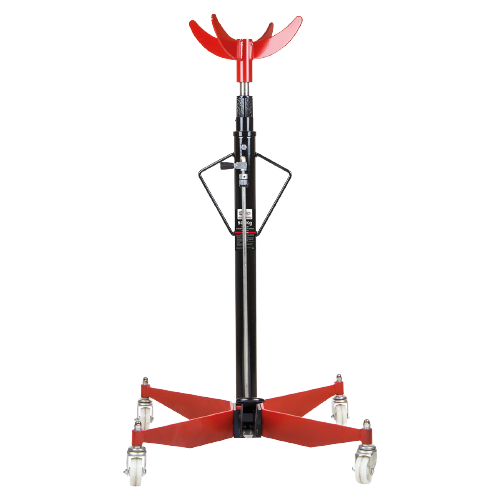

The SIP 03690 is a 500kg-capacity Quick-Lift Transmission Jack designed for the safe, efficient installation and removal of transmissions, gearboxes and drivetrain assemblies across a range of professional garage and workshop environments.

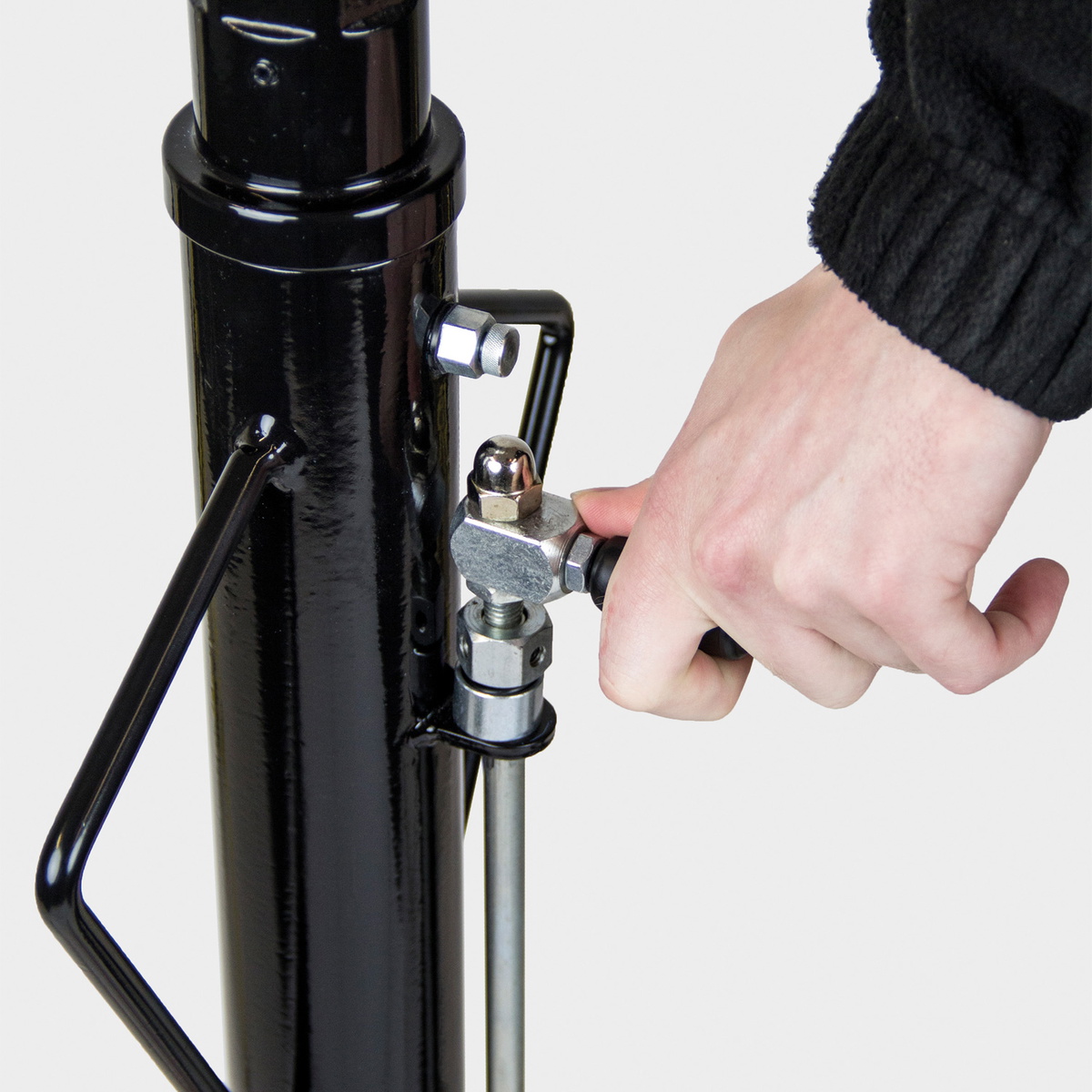

At the heart of this jack is the integrated Quick-Lift system, which substantially reduces operator effort and strain by efficiently raising the saddle to the contact point without requiring full manual pumping from the ground up. An integrated spring-loaded release valve provides controlled lowering for precise positioning during assembly work.

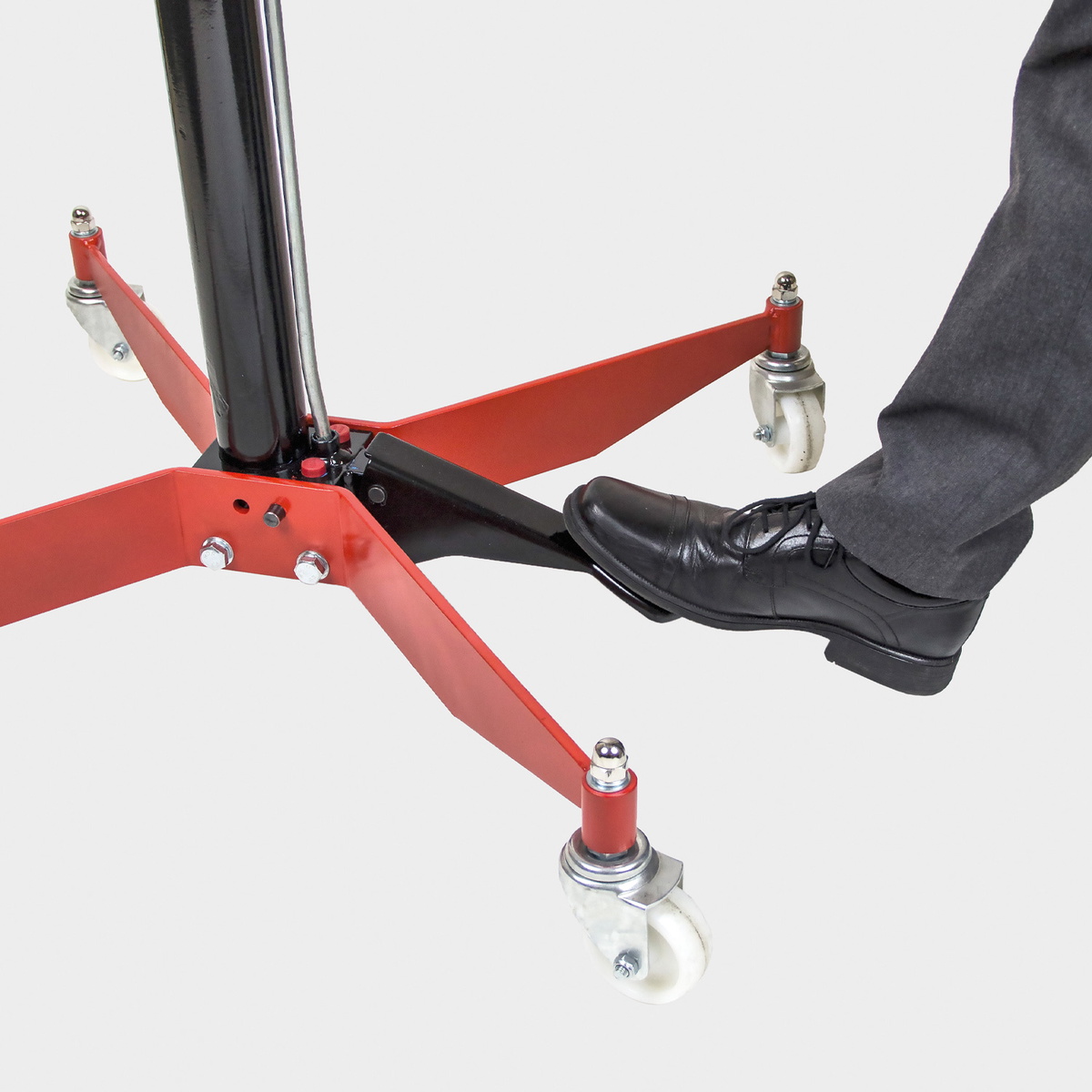

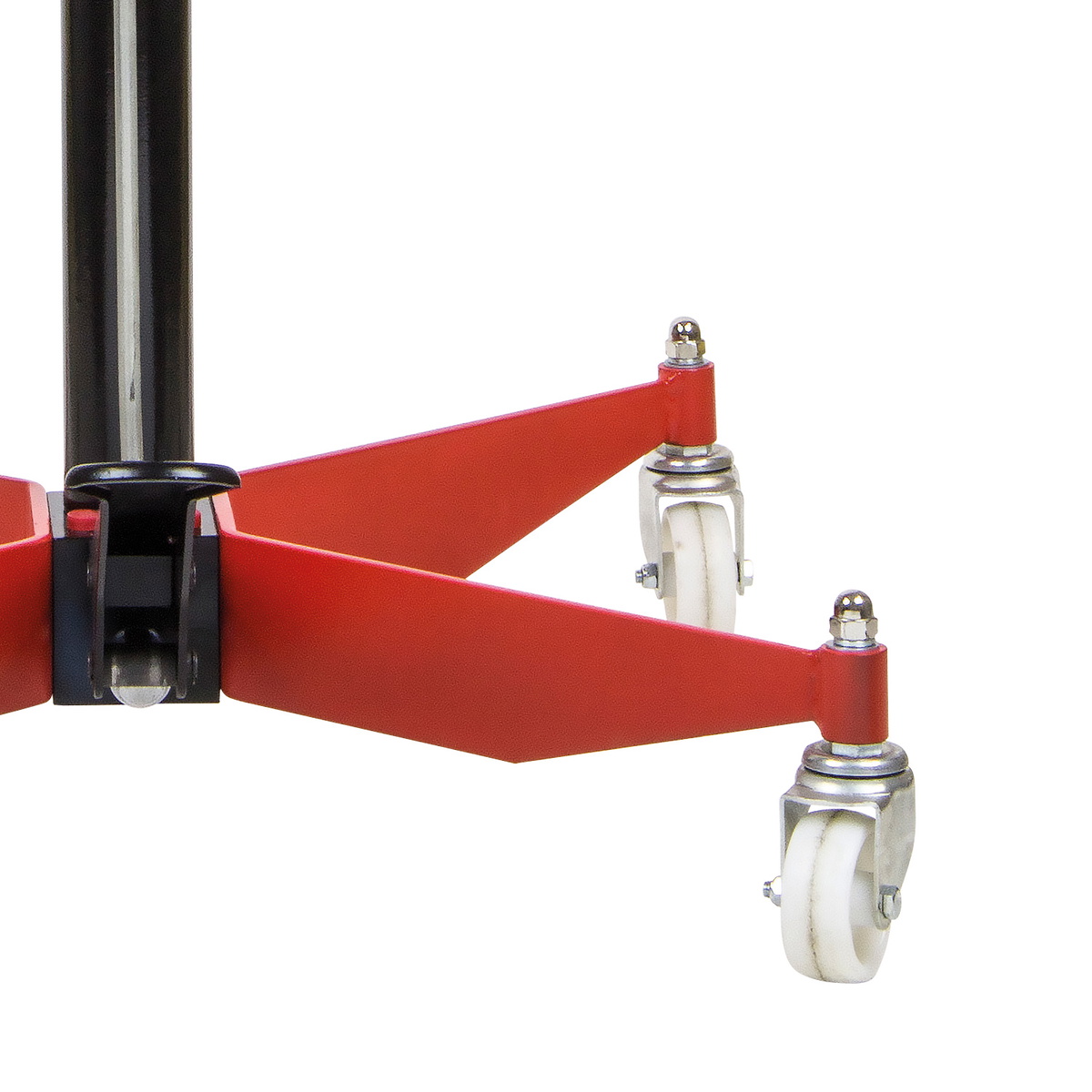

Stability and mobility are central to the design. A large heavy-duty base with four legs distributes the load evenly across the full 500kg weight capacity, while four heavy-duty swivel castors allow the jack to be repositioned and manoeuvred freely throughout the workshop with minimal effort. The lifting height range spans 1,250mm at minimum to 2,040mm at maximum, making the 03690 well suited to both low-clearance and elevated vehicle work.
This jack covers a lifting height range of 1,250mm to 2,040mm, accommodating a wide variety of vehicle types and working heights commonly encountered in commercial workshop settings.
The SIP 03690 is backed by SIP's 2-Year Standard Silver Warranty.
Additional Information:
The SIP 500kg Quick-Lift Transmission Jack provides safe and efficient adjustment and lifting via an integrated Quick-Lift system, which substantially reduces the effort and strain of the operator by efficiently raising the saddle to the contact point. A large heavy-duty base with 4 legs helps to provide vital stability and helps distribute the weight evenly. These are mounted on 4 heavy-duty swivel castors to ensure that positioning the jack and manoeuvring it throughout a garage or workshop is simple. This transmission jack is perfect for the installation or removal of transmissions, gearboxes and assemblies in a variety of garage and workshop environments.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 03690 |
|---|---|
| Weight Capacity | 500kg |
| Min. Lifting Height | 1250mm |
| Max. Lifting Height | 2040mm |
| Quick-Lift System | Yes |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
03869 | SIP 03869 Transmission adaptor | 1 Unit |
£79.37
£77.81
|
Add |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 03871 Transmission Jack, Weight Capacity - 500 Kg
£246.13
£241.30
2% OFF
Free delivery in UK Mainland
|
Sealey 1000TRQ Transmission Jack 1 Tonne Vertical Quick Lift
£647.39
£634.44
2% OFF
Free delivery in UK Mainland
|
Sealey PTJ120 Premier Transmission Jack 1.2 Tonne Vertical
£821.35
£804.92
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 03871 | 1000TRQ | FJ48 | 300ETJ | PTJ120 | 03681 |
| Type | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack | Transmission Stands and Jack |
| Brand | Premier | Sealey | Sealey | Premier | ||
| Length (mm) | 1175 | 550 | 1200 | 585 | 720 | |
| Model No | 1000TRQ | FJ48 | 300ETJ | PTJ120 | ||
| Nett Weight | 37.72kg | 14kg | 23.5kg | 35.2kg | ||
| Weight (kg) | 500 | 72 | 340 | 300 | 35.2 | 340 |
A. The SIP 03690 has a maximum weight capacity of 500kg, making it suitable for the lifting and support of heavy transmissions, gearboxes and drivetrain assemblies in professional workshop use.
A. The SIP 03690 lifts from a minimum height of 1,250mm up to a maximum height of 2,040mm, providing a broad working range to accommodate different vehicle heights and working positions.
A. The integrated Quick-Lift system substantially reduces the effort and strain placed on the operator by efficiently raising the saddle to the contact point, removing the need to manually pump the jack through the full height range from ground level.
A. Yes. The SIP 03690 is mounted on four heavy-duty swivel castors that allow the jack to be freely positioned and manoeuvred throughout a garage or workshop environment with minimal effort.
A. The jack features a large heavy-duty four-leg base that provides vital stability and distributes the weight evenly across the floor, reducing the risk of tipping or imbalance when supporting heavy drivetrain components.
A. This transmission jack is designed for the installation or removal of transmissions, gearboxes and assemblies in a variety of garage and workshop environments.
A. The SIP 03690 is covered by SIP's 2-Year Standard Silver Warranty.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we will resolve the issue in line with our returns policy.,
