Product Number: 09890
Variations

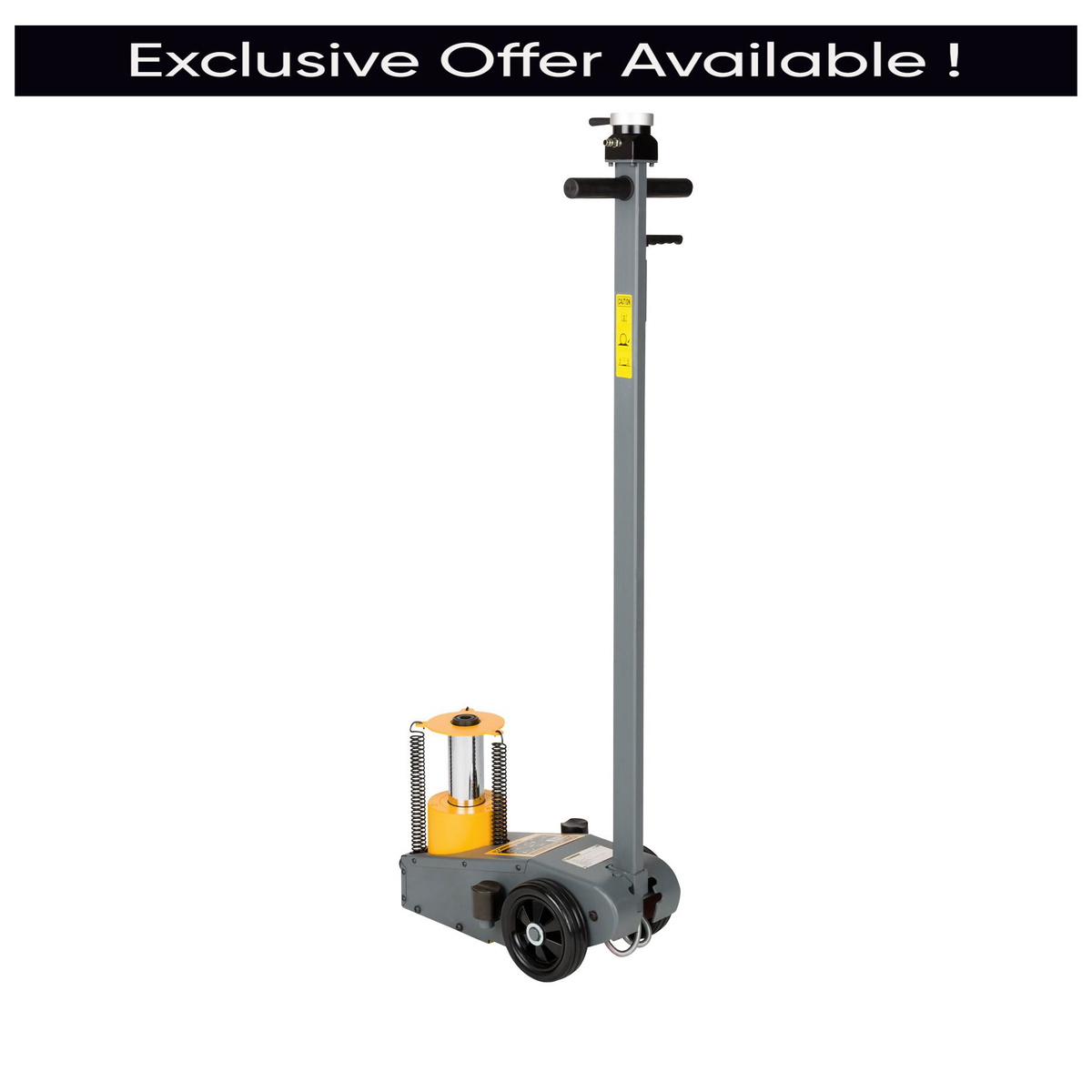

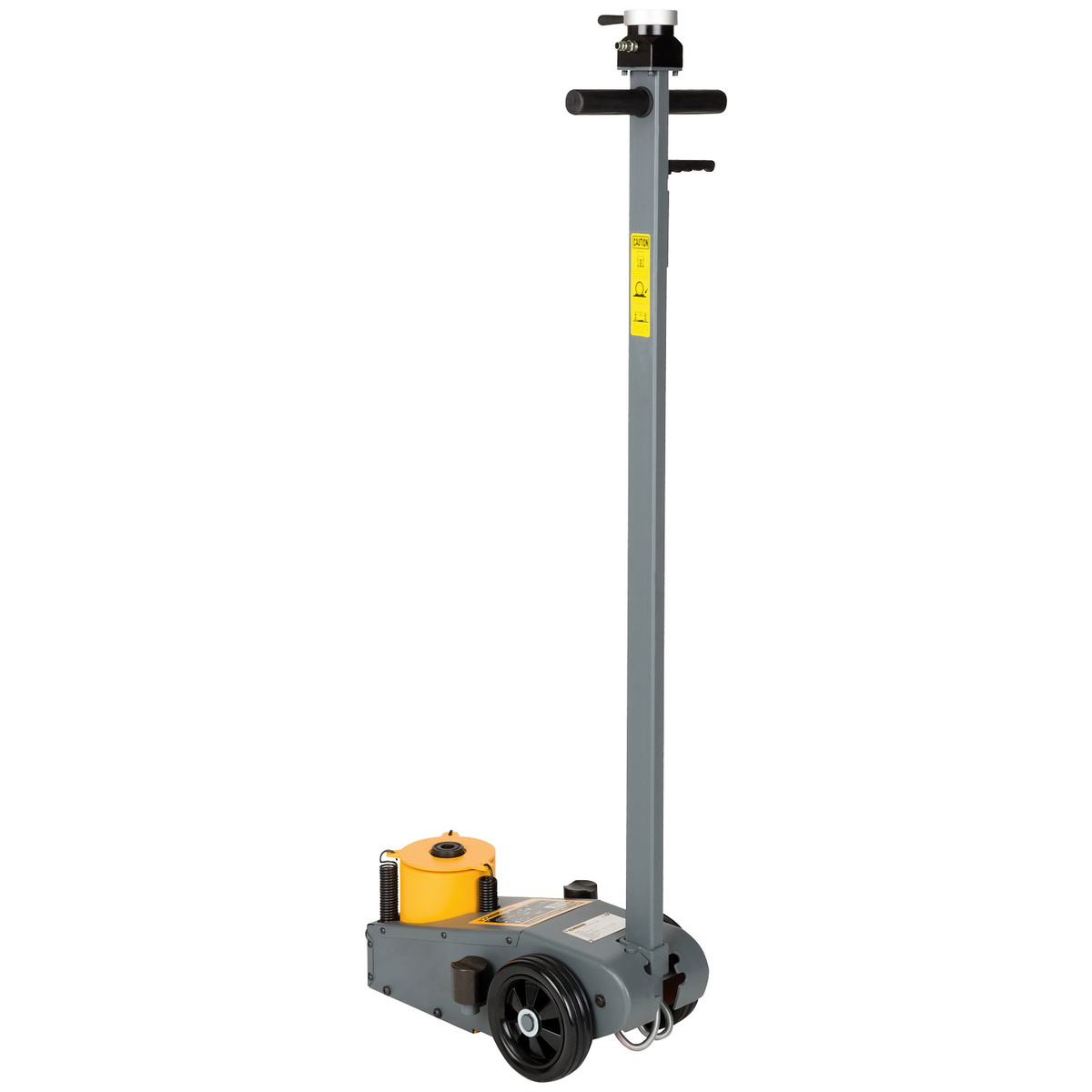

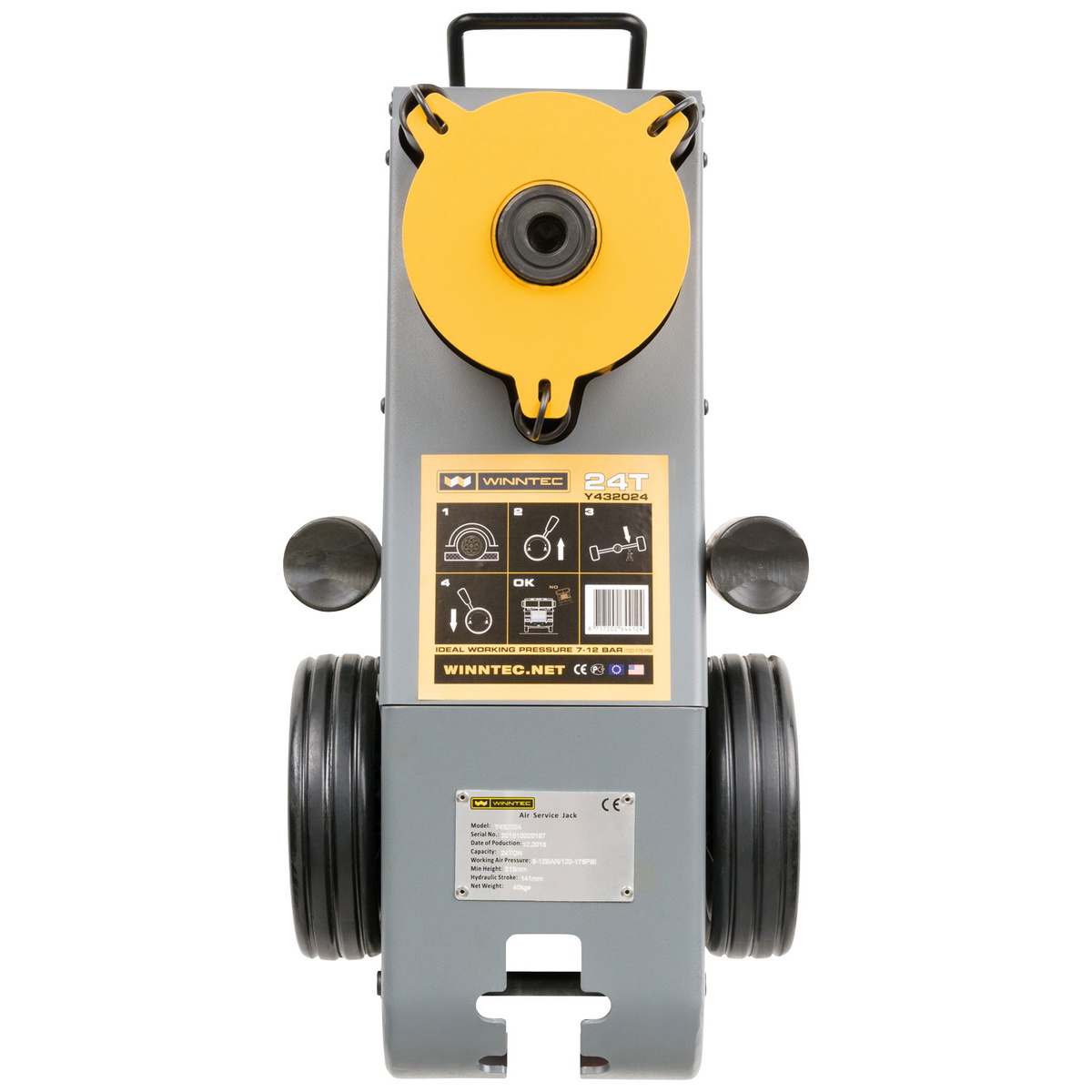

The SIP 09890 WINNTEC® 24 Tonne Air Service Jack is designed to deliver powerful, heavy-duty lifting performance across a range of larger and heavier vehicles that demand a versatile and reliable lifting solution. Hydraulically assisted operation raises loads from a minimum height of 141mm to a maximum of 441mm, making it well suited to the demands of professional workshop environments.

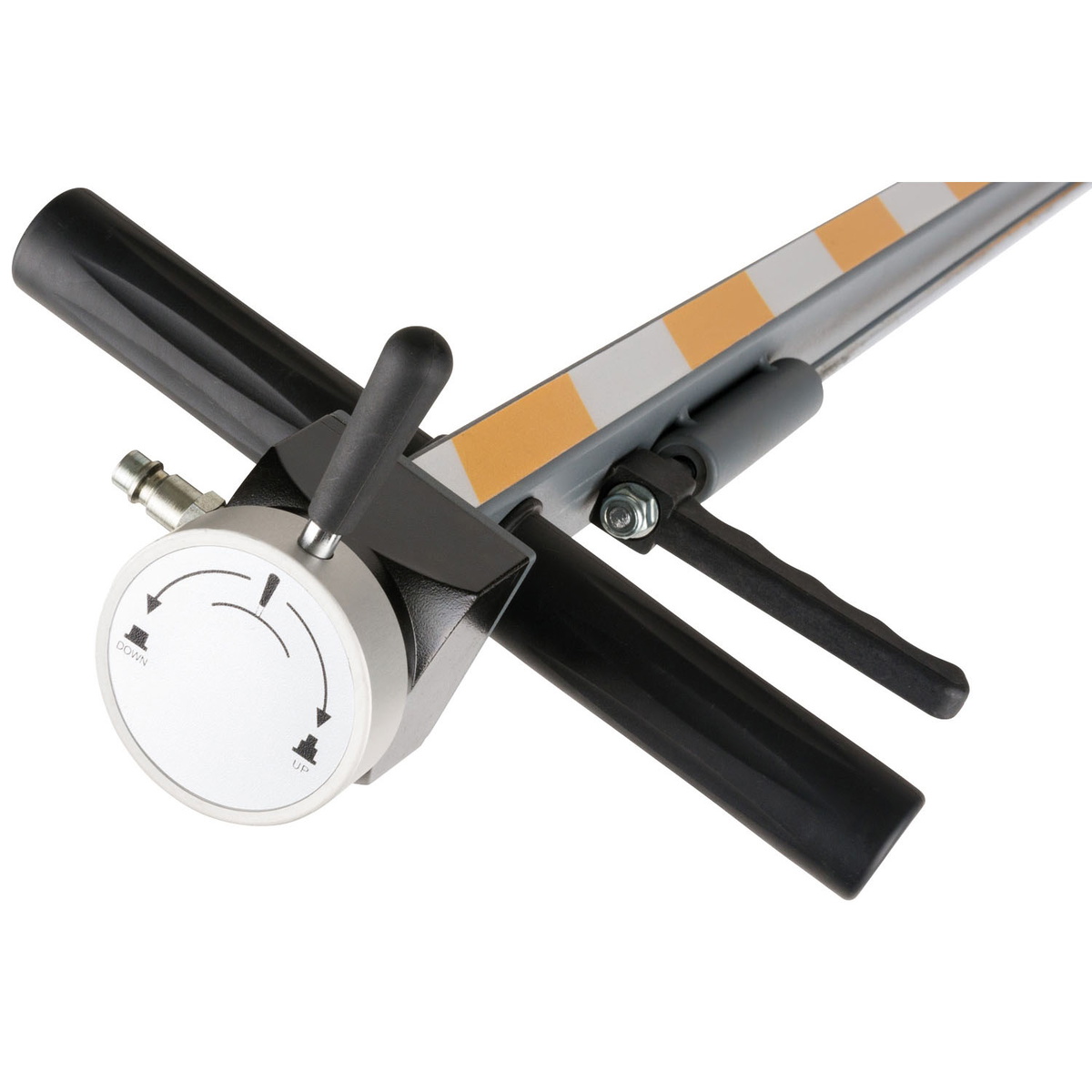

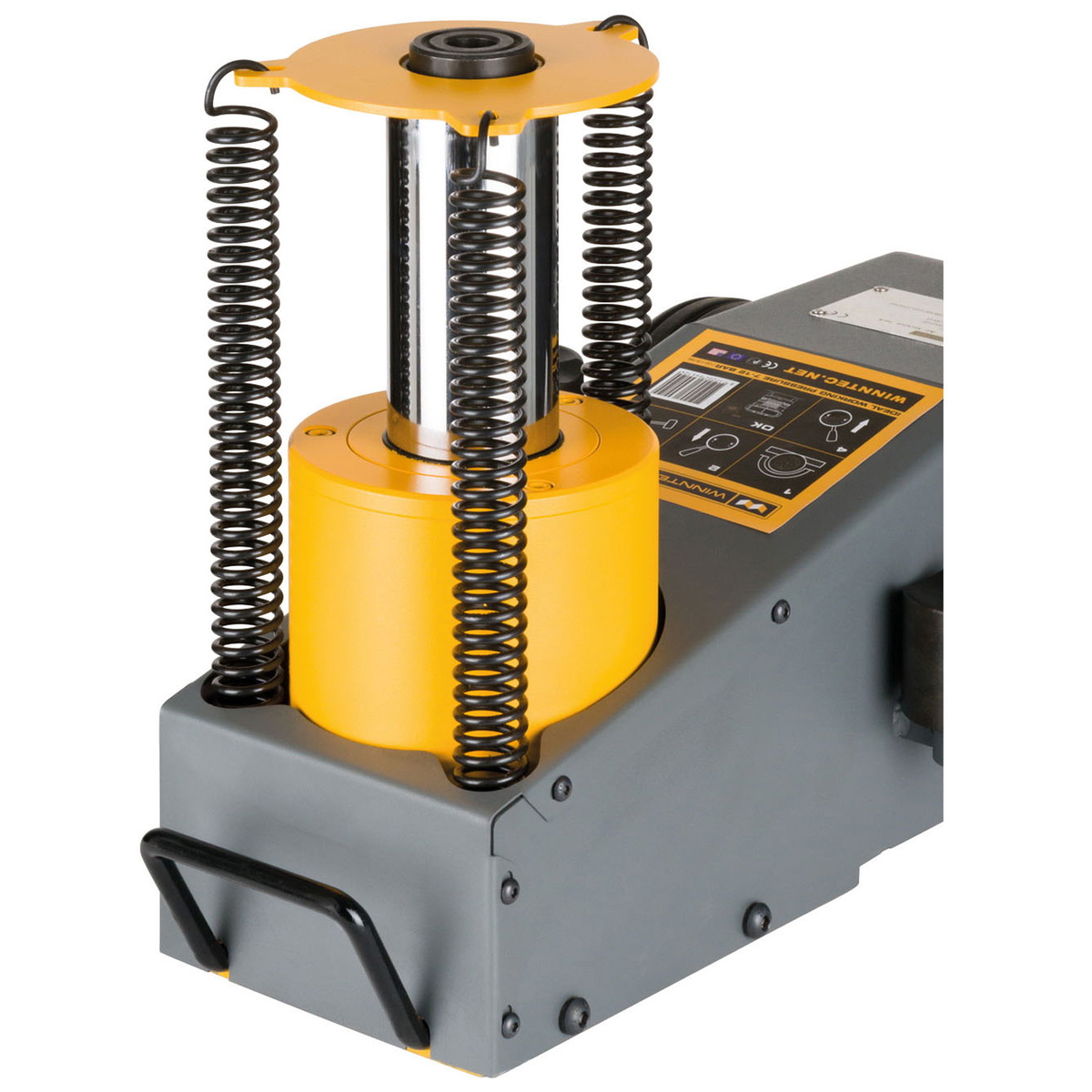

The jack features a one-stage hydraulic lifting system that simplifies operation for the user, while built-in dead man's controls provide reliable safety throughout every lifting application. The heavy-duty hard chromed piston and main ram contribute to the durability expected of the WINNTEC® range, and the wheel-mounted design combined with a 1240mm handle allows straightforward repositioning around the workshop floor.

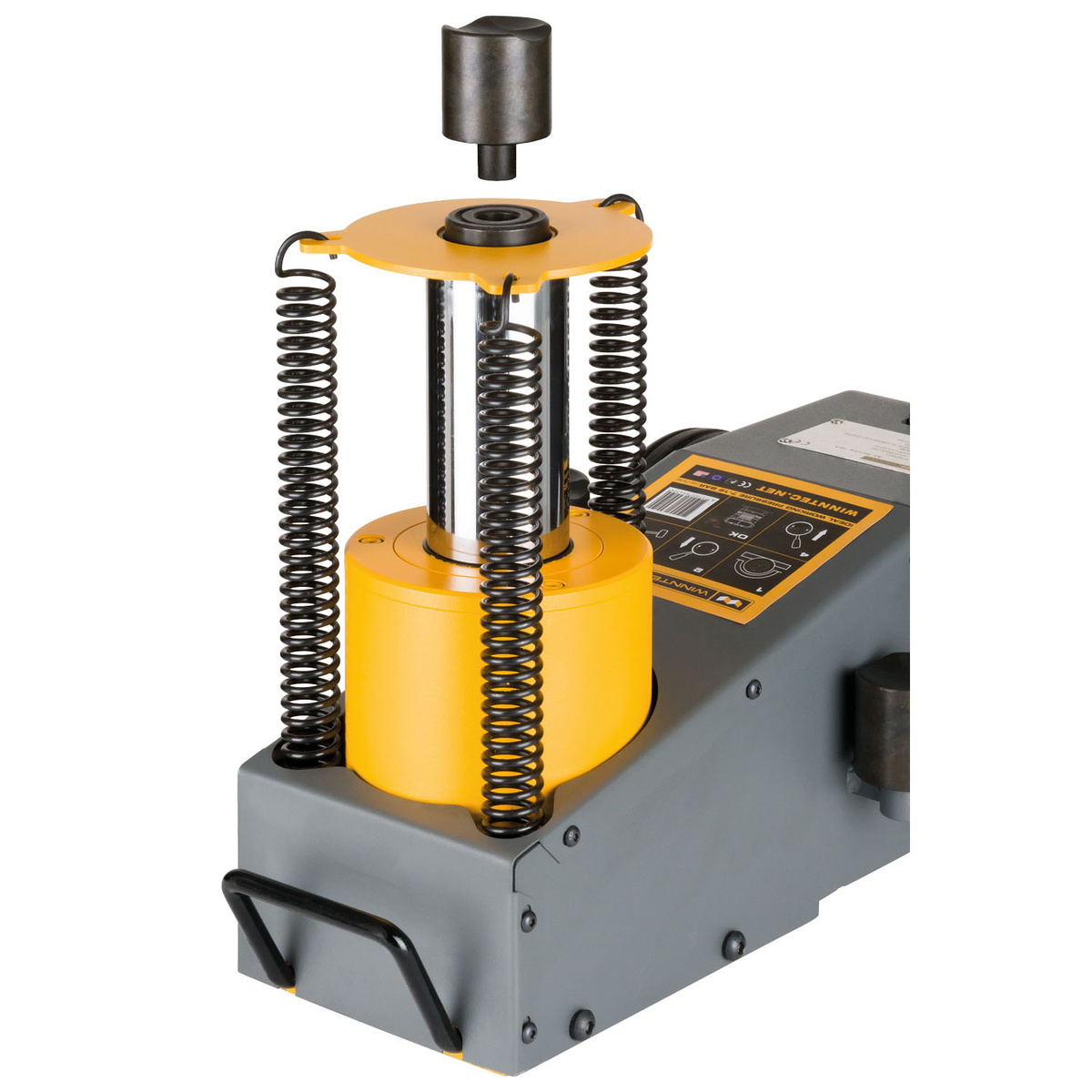

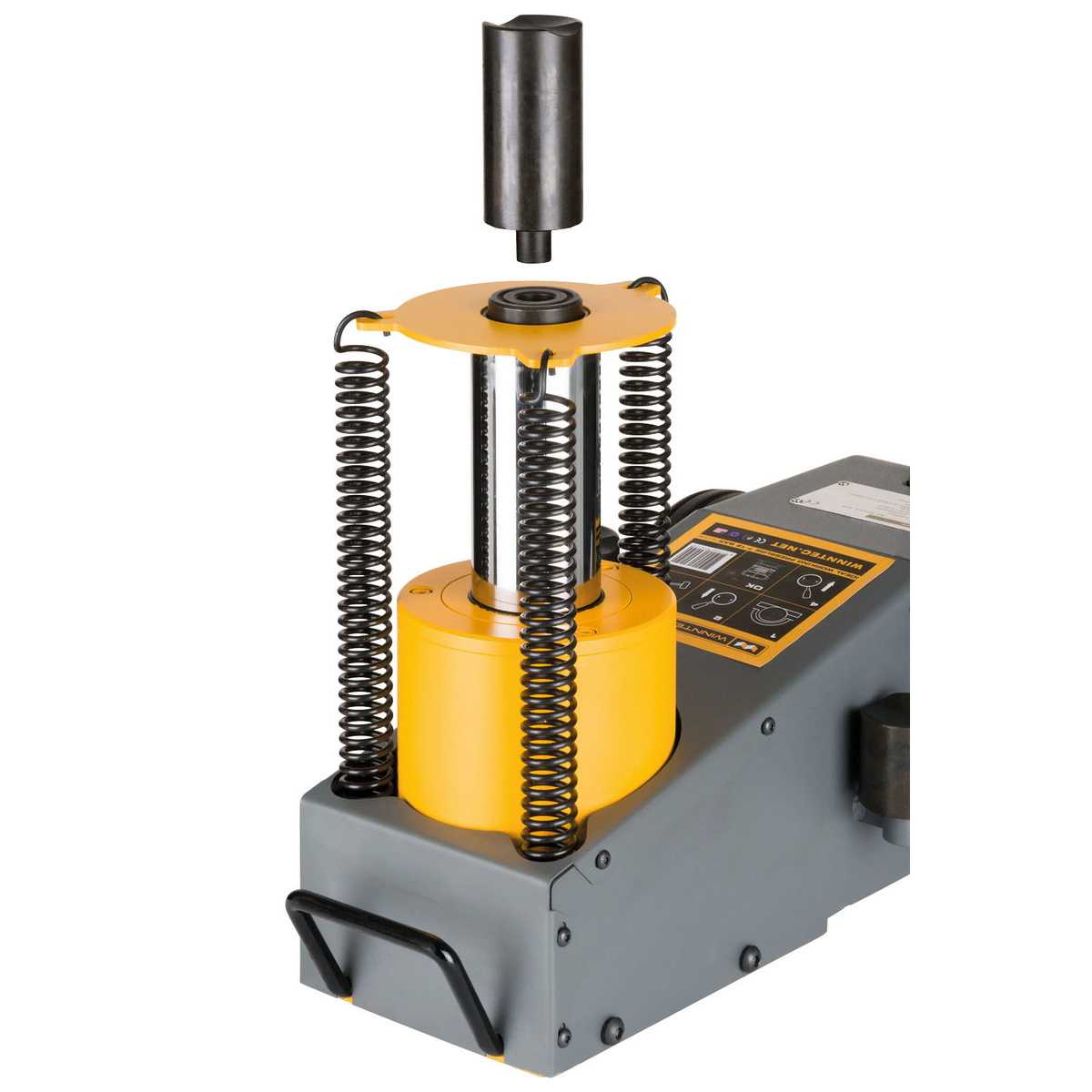

Three supplied extensions — 20mm, 50mm and 100mm — together with an 85mm screw extension give operators a broad range of contact-point adjustments to accommodate different vehicle undercarriage configurations. Air consumption is rated at 10.6 CFM (300 litres per minute), and the jack ships as a single-stage unit. Overall dimensions are 525mm in length, 265mm in width and 215mm at base height, confirming a compact footprint relative to its 24-tonne capacity.
The WINNTEC® 24 Tonne Air Service Jack is backed by a WINNTEC from SIP 3-Year Warranty. The product is of quality European design.
Additional Information:
The WINNTEC® from SIP 24 TON Air Service Jack offers powerful lifting and extremely heavy-duty performance across a range of larger and heavier vehicles which require a versatile lifting range, accommodating easy hydraulically-assisted lifting up to 441mm. Operators are protected to the highest standard in all lifting applications through a number of safety features, including dead mans controls, and durable components.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 09890 |
|---|---|
| Weight Capacity | 24 TON |
| Min. Lifting Height | 141mm |
| Max. Lifting Height | 441mm |
| Screw Extension | 85mm |
| Supplied Extensions | 20mm / 50mm / 100mm |
| No. of Stages | 1 stage |
| Handle Length | 1240mm |
| Jack Length | 525mm |
| Jack Width | 265mm |
| Base Height | 215mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
More Info
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 09818 WINNTEC Bottle Jack, Weight Capacity - 20 Tonne
£97.88
£95.96
2% OFF
Free delivery in UK Mainland
|
SIP 09820 WINNTEC Bottle Jack, Weight Capacity - 30 Tonne
£127.07
£124.58
2% OFF
Free delivery in UK Mainland
|
SIP 09827 WINNTEC AirBottle Jack, Weight Capacity - 20 Tonne
£299.47
£290.75
3% OFF
Free delivery in UK Mainland
|
SIP 09829 WINNTEC Low-Profile AirBottle Jack, Weight Capacity - 20 Tonne
£298.11
£292.26
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||
|---|---|---|---|---|
| PRODUCT NUMBER | 09818 | 09820 | 09827 | 09829 |
| Warranty | 36 | 36 | 36 | 36 |
| Type | Bottle Jack | Bottle Jack | Air Bottle Jack | Air Bottle Jack |
| Lifting Capacity (Tonne) | 20 | 30 | 20 | 20 |
| Min. Lifting Height (mm) | 244 | 285 | 245 | 148 |
| Max. Lifting Height (mm) | 449 | 465 | 475 | 260 |
A. The jack has a maximum weight capacity of 24 tonnes, making it suitable for larger and heavier vehicles that require substantial lifting capability.
A. The jack lifts from a minimum height of 141mm to a maximum height of 441mm. An additional 85mm screw extension is also provided, further extending the usable range.
A. Three extensions are supplied as standard: 20mm, 50mm and 100mm. These allow the jack to accommodate different vehicle undercarriage contact points.
A. The jack incorporates built-in dead man's controls, which provide reliable user protection during all lifting applications. Easily ascended and descended with air assistance for added operator safety.
A. The jack requires an air supply capable of delivering 10.6 CFM (300 litres per minute) to operate correctly.
A. The SIP 09890 operates as a single-stage hydraulic system. It measures 525mm in length, 265mm in width and 215mm in base height, with a handle length of 1240mm for easy manoeuvring.
A. The SIP 09890 is covered by a WINNTEC from SIP 3-Year Warranty.
A. Yes — see the linked spares and consumables on the product page, or contact us with your machine model.
