Product Number: YAJ20-60LR
Variations

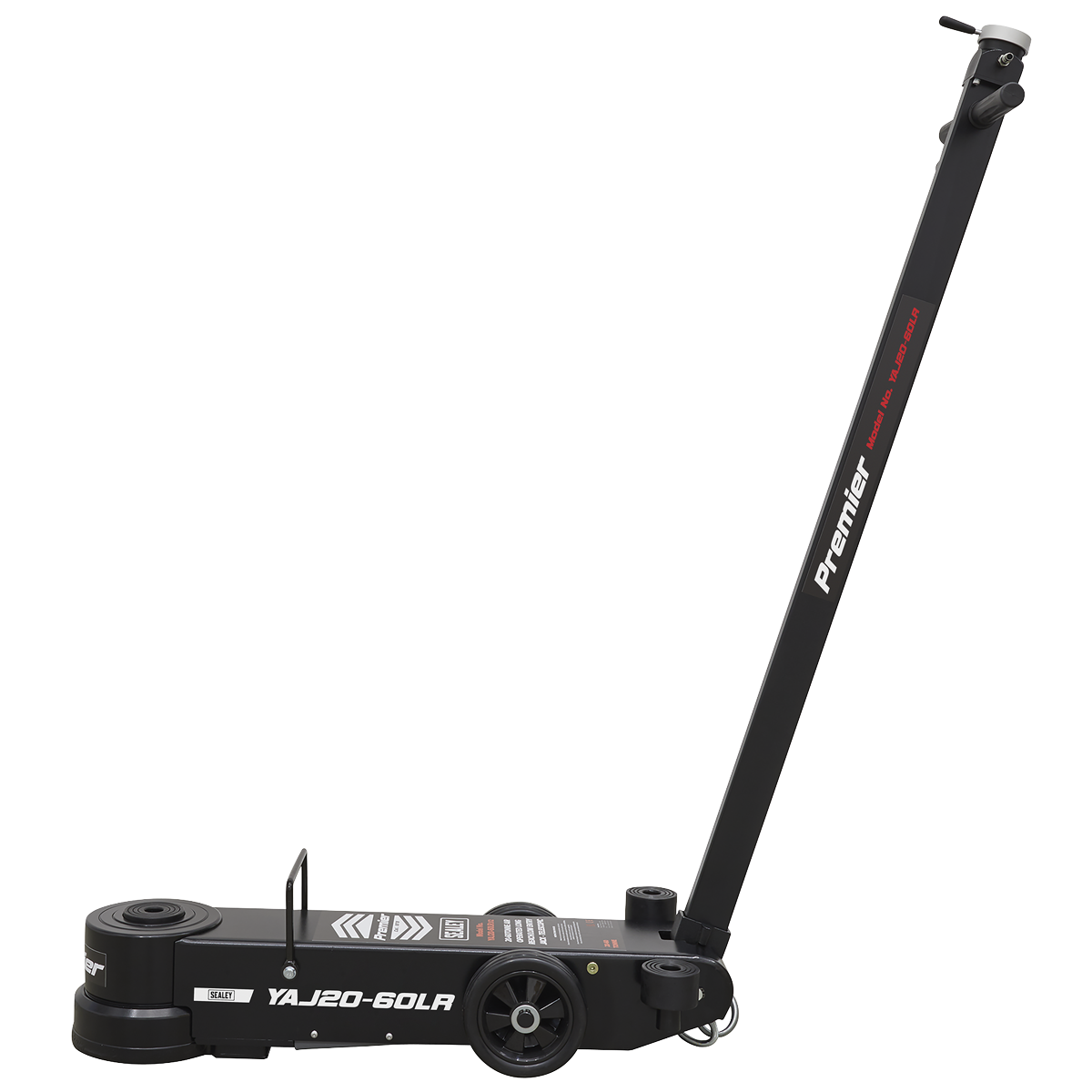

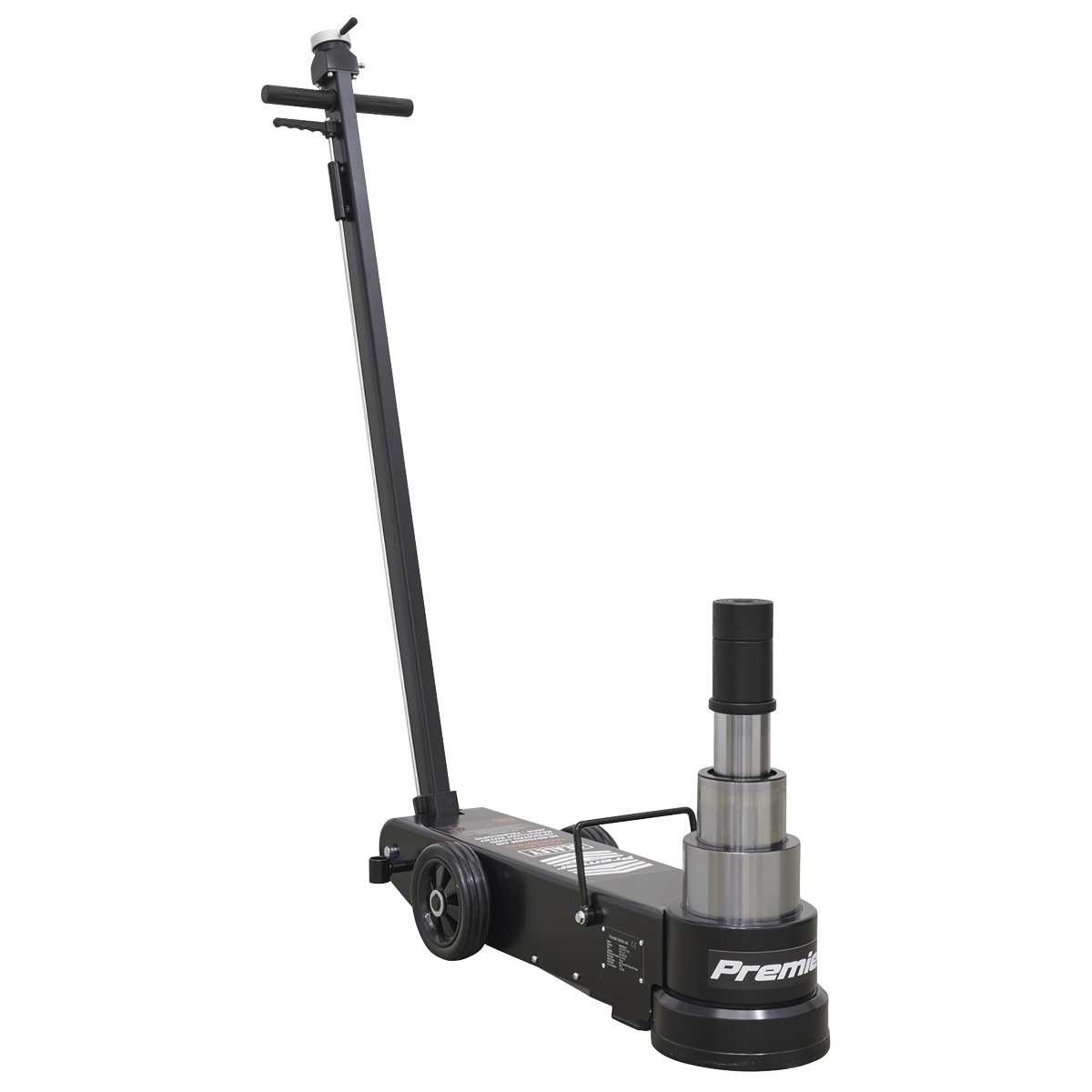

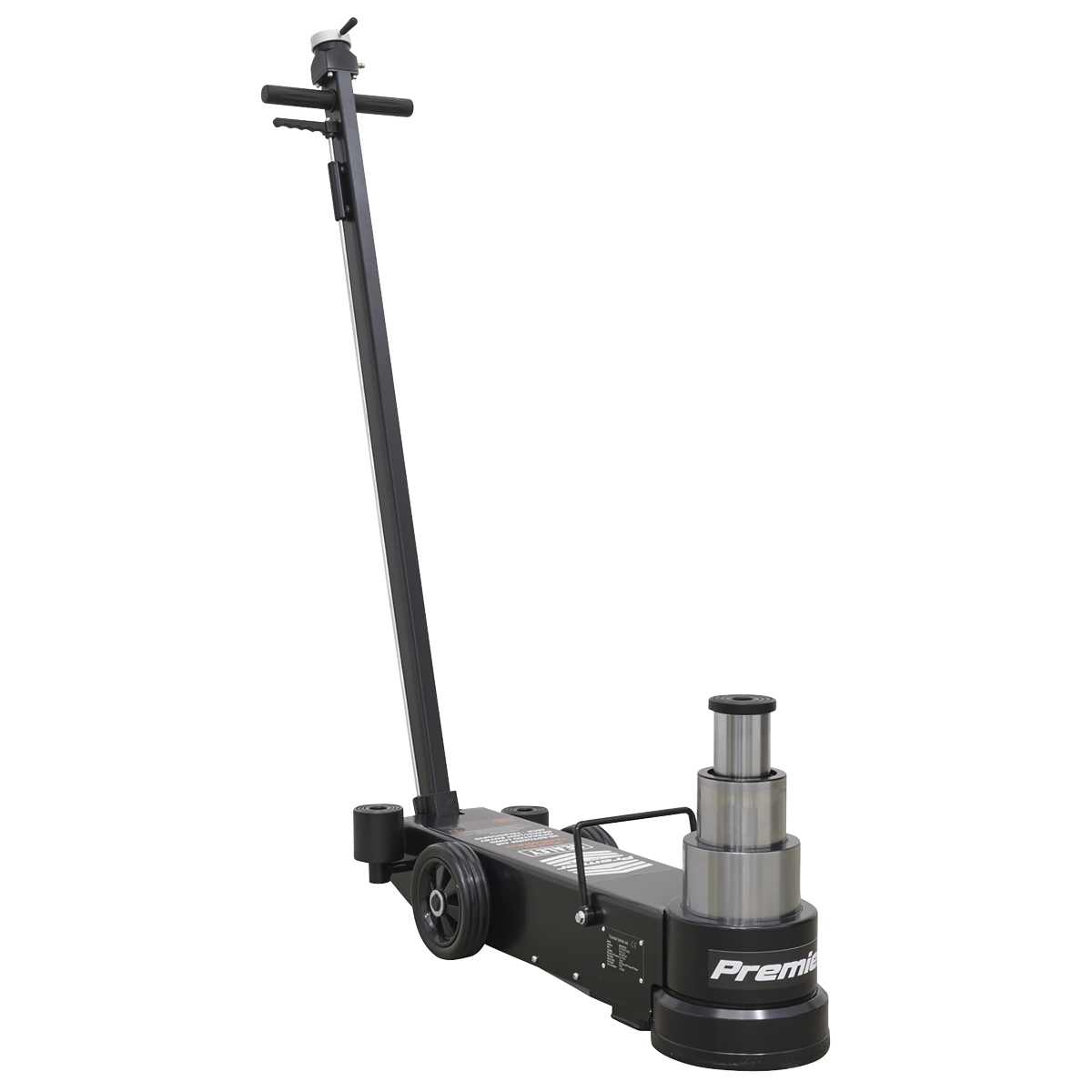

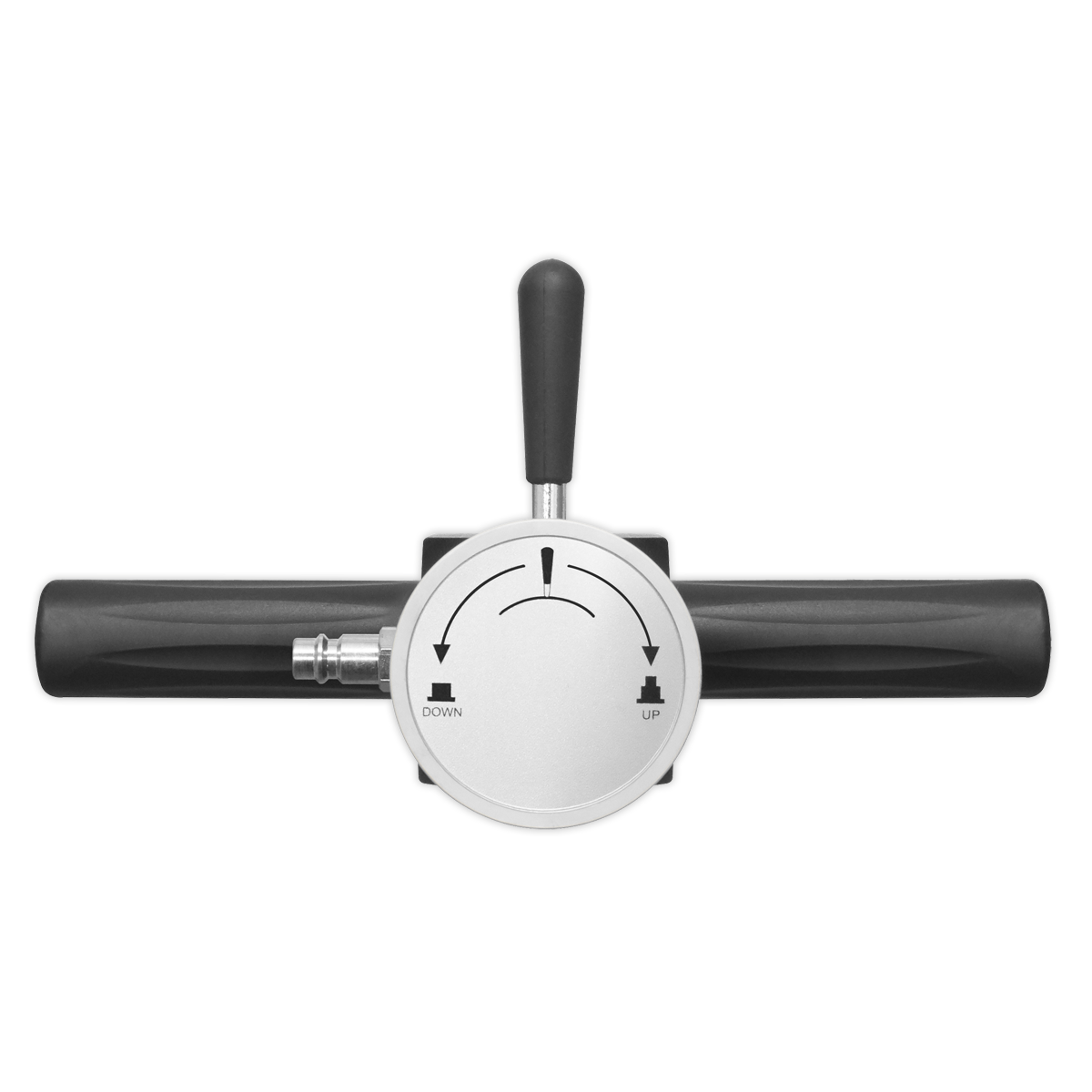

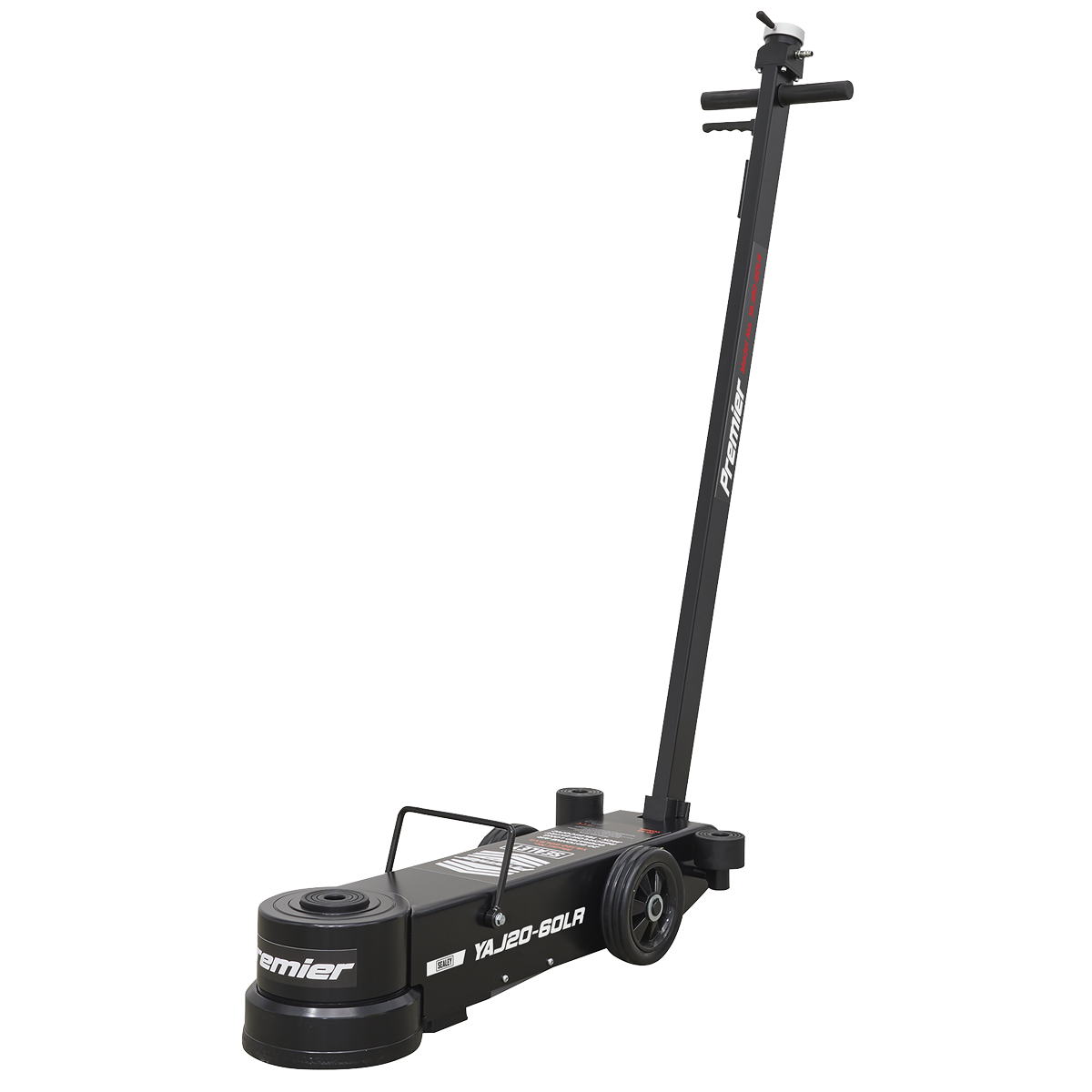

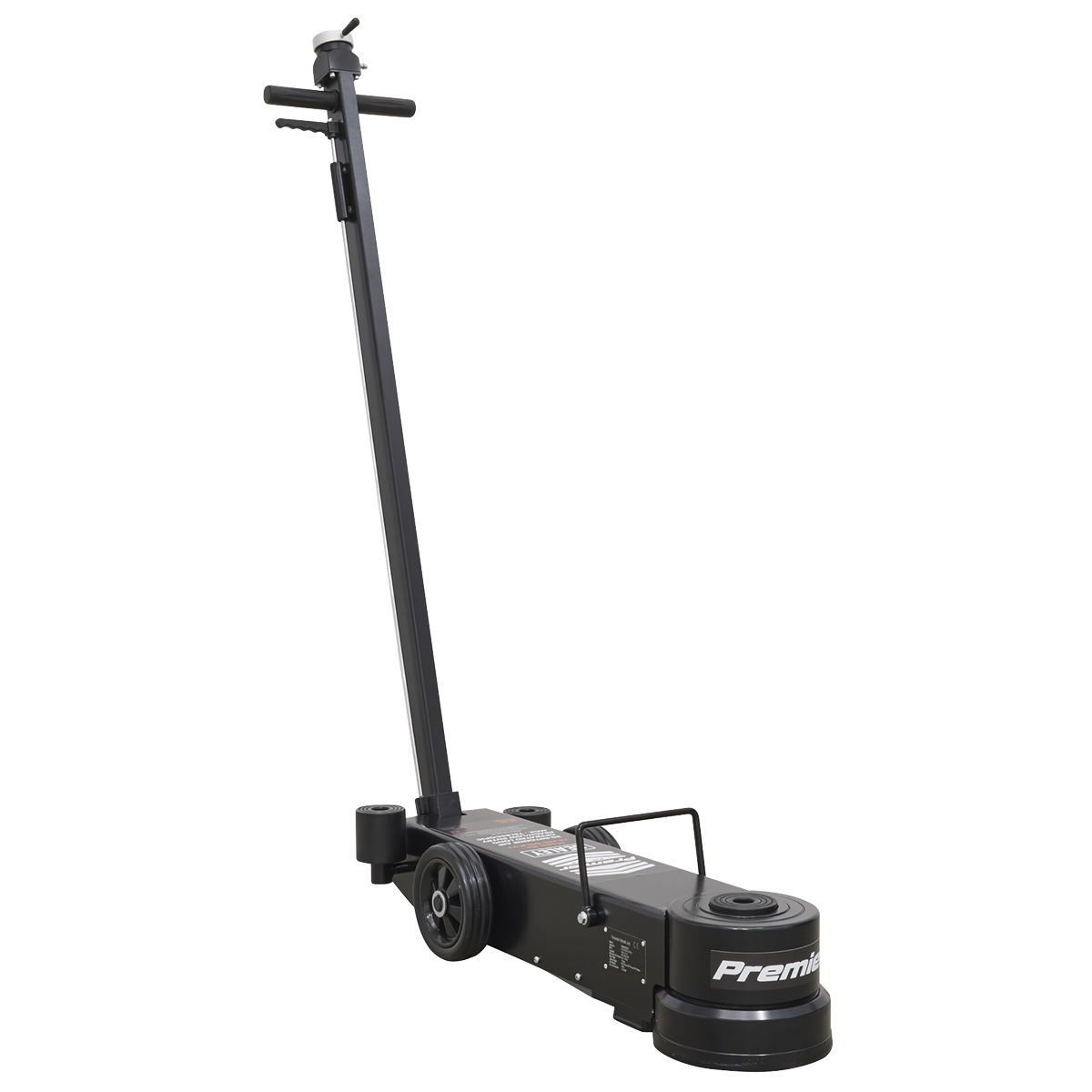

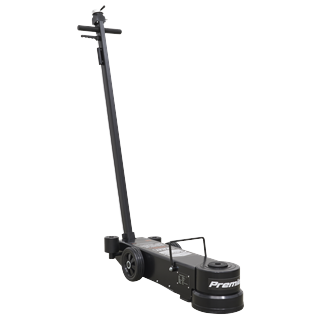

Lifting heavy plant, tractors and commercial vehicles manually is slow, physically demanding work. The Sealey YAJ20-60LR Air Operated Telescopic Jack removes that effort entirely, using compressed air to power a 3-stage hydraulic system rated to a maximum capacity of 60 tonne. With a long reach, low entry chassis measuring 875mm in length and a minimum saddle height of just 175mm, it gets under vehicles where space is tight without sacrificing reach. The three telescoping stages give you flexibility across a wide lifting range: Stage 1 reaches 377mm at 60 tonne capacity, Stage 2 reaches 458mm at 40 tonne, and Stage 3 extends to 542mm at 20 tonne, with a full piston stroke of 247mm. Air consumption is 11.5cfm. A dead man's handle provides extra operator safety and gives you controlled lowering speed. Two extensions are included in the box 45mm and 75mm to close the gap between the saddle and the jacking point. The overall width is 295mm (215mm without wheels), and maximum extended length is 2255mm. Suitable for workshop or roadside use. Backed by a 3-year guarantee. Note: this item is heavy extra assistance must be provided at the delivery point.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YAJ20-60LR |
|---|---|
| Air Consumption | 11.5cfm |
| Brand | Sealey |
| Capacity | 60 Tonne |
| Chassis Length | 875mm |
| Extensions | 45/75mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 377/60 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | 458/40 |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | 542/20 |
| Maximum Length | 2255mm |
| Minimum Saddle Height | 175mm |
| Nett Weight | 70kg |
| Overall Width | 295mm |
| Piston Stroke | 247mm |
| Screw Extension | n/a |
| Width without Wheels | 215mm |
| Working Pressure | 116-174psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-air-operated-jack-20-60tonne-telescopic-long-reachlow-ent.pdf
|
Open Now |
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
SIP 03643 AirFloor Jack, Weight Capacity - 22 Tonne
£555.81
£544.91
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YAJ15-30 | 53438000 | 09893 | 09890 | 03643 | 02081 |
| Warranty | 12 | 12 | 36 | 36 | 24 | 6 |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack |
| Capacity | 30 Tonne | 50 Tonne (50,000kg)25 Tonne (25,000kg) | ||||
| Length (mm) | 483 | 420 | 150 | 141 | 230 | 215 |
| Max Pressure (psi) | 145 | 102 | 174 | |||
| Nett Weight | 42kg | 73kg | ||||
| Weight (kg) | 42 | 117 | 000 | |||
| Show More | ||||||
A. The maximum capacity is 60 tonne, achieved at Stage 1. Capacity reduces to 40 tonne at Stage 2 and 20 tonne at Stage 3.
A. It is designed for lifting heavy plant, tractors and commercial vehicles, making it suitable for workshop or roadside use.
A. The minimum saddle height is 175mm, and the long reach, low entry chassis design is specifically intended for use where ground clearance is limited.
A. The jack is supplied with two extensions: a 45mm and a 75mm extension, which close the gap between the saddle and the vehicle jacking point.
A. The jack requires an air supply with a consumption rate of 11.5cfm.
A. Yes. It features a dead man's handle which provides extra safety and also aids controlled lowering speed.
A. The chassis length is 875mm, overall width is 295mm (215mm without wheels), and the maximum extended length is 2255mm.
A. Yes. The YAJ20B is a variant in the same product family - please check its listing for specific differentiating specifications.
A. Several alternatives are available depending on your capacity requirements: YAJ10-40LELR, YAJ15-30, YAJ15-30LE, and YAJ50-80LR. Each is a different product designed for the same general function at different capacities and configurations.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
