Product Number: YAJ15-30

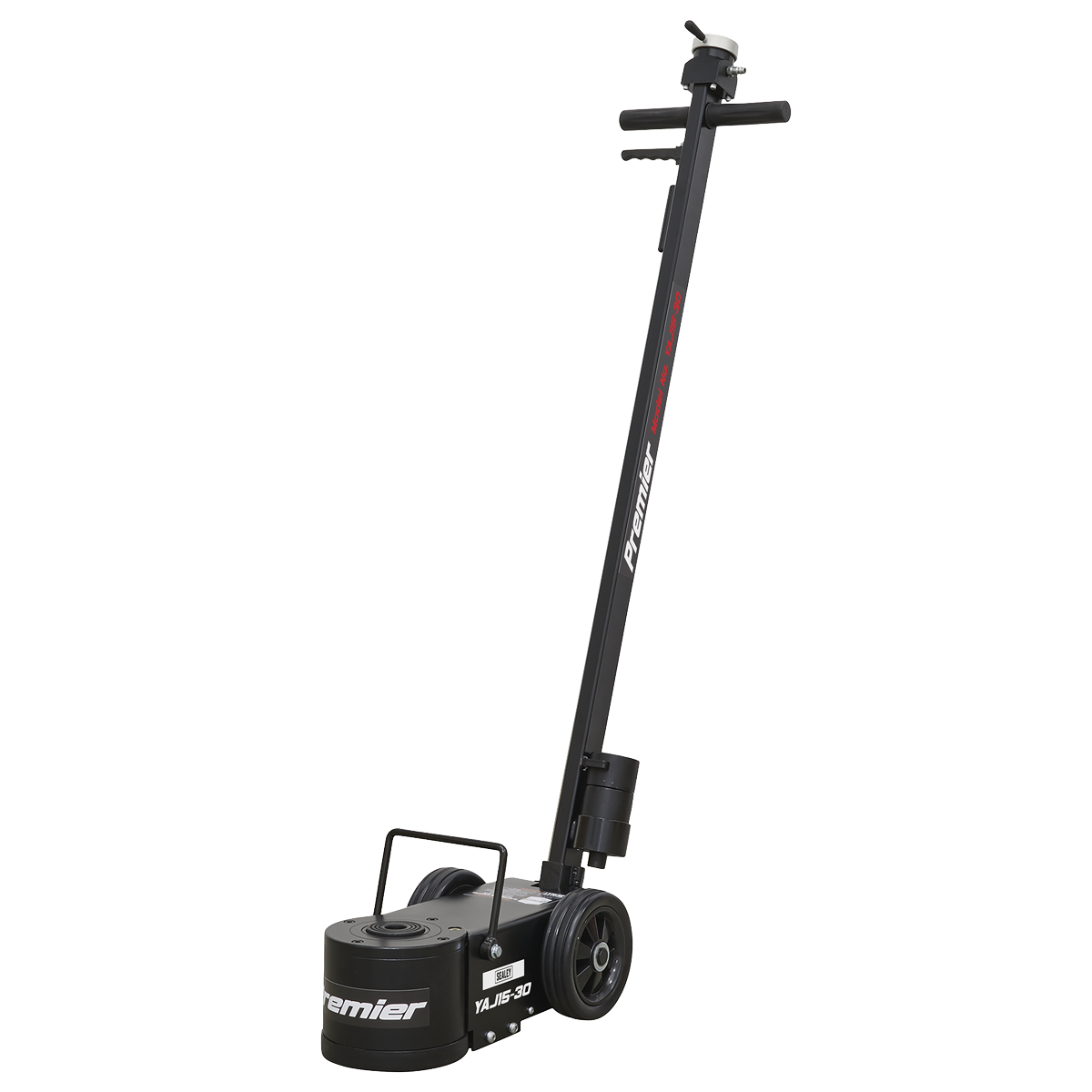

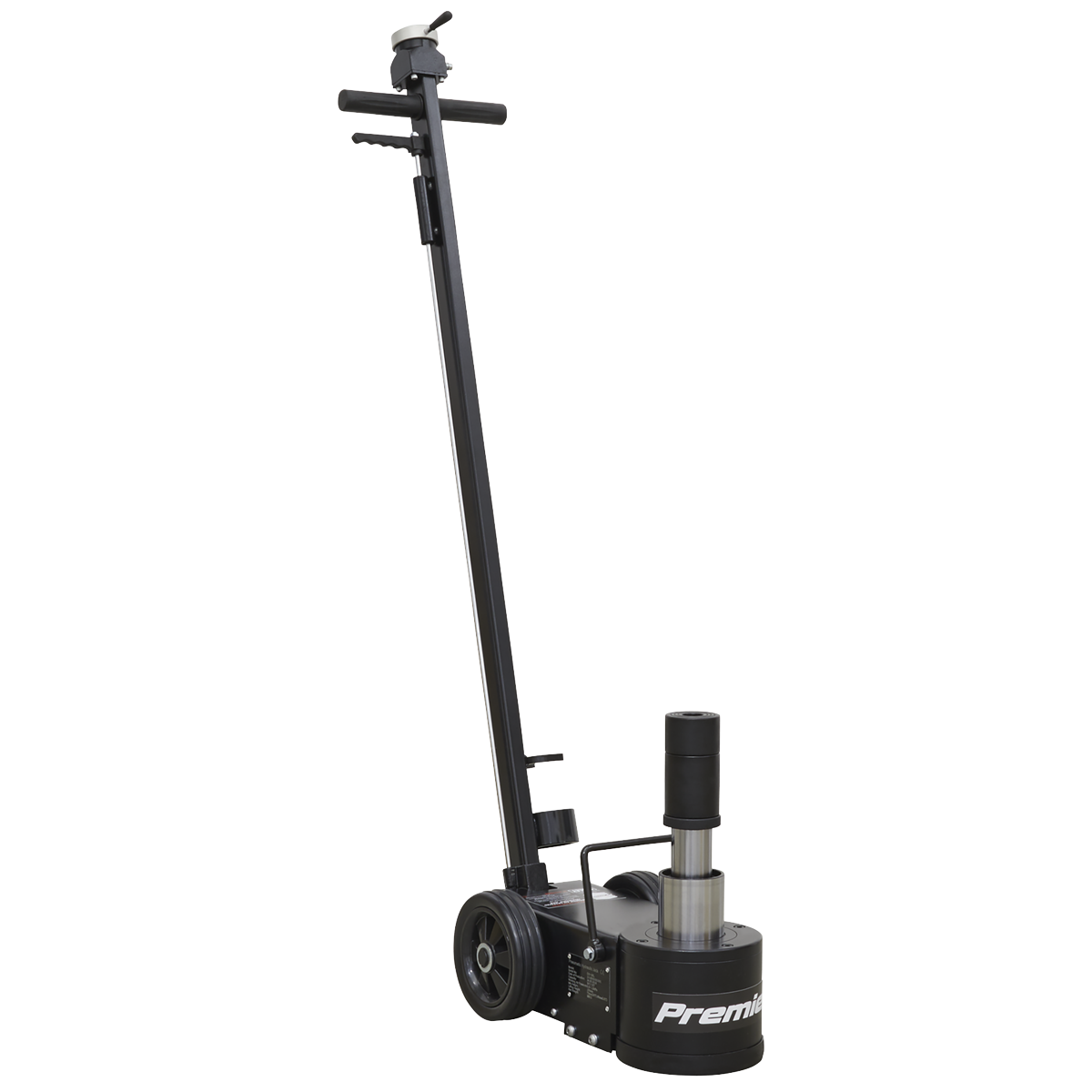

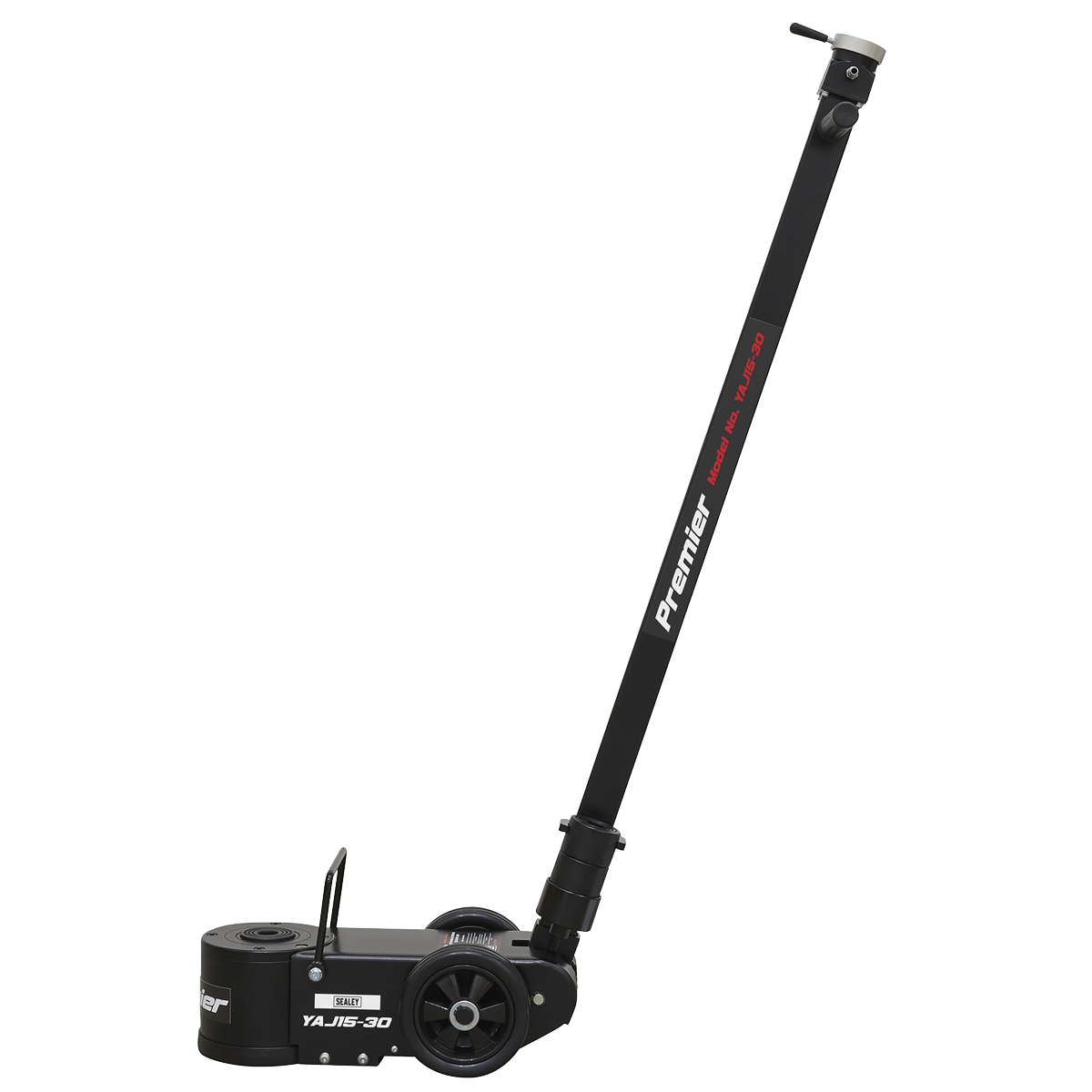

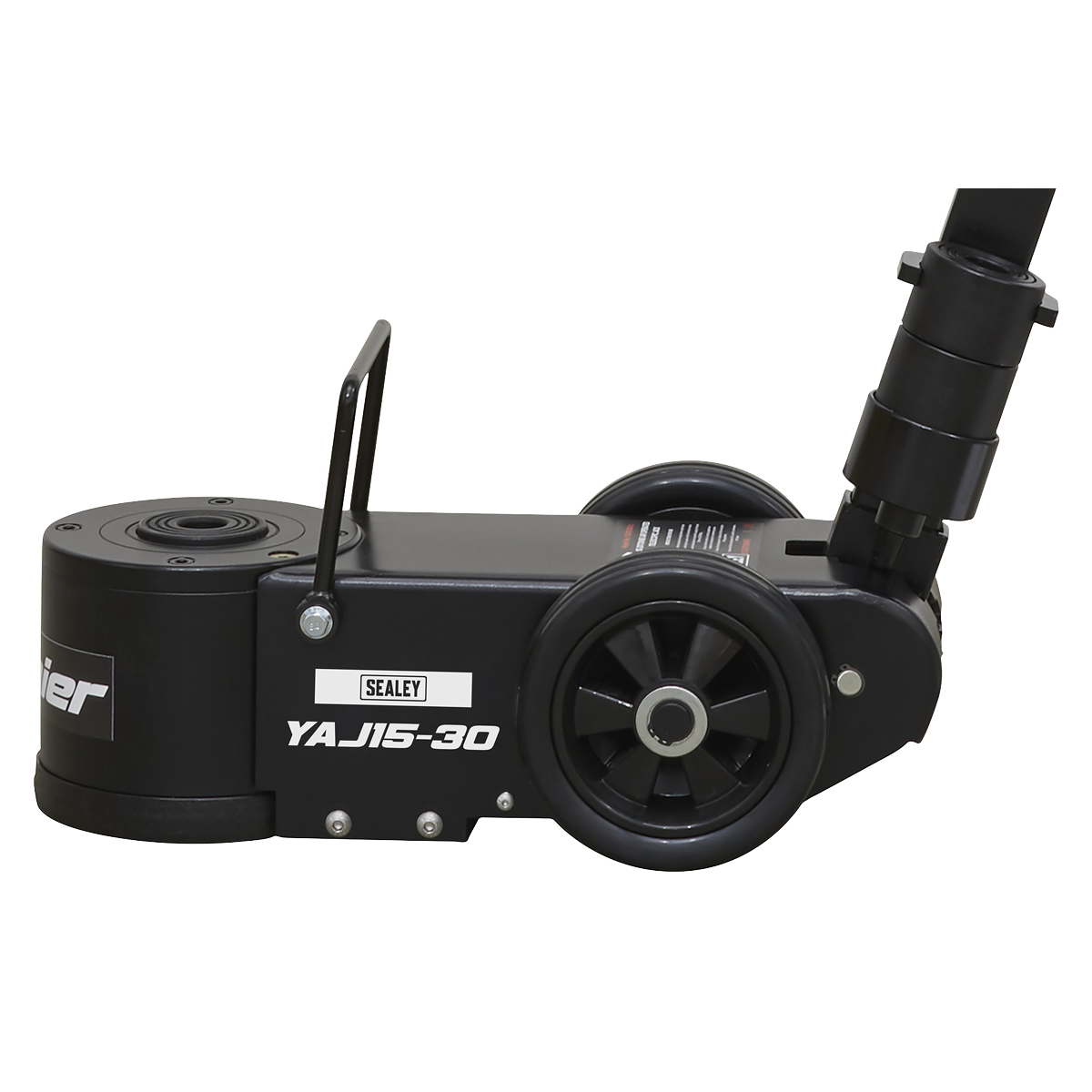

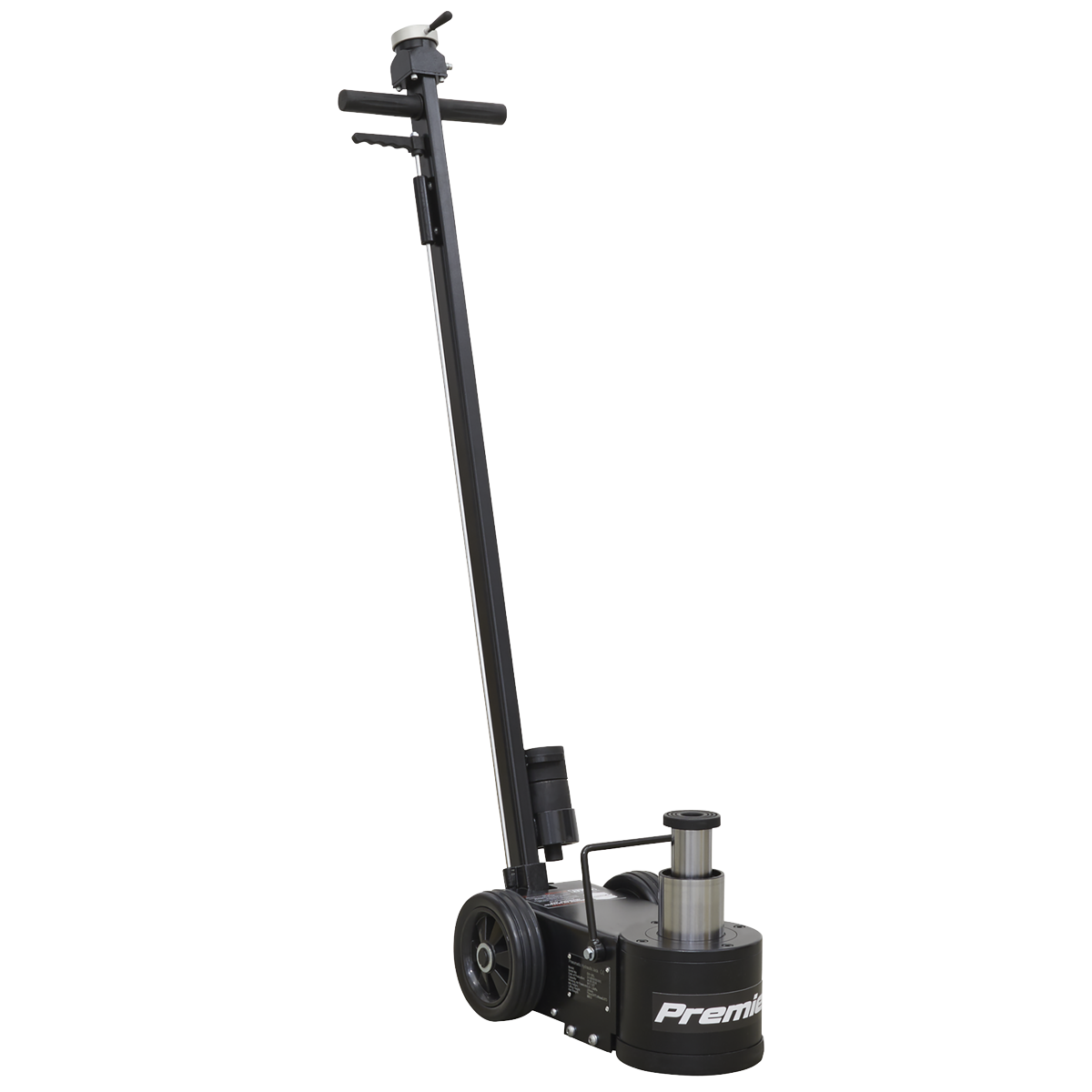

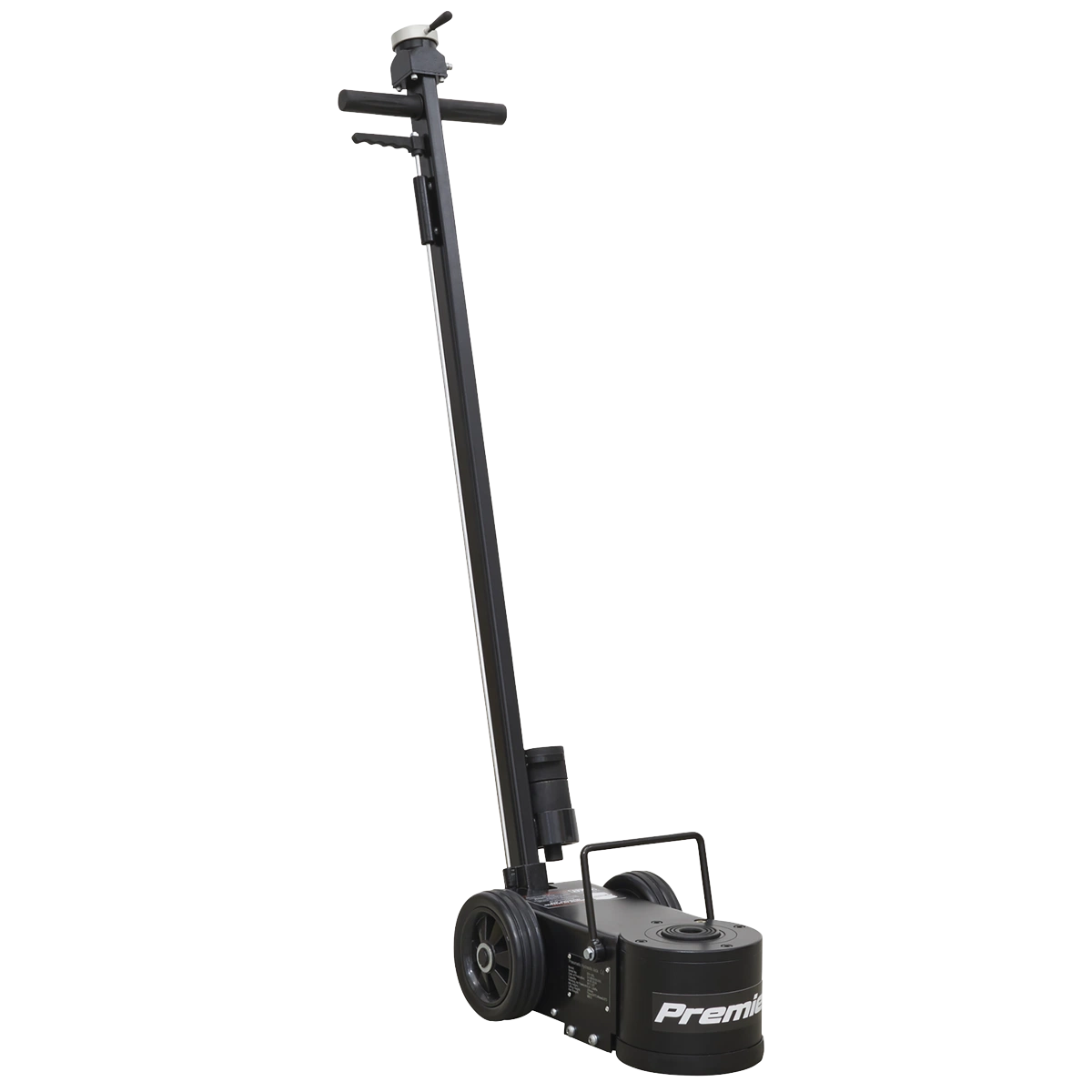

Lifting heavy plant, tractors and commercial vehicles by hand is slow, strenuous work. The Sealey YAJ15-30 air operated telescopic jack removes that effort entirely, delivering up to 30 tonnes of lifting capacity at Stage 1 (maximum height 393mm including extension) and 15 tonnes at Stage 2 (maximum height 473mm including extension), powered by a compressed air supply running at 116-145psi with an air consumption of 10.5cfm. The spring-loaded dead man's control gives safe, controlled lifting and lowering at all times release the handle and movement stops. The handle itself locks in position and can be set at three different angles, giving improved manoeuvrability and access in tight workshop bays or at the roadside. A minimum saddle height of 176mm and a chassis length of 483mm make it practical for low-clearance applications, while the included 45mm and 75mm extensions help close the gap between the saddle and the jacking point when needed. Maximum extended length is 1700mm and overall width is 276mm (176mm without wheels). Suitable for workshop or roadside use. Backed by Sealey's 3 Year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YAJ15-30 |
|---|---|
| Air Consumption | 10.5cfm |
| Brand | Premier |
| Capacity | 30 Tonne |
| Chassis Length | 483mm |
| Extensions | 45/75mm |
| Maximum Height (inc. Extension)/Capacity-Stage 1 (mm/tonne) | 393/30 |
| Maximum Height (inc. Extension)/Capacity-Stage 2 (mm/tonne) | 473/15 |
| Maximum Height (inc. Extension)/Capacity-Stage 3 (mm/tonne) | n/a |
| Maximum Length | 1700mm |
| Minimum Saddle Height | 176mm |
| Nett Weight | 42kg |
| Overall Width | 276mm |
| Piston Stroke | 177mm |
| Screw Extension | n/a |
| Width without Wheels | 176mm |
| Working Pressure | 116-145psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YAJ20-60LR Air Jack 20-60T Telescopic
£1,870.60
£1,833.19
2% OFF
Free delivery in UK Mainland
|
Sealey YAJ15-30LE Air Jack 15-30 Tonne Telescopic Long Reach/Low Entry
£1,723.20
£1,688.74
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53438000 Air Hydraulic Trolley Jack, 10 Tonne
£2,377.06
£2,330.45
2% OFF
Free delivery in UK Mainland
|
SIP 09893 WINNTEC Air Service Jack, Weight Capacity 32-16 Tonne
£1,106.60
£1,084.90
2% OFF
Free delivery in Channel Island
|
SIP 09890 WINNTEC Air Service Jack, Weight Capacity -24 Tonne
£894.35
£876.81
2% OFF
Free delivery in Channel Island
|
Draper 2078 Pneumatic High Lift Jack, 30 Tonne
£1,498.48
£1,469.10
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YAJ20-60LR | YAJ15-30LE | 53438000 | 09893 | 09890 | 02078 |
| Warranty | 12 | 12 | 12 | 36 | 36 | 6 |
| Type | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack | Air Jack |
| Capacity | 60 Tonne | 30 Tonne | 30 Tonne (30,000kg) | |||
| Length (mm) | 875 | 810 | 420 | 150 | 141 | 360 |
| Max Pressure (psi) | 174 | 174 | 174 | |||
| Nett Weight | 70kg | 52kg | 87kg | |||
| Weight (kg) | 70 | 52 | 117 | 000 | ||
| Show More | ||||||
A. The YAJ15-30 has a capacity of 30 tonnes at Stage 1 and 15 tonnes at Stage 2.
A. The jack requires a working pressure of 116-145psi with an air consumption of 10.5cfm.
A. Including extensions, Stage 1 reaches a maximum height of 393mm at 30 tonne capacity, and Stage 2 reaches 473mm at 15 tonne capacity. The minimum saddle height is 176mm.
A. The jack is supplied with 45mm and 75mm extensions to help close the gap between the saddle and the jacking point.
A. Yes. The jack is described as ideal for both workshop and roadside use, for lifting heavy plant, tractors and commercial vehicles.

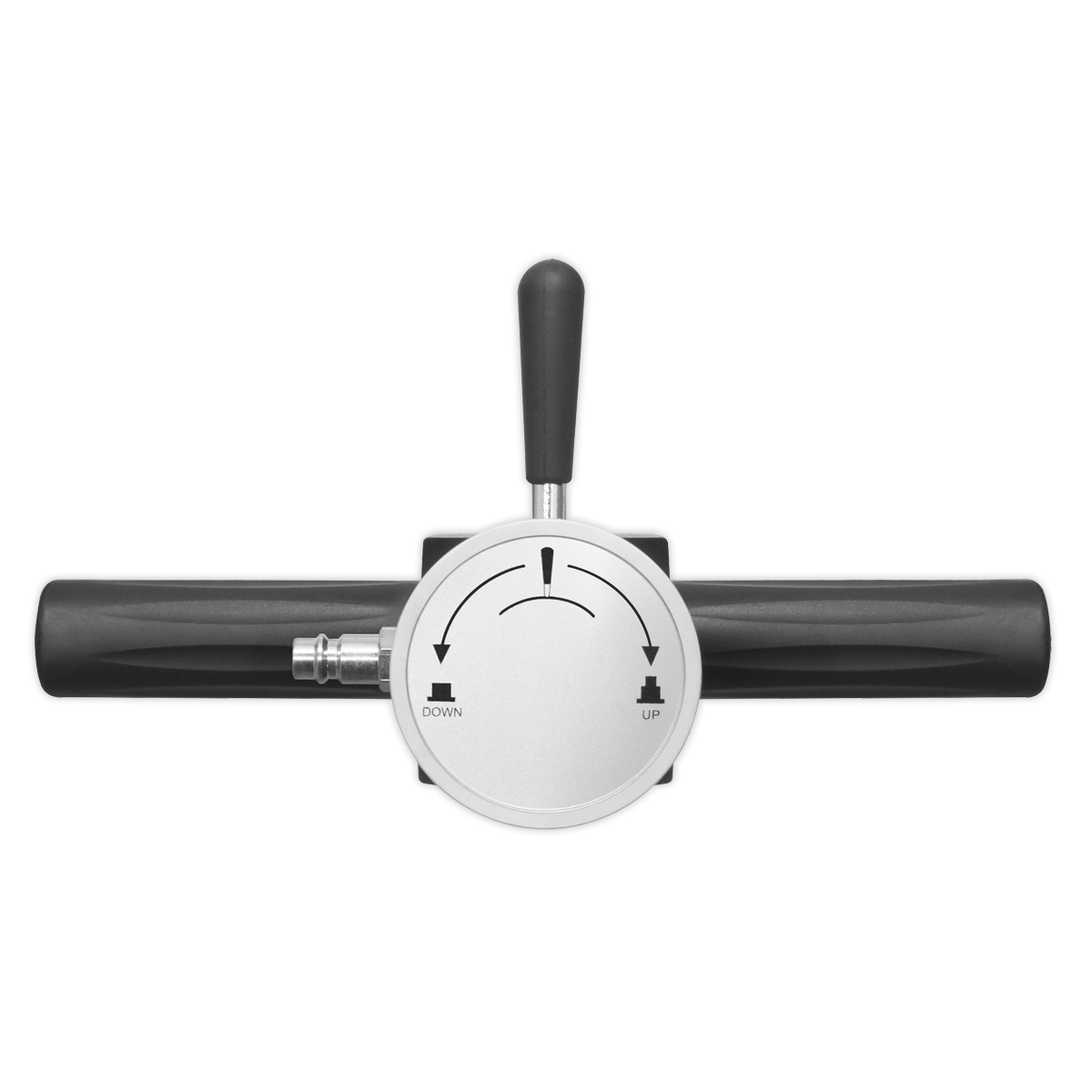

A. The spring-loaded dead man's control enables safe, controlled lifting and lowering. If the handle is released, movement is arrested, providing an added layer of safety.
A. The YAJ15-30LE is available as a variant in the same product family. Please refer to the product listing for its specific differentiating specification.
A. Yes. Alternative products that perform a similar function include the YAJ10-40LELR, YAJ20-60LR and YAJ50-80LR. Please refer to those individual listings for their specifications.
A. The YAJ15-30 is covered by Sealey's 3 Year guarantee.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
