Product Number: AFG6H04

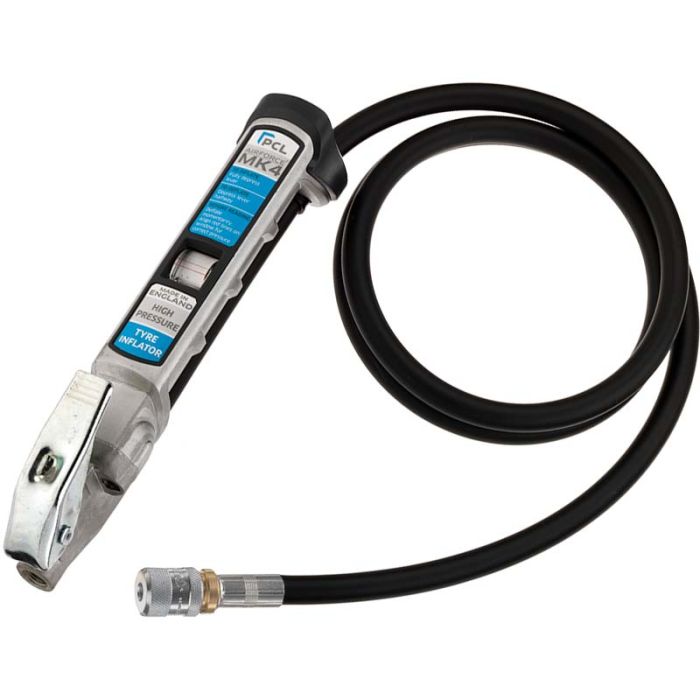

High-pressure tyre inflation on transport, mining and industrial sites demands a gauge built to survive harsh environments and deliver reliable accuracy. The PCL AFG6H04 AIRFORCE® MK4 High Pressure Tyre Inflator is a linear-display inflator with a 1.8 m (6 ft) hose and 8V1 screw-on tyre valve connection, calibrated across a 45–300 psi (3–21 bar) working range — making it suited to any application requiring elevated inflation pressures beyond the range of a standard workshop inflator. The aluminium die-cast body carries a biomorphic, ergonomic form that is easier to hold during repetitive use and less prone to damage if dropped. The gauge body weighs 923 g. A redesigned viewing window provides 20% greater field of view over the previous generation, and the simplified two-stage valve mechanism removes the need for the operator to push against full line pressure during inflation. The linear gauge display offers a resolution of 5 psi / 0.25 bar with an accuracy of ±5 psi / 0.25 bar. The AFG6H04 accepts a maximum inlet pressure of 392 psi (27 bar) and delivers a flow rate of 500 l/min at 13 bar supply pressure. It operates across a temperature range of –15 °C to 55 °C, supporting outdoor and indoor use in variable conditions. The instrument supersedes the earlier ALG5H04.
Product Features :
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Brand | PCL |
|---|---|
| Number | AFG6H04 |
| Hose Length | 1.8 m / 6 ft |
| Connection | Single clip-on |
| Calibration | 45-300 psi / 3-21 bar |
| Shipping Weight (kg) | 1.124 |
| Old Skus | ALG5H04 |
| Display Type | Linear |
| Tyre Valve Connection | 8V1 Screw-on |
| Display Resolution | 5 psi / 0.25 bar |
| Accuracy | +/- 5 psi / 0.25 bar |
| Maximum Inlet Pressure | 392 psi / 27 bar |
| Flow Rate | 500 l/min @ 13 bar supply |
| Temperature Range | -15°C to 55°C |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £8.99
Delivery Estimate: 3 to 5 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
PCL AFG6A01 Airforce MK4 Aviation Tyre Inflator 2m Hose 8v1 Screw-On Connector & 2m Hose 12v1 Screw-On Connector
£544.14
£533.47
2% OFF
Free delivery in UK Mainland
|
Sealey SA37/94 Professional Tyre Inflator 2.5m Hose & Clip-On Connector
£180.65
£177.04
2% OFF
Free delivery in UK Mainland
|
Sealey SA37/95 Tyre Inflator 2.5m Hose with Twin Clip-On Connector
£184.89
£181.19
2% OFF
Free delivery in UK Mainland
|
PCL DAC5A01 ACCURA 5 Inflator 3-319 psi, 2m Hose with 8v1 Screw-On Connector & 2m Hose with 12v1 Screw-On Connector
£746.53
£731.89
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AFG6A01 | SA37/94 | SA37/95 | SA372 | DAC5A01 |
| Type | Forecourt Inflators & Air Tower | Forecourt Inflators & Air Tower | Forecourt Inflators & Air Tower | Forecourt Inflators & Air Tower | Forecourt Inflators & Air Tower |
| Brand | PCL | PCL | PCL | Sealey | PCL |
| Display Resolution | 5 psi | ||||
| Max Pressure (psi) | 300 | 218 | 218 | 218 | 319 |
| Maximum Pressure (bar) | 21 | 15 | 15 | 15 | |
| Number | AFG6A01 | DAC5A01 | |||
A. The AFG6H04 is the PCL AIRFORCE MK4 High Pressure Tyre Inflator 1.8m Hose 8V1 Screw-On Connector. The PCL AFG6H04 AIRFORCE® MK4 High Pressure Tyre Inflator is a linear-display inflator with a 1.8 m (6 ft) hose and 8V1 screw-on tyre valve connection, calibrated across a 45–300 psi (3–21 bar) working range — making it su
A. 1.8 m / 6 ft.
A. 45-300 psi / 3-21 bar.
A. Linear.
A. 8V1 Screw-on.
A. 5 psi / 0.25 bar.
A. +/- 5 psi / 0.25 bar.
A. 392 psi / 27 bar.
A. 500 l/min @ 13 bar supply.
A. PCL (Pneumatic Components Ltd), the Sheffield, UK based world leader in tyre inflation and compressed air products, part of HORNGROUP.
