Product Number: PT1000
Variations

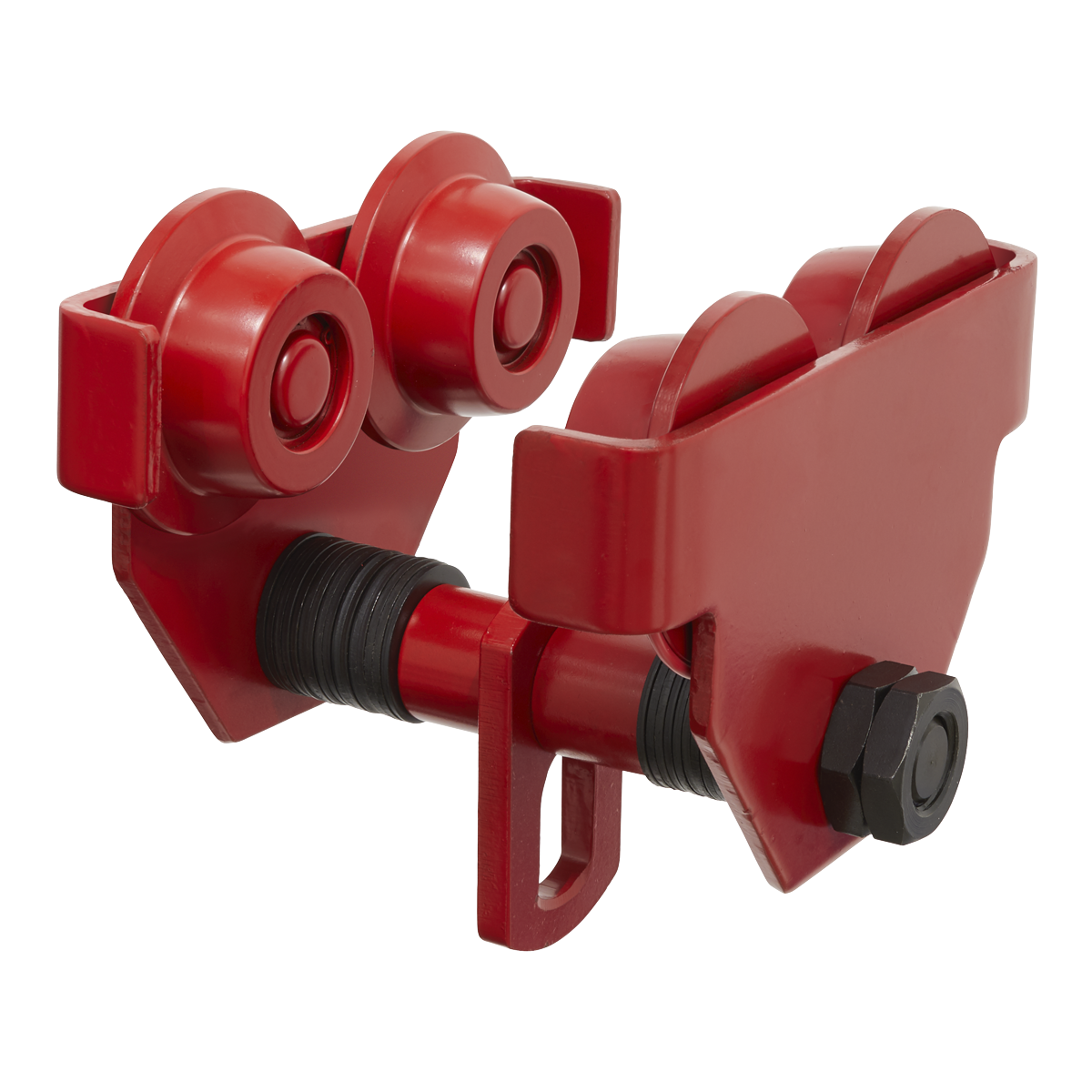

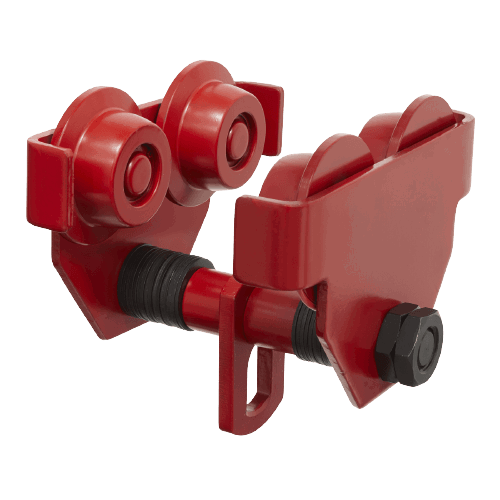

Moving heavy loads along a gantry beam shouldn't require brute force or improvised solutions. The Sealey PT1000 is a 1-tonne capacity plain trolley built from high-quality steel with a powder-coated finish for corrosion resistance, designed to mount onto I-beam or RSJ sections and roll smoothly beneath your hoist setup. The adjustable track width spans 64-140mm, making it compatible with a range of beam widths, while the minimum and maximum standard I-beam dimensions (125 x 75 x 5.5mm up to 250 x 125 x 7.5mm) mean it suits most common workshop and industrial gantry configurations. Anti-drop plates are built in as a safety measure, and the trolley is compatible with chain blocks and lever hoists. With a minimum curve radius of 1000mm and a maximum span between supports of 2500mm, it provides reliable lateral load movement in a range of overhead lifting setups. Weighing 13kg, it is straightforward to install and position before loading.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PT1000 |
|---|---|
| Brand | Sealey |
| Nett Weight | 12kg |
| Capacity | 1000kg |
| Test Load | 1500kg |
| Track Width Adjustable Range | 64-140mm |
| Minimum Curve Radius | 1000mm |
| A | 255mm |
| B | 127.5mm |
| C | 127.5mm |
| D | 104mm |
| E | 128mm |
| Weight | 13kg |
| Minimum Standard I-Beam Dimensions (D x W x Web) | 125 x 75 x 5.5mm |
| Maximum Distance Between Spans | 2500mm |
| Maximum Standard I-Beam Dimensions (D x W x Web) | 250 x 125 x 7.5mm |
| Maximum Distance Between Spans | 6000mm |
| Refer to catalogue for diagram |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-trolley-plain-1tonne.pdf
|
Open Now |
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 4692 Platform Trolley with Folding Handle, 900 x 600 x 850mm, 300kg
£81.88
£80.27
2% OFF
Free delivery in UK Mainland
|
Draper 44005 Platform Trolley with Folding Handle, 630 x 480 x 850mm, 150kg
£67.44
£66.12
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 03851 | BC1000 | 04692 | 44005 | STR004 |
| Type | Platform Trollie | Platform Trollie | Platform Trollie | Platform Trollie | Platform Trollie |
| Capacity | 1000kg | ||||
| Length (mm) | 64 | 220 | 850 | 850 | 1160 |
| Model No | BC1000 | STR004 | |||
| Nett Weight | 4.2kg | 3.06kg | |||
| Weight (kg) | 4.2 | 300 | 150 | 100 | |
A. The PT1000 has a rated capacity of 1000kg.
A. The track width is adjustable between 64mm and 140mm, suitable for standard I-beams and RSJ sections from 125 x 75 x 5.5mm (minimum) up to 250 x 125 x 7.5mm (maximum).
A. Yes, the PT1000 is designed for use with chain blocks, lever hoists, and other compatible lifting gear.
A. Yes, the trolley incorporates anti-drop plates to provide added security during use.
A. The minimum curve radius is 1000mm.
A. The maximum distance between spans is 2500mm.
A. The main dimensions are: A 255mm, B 127.5mm, C 127.5mm, D 104mm, E 128mm. Overall weight is 13kg.
A. Yes, the PT1000G is the geared variant in the same product family. It uses a chain mechanism to move loads along the gantry rather than manual pushing, which can make manoeuvring heavy loads easier.
A. The trolley has a powder-coated finish for corrosion resistance.
A. Yes. Please contact Parts for Machines via the website or phone for pre-sales advice on compatibility or specification.
