Product Number: ECS400
Variations

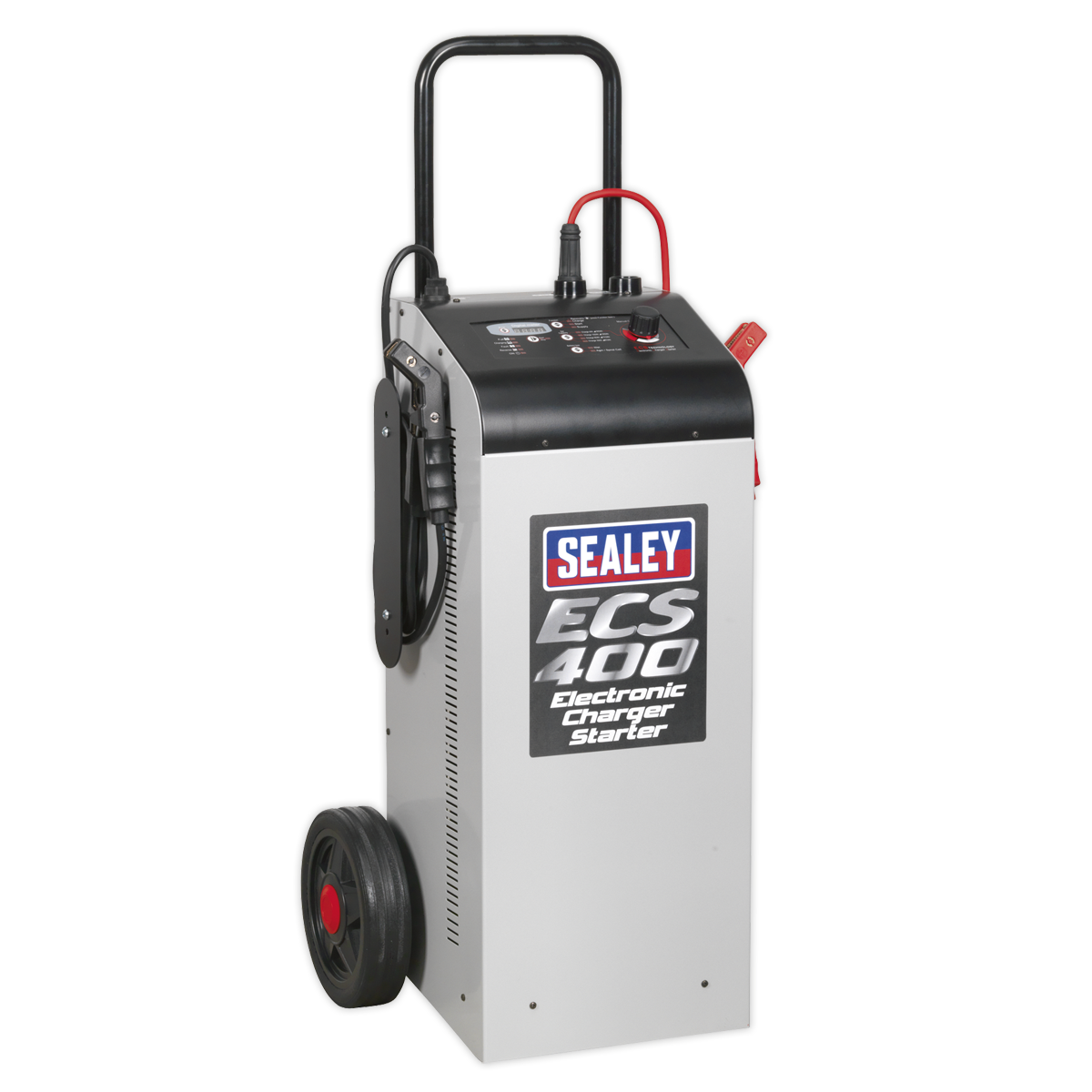

Modern vehicles including electric, hybrid and stop/start models place demanding requirements on battery charging and jump-starting equipment. The Sealey ECS400 is a fully electronic, microprocessor-controlled battery charger and starter unit that meets those requirements head on. It supports EFB, AGM/GEL, Lead Acid, Lead Calcium and Silver Calcium battery types across a wide 4-550Ah battery range, and operates on both 12V and 24V electrical systems. Up to ten analysis and charge phases including trickle and maintenance modes are managed automatically using ECS (Electronic Control Systems) technology, which stabilises charging current to improve efficiency and reduce charge times. Peak charge output reaches 75A (50A EN-rated) and peak start output reaches 400A (300A EN-rated), with cable and clamp lengths of 2 metres. An LED read-out provides an instant visual check of battery condition, charge current, voltage and charging rate. Built-in surge and spike protection during charging and starting safeguards sensitive vehicle systems including ABS, airbag sensors, ignition and audio systems. Battery Support Unit (BSU) mode supplies 30A at 13.5V to keep the battery supported during prolonged diagnostic checks or software updates, preventing drain. Polarity protection is provided by twin 100A fuses. Supplied with a 2-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ECS400 |
|---|---|
| Brand | Sealey |
| Cable & Clamp Length | 2m |
| Nett Weight | 24.5kg |
| Output | 12/24V |
| Output Charge Peak(EN) | 75A(50A) |
| Output Start Peak(EN)* | 400A(300A) |
| Battery Range | 4-550Ah |
| Input Charge | 1.5kW - 6.5A |
| Input Start | 10kW - 43A |
| Charging Rates | 3 x Preset + 1 x Variable to Maximum Current |
| Supply | 230V - 32A |
| BSU Supply | 30A - 13.5V |
| Polarity Protection | Fuse (2 x 100A) |
| Fuse | 120/802131 (Pack of 10), 120/122452 (single) |
| Note | *Performance dependent on connection to an adequate, good clean electric supply. |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
120/122452 | Sealey 100A Fuse for SuperStart Starter/Chargers | 1 Unit |
£10.02
£9.82
|
Add |
|
120/802131 | Sealey 120/802131 100A Fuse 99x20mm for SUPERSTART & ECS Battery Chargers - Pack of 10 | 1 Unit |
£39.55
£38.77
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey ECS350 Electronic Battery Charger Starter 60/350A 12/24V
£517.10
£506.96
2% OFF
Free delivery in UK Mainland
|
Sealey ECS650 Electronic Charger Starter 100/650A 12/24V
£695.63
£681.99
2% OFF
Free delivery in UK Mainland
|
Sealey PRS2200 Premier 12V RoadStart® Jump Starter 2200 Peak Amps
£367.93
£360.72
2% OFF
Free delivery in UK Mainland
|
| Technical Specification | |||
|---|---|---|---|
| PRODUCT NUMBER | ECS350 | ECS650 | PRS2200 |
A. The ECS400 is suitable for EFB, AGM/GEL (stop/start), Lead Acid, Lead Calcium and Silver Calcium batteries, including those found on electric and hybrid vehicles.
A. It supports batteries from 4Ah up to 550Ah.
A. It is suitable for both 12V and 24V electrical systems.
A. Peak charge output is 75A (50A EN-rated) and peak start output is 400A (300A EN-rated).
A. Yes. The unit includes circuitry to provide surge and spike protection during charging and starting, helping to prevent damage to systems such as ABS, airbag sensors, ignition and audio systems.
A. BSU (Battery Support Unit) mode provides support for the battery during prolonged electronic diagnostic checks and software updates, preventing it from being drained. It supplies 30A at 13.5V.
A. Up to ten analysis and charge phases, including trickle and maintenance modes.
A. Several alternatives are available that perform a similar function: ECS300, ECS350, ECS650 and PRS2200. Please contact Parts for Machines to discuss which unit best suits your requirements.
A. The ECS400 is supplied with a 2-year guarantee.
A. Standard UK mainland delivery is 3-5 working days.
