Product Number: YK10B
Variations

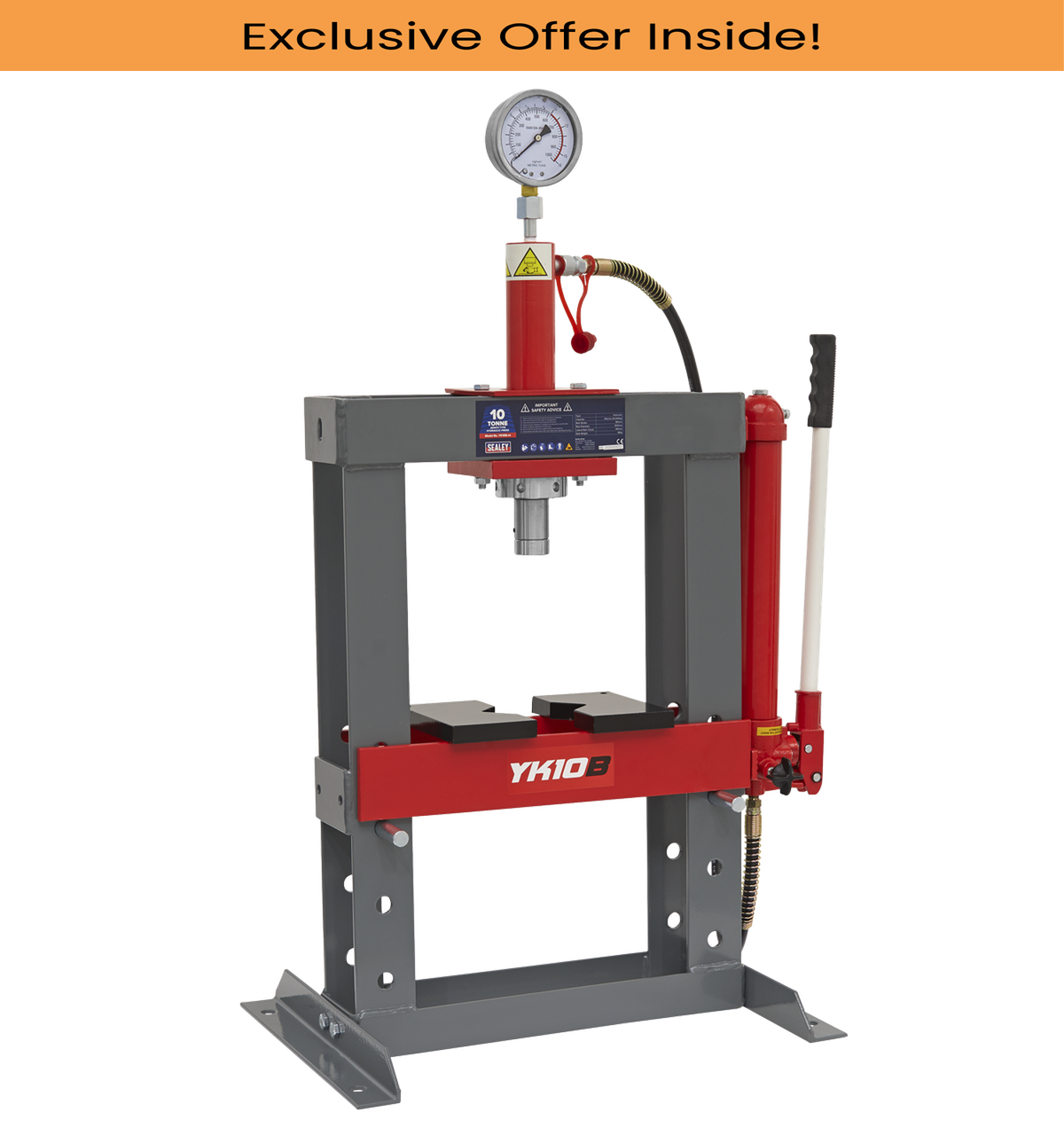

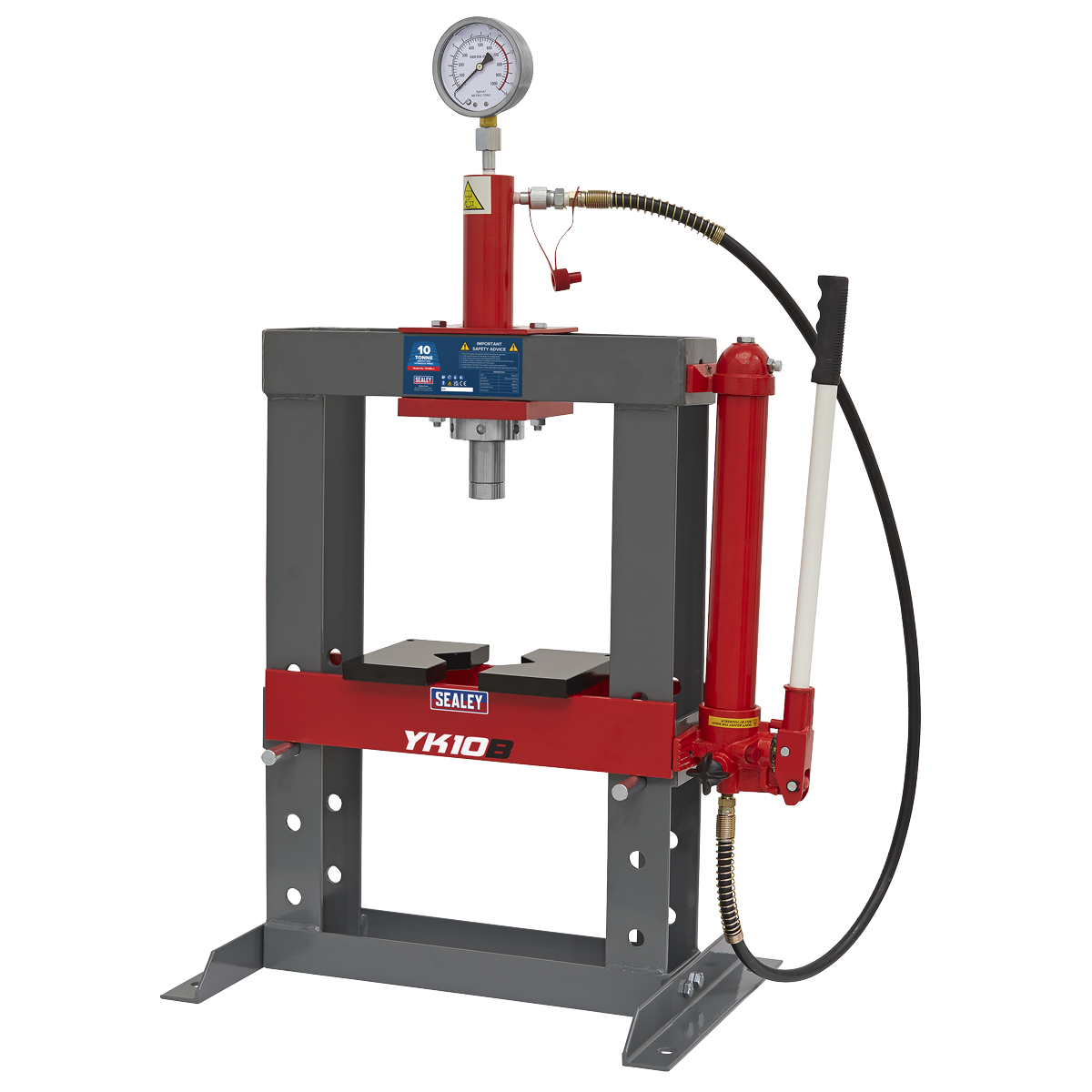

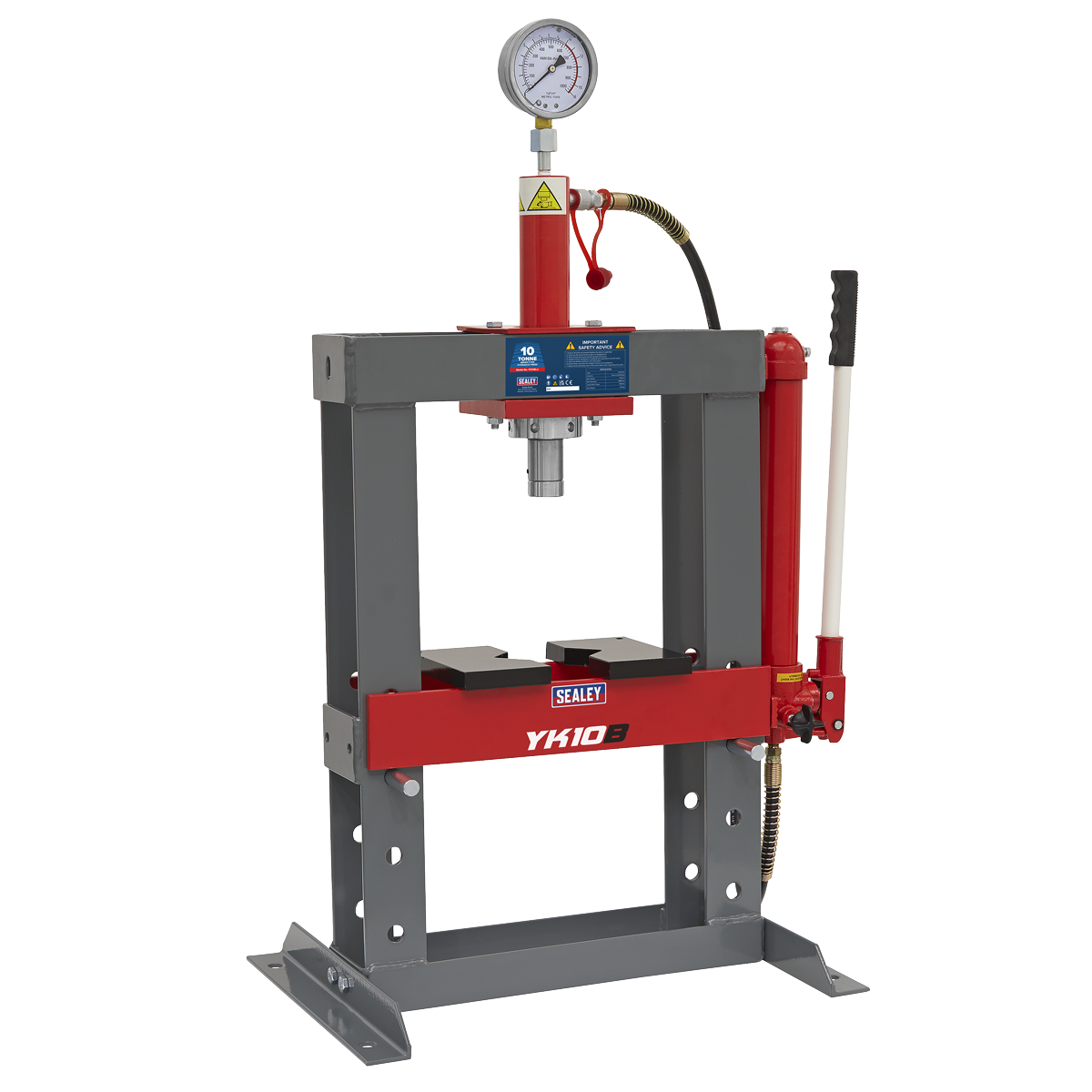

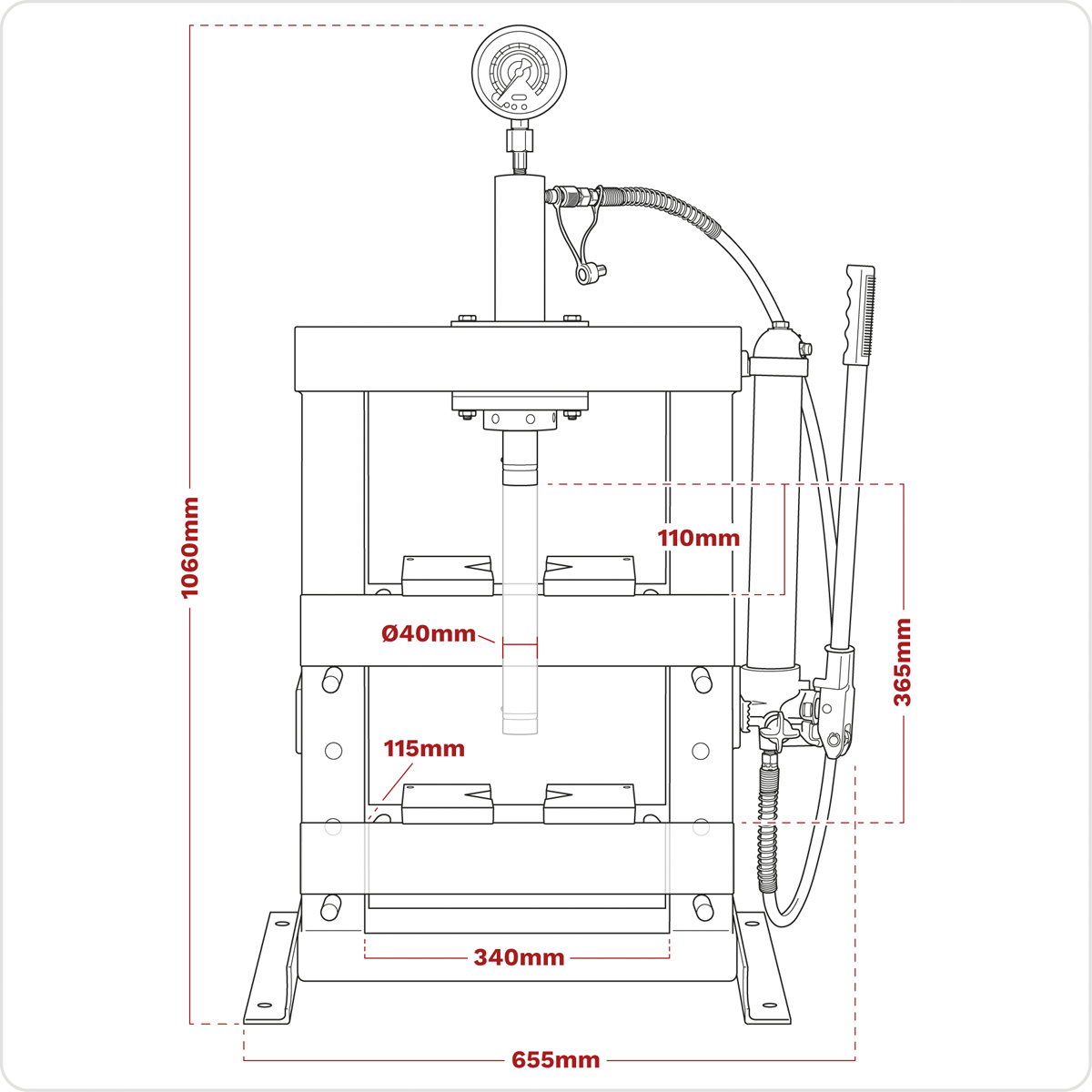

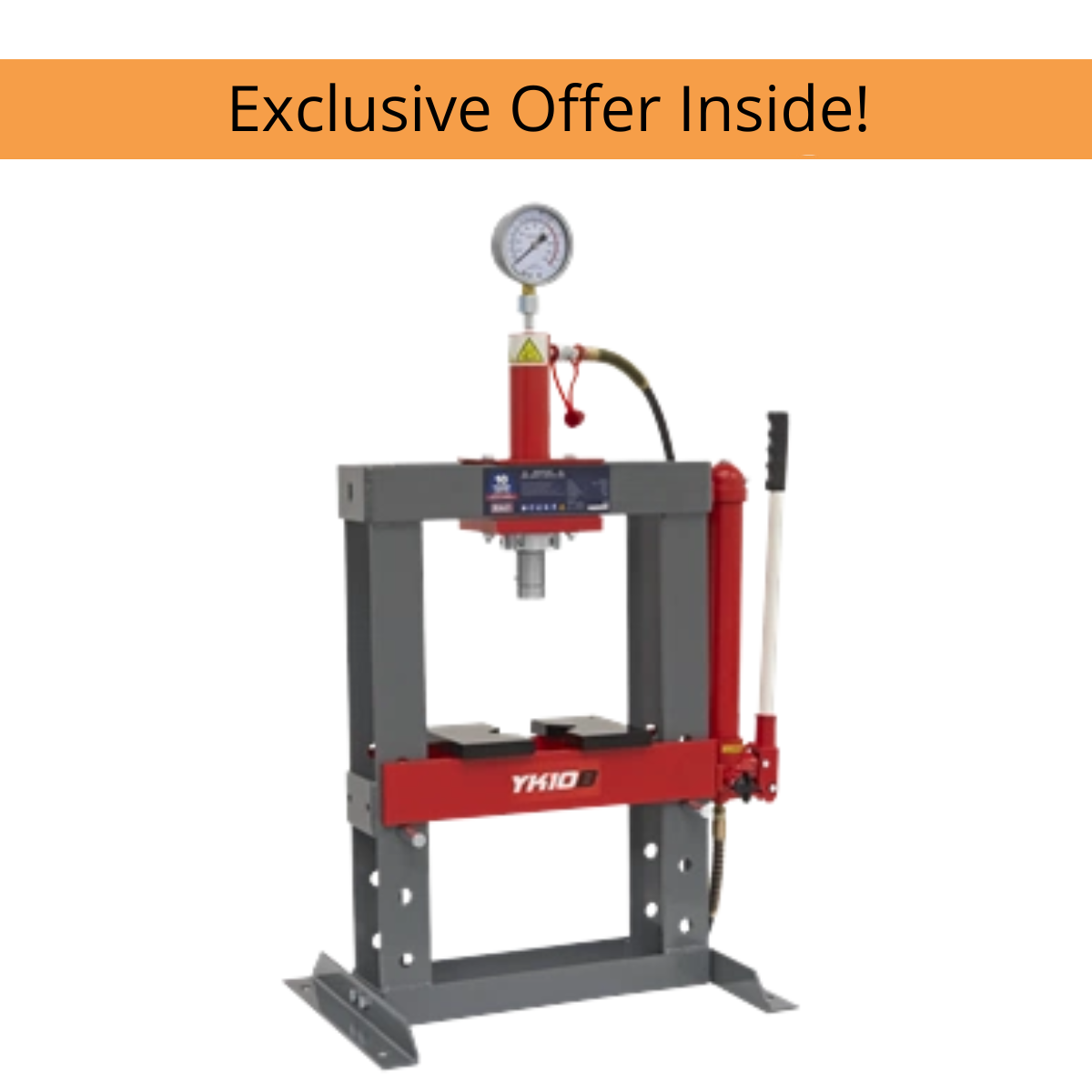

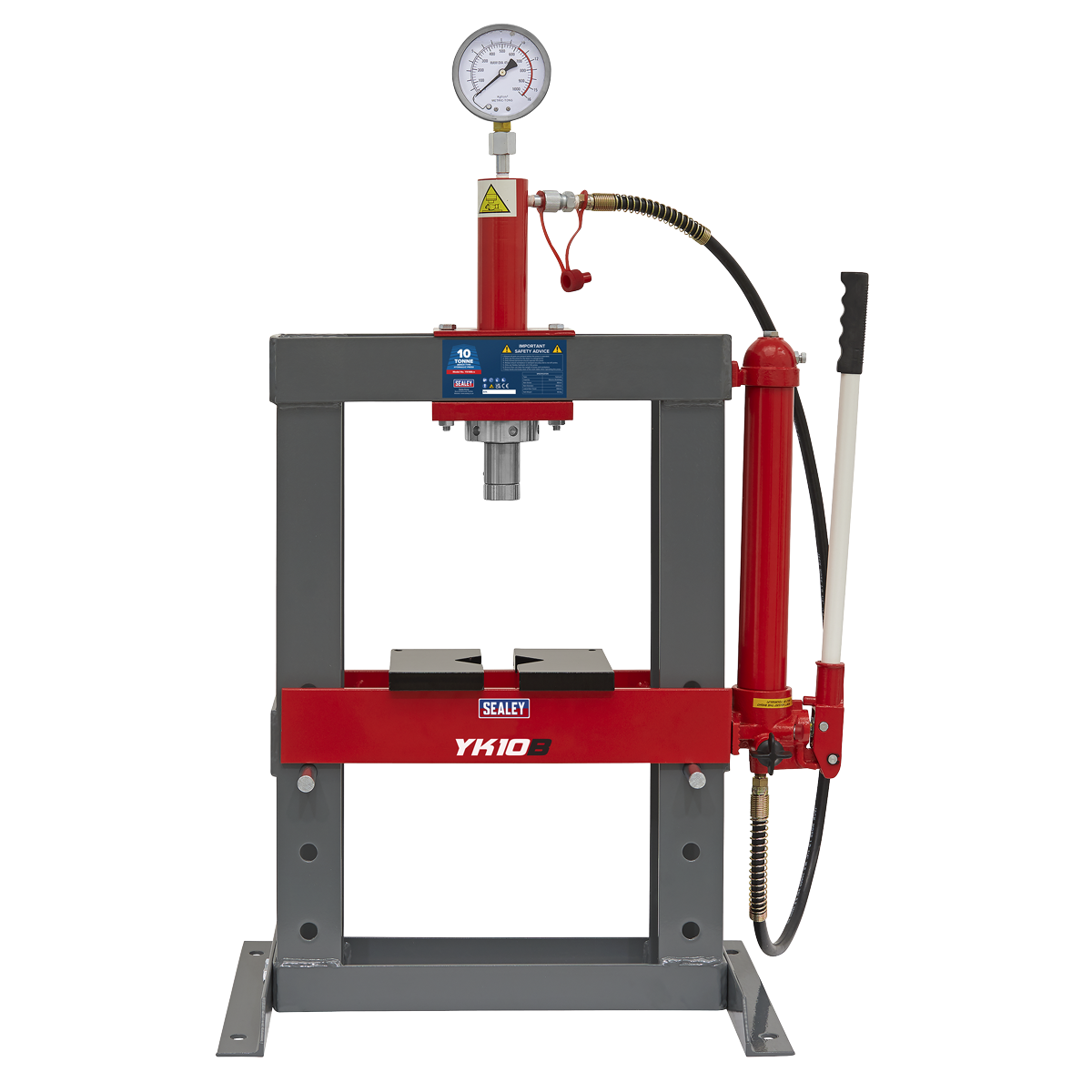

Pressing, bending, and extruding tasks demand a press frame that won't flex under load and a hydraulic system you can trust. The Sealey YK10B is a 10-tonne bench-mounting hydraulic press built from high-quality steel with a powder-coated finish for corrosion resistance, making it well suited to automotive and industrial workshop environments. The detachable pump and ram give you the flexibility to use the hydraulic system for other purposes when the press is not in use. A pressure gauge is included so you can monitor force accurately throughout every operation. The ram offers a 180mm stroke and 190mm lateral travel, with the ram-to-table height adjustable between 110mm and 365mm to accommodate a range of workpiece sizes. The 340mm operating table width and 115mm table aperture provide a practical working area, and the press ships with flat pressing plates and extension tubes included. Overall height is 1060mm, making this a compact bench unit suitable for workshops where floor space is at a premium. Please note this item is heavy extra assistance must be provided at the delivery point to help ensure safe delivery.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YK10B |
|---|---|
| Bench or Floor Mounting | Bench |
| Brand | Sealey |
| Capacity | 10 Tonne |
| Gauge Included | Yes |
| Lateral Ram Travel | 190mm |
| Maximum Height - Ram to Table | 365mm |
| Minimum Height - Ram to Table | 110mm |
| Nett Weight | 48.0kg |
| Optional Accessories | n/a |
| Overall Height | 1060mm |
| Overall Width | 655mm |
| Ram Diameter | Ø40mm |
| Ram Stroke | 180mm |
| Table Aperture | 115mm |
| Type | Hydraulic |
| Working Table Depth | 80mm |
| Working Table Width | 340mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-hydraulic-press-10tonne-bench-type.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YC10B Hydraulic Press 10 Tonne Bench C-Type
£381.89
£374.40
2% OFF
Free delivery in UK Mainland
|
SIP Combo03650 10 Tonne Shop Bench Press + 1ltr Advanced Hydraulic Oil (combo)
£311.36
£305.25
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53420000 15 Tonne Bench Press
£1,260.45
£1,235.74
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 53410000 Bench Press - 10 Tonne
£1,051.53
£1,030.91
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | YC10B | Combo03650 | 03650 | 53420000 | 53410000 | 70538 |
| Capacity | 10 Tonne | 10 tonne | ||||
| Brand | Sealey | |||||
| Length (mm) | 458 | 340 | 340 | 1240 | 1240 | 105 |
| Model No | YC10B | |||||
| Weight (kg) | 64.5 | 95 | 105 | 90 | 55 | |
A. The YK10B has a 10-tonne capacity.
A. Yes, the YK10B is supplied with a pressure gauge so you can monitor applied force accurately during use.
A. The YK10B is designed for bench mounting. Its overall height is 1060mm, making it a compact unit suited to workbench installation.
A. The ram has a 180mm stroke and 190mm lateral travel. The ram-to-table height ranges from a minimum of 110mm to a maximum of 365mm.
A. The YK10B is supplied with flat pressing plates and extension tubes.
A. Yes. The pump and ram are detachable, allowing the hydraulic system to be used for other purposes when the press is not in use.
A. It is suitable for pressing, bending, and extruding across many automotive and industrial applications.
A. Yes. Variants in the same Sealey press family include the YK10ECF (10-tonne economy floor type), the YK10F (10-tonne floor type), and the YK6ECB (6-tonne bench type), each with different capacities or mounting configurations.
A. Yes. This item is heavy, and Sealey advises that extra assistance must be provided at the delivery point to help ensure safe delivery.
