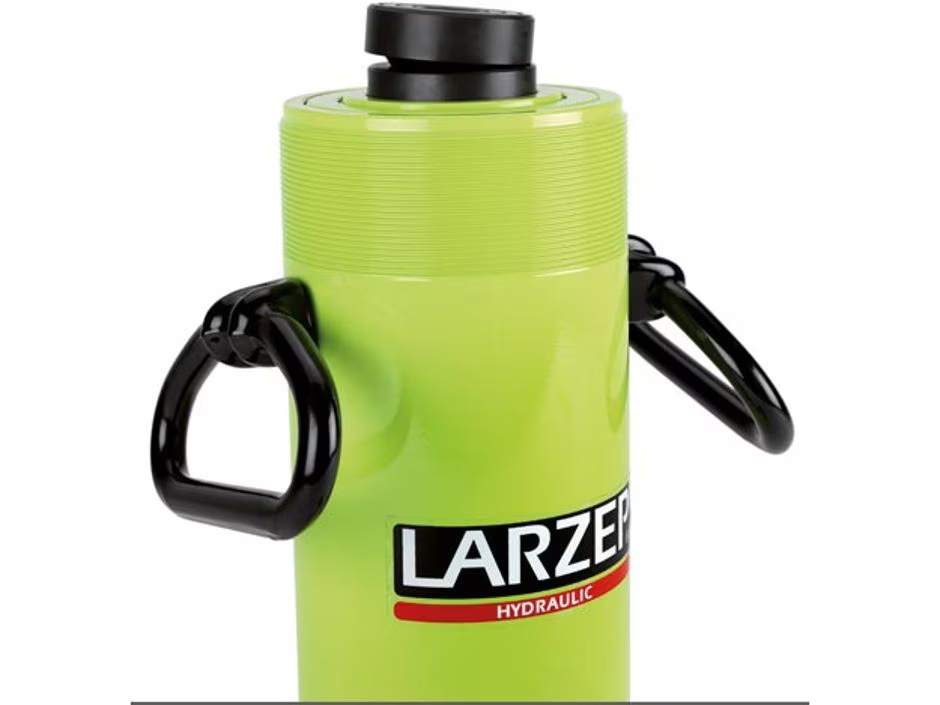

Larzep SM07516, 75 Toone Capacity, 160 mm Stroke, Single-Acting, Spring Return Cylinders

Name: Larzep SM07516, 75 Toone Capacity, 160 mm Stroke, Single-Acting, Spring Return Cylinders
SKU: SM07516
Price: 3092.3 GBP
Availability: InStock

Product Number: SM07516

£3,092.30

BUY NOW

ADD TO CART

Model: SM07516

Series: Larzep

Product Line: Industrial Tools.

Larzep SM single-acting hydraulic cylinders are the durable, reliable, and versatile choice for general purpose industrial use. With a vast range of variants available, you’re certain to find a cylinder perfectly matched to your applications.

Larzep accessories can be attached to the collar threads, piston end threads, and base holes to give you many more possibilities.

The pre-tensioned spring ensures maximum productivity by providing fast plunger retraction in any position. Inside each cylinder is a stop ring capable of withstanding the full capacity of the cylinder. Side-load resistance is improved by guiding bands, and cylinder life is extended by wiper seal.

Each cylinder is manufactured using advanced technologies while following quality system processes meeting the standards of UNE-EN ISO 9001:2015.

Product Features

Industrial general purpose hydraulic cylinder
Capacities from 5 to 220 ton, piston strokes up to 362 mm
Strong spring for quick retraction, can be used in all positions
Collar threads, piston end threads and base holes, for accessory mounting
Hard chrome-plated piston with wiper seal to extend cylinder life
Heavy cylinders include carrying handles or eye bolts as standard
Body made of solid steel
Stop ring withstands the full capacity of the cylinder
Guiding bands improve resistance against side-loads
Fully compliant with ANSI-B30.1 / EN1494*
Hardened grooved saddles included as standard
Female AZ3140 coupling with rubber dust cap included
All units load tested under 125% of the nominal capacity

BUY NOW

ADD TO CART

Maximum Operating Pressure (bar)	700
Capacity (kN)	713
Capacity (metric tons)	75
Stroke (mm)	160
Collapsed Height A (mm)	285
Extended Height B (mm)	445
Outside Diameter D (mm)	150
Return Type	Single Acting Spring Return
Material	Steel
Cylinder Effective Area Advance (cm2)	104
Oil Capacity Advance (cm3)	1.661
Collapsed Height A with Optional Tilt Saddle (mm)	312
Optional Tilt Saddle	AZ0402
Weight (kg)	32

BUY NOW

ADD TO CART

Engine Parts	Product Number	Product Name	Recommended Units	Product Price

BUY NOW

ADD TO CART

SM-Series_Cylinders_EN-GB.pdf	Open Now
