Product Number: SMS255
Variations

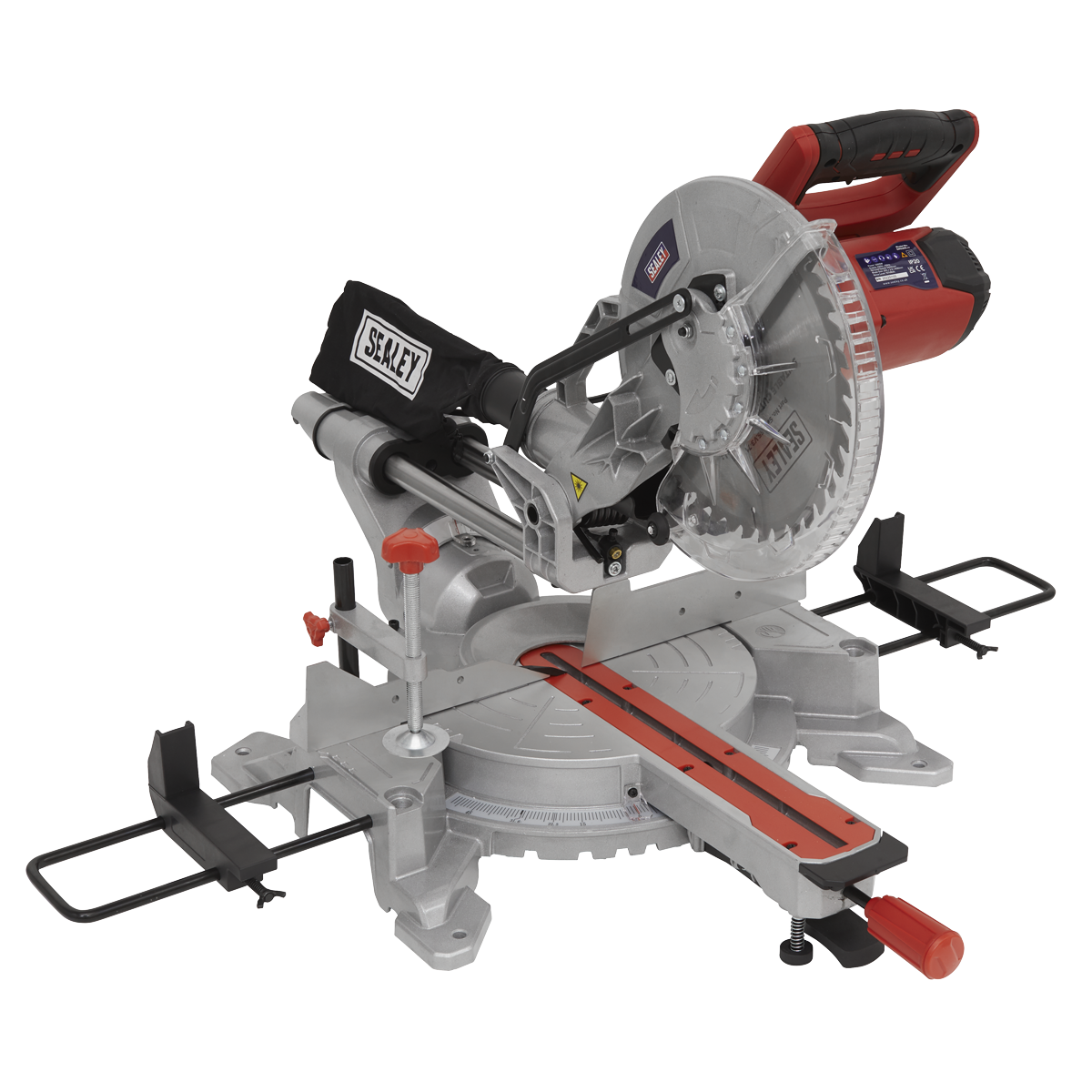

Getting clean, accurate crosscuts and mitre cuts across a range of materials demands a saw with the power, precision and flexibility to handle varied workloads. The Sealey SMS255 Sliding Compound Mitre Saw delivers exactly that, driven by a 2000W motor with a no-load speed of 5000rpm and a maximum blade speed of 7000rpm. The 255 x 2.8 x 30mm 40-tooth TCT blade is fitted as standard for fresh wood cutting, while the optional SMS255B multipurpose blade (250 x 2.4mm/30mm, 60tpu) allows the saw to cut mild steel, aluminium and wood with nails. Maximum cross cut capacity at 0° bevel and 0° table is 90 x 315mm, with mitre cuts at 0° bevel and 45° table reaching 90 x 215mm, and bevel cuts at 45° bevel and 0° table reaching 40 x 215mm. Positive mitre locks engage at 0°, 15°, 22.5°, 31.6° and 45° both left and right for repeatable accuracy, and the integrated laser guide helps produce precise cuts consistently. The sliding rails can be locked at different lengths to give greater control over cut length. Supplied complete with workpiece clamp, dust extraction bag and two extension rails. The dust extraction port accepts hoses with an internal diameter of 35mm or external diameter of 43mm. A carry handle is fitted for easy transportation between job sites. Supply is 230V.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SMS255 |
|---|---|
| Blade Size(s) | 255 x 2.8 x Ø30mm |
| Blade Speed(s) | Max Speed 7000rpm |
| Brand | Sealey |
| Cross Cut (0° Bevel x 0° Table) | 90 x 315mm |
| Mitre Cut (0° Bevel x 45° Table) | 90 x 215mm |
| Bevel Cut (45° Bevel x 0° Table) | 40 x 215mm |
| Consumable Parts | SMS255B - Multipurpose Cut-Off Saw Blade Ø250 x 2.4mm/Ø30mm 60tpu |
| Dust Extraction Port | ID Ø35mm/OD Ø43mm |
| Motor Power | 2000W |
| Nett Weight | 16.4kg |
| No-Load Speed | 5000rpm |
| Positive Mitre Lock | 0°,15°, 22.5°, 31.6°, 45° Left and Right |
| Supply | 230V |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 90170 Sliding Compound Mitre Saw, 255mm, 1800W
£149.84
£146.90
2% OFF
Free delivery in UK Mainland
|
Draper 79901 Double Bevel Sliding Compound Mitre Saw, 305mm, 2000W
£260.64
£255.53
2% OFF
Free delivery in UK Mainland
|
Draper 21307 Storm Force® Mitre Saw, 210mm, 1100W
£65.11
£63.83
2% OFF
Free delivery in UK Mainland
|
Draper 99765 D20 20V Brushless Sliding Compound Mitre Saw, 185mm
£306.27
£300.26
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 90170 | SMS216 | 79901 | 21307 | 99765 | 88192 |
A. The SMS255 is powered by a 2000W motor. No-load speed is 5000rpm and maximum blade speed is 7000rpm.
A. The saw is supplied fitted with a 255 x 2.8 x Ø30mm 40-tooth TCT blade, which is suited to fresh wood. For cutting mild steel, aluminium and wood with nails, the optional SMS255B multipurpose blade (Ø250 x 2.4mm/Ø30mm, 60tpu) can be fitted in its place.
A. Cross cut at 0° bevel and 0° table is 90 x 315mm. Mitre cut at 0° bevel and 45° table is 90 x 215mm. Bevel cut at 45° bevel and 0° table is 40 x 215mm.

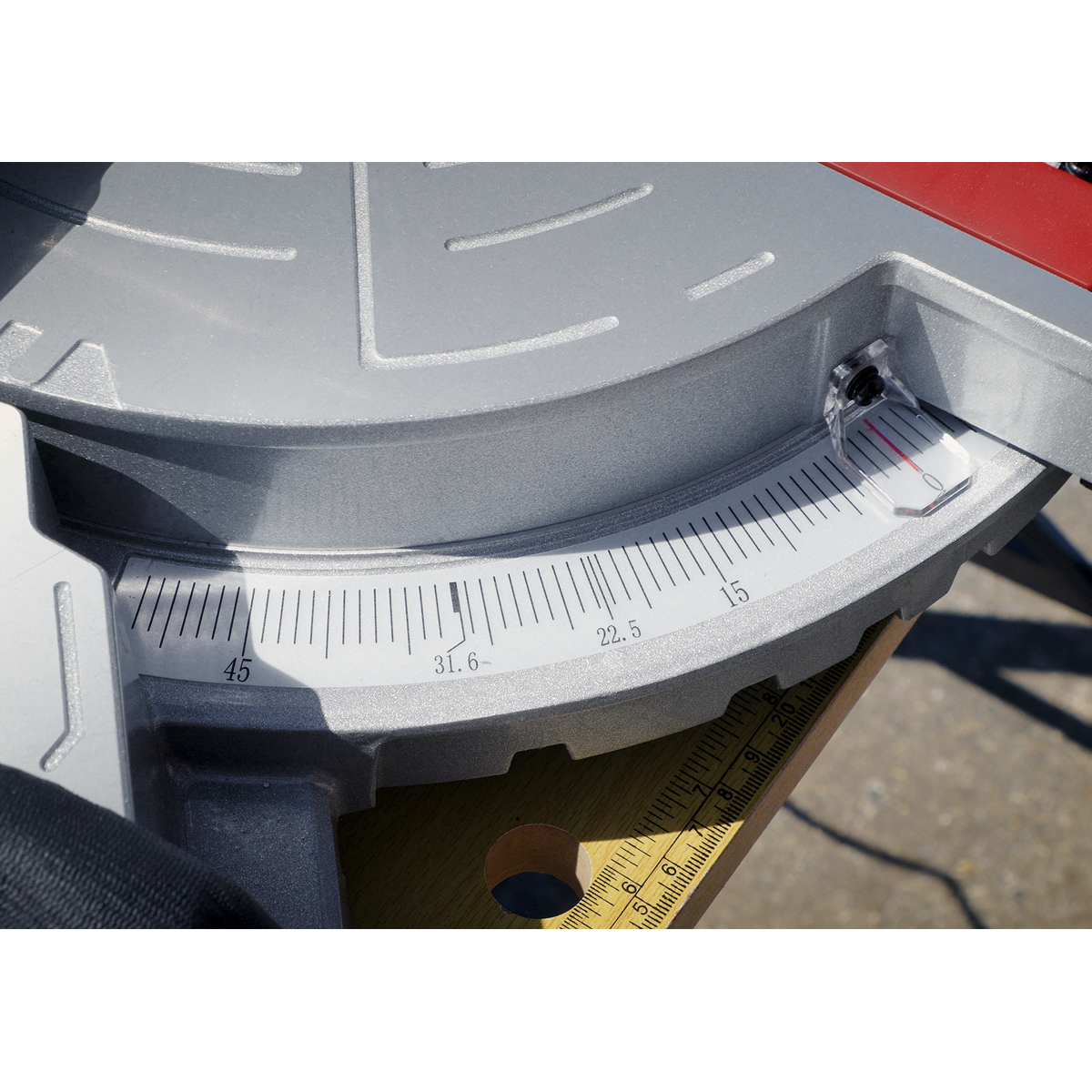

A. The saw features positive mitre locks at 0°, 15°, 22.5°, 31.6° and 45°, both left and right.

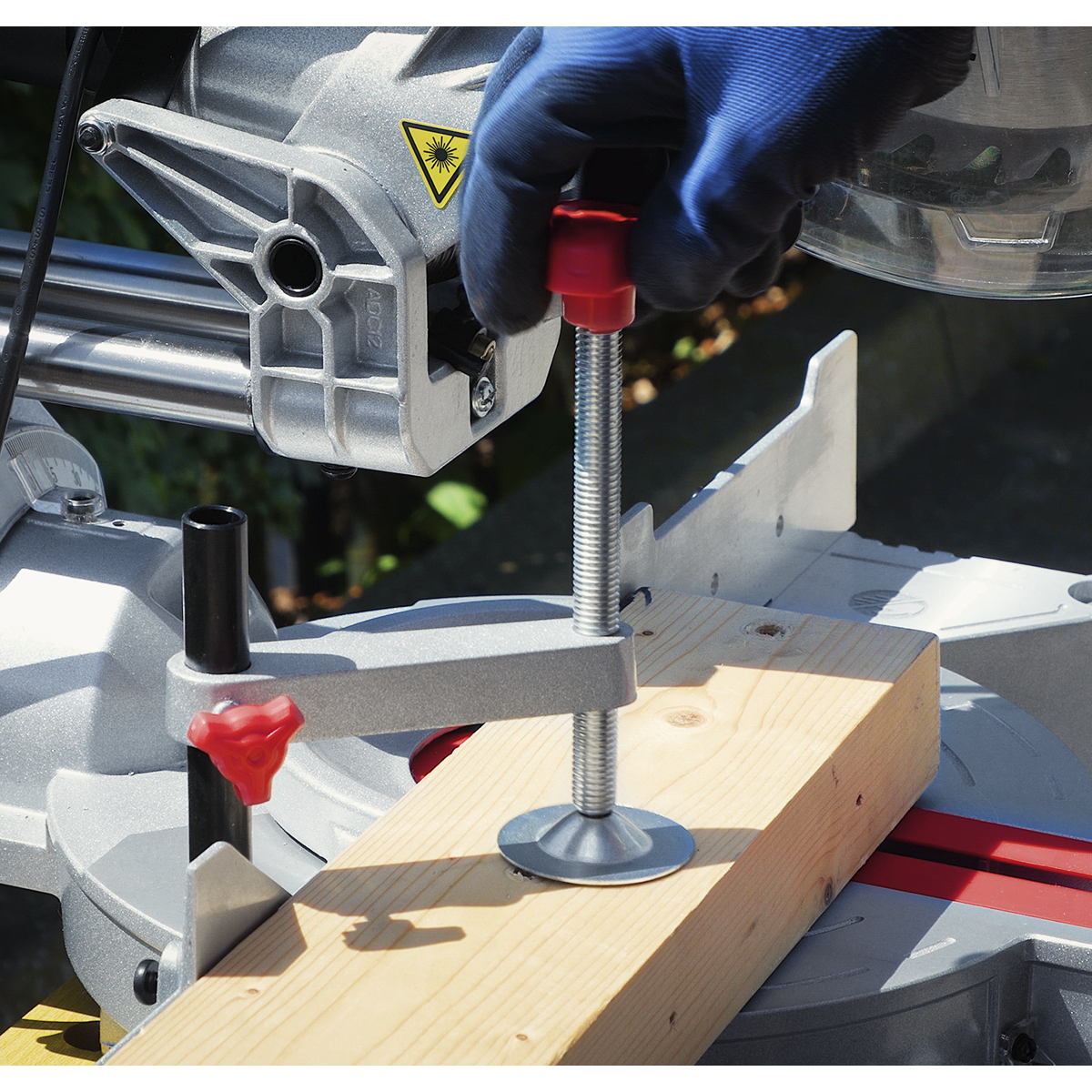

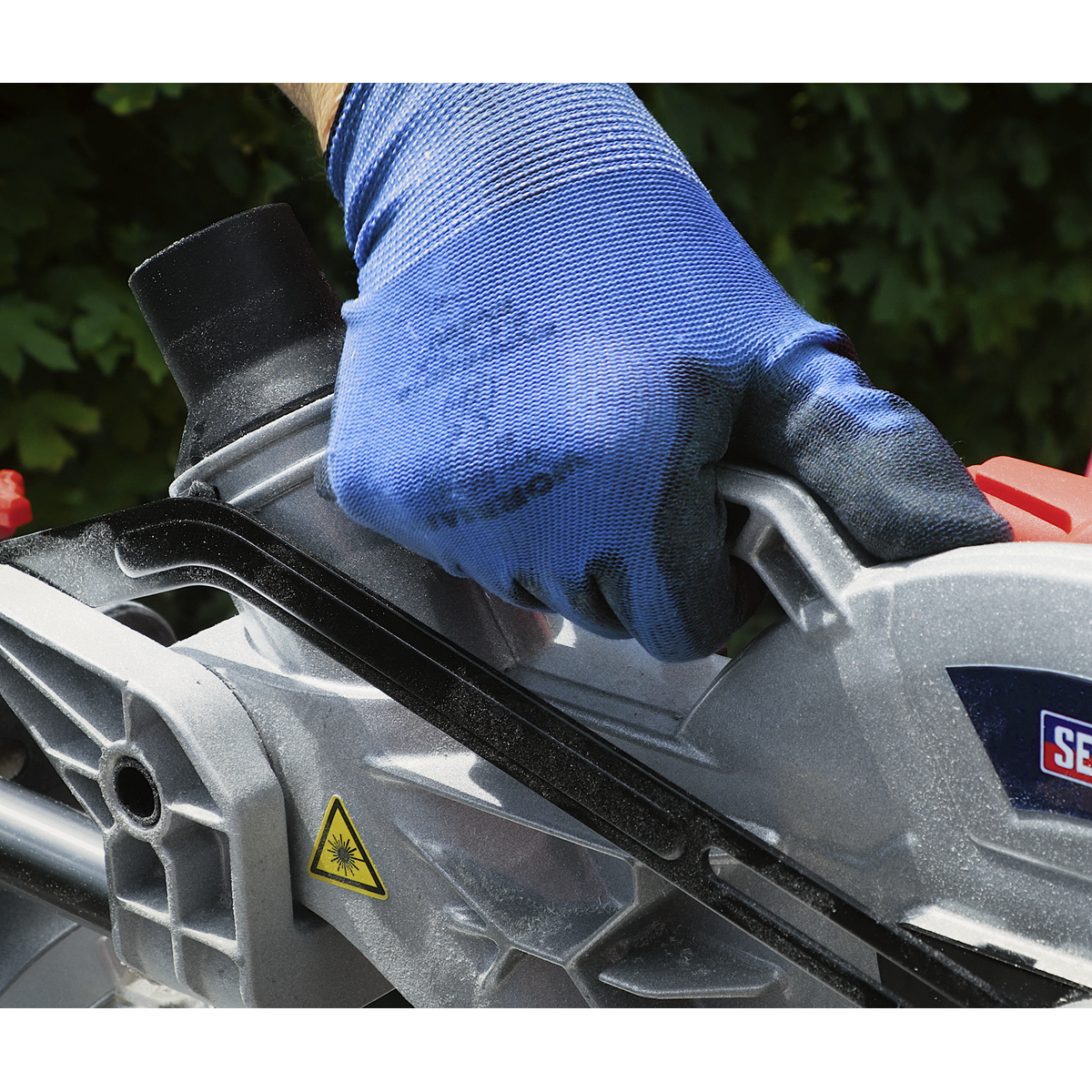

A. The SMS255 is supplied with a workpiece clamp, dust extraction bag and two extension rails. A carry handle is fitted to the unit.
A. The dust extraction port accepts hoses with an internal diameter of Ø35mm or an outer diameter of Ø43mm.

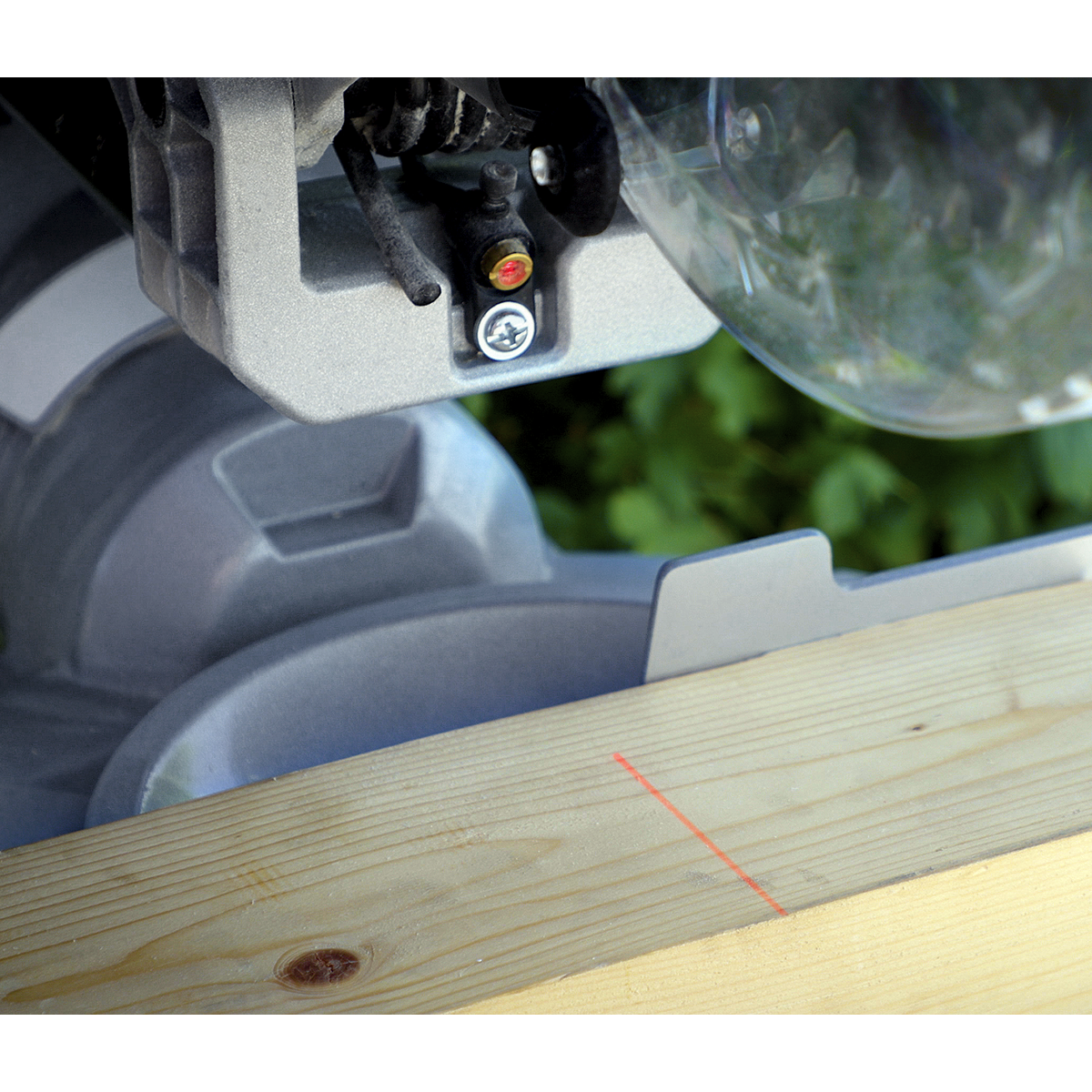

A. Yes, the unit is fitted with a laser guide to help produce accurate cuts.
A. Yes, there is one variant in the same product family: SMS216. Please check the SMS216 product page for its specification to confirm which version suits your requirements.
A. The SMS255 operates on a 230V supply.
A. Standard UK mainland delivery is 3-5 working days.
