Product Number: 30272

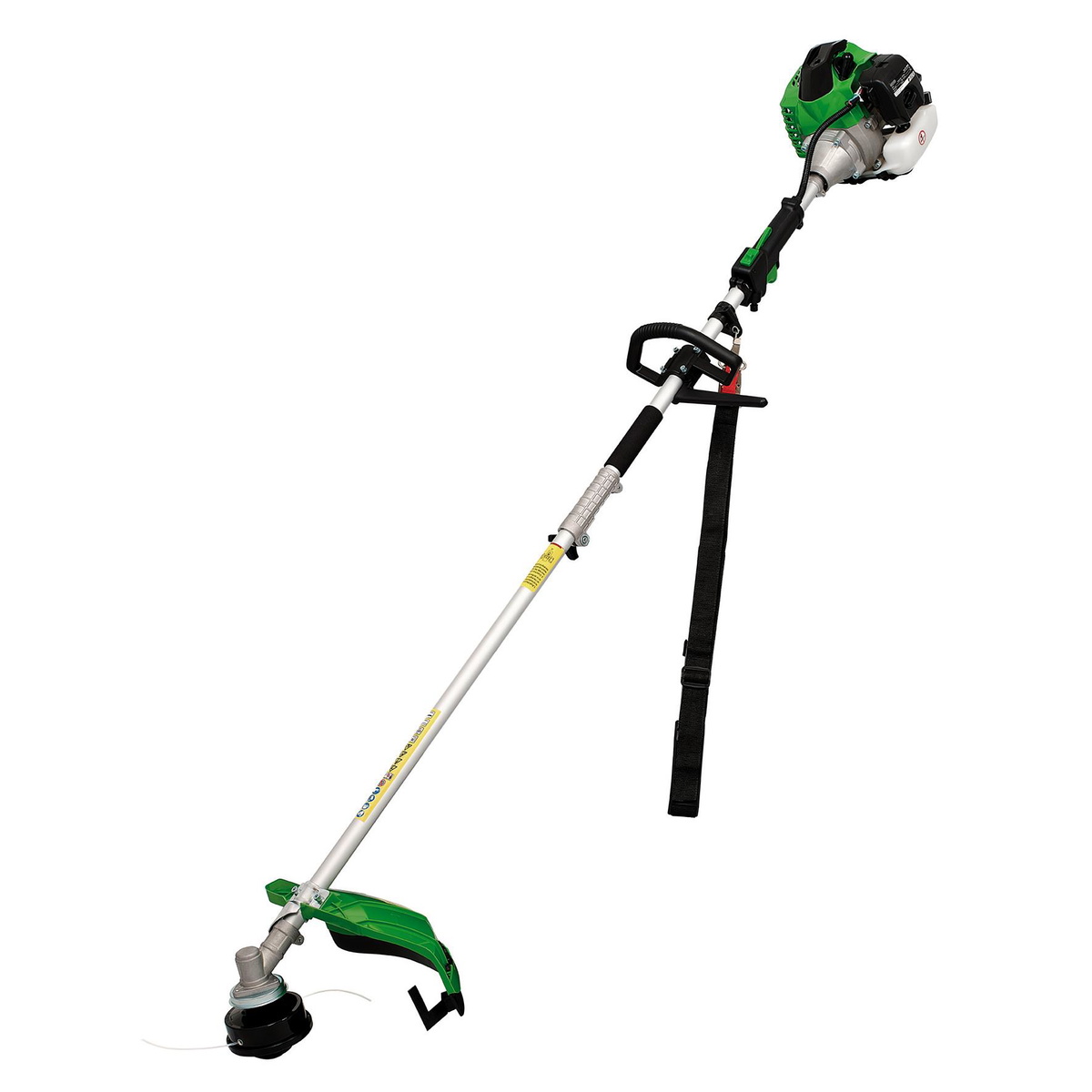

Maintaining a large garden demands versatile equipment capable of handling multiple tasks without requiring a separate machine for each job. The Draper 30272 4-in-1 petrol garden multi-tool addresses this with four dedicated attachments — grass trimmer, brush cutter, hedge trimmer and pruner — all driven by a single 34.6cc 2-stroke air-cooled single-cylinder engine producing 1kW of power at up to 11,000rpm no-load speed. The hedge trimmer attachment carries 430mm dual-action blades with a 400mm cutting length, running at 9,500rpm, and handles branches up to 9mm thick for hard-to-reach hedging work. The grass trimmer attachment uses a Tap'N'Go line feed spool with 2.4mm nylon line and a 440mm cutting width at 7,500rpm, handling overgrown grass, weeds and light brush. The brush cutter runs a 255mm, 1.4mm-thick 3-tooth blade at 8,250rpm, while the pole pruner operates with a 254mm guide bar, a 3/8-inch 39-link half-chisel chain at 9,500rpm chain speed. The 750ml fuel tank runs on E10 petrol mixed with 2-stroke oil (JASO FC minimum) at a 40:1 ratio. The chain oil reservoir holds 130ml and requires ISO 100 grade chain oil. Operation is managed via a combined on/off switch, safety throttle lever and lock-on, with an easy-start choke system. The adjustable U-type soft grip handle and a quick-release single strap shoulder harness keep fatigue low during extended use. The split-shaft design simplifies storage and transportation between sites. Supplied with a grass trimming head, 3-tooth brush cutter blade, 10-inch bar and chain, bar cover, hedge trimmer head, 3-tooth pruner blade, single shoulder belt and mixpot. Net weight is 6.54kg.
About PartsForMachines:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
30272ins.pdf
|
Open Now |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 84706 4 in 1 Petrol Garden Tool, 32.5cc
£233.67
£229.09
2% OFF
Free delivery in UK Mainland
|
SIP 08231 31cc 4-Stroke Petrol 4-in-1 Multi Tool, Motor Power - 746 W, Tank Capacity -650 ml
£220.55
£216.23
2% OFF
Free delivery in UK Mainland
|
Sealey PHA100 Petrol Earth Auger 2-Stroke 52cc - Drills to 800mm Deep
£235.96
£231.33
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 84706 | 08231 | 32329 | PHA100 | 08230 | CS20V |
A. The Draper 30272 is supplied with four attachments: a grass trimming head, a 3-tooth brush cutter blade, a hedge trimmer head and a 3-tooth pruner blade, together with a 254mm guide bar, chain and bar cover.
A. The tool is powered by a 34.6cc 2-stroke air-cooled single-cylinder engine producing 1kW. It runs on E10 petrol mixed with 2-stroke oil (JASO FC minimum) at a 40:1 ratio. The fuel tank capacity is 750ml.
A. The hedge trimmer attachment features 430mm dual-action blades with a 400mm cutting length, operating at 9,500rpm, and is capable of cutting branches up to 9mm thick.
A. The grass trimmer uses a Tap'N'Go spool loaded with 2.4mm diameter nylon line to a length of 3m, with a cutting width of 440mm. It operates at 7,500rpm.
A. The pole pruner operates with a 254mm (10-inch) guide bar, a 3/8-inch (9.5mm) 39-link half-chisel chain, at a chain speed of 9,500rpm. Chain oil capacity is 130ml, requiring ISO 100 grade chain oil.
A. The split-shaft design allows the tool to be broken down into a more compact form, making it easier to store and transport between locations.
