Product Number: ATV2040

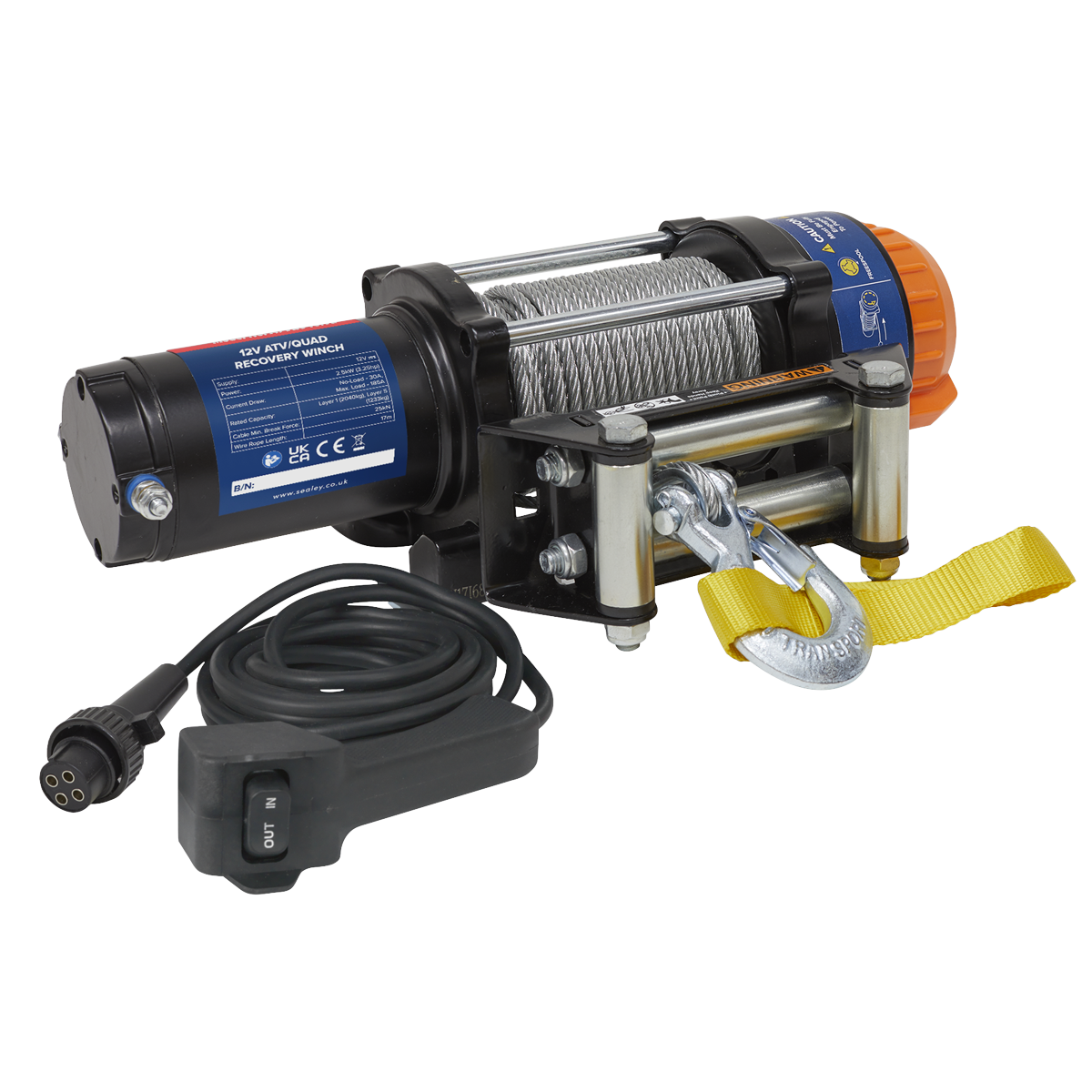

Recovering a stuck ATV or quad bike demands a winch that combines genuine pulling power with durability you can rely on in demanding conditions. The Sealey ATV2040 is purpose-built for ATV and quad bike mounting, delivering a 2040kg (4500lb) line pull from its high-power 2.5kW (3.25hp) 12V DC permanent magnet motor. The all-metal chassis ensures long life and low maintenance, while the motor can be rotated 90° to meet various wiring and mounting requirements making installation straightforward across a range of vehicles. A patented automatic spring brake operates reliably under full load, and the 17m wire rope (5.4mm) feeds through a 4-way roller fairlead for even cable distribution onto the drum. With a gear ratio of 180:1, line speed reaches 4.5m/min under no load and 1.3m/min at maximum load. Rated capacity is 2043kg at layer 1 and 1234kg at layer 4. The ATV2040 is IP67 rated for protection against dust and water ingress, making it suitable for off-road conditions. Current draw is 30A at no load and up to 185A at maximum load. Replacement consumable parts are available: ATV2040.WR (wire rope, 5.4mm x 17m) and ATV2040.DR (Dyneema rope, 5.5mm x 17m). Note: performance figures are quoted at the first layer of cable on the drum.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | ATV2040 |
|---|---|
| Brand | Sealey |
| Consumable Parts | ATV2040.WR - Wire Rope (Ø5.4mm x 17m) for ATV2040, ATV2040.DR - Dyneema Rope (Ø5.5mm x 17m) for ATV2040 |
| Current Draw | No-Load - 30A, Maximum Load - 185A |
| Gear Ratio | 7.50069444444444 |
| Line Pull* | 2040kg(4500lb) |
| Line Speed* | No Load - 4.5m/min, Maximum Load - 1.3m/min |
| Motor Power | 2.5kW(3.25hp) |
| Nett Weight | 13.9kg |
| Note | *Performance quoted at first layer of cable on drum |
|
Rated Capacity:Layer 1: 2043kg, Layer 4: 1234kg
|
|
| Supply | 12V |
| Wire Rope Diameter | 5.4mm |
| Wire Rope Length | 17m |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
ATV2040.WR | Sealey ATV2040.WR Replacement Wire Rope 5.4mm x 17m for ATV2040 Winch | 1 Unit |
£32.50
£31.86
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | LS2003 | LS2002 | 31649 | 61258 | 61266 |
| Type | Sling | Sling | Sling | Sling | Sling |
| Colour | Green | Green | |||
| Brand | Sealey | Sealey | |||
| Length (mm) | 285 | 50 | 60 | ||
| Model No | LS2003 | LS2002 | |||
| Weight (kg) | 135 | ||||
A. The ATV2040 has a line pull of 2040kg (4500lb), quoted at the first layer of cable on the drum. Rated capacity is 2043kg at layer 1 and 1234kg at layer 4.
A. The ATV2040 operates on 12V DC supply.
A. The ATV2040 is supplied with 17m of wire rope with a diameter of 5.4mm.
A. Yes, the ATV2040 is IP67 rated, providing protection against dust and water ingress, making it well suited for off-road and recovery use.
A. The motor produces 2.5kW (3.25hp), and the gear ratio is 180:1.
A. Yes. Replacement consumable parts available are ATV2040.WR (wire rope, Ø5.4mm x 17m) and ATV2040.DR (Dyneema rope, Ø5.5mm x 17m), both designed specifically for the ATV2040.
A. Line speed is 4.5m/min under no load and 1.3m/min at maximum load. Performance is quoted at the first layer of cable on the drum.
A. The ATV2040 draws 30A at no load and up to 185A at maximum load.
A. The ATV2040.WR is a consumable replacement wire rope (Ø5.4mm x 17m) for the ATV2040. It is a spare part rather than a variant of the winch itself.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
