Product Number: 1020LEB

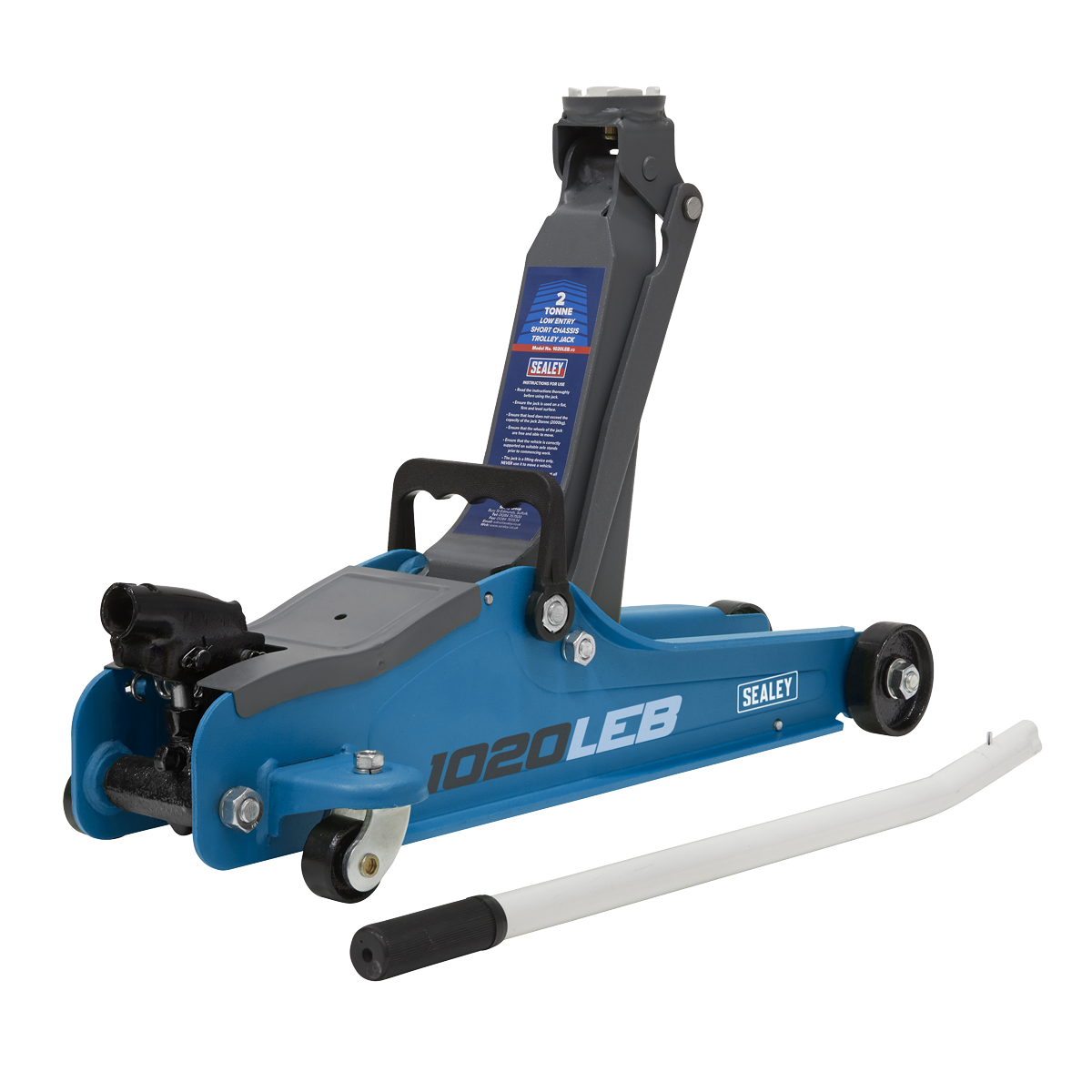

Getting under sports cars, lowered vehicles, or custom builds is a challenge with a standard trolley jack the minimum height is simply too great. The Sealey 1020LEB solves this with an 85mm minimum saddle height and a short chassis measuring just 563mm in length, making it practical for low-clearance applications where other jacks won't reach. The profiled lifting arm is specifically designed to achieve that 85mm entry height, and the maximum saddle height of 385mm provides a useful working range. The maximum chassis height is 133mm, keeping the jack itself low enough to slide under vehicles with minimal ground clearance. The heavy-duty chassis features strengthening flanges along the top edge for extra torsional rigidity under load, and the one-piece hydraulic unit uses a pump-through action that prevents handle locking at maximum ram extension. The white saddle aids positioning under the vehicle, and a safety valve prevents overloading. A jack pad (replacement: JP29) is included to protect the underside of the vehicle jacking point. Rated to a 2-tonne capacity.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | 1020LEB |
|---|---|
| Brand | Sealey |
| Capacity | 2 Tonne |
| Length | 563mm |
| Maximum Chassis Height | 133mm |
| Maximum Saddle Height | 385mm |
| Minimum Saddle Height | 85mm |
| Nett Weight | 12kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey 1020LEBBAGCOMBO 2T Low Entry Trolley Jack & Accessories Combo - Blue
£162.84
£159.58
2% OFF
Free delivery in UK Mainland
|
Sealey 2001LEBL Trolley Jack 2.25 Tonne Low Entry Rocket Lift Blue
£161.54
£158.31
2% OFF
Free delivery in UK Mainland
|
Draper 23817 Low Profile Fast Lift Trolley Jack 3 Tonne
£215.39
£211.17
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1020LEBBAGCOMBO | 2001LEBL | 28481 | 02082 | 23817 | MCD-25 |
| Warranty | 12 | 12 | ||||
| Type | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | Trolley Jack | |
| Capacity | 2tonne | 2.25 Tonne | 3 Tonne | 2 Tonne | ||
| Brand | Sealey | Sealey | ||||
| Length (mm) | 563 | 734 | 75 | 560 | ||
| Model No | 1020LEBBAGCOMBO | 2001LEBL | ||||
| Weight (kg) | 31 | 35 | 13 | |||
| Show More | ||||||
A. The minimum saddle height is 85mm, making it suitable for sports cars, lowered vehicles, and custom builds with low ground clearance.
A. The maximum saddle height is 385mm, giving a lifting range from 85mm to 385mm.
A. The maximum chassis height is 133mm, allowing the jack to slide under low-clearance vehicles.
A. The jack has a 2-tonne capacity.
A. Yes, a jack pad is included to prevent damage to the underside of the vehicle jacking point. The replacement jack pad reference is JP29.
A. The one-piece hydraulic unit features a pump-through action that prevents the handle from locking at maximum ram extension.
A. Yes, variants in the same product family include the 1020LE (Red version) and 1020LEHV. There are also combo versions - 1020LEBAGCOMBO and 1020LEBBAGCOMBO - which bundle the jack with accessories.
A. The 1020LEB is rated to 2 tonnes. If you require a higher capacity, please refer to the product label for guidance, or contact Parts for Machines for confirmation.
A. Yes. Parts for Machines supplies genuine Sealey products.
A. Next-day delivery is available on most products and will appear as an option at checkout where eligible.
