Product Number: PTBJ12S

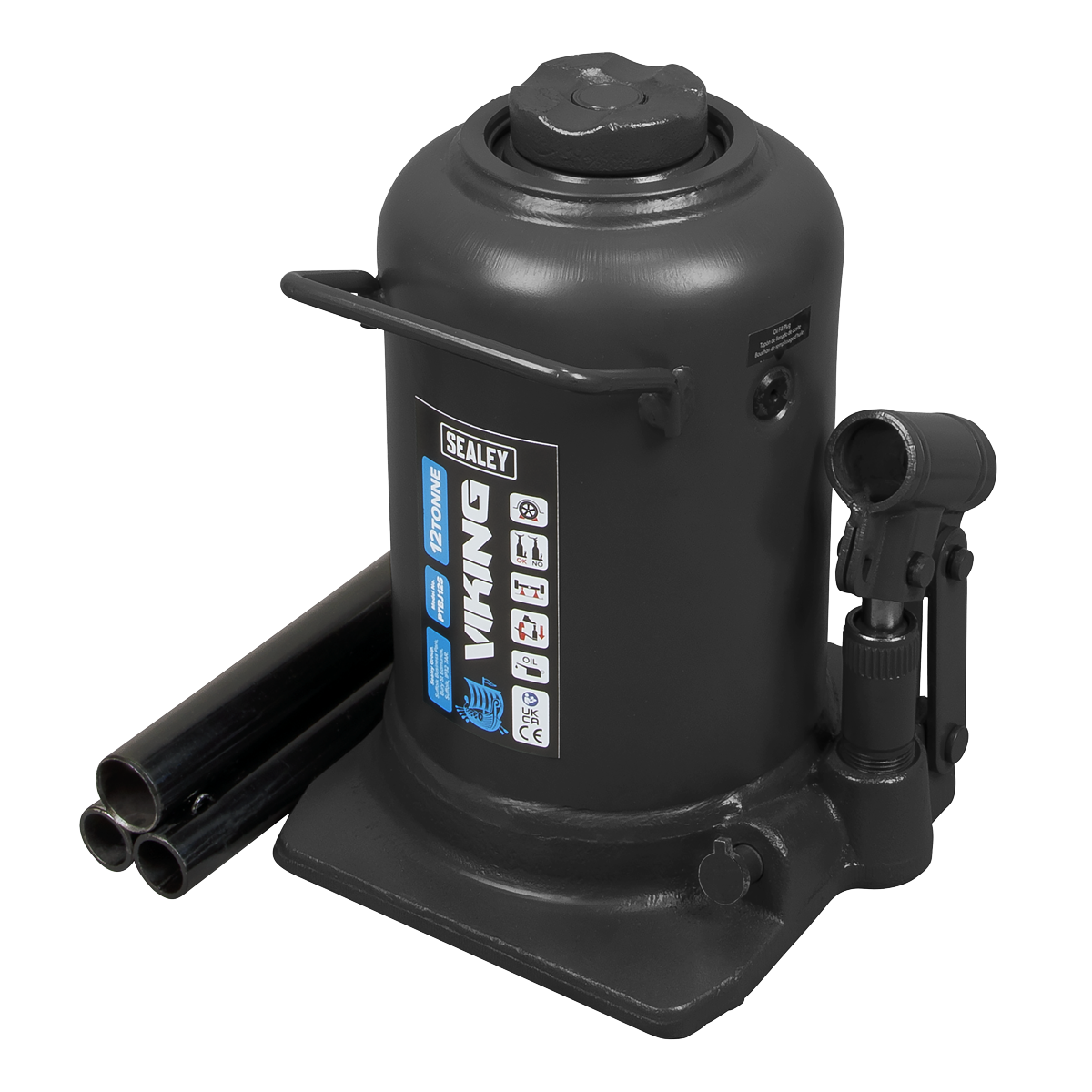

Standard bottle jacks often lack the height range needed for trucks, vans, and heavy vehicles too tall when closed to slide under low chassis, and not tall enough at full extension to provide adequate lift. The Sealey PTBJ12S Viking Telescopic Bottle Jack solves this with a dual-stage telescopic hydraulic system using double ENP (Electroless Nickel Plated) rams, achieving a reduced closed height of just 239mm whilst reaching a maximum lift height of 594mm a 265mm hydraulic lift range further extended by 90mm via screw extension. With a 12-tonne capacity, the base and reservoir are machine welded for increased strength and to eliminate leakage. A safety overload valve provides added protection, and the jack is supplied complete with a 3-piece handle. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PTBJ12S |
|---|---|
| Brand | Viking |
| Capacity | 12 Tonne |
| Hydraulic Lift | 265mm |
| Maximum Height | 594mm |
| Minimum Height | 239mm |
| Nett Weight | 15.6kg |
| Screw Extension | 90mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 09843 WINNTEC Bottle Jack, Weight Capacity - 12 Tonne
£76.06
£74.57
2% OFF
Free delivery in UK Mainland
|
SIP 09820 WINNTEC Bottle Jack, Weight Capacity - 30 Tonne
£128.57
£126.05
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SJ12 | PBJ12S | 09843 | 09820 | 08554 | 03658 |
| Warranty | 12 | 12 | 36 | 36 | 24 | |
| Type | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack |
| Capacity | 12 Tonne | 12 Tonne | ||||
| Length (mm) | 150 | 150 | 214 | 285 | 210 | |
| Minimum Height | 227mm | 231mm | ||||
| Screw Extension | 80mm | 60mm | 60mm | No | 60mm | |
| Weight (kg) | 00 | 6.4 | ||||
| Show More | ||||||
A. The PTBJ12S has a maximum lifting capacity of 12 tonnes.
A. The minimum closed height is 239mm and the maximum lift height is 594mm, with 265mm of hydraulic lift and a further 90mm of screw extension.
A. The telescopic hydraulic double ENP (Electroless Nickel Plated) rams allow a reduced closed height without compromising maximum lift height, making the jack suitable for use in tighter clearance situations.
A. Yes, it is fitted with a safety overload valve. The base and reservoir are also machine welded for increased strength and to eliminate leakage.
A. Yes, the jack is supplied with a 3-piece handle.
A. The PTBJ12S is backed by a 3-year guarantee.
A. Yes, this jack is available in alternative variants: PTBJ10S (10 tonne) and PTBJ5S (5 tonne).
A. Yes, the following alternatives are available: BJ10LE and BJ20LE are bottle jack alternatives, and SJT2 and SJT4 are scissor jack alternatives offering a different lifting mechanism for similar applications.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. We accept all major credit and debit cards, along with PayPal.
