Product Number: PTBJ10S

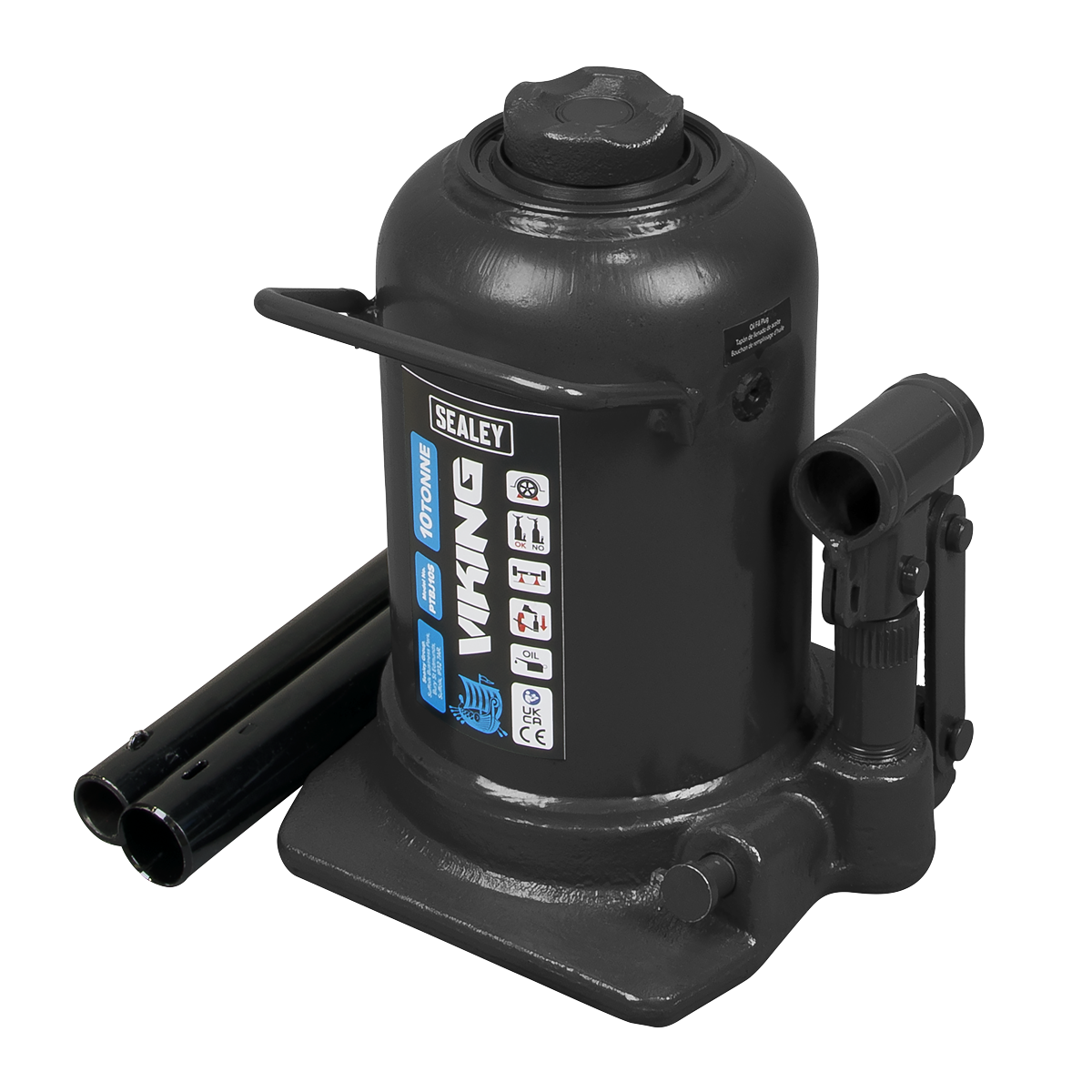

Standard bottle jacks have a fixed stroke, which can make it difficult to reach the lift point on vehicles with either a low ground clearance or a high chassis you often end up needing multiple pieces of equipment to bridge the gap. The Sealey PTBJ10S Viking Telescopic Bottle Jack solves this with hydraulic double telescopic rams that are electroless nickel plated (ENP), delivering a minimum height of 210mm, a maximum height of 520mm, a hydraulic lift of 240mm, and an additional 70mm screw extension all with a 10-tonne capacity. The base and reservoir are machine welded for increased strength and to eliminate leakage, and a safety overload valve is fitted as standard. Supplied with a 3-piece handle. Backed by a 3-year guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | PTBJ10S |
|---|---|
| Brand | Viking |
| Capacity | 10 Tonne |
| Hydraulic Lift | 240mm |
| Maximum Height | 520mm |
| Minimum Height | 210mm |
| Nett Weight | 10.7kg |
| Screw Extension | 70mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Draper 99768 Expert Hydraulic Bottle Jack, 8 Tonne
£93.15
£91.32
2% OFF
Free delivery in UK Mainland
|
SIP 09843 WINNTEC Bottle Jack, Weight Capacity - 12 Tonne
£76.06
£74.57
2% OFF
Free delivery in UK Mainland
|
SIP 09820 WINNTEC Bottle Jack, Weight Capacity - 30 Tonne
£128.57
£126.05
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SJ10 | PBJ10S | 99768 | 09843 | 09820 | 08554 |
| Warranty | 12 | 12 | 12 | 36 | 36 | |
| Type | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack |
| Capacity | 10 Tonne | 10 Tonne | 8 Tonne | |||
| Length (mm) | 145 | 150 | 394 | 214 | 285 | |
| Minimum Height | 222mm | 231mm | ||||
| Screw Extension | 80mm | 80mm | 60mm | No | ||
| Weight (kg) | 80 | 5.9 | 5.6 | |||
| Show More | ||||||
A. The PTBJ10S has a capacity of 10 tonnes.
A. The minimum height is 210mm and the maximum height is 520mm, with a hydraulic lift of 240mm and a 70mm screw extension.
A. The PTBJ10S uses hydraulic double telescopic rams, which allow a reduced closed height without compromising the maximum lift height, giving a greater usable range than a single-ram design.
A. Yes. Both rams are electroless nickel plated (ENP) for durability and corrosion resistance.
A. Yes. The jack is fitted with a safety overload valve as standard.
A. Yes. The jack is supplied with a 3-piece handle.
A. Yes. Variants in the Viking telescopic bottle jack range include PTBJ5S and PTBJ12S. Refer to each variant's product page for their respective capacity and dimensional specifications.
A. Alternatives that serve a similar lifting function include BJ10LE, BJ20LE, SJT2, and SJT4. Refer to each product page for details on how they differ from the PTBJ10S.
A. The PTBJ10S is backed by a 3-year guarantee.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
