Product Number: BJ10LE
Lifting machinery and vehicles with low ground clearance demands a jack that can get underneath without compromise. The Sealey BJ10LE is a 10-tonne capacity low entry bottle jack with a minimum saddle height of just 125mm, making it ideal for vehicles and equipment with restricted clearance. The telescopic two-stage ram extends to a maximum saddle height of 215mm, providing 90mm of hydraulic lift. The base and reservoir are machine welded for increased strength and a reduced chance of leakage, and the threaded pump assembly allows for straightforward disassembly and maintenance. An overload valve is fitted to protect the jack from overloading. The compact design features a carry handle for easy transportation between jobs, and the jack is supplied with a 4-piece operating handle. Service kits are available to maintain optimum performance over time.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | BJ10LE |
|---|---|
| Brand | Sealey |
| Capacity | 10 Tonne |
| Hydraulic Lift | 90mm |
| Maximum Height | 215mm |
| Minimum Height | 125mm |
| Nett Weight | 7.70kg |
| Screw Extension | n/a |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Raising the Standards: The Ultimate Guide to Vehicle Lifting Equipment Introduction: Vehicle lifting equipment are one of the most versatile and essential pieces of kit for any workshop. Whether you are a professional mechanic running a repair workshop or a DIY enthusiast, having the right lifting equipment...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 09833 WINNTEC Low-Profile Bottle Jack, Weight Capacity - 20 Tonne
£134.19
£131.56
2% OFF
Free delivery in UK Mainland
|
SIP 09865 WINNTEC Low-Profile Bottle Jack, Weight Capacity - 10 Tonne
£128.57
£126.05
2% OFF
Free delivery in UK Mainland
|
SIP 09843 WINNTEC Bottle Jack, Weight Capacity - 12 Tonne
£76.06
£74.57
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SJT4 | PTBJ10S | 08554 | 09833 | 09865 | 09843 |
| Warranty | 12 | 12 | 36 | 36 | 36 | |
| Type | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack | Bottle Jack |
| Capacity | 4 Tonne | 10 Tonne | ||||
| Length (mm) | 170 | 240 | 190 | 120 | 214 | |
| Minimum Height | 160mm | 210mm | ||||
| Screw Extension | 60mm | 70mm | 60mm | 6mm / 45mm | 60mm | |
| Weight (kg) | 6.4 | 10.7 | ||||
| Show More | ||||||
A. The BJ10LE has a capacity of 10 tonnes.

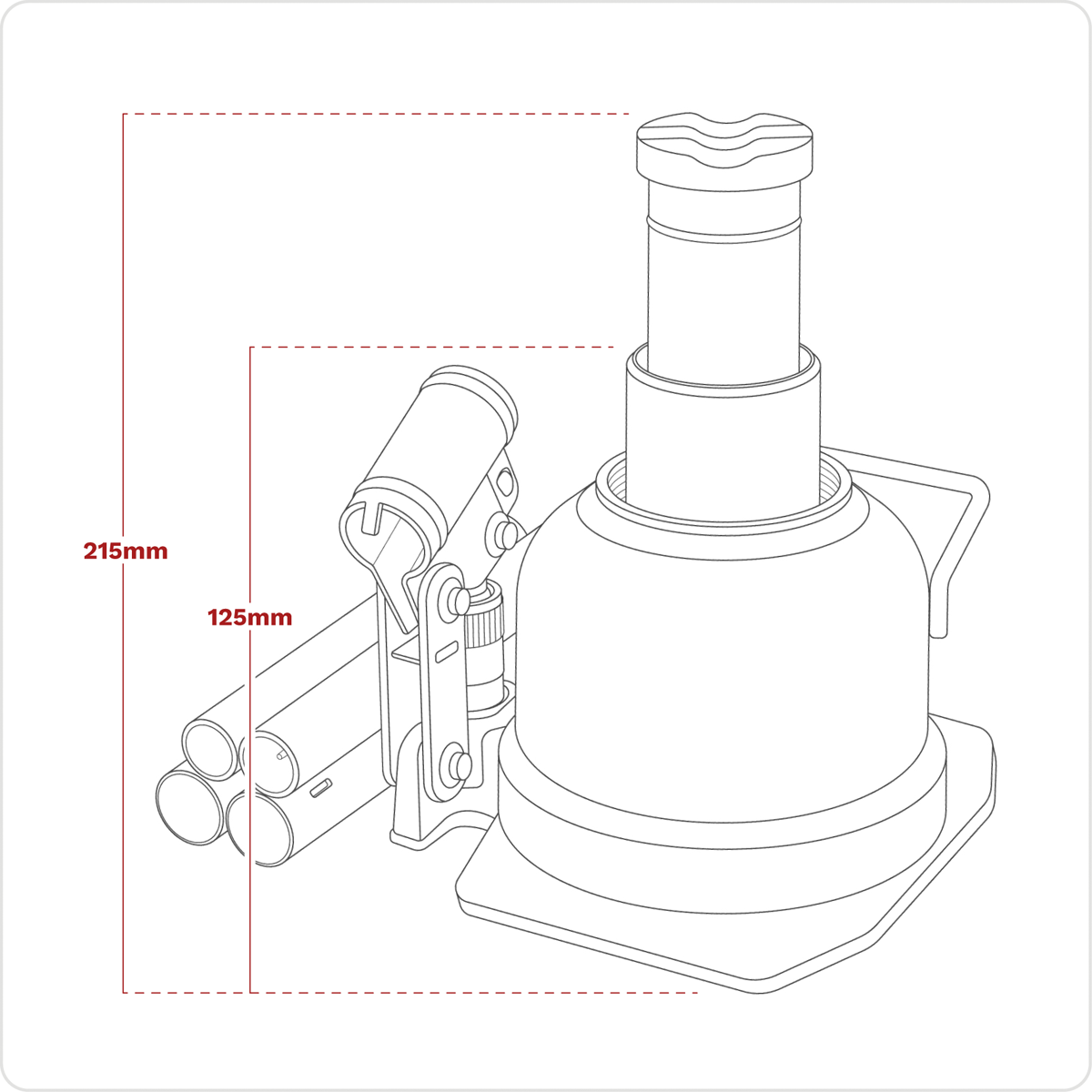

A. The minimum saddle height is 125mm and the maximum saddle height is 215mm, giving 90mm of hydraulic lift.
A. Yes. The BJ10LE is specifically designed for low entry lifting, with a minimum saddle height of 125mm, making it suitable for machinery and vehicles with low ground clearance.
A. Yes. The jack is fitted with an overload valve to protect it from overloading.
A. Yes. The threaded pump assembly allows for easy disassembly and maintenance. Service kits are also available to keep the jack in optimum condition.

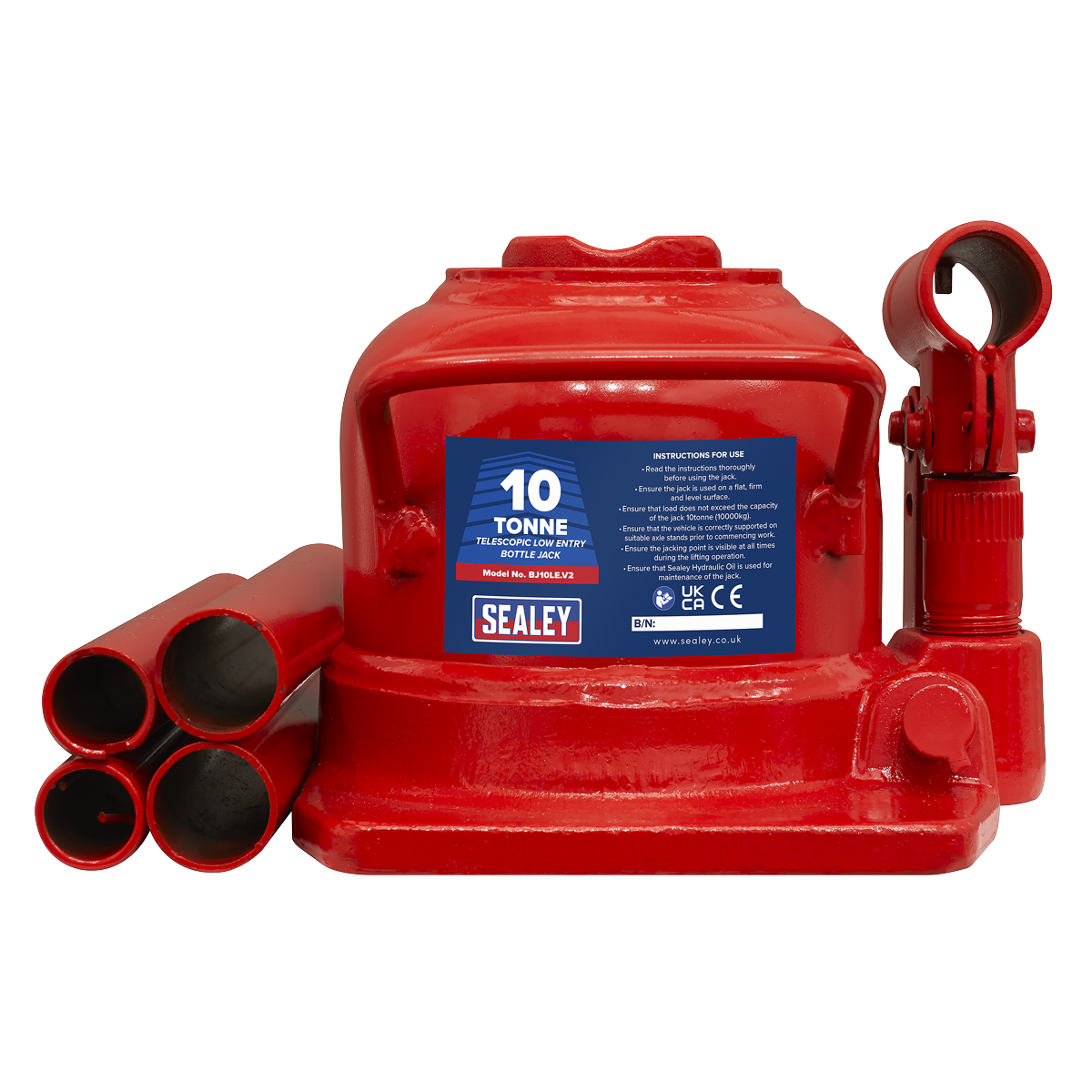

A. Yes. The BJ10LE is supplied with a 4-piece operating handle.
A. Yes. The BJ20LE is an available variant in this product range with a higher lifting capacity.
A. Alternative products that perform a similar function include the PTBJ10S, PTBJ12S, PTBJ5S, and SJT2. Each is a different product offering a similar lifting solution.
A. Yes. The base and reservoir are machine welded specifically for increased strength and a reduced chance of leakage.
