Product Number: AK4562D

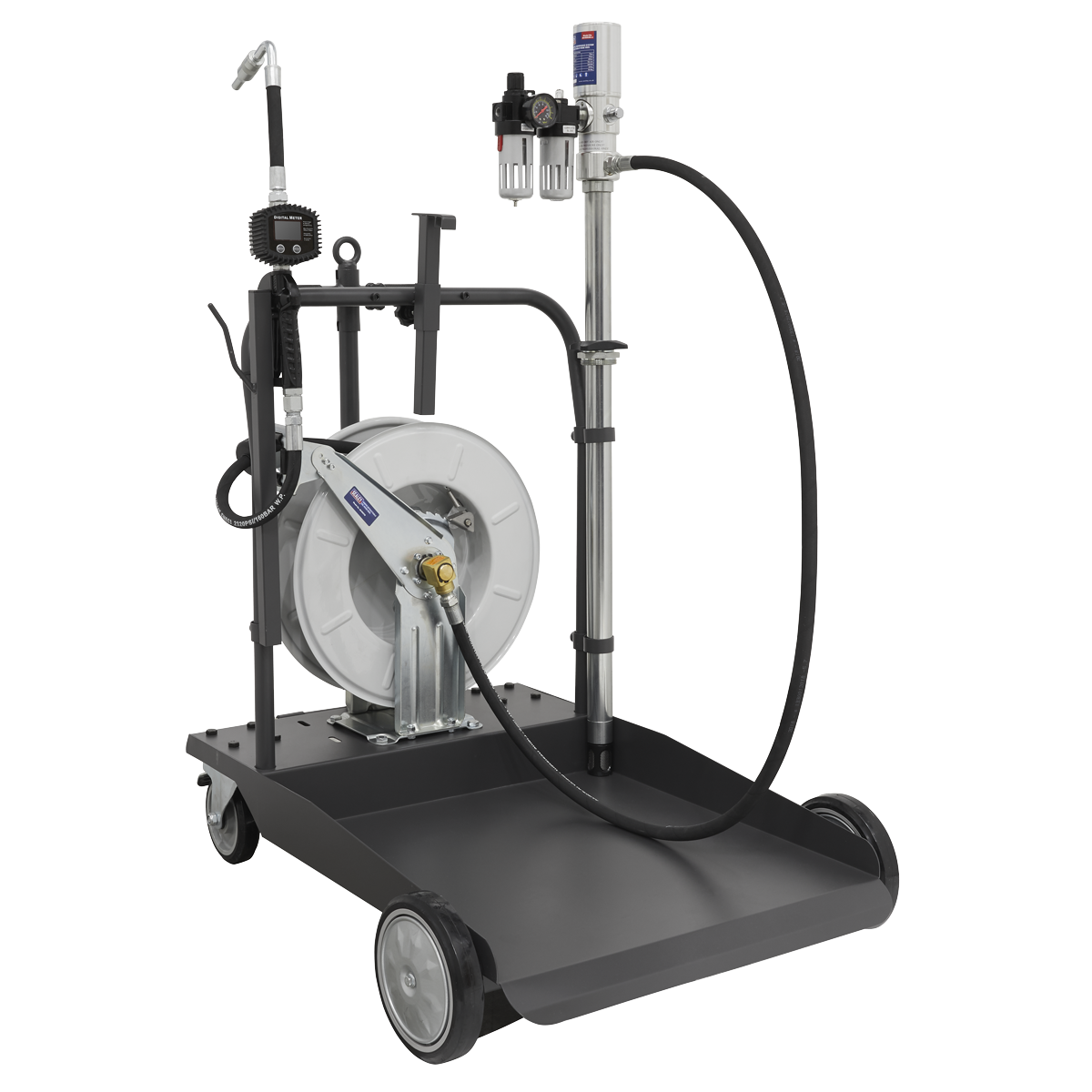

Dispensing oil from a 205-litre drum without a proper system is slow, messy, and imprecise relying on manual pumps or gravity-fed taps that waste fluid and increase spillage risk. The Sealey AK4562D is a complete, mobile air operated oil dispensing unit built around a 3:1 double acting pump for use with barrels or tanks fitted with 2" BSP fittings. The pump is supplied with an air management system connected to a 940mm rigid suction probe with non-return valve to maintain prime and prevent backflow. The unit features a workshop trolley with a maximum capacity of 220kg, a 10m retractable hose reel (model AK4567D), and a digital oil metre (model AK4565D) for accurate fluid measurement. Operating at a recommended air pressure of 70psi (maximum 115psi), it delivers a maximum flow rate of 12 litres per minute at a maximum output pressure of 350psi through a 1/2" BSP outlet. Compatible with engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity, making it suitable for a wide range of workshop fluid management tasks. Suitable for use with 205L drums.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK4562D |
|---|---|
| Brand | Sealey |
| Maximum Air Pressure | 115psi |
| Maximum Flow Rate | 12L/min |
| Maximum Output Pressure | 350psi |
| Maximum Trolley Capacity | 220kg |
| Maximum Viscosity | SAE150 |
| Nett Weight | 59.40kg |
| Outlet Size | 1/2"BSP |
| Pump Ratio | 0.125694444444444 |
| Recommended Air Pressure | 70psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
AK4567D | Sealey AK4567D Retractable Oil Hose Reel 10m - Fits AK4560D & AK4562D | 1 Unit |
£573.80
£562.32
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AK4563D Gear Oil Dispensing System Air Operated
£1,084.48
£1,062.79
2% OFF
Free delivery in UK Mainland
|
Sealey AK4560D Air Operated Oil Dispensing Pump Station 3:1 Ratio
£919.84
£901.44
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant 35070000 Digital Automatic Transmission Flush (ATF) Machine
£2,853.59
£2,797.64
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK4563D | AK4560D | 35070000 | 77057 | 47812 |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Capacity (L) | 12 | 12 | |||
| Model No | AK4563D | AK4560D | |||
| Nett Weight | 18.45kg | 10.49kg | |||
| Weight (kg) | 50 | 49 | 87 | 4 | |
A. It uses a 3:1 double acting air operated pump for barrels or tanks with 2" BSP fittings.
A. The maximum flow rate is 12 litres per minute.
A. The recommended operating air pressure is 70psi, with a maximum of 115psi.
A. It is suitable for engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity.
A. It is suitable for use with 205-litre drums.

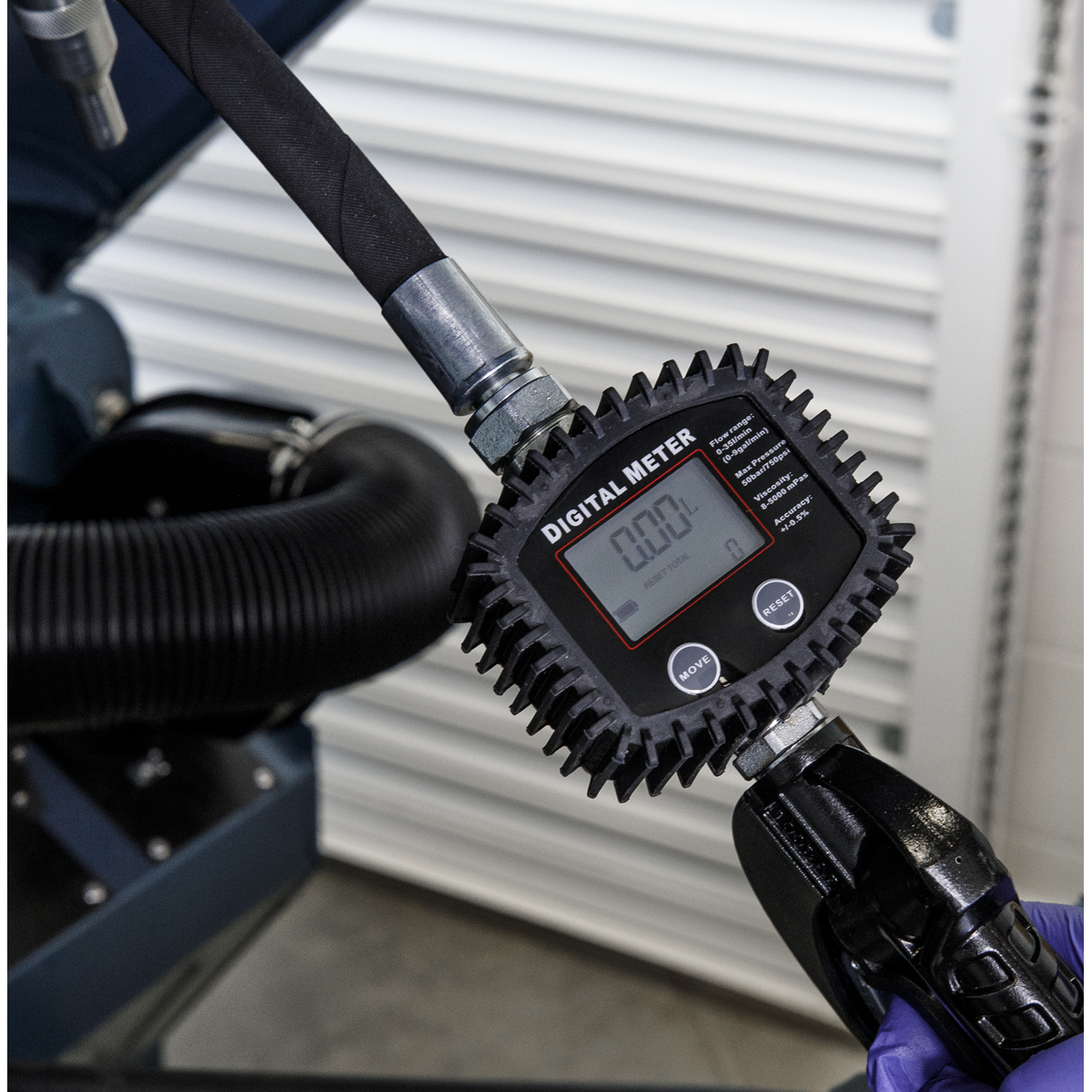

A. Yes, the unit features a 10m retractable hose reel (model AK4567D) and a digital oil metre (model AK4565D).
A. The maximum output pressure is 350psi, with a 1/2" BSP outlet size.
A. The maximum trolley capacity is 220kg.
A. The following alternatives are listed for similar oil dispensing functions: AK4560D, AK4561D, and AK4563D. Contact Parts for Machines for guidance on which system best suits your requirements.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
