Product Number: AK4563D

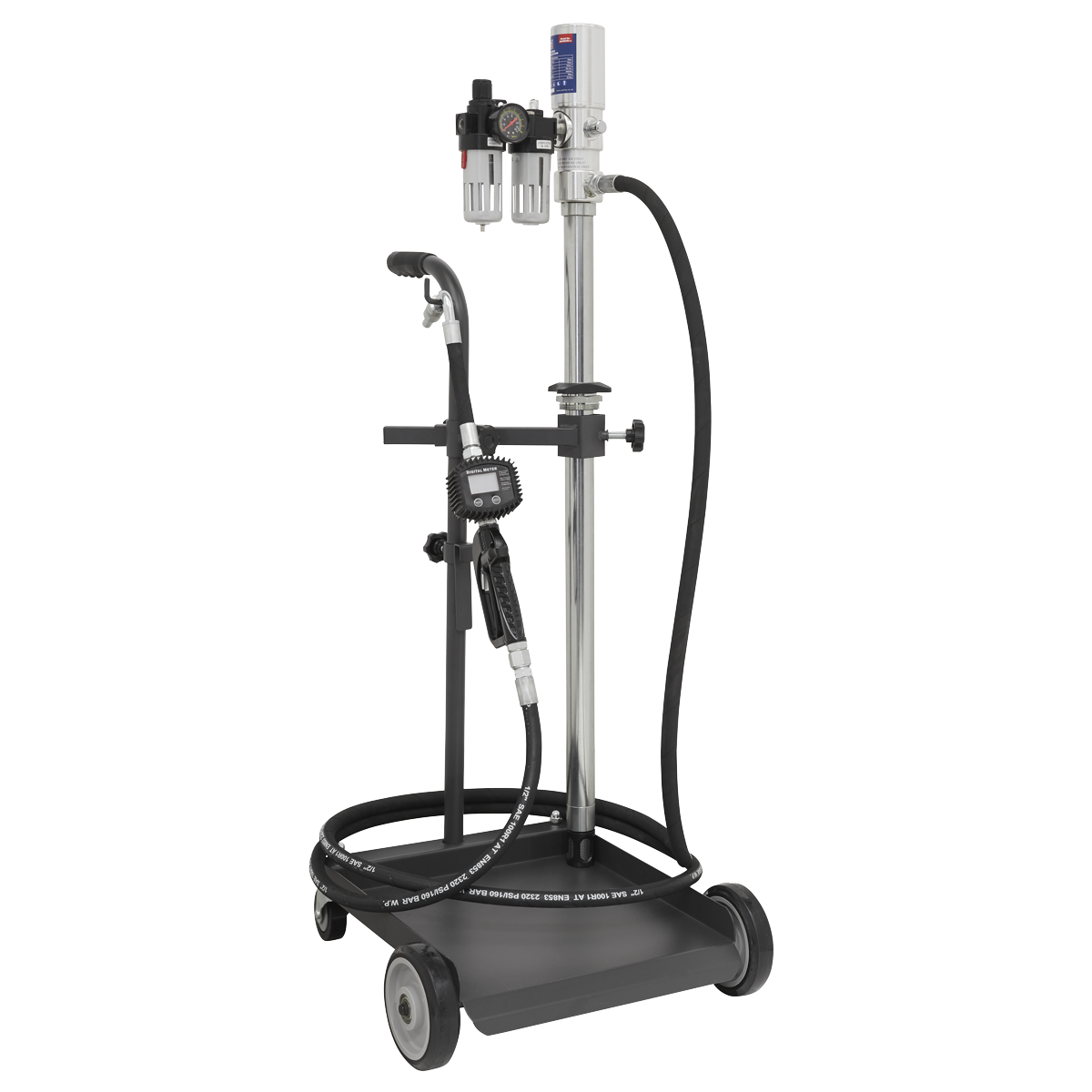

Manually decanting gear oil and transmission fluids from bulk containers is slow, messy, and imprecise. The Sealey AK4563D is a mobile, air operated oil dispensing system designed to handle gear oil and a range of other lubricants efficiently and accurately. The unit uses a 3:1 double acting pump with 2" BSP fittings and operates at a recommended air pressure of 70psi, with a maximum input of 115psi and a maximum output pressure of 350psi. It delivers a maximum flow rate of 12 litres per minute and handles oils up to SAE150 viscosity, making it suitable for engine, hydraulic, synthetic, gear, and transmission oils. The pump is supplied with an air management system and is connected to a 730mm rigid suction probe fitted with a non-return valve. A 4m hose and digital oil metre (model AK4565D) are included. The trolley supports containers up to 50kg capacity. The outlet is sized at 1/2" BSP.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK4563D |
|---|---|
| Brand | Sealey |
| Maximum Air Pressure | 115psi |
| Maximum Flow Rate | 12L/min |
| Maximum Output Pressure | 350psi |
| Maximum Trolley Capacity | 50kg |
| Maximum Viscosity | SAE150 |
| Nett Weight | 18.45kg |
| Outlet Size | 1/2"BSP |
| Pump Ratio | 0.125694444444444 |
| Recommended Air Pressure | 70psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AK4562D Air Operated Oil Dispensing System with 10m Retractable Hose Reel
£1,826.00
£1,789.48
2% OFF
Free delivery in UK Mainland
|
Sealey AK4560D Air Operated Oil Dispensing Pump Station 3:1 Ratio
£919.84
£901.44
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK4562D | AK4560D | 77057 | 47812 | 18114 |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Capacity (L) | 12 | 12 | |||
| Model No | AK4562D | AK4560D | |||
| Nett Weight | 59.40kg | 10.49kg | |||
| Weight (kg) | 220 | 49 | 4 | ||
A. The AK4563D uses an air operated 3:1 double acting pump with 2" BSP fittings.
A. It is suitable for engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity.
A. The maximum flow rate is 12 litres per minute.
A. The recommended operating air pressure is 70psi. The maximum permissible air pressure is 115psi.
A. The unit includes an air management system, a 730mm rigid suction probe with non-return valve, a 4m hose, and a digital oil metre (model AK4565D).
A. The trolley has a maximum capacity of 50kg.
A. The maximum output pressure is 350psi.
A. The outlet size is 1/2" BSP.
A. Yes. The AK4560D, AK4561D, and AK4562D are listed as alternatives and may differ in specification or pump type. Please refer to those product listings for details.
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
