Product Number: AK4560D

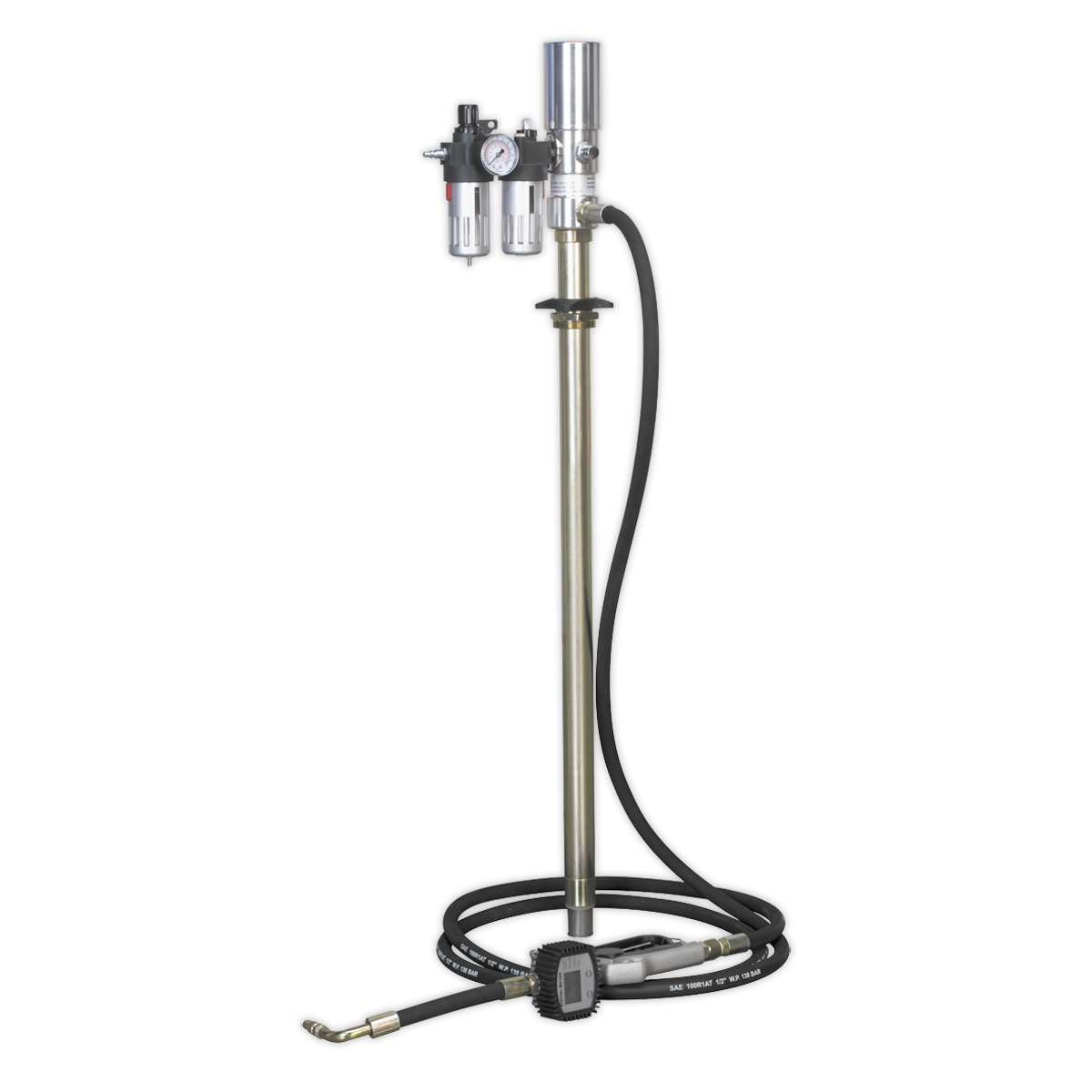

Manually dispensing oil from barrels or tanks is slow, inefficient, and risks spillage in busy workshop environments. The Sealey AK4560D Air Operated Oil Dispensing Pump Station addresses this with a 3:1 double acting air operated pump designed for barrels or tanks fitted with 2" BSP fittings. The pump delivers a maximum flow rate of 12 litres per minute at up to 350psi output pressure, with a recommended operating air pressure of 70psi and a maximum of 115psi. It is suitable for use with engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity. Supplied complete with an air management system, a 940mm rigid suction probe with non-return valve, and a hose for connection to a digital oil metre (Model No. AK4565D, sold separately) or an optional retractable hose reel (Model No. AK4567D). The 1/2" BSP outlet provides a robust connection for downstream dispensing equipment.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | AK4560D |
|---|---|
| Brand | Sealey |
| Maximum Air Pressure | 115psi |
| Maximum Flow Rate | 12L/min |
| Maximum Output Pressure | 350psi |
| Maximum Viscosity | SAE150 |
| Nett Weight | 10.49kg |
| Outlet Size | 1/2"BSP |
| Pump Ratio | 0.125694444444444 |
| Recommended Air Pressure | 70psi |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|
AK4567D | Sealey AK4567D Retractable Oil Hose Reel 10m - Fits AK4560D & AK4562D | 1 Unit |
£573.80
£562.32
|
Add |
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey AK4563D Gear Oil Dispensing System Air Operated
£1,084.48
£1,062.79
2% OFF
Free delivery in UK Mainland
|
Sealey AK4562D Air Operated Oil Dispensing System with 10m Retractable Hose Reel
£1,826.00
£1,789.48
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | AK4563D | AK4562D | 77057 | 47812 | 18114 |
| Type | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer | Oil Drainer |
| Brand | Sealey | Sealey | |||
| Capacity (L) | 12 | 12 | |||
| Model No | AK4563D | AK4562D | |||
| Nett Weight | 18.45kg | 59.40kg | |||
| Weight (kg) | 50 | 220 | 4 | ||
A. The AK4560D uses a 3:1 double acting pump ratio.
A. The maximum flow rate is 12 litres per minute.
A. The recommended operating air pressure is 70psi with a maximum of 115psi.
A. It is suitable for engine, hydraulic, synthetic, gear, and transmission oils up to SAE150 viscosity.
A. The pump is designed for barrels or tanks with 2" BSP fittings.
A. It is supplied with an air management system, a 940mm rigid suction probe with non-return valve, and a hose for connection to a digital oil metre or optional retractable hose reel.
A. The AK4560D features a hose for attachment to the digital oil metre Model No. AK4565D, which is sold separately.
A. The maximum output pressure is 350psi.
A. Yes, alternatives offering similar oil dispensing functionality include AK4561D, AK4562D, and AK4563D, which are different products in the oil dispensing range.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
