Product Number: 13906
Variations

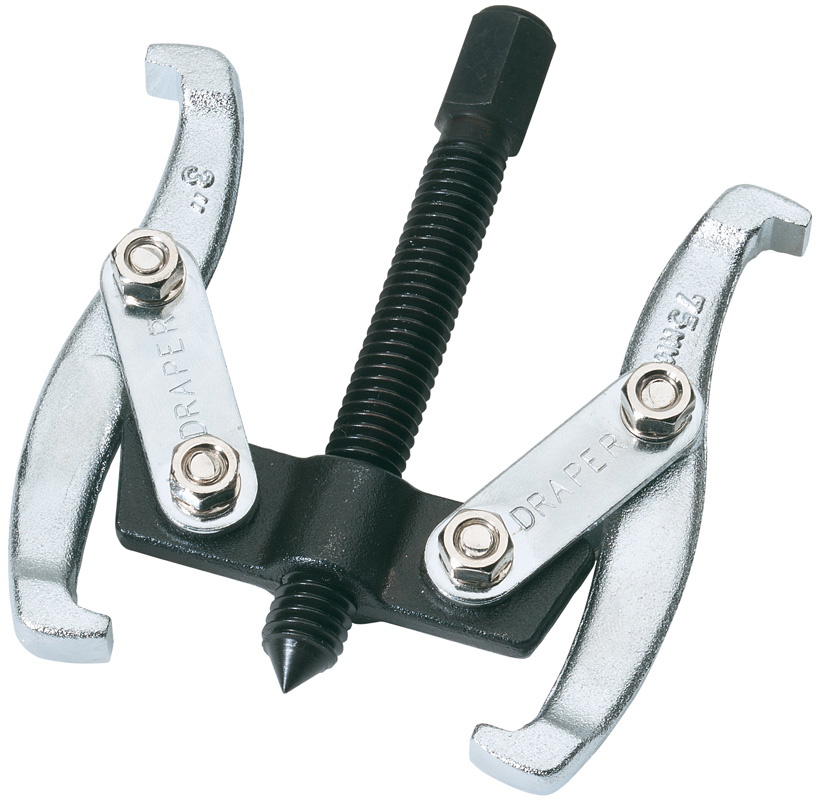

Removing tightly seated gears and bearings without the correct puller risks component damage and wasted labour time. The Draper 13906 Twin Leg Reversible Puller addresses this by offering both external and internal pulling capability from a single tool, eliminating the need to switch between dedicated pullers for different jobs. The two legs are reversible, allowing the user to switch between external and internal configurations to suit gears, bearings, and similar components. Each leg is forged from carbon steel and features both long and short reach positions, giving added flexibility across a range of applications. The yoke and thrust bolt are likewise manufactured from carbon steel for robust, reliable performance under load. The central screw is produced with a rolled thread and carries a chemically blacked finish for corrosion resistance. Key dimensions are a maximum reach of 50 mm and a maximum spread of 75 mm. The central screw measures 10.7 x 108 mm with a 14 mm hexagonal head, and the screw hardness is rated at 38–42 HRC. Net weight is approximately 0.35 kg, keeping the tool manageable for bench and in-vehicle use. This puller is supplied as a single unit and is display packed, making it straightforward to identify on the workshop shelf or at point of sale. Its compact dimensions and dual-configuration legs make the Draper 13906 a practical choice for automotive technicians and workshop professionals who regularly need to pull or extract components in confined spaces.
Puller with two reversible legs for external and internal pulling of gears, bearings, etc. Legs are forged carbon steel and have long and short reach facility. Yoke and thrust bolt are manufactured from carbon steel. Screw has a rolled thread with chemically blacked finish.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Max. Reach | 50mm |
|---|---|
| Max. Spread | 75mm |
| Central Screw Size | 10.7 x 108mm |
| Hexagonal Head | 14mm |
| Screw Hardness | 38–42 HRC |
| Net Weight (approx.) | 0.35kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | 25994 | SGP33 | VS95 | AK79 | AK78 |
| Type | Reversible Puller | Reversible Puller | Reversible Puller | Reversible Puller | Reversible Puller |
| Brand | Sealey | Sealey | Sealey | Sealey | |
| Length (mm) | 78 | 75 | 65 | 65 | 65 |
| Model No | SGP33 | VS95 | AK79 | AK78 | |
| Nett Weight | 0.48kg | 2.49kg | 3.74kg | ||
| Weight (kg) | 48 | 49 | 74 | ||
A. The Draper 13906 supports both external and internal pulling. The two legs are reversible, allowing the tool to be reconfigured for either application, making it suitable for pulling gears, bearings, and similar components.
A. The maximum reach is 50 mm and the maximum spread is 75 mm, as specified in the technical data for this tool.
A. The two legs are forged from carbon steel and offer both long and short reach positions. The yoke and thrust bolt are also manufactured from carbon steel.
A. The central screw measures 10.7 x 108 mm with a 14 mm hexagonal head, a rolled thread, and a chemically blacked finish. Screw hardness is rated at 38–42 HRC.
A. The net weight is approximately 0.35 kg. The tool is supplied as a single unit and is display packed.
A. WhatsApp us on 07754 288583 with photos of the item and packaging, and we'll resolve the issue in line with our returns policy.
