Product Number: 13907

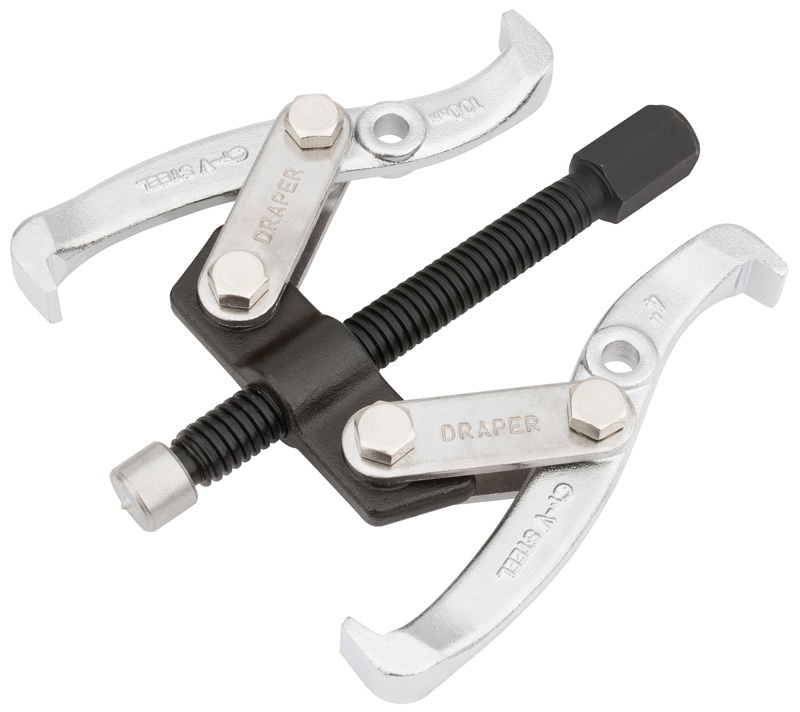

Removing tightly seated gears and bearings demands a tool that can adapt to both external and internal pulling configurations without requiring a separate instrument for each task. The Draper 13907 Twin Leg Reversible Puller addresses this directly, providing a single robust tool capable of handling a wide range of pulling applications across automotive and workshop environments. The two legs are reversible, allowing the puller to switch between external and internal pulling of gears, bearings, and similar components. Each leg is forged from carbon steel and features both a long and short reach facility, giving the operator flexibility when working around components of differing profiles. The yoke and thrust bolt are also manufactured from carbon steel, contributing to the overall rigidity of the assembly under load. The central screw measures 12.7 x 140mm and is fitted with a 17mm hexagonal head for use with a standard spanner. The screw carries a rolled thread and is finished with a chemically blacked treatment. Screw hardness is rated at 38–42 HRC. Maximum reach is 80mm and maximum spread is 100mm. Net weight is approximately 0.61kg. The tool is display packed and ready for professional workshop use or trade counter stocking. Whether tackling spigot bearings, gear removal, or other press-fit components, the Draper 13907 delivers the reach and spread configuration required for confident, controlled extraction.
Puller with two reversible legs for external and internal pulling of gears, bearings, etc. Legs are forged carbon steel and have long and short reach facility. Yoke and thrust bolt are manufactured from carbon steel. Screw has a rolled thread with chemically blacked finish.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Max. Reach | 80mm |
|---|---|
| Max. Spread | 100mm |
| Central Screw Size | 12.7 x 140mm |
| Hexagonal Head | 17mm |
| Screw Hardness | 38–42 HRC |
| Net Weight (approx.) | 0.61kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
How to select the right Puller for removing Gears, Hub Cap, Bearings, and Pulleys A puller is a specialized tool used to remove or extract objects such as gears, bearings, pulleys, and other components that are pressed onto a shaft or otherwise tightly fitted onto another part. Pullers typically use mechanical force, such as a threade...
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 1315DISPLAY DISPLAY FOR 5 PULLERS - 1300 SERIES
£60.17
£58.99
2% OFF
Free delivery in UK Mainland
|
Sealey VS83 Fast Action Twin/Triple Leg Reversible Puller Set 8pc 150 & 220mm
£132.67
£130.07
2% OFF
Free delivery in UK Mainland
|
Sealey AK78 Gear Reversible Puller Set 3pc Triple Leg
£78.90
£77.35
2% OFF
Free delivery in UK Mainland
|
Sealey AK79 Gear Reversible Puller Set 4pc Triple Leg
£130.98
£128.41
2% OFF
Free delivery in UK Mainland
|
Sealey SGP36 Triple Leg Reversible Puller 150mm Reach
£50.07
£49.09
2% OFF
Free delivery in UK Mainland
|
||||||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 1315DISPLAY | 13906 | 25994 | 56177 | VS83 | AK78 | AK79 | SGP33 | SGP34 | SGP36 | SGP38 | VS77 | VS95 | AK46120 | AK46150 |
A. The Draper 13907 Twin Leg Reversible Puller supports both external and internal pulling configurations. The two legs are reversible, making the tool suitable for pulling gears, bearings, and similar components in either orientation.
A. The legs are forged from carbon steel. Both the yoke and the thrust bolt are also manufactured from carbon steel.
A. Yes. Each leg features a long and short reach facility, providing flexibility when working with components of differing profiles.
A. The maximum reach is 80mm and the maximum spread is 100mm.
A. The central screw measures 12.7 x 140mm with a 17mm hexagonal head. It has a rolled thread with a chemically blacked finish and a hardness rating of 38–42 HRC.
A. The net weight is approximately 0.61kg.
