Product Number: 51727

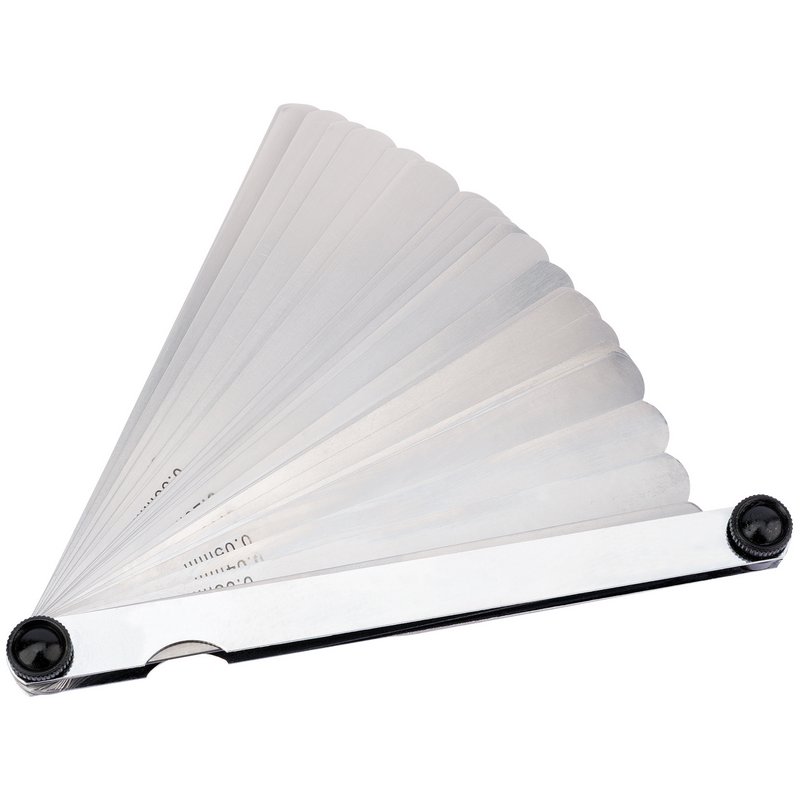

Accurate gap measurement is essential when setting valve clearances, spark plug gaps, and other critical engine tolerances, and an inadequate feeler gauge set can introduce measurement error that undermines the entire service procedure. The Draper 51727 addresses this with 26 dual-marked blades covering both metric and imperial sizes, allowing technicians to work confidently with either measurement system without changing tools. Each of the 26 blades measures 150mm in length and follows a taper profile, providing the reach needed for deep or restricted access points common in engine bay work. The blades are hardened and polished to resist wear and maintain surface accuracy over repeated use, and every blade is individually marked with its size for quick, reliable identification during a job. The metric range spans 0.03mm to 0.70mm across 26 increments, while the corresponding imperial range covers 0.0012" to 0.028" across the same 26 blades. This dual-marked format means each blade carries both its metric and imperial value, eliminating the need to cross-reference between separate sets. The complete set folds neatly into a plated steel case secured with a thumbscrew, keeping all blades organised, protected, and ready for use. The set is display packed.
Combination gauge with 26 dual marked 150mm long blades, hardened and polished for long accurate life. Each blade is marked with its size and folds into a plated steel case with thumbscrew.
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
||||||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 51720 | 36174 | VS513 | VS515 | VS511 | S0515 |
A. The set includes 26 metric blades ranging from 0.03mm to 0.70mm (0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, 0.10, 0.13, 0.15, 0.18, 0.20, 0.23, 0.25, 0.28, 0.30, 0.33, 0.35, 0.38, 0.40, 0.45, 0.50, 0.60, 0.63, 0.65, 0.70mm) and 26 imperial blades ranging from 0.0012" to 0.028" (0.0012, 0.0015, 0.002, 0.0025, 0.0028, 0.003, 0.0035, 0.004, 0.005, 0.006, 0.007, 0.008, 0.009, 0.010, 0.011, 0.012, 0.013, 0.014, 0.015, 0.016, 0.018, 0.020, 0.024, 0.025, 0.026, 0.028").
A. Yes. Each blade is dual-marked, displaying both its metric and imperial measurement, so there is no need to switch between separate metric and imperial sets during a job.
A. Each blade measures 150mm in length and is tapered in profile, providing the reach required for restricted or deep-access measurement points.
A. The blades are hardened and polished steel, which helps maintain surface accuracy and extends the working life of the gauge set.
A. All 26 blades fold into a plated steel case that is secured with a thumbscrew, keeping the blades protected and organised when not in use.
