Product Number: VS513

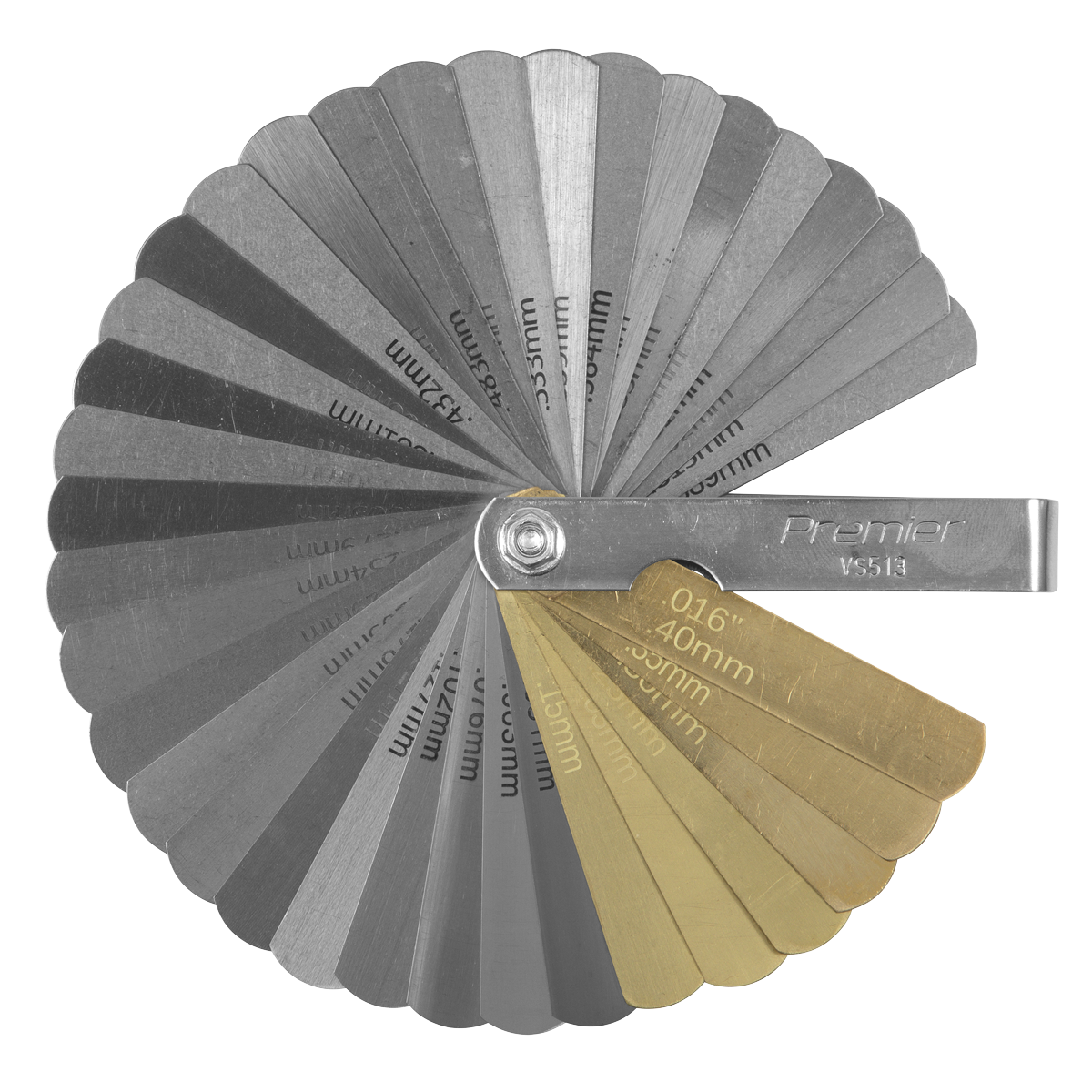

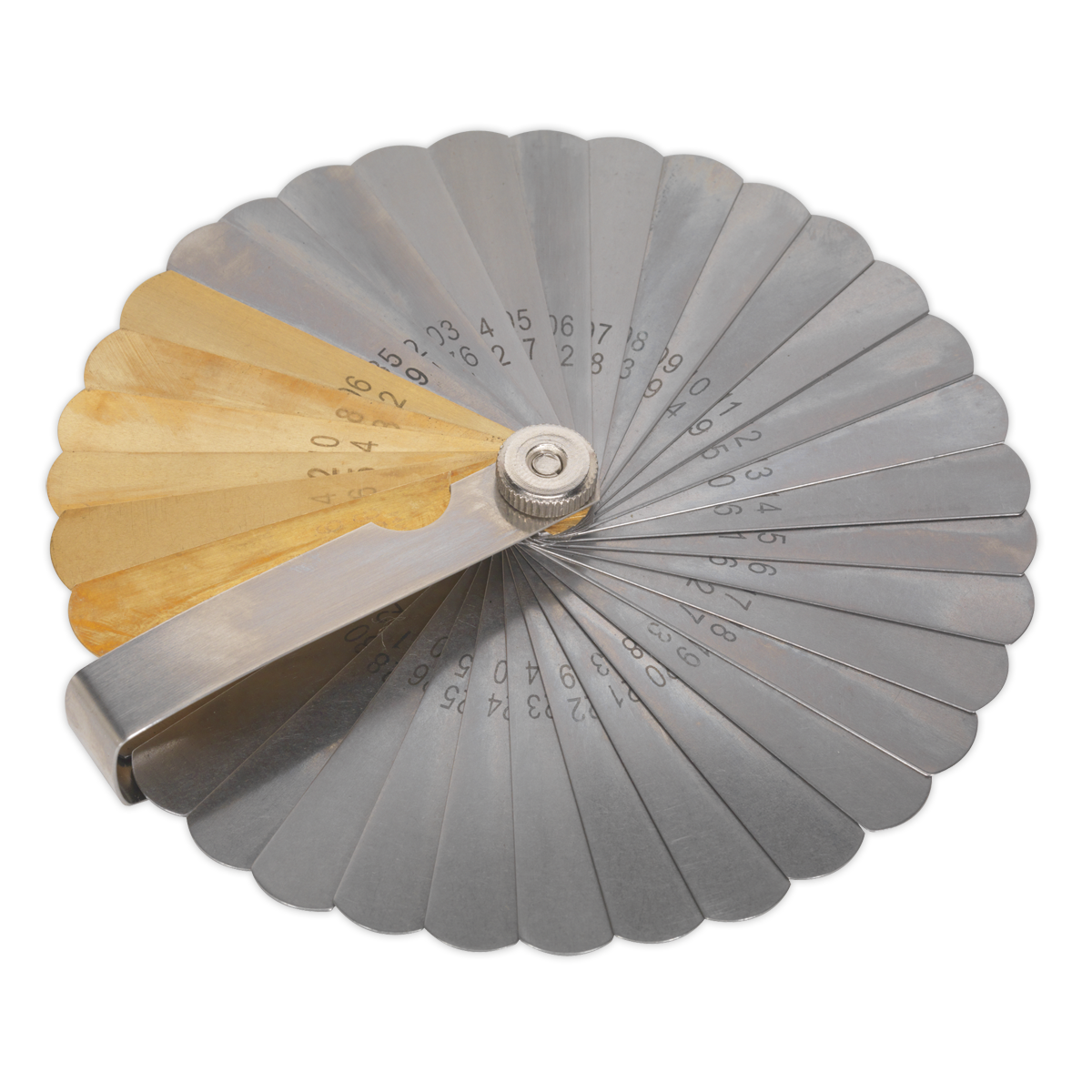

Setting valve clearances, spark plug gaps, or checking bearing tolerances requires precise gap measurement in both imperial and metric and some applications, such as electronic ignition systems, demand a non-magnetic blade to avoid interference. The Sealey VS513 is a 36-blade combination feeler gauge that addresses all of these needs in a single tool. It features 30 steel blades covering imperial sizes from 0.002" to 0.035" (metric equivalents 0.051mm to 0.889mm), plus six brass blades for non-magnetic applications on electronic ignition systems, covering 0.006" to 0.016" imperial (0.152mm to 0.406mm metric). Every blade is dual marked in both imperial and metric, removing the need to convert between measurement systems on the job. Each blade measures 75 x 13mm for good reach into restricted areas. The VS513 is backed by a lifetime guarantee.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VS513 |
|---|---|
| Blade Size(s) | Imperial Steel; 0.002", 0.0025", 0.003", 0.004", 0.005", 0.006", 0.007", 0.008", 0.009", 0.010", 0.011", 0.012", 0.013", 0.014", 0.015", 0.016", 0.017", 0.018", 0.019", 0.020", 0.021", 0.022", 0.023", 0.024", 0.025", 0.026", 0.028", 0.030", 0.032", 0.035" Imperial Brass; 0.006", 0.008", 0.010", 0.012", 0.014", 0.016" Metric Steel; 0.051, 0.063, 0.076, 0.102, 0.127, 0.152, 0.178, 0.203, 0.229, 0.254, 0.279, 0.305, 0.330, 0.356, 0.381, 0.406, 0.432, 0.457, 0.483, 0.508, 0.533, 0.559, 0.584, 0.610, 0.635, 0.660, 0.711, 0.762, 0.813, 0.889mm Metric Brass; 0.152, 0.203, 0.254, 0.305, 0.356, 0.406mm |
| Brand | Premier |
| Nett Weight | 0.13kg |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
|||||||||
| Technical Specification | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | S0514 | S0516 | S0517 | S0515 | VS516 | 51720 | 36174 | 36169 | 51727 |
A. The VS513 includes 30 steel blades in imperial sizes from 0.002" to 0.035" and six brass blades from 0.006" to 0.016" imperial. Full metric equivalents are also marked on every blade. The steel range in metric runs from 0.051mm to 0.889mm; the brass range from 0.152mm to 0.406mm.
A. The 30 steel blades cover the majority of general gap-setting tasks, while the six brass blades are specifically provided for non-magnetic applications such as electronic ignition systems, where a steel blade could cause interference or damage.
A. Yes. Every blade is dual marked in both imperial and metric, so there is no need to convert measurements when switching between specifications.
A. Each blade measures 75 x 13mm.
A. The VS513 has 36 blades in total - 30 steel and six brass.
A. The VS513 feeler gauge is backed by a lifetime guarantee.
A. The VS513 includes blade sizes commonly used for spark plug and valve clearance settings. Please refer to your vehicle or equipment manufacturer's specification to confirm the correct gap size for your application, and contact Parts for Machines if you require further guidance.
A. Yes. Alternatives include S0514, S0515, S0516, and S0517, each of which offers a different blade count, range, or configuration. Check individual listings to find the set that best matches your requirements.
A. The 30 steel blades cover the following imperial sizes: 0.002", 0.0025", 0.003", 0.004", 0.005", 0.006", 0.007", 0.008", 0.009", 0.010", 0.011", 0.012", 0.013", 0.014", 0.015", 0.016", 0.017", 0.018", 0.019", 0.020", 0.021", 0.022", 0.023", 0.024", 0.025", 0.026", 0.028", 0.030", 0.032", and 0.035".
A. In-stock orders placed before 14:30 Monday to Friday are usually dispatched the same day.
