Product Number: MM20
Variations

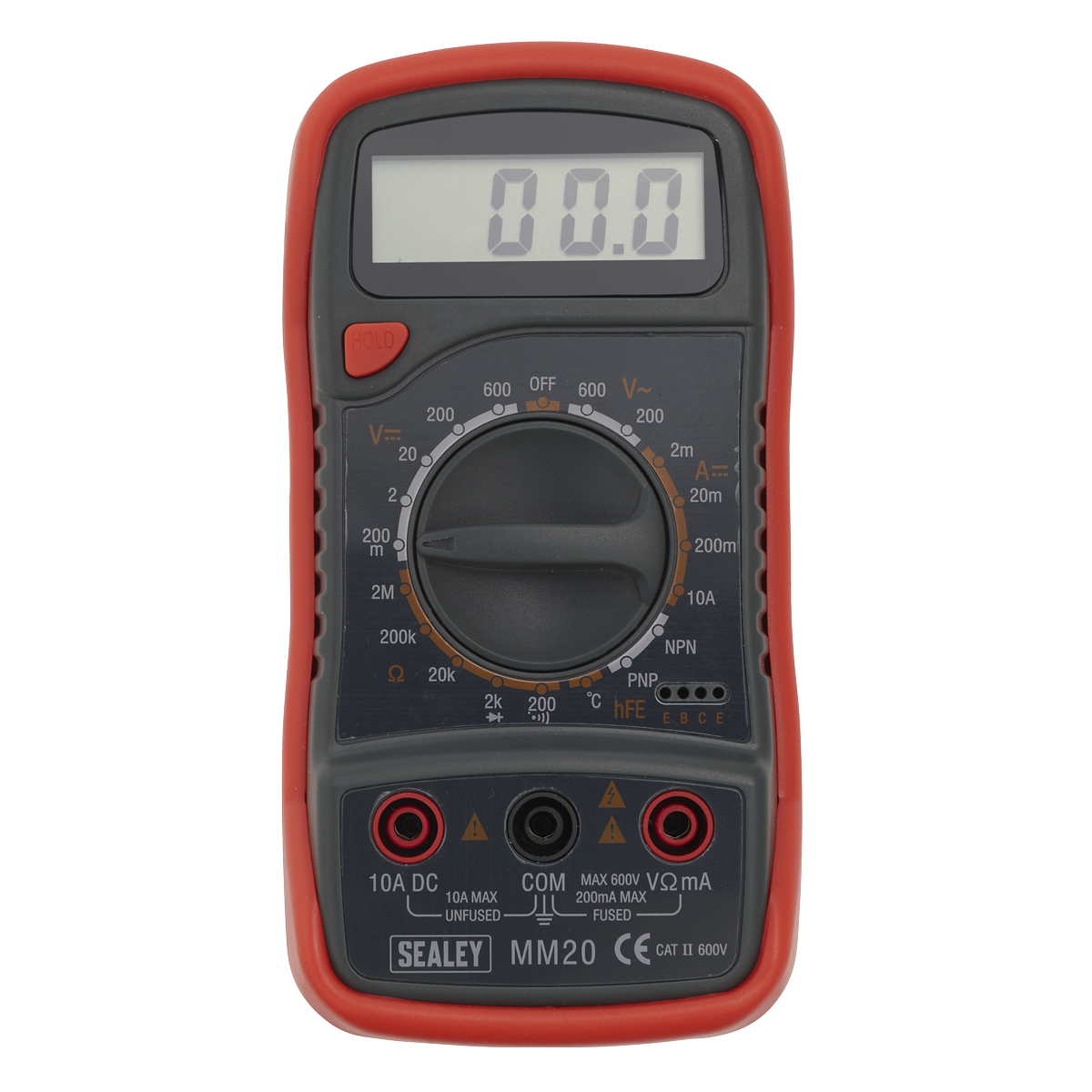

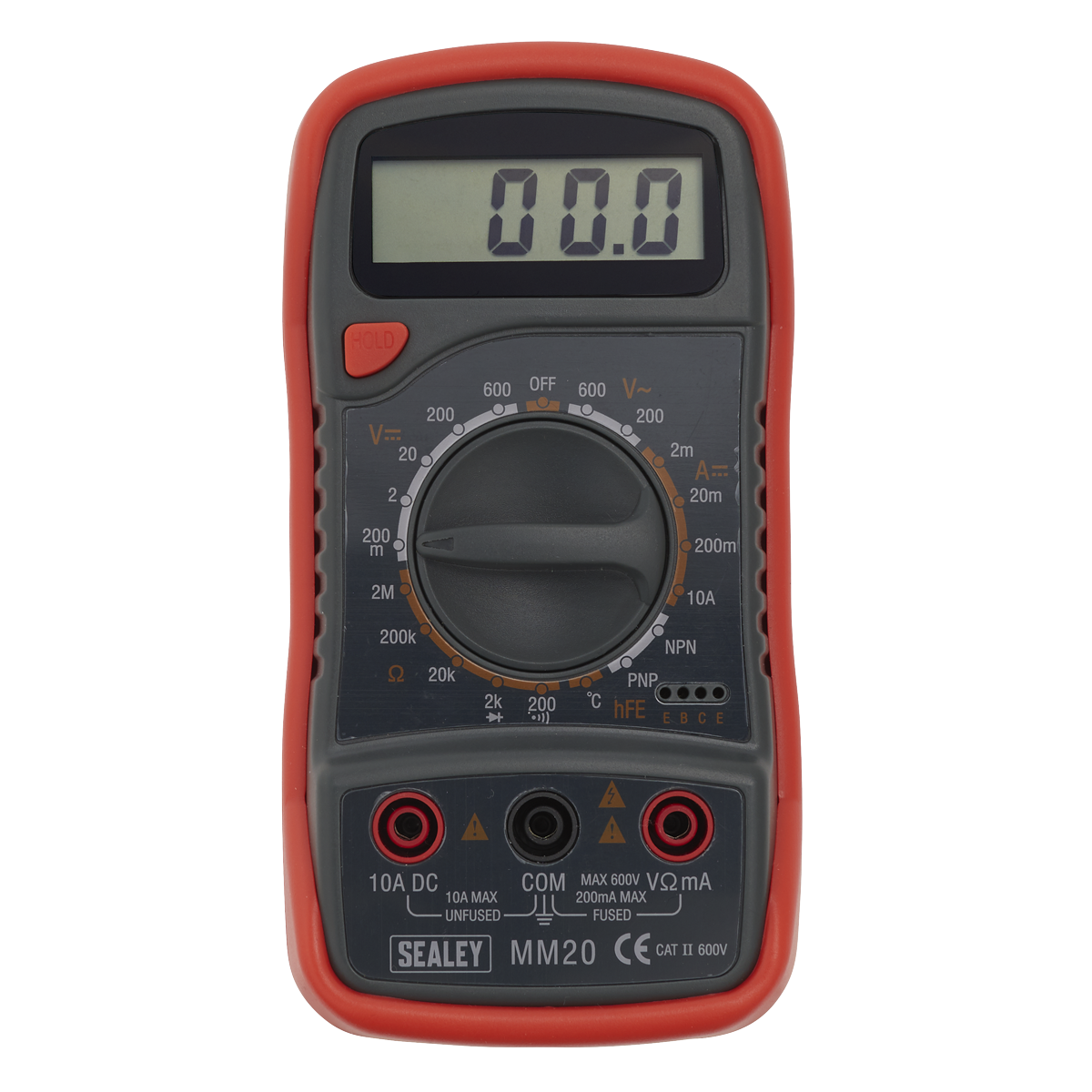

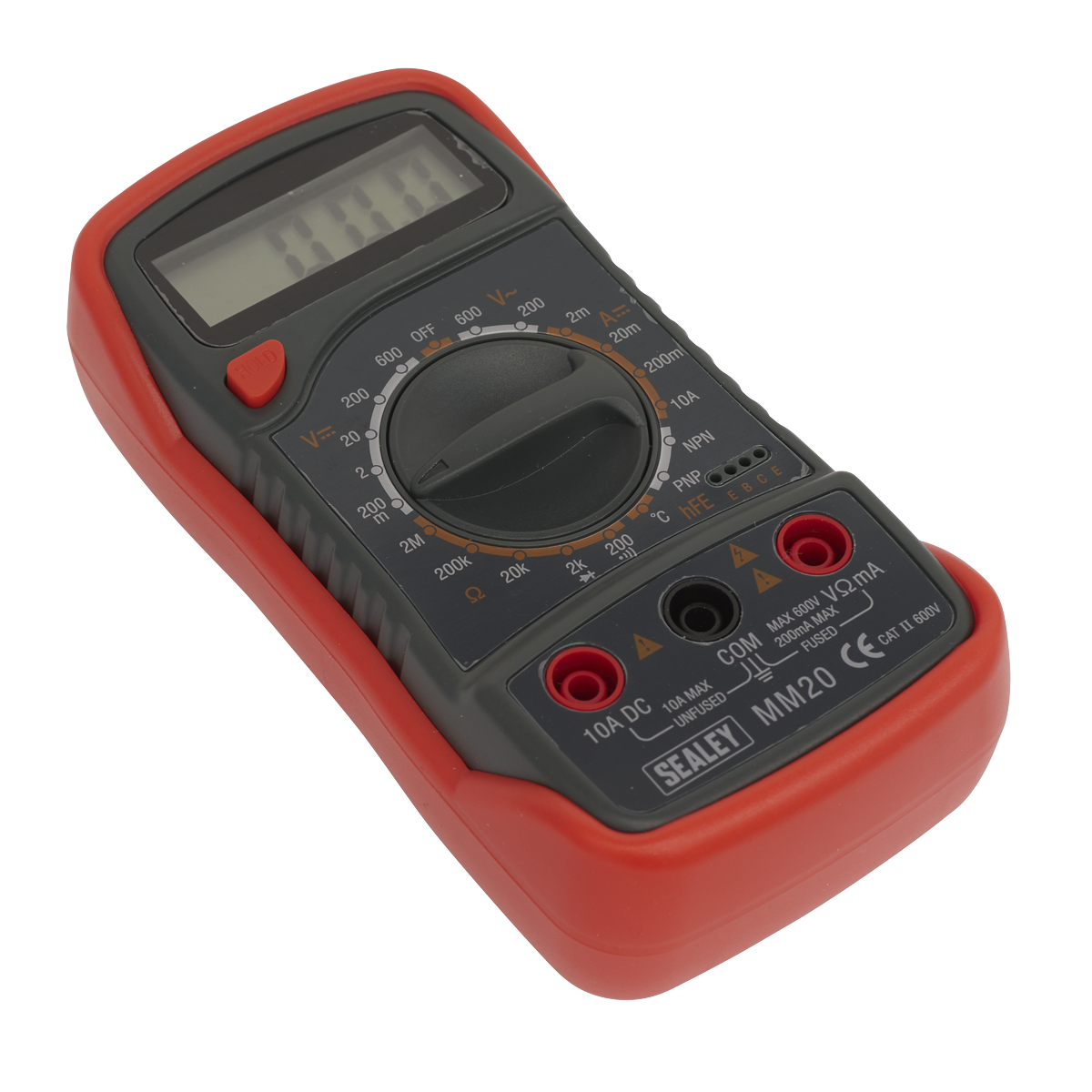

Struggling to diagnose electrical faults without a reliable, accurate metre to hand? The Sealey MM20 Digital Multimeter delivers eight measurement functions in a heavy-duty general-purpose tool built for workshop use. The clear, easy-to-read LCD display makes readings quick to check, while the rugged rubber boot and integral stand keep the metre stable and protected on the bench. A data-hold function lets you freeze readings for easy recording, and the included temperature probe extends measurement to a range of -40°C to 1000°C (±1% accuracy up to 400°C, ±2% over 400°C). AC and DC voltage is covered across ranges up to 600V, DC current up to 10A, and resistance up to 2MΩ. Audible continuity, diode test, and transistor verification mode round out the capability for thorough electrical diagnostics. Supplied complete with a full set of leads and probes, the MM20 is ready to work straight from the box.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | MM20 |
|---|---|
| Brand | Sealey |
| Nett Weight | 260g |
| AC Voltage (Accuracy) | 200V, 600V (±2%) |
| DC Voltage (Accuracy) | 200mV (±0.5%), 2V (±0.8%), 20V (±0.8%), 200V (±0.8%), 600V (±0.8%) |
| AC Current (Accuracy) | No |
| DC Current (Accuracy) | 2mA (±1%), 20mA (±1%), 200mA (±1.2%), 10A (±2%) |
| Resistance (Accuracy) | 200Ω, 2kΩ, 20kΩ, 200kΩ (±0.8%), 2MΩ (±1.2%) |
| Capacitance (Accuracy) | No |
| Temperature (Accuracy) | Range; -40°C-1000°C, (±1% up to 400°C), (±2% over 400°C) |
| Frequency (Accuracy) | No |
| Duty Cycle | No |
| Continuity Audible | Yes |
| Diode Test | Yes |
| Transistor Test | Yes |
| High-Impact Rubber Case | Yes |
| Digits x Height | 6 x 12mm |
| Low Battery Indicator | Yes |
| Battery (Supplied) | 1 x 9V |
| Information | Integral Stand |
| Size (L x W x D) | 140 x 70 x 35mm |
| Weight | 260g |
| Conformity | IEC 1010 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
Draper 41822 Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp
£72.92
£71.49
2% OFF
Free delivery in UK Mainland
|
||||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | MM102 | MM18 | MM20HV | TM100 | 02590 | 41820 | 16232 | 41822 |
A. The MM20 measures AC and DC voltage, DC current, resistance, temperature, audible continuity, and includes a diode and transistor verification mode - eight functions in total.
A. The MM20 measures temperature from -40°C to 1000°C, with accuracy of ±1% up to 400°C and ±2% over 400°C. A temperature probe is included in the supply.
A. For DC voltage, ranges are 200mV (±0.5%), 2V, 20V, 200V (all ±0.8%), and 600V (±0.8%). AC voltage covers 200V and 600V, both at ±2% accuracy.
A. According to the specification, the MM20 does not measure AC current. DC current is measured across four ranges: 2mA, 20mA, 200mA (all ±1-1.2%), and 10A (±2%).
A. Yes. The MM20 features a data-hold function that freezes the displayed reading, making it easier to record measurements without having to watch the display continuously.

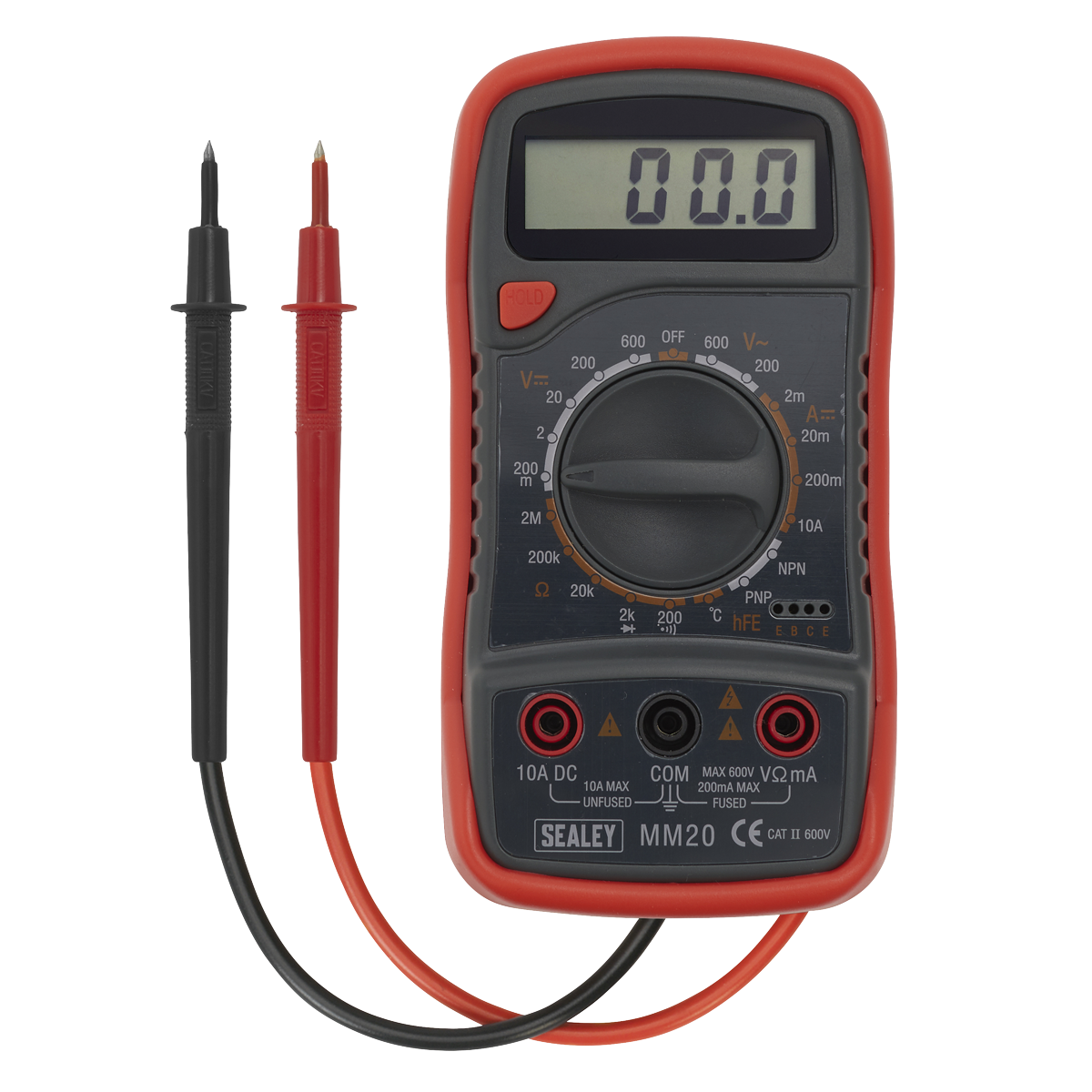

A. The MM20 is supplied with a full set of leads and probes and a temperature probe. It is housed in a rugged rubber boot with an integral stand.
A. Yes. The MM20HV is an available variant in the same product family. Please refer to the MM20HV product listing or contact Parts for Machines for confirmation of how the specification differs.
A. Alternative multimeters include the MM01, MM03, MM102, and MM18 - each a different product offering similar diagnostic functionality. Please refer to those individual listings for specification comparisons.
A. Yes - WhatsApp us on 07754 288583 with any questions about specifications, suitability, or compatibility, and we'll help you choose the right product.
A. Standard UK mainland delivery is 3-5 working days.
