Product Number: 37317

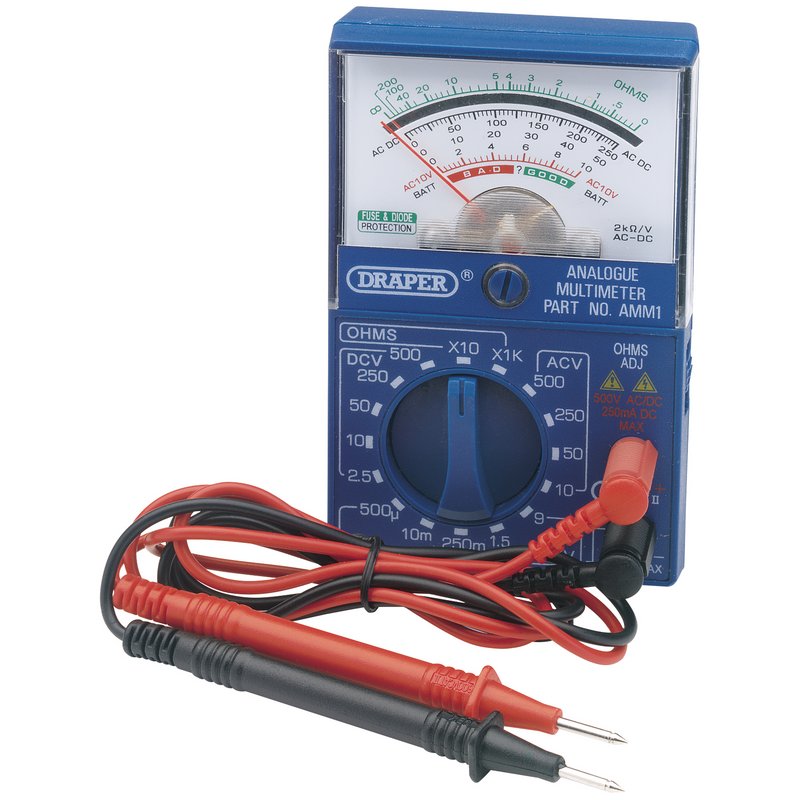

Accurate electrical measurement in the field or workshop demands a reliable instrument that is genuinely portable. The Draper 37317 Pocket Analogue Multimeter meets that need with a compact 64 mm x 35 mm x 102 mm body weighing approximately 100 g, making it equally suited to automotive diagnostics and general electrical applications. The 16-position rotary function and range selector gives the user clear, positive control over measurement mode and range without ambiguity. AC voltage is measurable across four ranges — 10 V, 50 V, 250 V and 500 V — while DC voltage covers five ranges: 2.5 V, 10 V, 50 V, 250 V and 500 V. DC current measurement is available at 550 µA, 10 mA, 250 mA and 10 A. Resistance measurement is provided on two ranges: 10 Ω and 1 kΩ. Recessed input terminals protect connections during use, and a battery check facility confirms instrument readiness before a job begins. Power is supplied by a single AA battery. The instrument is built to IEC 61010 specifications, providing a recognised standard of electrical safety for test and measurement equipment. Supplied as standard with two test probes and leads; a crocodile clip probe set is available separately for hands-free measurements. The Draper 37317 is supplied complete with one pocket analogue multimeter and two test probes and leads, ready for immediate use.
Handy pocket analogue multimeter for use in electrical and automotive applications. Supplied with test probes, a crocodile clip probe set is available separately. Measures AC and DC Voltage, Measures DC current, Measures resistance, 16 position
Product Key Feature:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specialising in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalogue of over 500,000 products. Standard delivery: 1-3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| AC Current | N/A |
|---|---|
| AC Voltage | 10V/50V/250V/500V |
| Automatic Power Off | N/A |
| Battery | 1 x AA |
| Capacitance | N/A |
| DC Current | 550uA/10mA/250mA/10A |
| DC Voltage | 2.5V/10V/50V/250V/500V |
| Diode on/off Test | N/A |
| Dimensions | 64mm x 35mm x 102mm |
| Duty Ratio | N/A |
| Dwell | N/A |
| Frequency | N/A |
| Resistance (Ohms) | 10Ω/1kΩ |
| Size | 64 x 100 x 35mm |
| Symbol Unit Data Hold | N/A |
| TACH | N/A |
| Temperature Range | N/A |
| Weight | 100g (approx.) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
37317ins.pdf
|
Open Now |
Standard Delivery: £4.99
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey TA305 AC/DC Clamp Metre & Multimeter CAT III 600V
£97.42
£95.51
2% OFF
Free delivery in UK Mainland
|
Sealey MM102 Auto-Ranging Digital Multimeter CAT IV 600V
£62.83
£61.60
2% OFF
Free delivery in UK Mainland
|
Sealey TM103 Professional Auto-Ranging Digital Multimeter 11-Function
£81.06
£79.47
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 02590 | 32072 | MM18 | TA305 | MM102 | TM103 |
A. The instrument measures AC voltage (10 V, 50 V, 250 V, 500 V), DC voltage (2.5 V, 10 V, 50 V, 250 V, 500 V), DC current (550 µA, 10 mA, 250 mA, 10 A) and resistance (10 Ω, 1 kΩ) — selected via a 16-position rotary function and range selector.
A. The Draper 37317 Pocket Analogue Multimeter is built to IEC 61010 specifications, a recognised international standard for electrical safety in test and measurement equipment.
A. The product is supplied with one pocket analogue multimeter and two test probes and leads. A crocodile clip probe set is available separately.
A. The instrument is powered by a single AA battery. It also features a battery check facility so you can confirm the instrument is ready before use.
A. Yes. According to the product specification, the Draper 37317 Pocket Analogue Multimeter is designed for use in both electrical and automotive applications.
A. The unit measures 64 mm x 35 mm x 102 mm and weighs approximately 100 g, making it genuinely pocket-sized for use in the field or workshop.
