Product Number: SCW480SBLEM

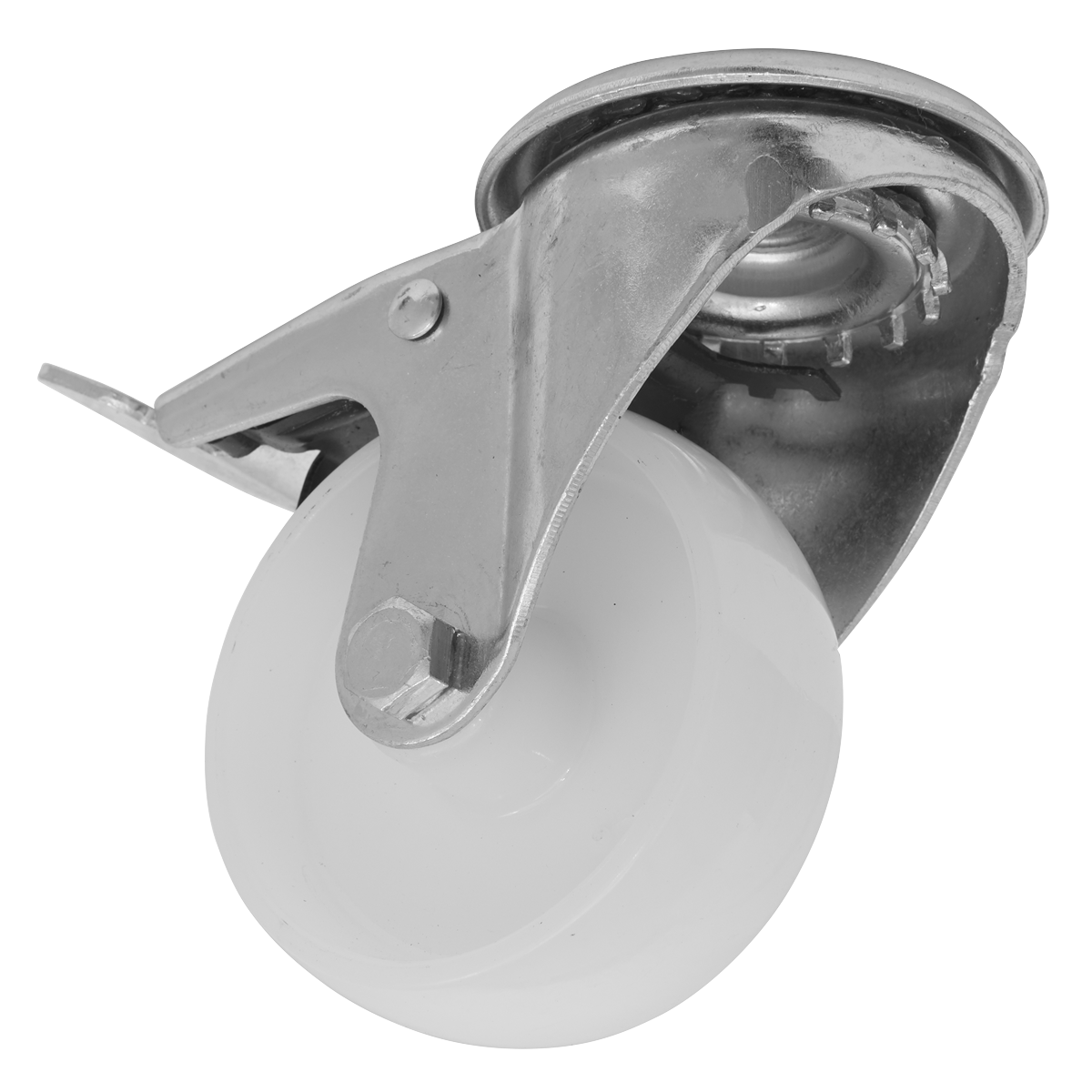

In trade and workshop settings, castors need to handle heavy loads reliably whilst protecting floors from damage and they need a braking system that genuinely immobilises the equipment, not just slows the wheel. The Sealey SCW480SBLEM addresses this with a total lock swivel castor that locks the entire castor when braked, preventing both rolling and rotation. The nylon wheel features a cast aluminium core for added structural strength, and the bolt hole fixing makes installation straightforward. With an 80mm wheel diameter, 30mm tread width, overall height of 108mm, and a 150kg load capacity, this is a robust trade-grade solution. The offset size is 35mm and the plate hole diameter is 12.5mm.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | SCW480SBLEM |
|---|---|
| Brand | Sealey |
| Castor Type | Swivel with Total Lock |
| Fixing Type | Bolt Hole |
| Load Capacity | 150kg |
| Offset Size | 35mm |
| Overall Height | 108mm |
| Plate Hole Centre | n/a |
| Plate Hole Diameter | 12.5mm |
| Plate Size | n/a |
| Tread Width | 30mm |
| Wheel Diameter | 80mm |
| Wheel Material | Nylon |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SCW480SB Heavy-Duty Swivel Castor Wheel Bolt Hole Fixing 80mm 125kg Capacity
£17.07
£16.73
2% OFF
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | SCW480SP | SCW480FPEM | SCW480SPEM | SCW480SPLEM | SCW480SB |
| Type | Castor | Castor | Castor | Castor | Castor |
| Brake | No | No | No | Yes | No |
| Diameter | 80mm | 80mm | 80mm | 80mm | 80mm |
| Diameter Range | 51-100mm | 51-100mm | 51-100mm | 51-100mm | 51-100mm |
| Duty | Heavy duty | Heavy duty | Heavy duty | Heavy duty | |
| Format | Single | Single | Single | Single | Single |
| Load Capacity | 200kg | 150kg | 150kg | 150kg | 125kg |
| Mounting | Swivel plate | Fixed plate | Swivel | Swivel with total lock | Bolt hole |
| Non-Marking | Yes | ||||
| Wheel Material | Polyamide | Nylon | |||
| Show More | |||||
A. The SCW480SBLEM has a load capacity of 150kg.
A. The total lock system locks the whole castor - preventing both swivelling and rolling - rather than locking the wheel alone.
A. The wheel is made from nylon with a cast aluminium core.
A. It uses a bolt hole fixing. The plate hole diameter is 12.5mm.
A. The wheel diameter is 80mm, tread width is 30mm, overall height is 108mm, and the offset size is 35mm.
A. The SCW480SBLEM features a nylon wheel with a cast aluminium core and a 30mm tread width, whereas the SCW480SBL has a non-marking polyamide wheel and a 34mm tread width. The SCW480SBLEM is also designated as a Trade specification product.
A. Other versions in this castor family include SCW480FPEM, SCW480SB, SCW480SBEM, and SCW480SBL. Please check individual listings for specification differences.
A. Yes. The SCW480SBLEM is designated as a Trade product and is built to heavy-duty specification.
