Product Number: VS0561

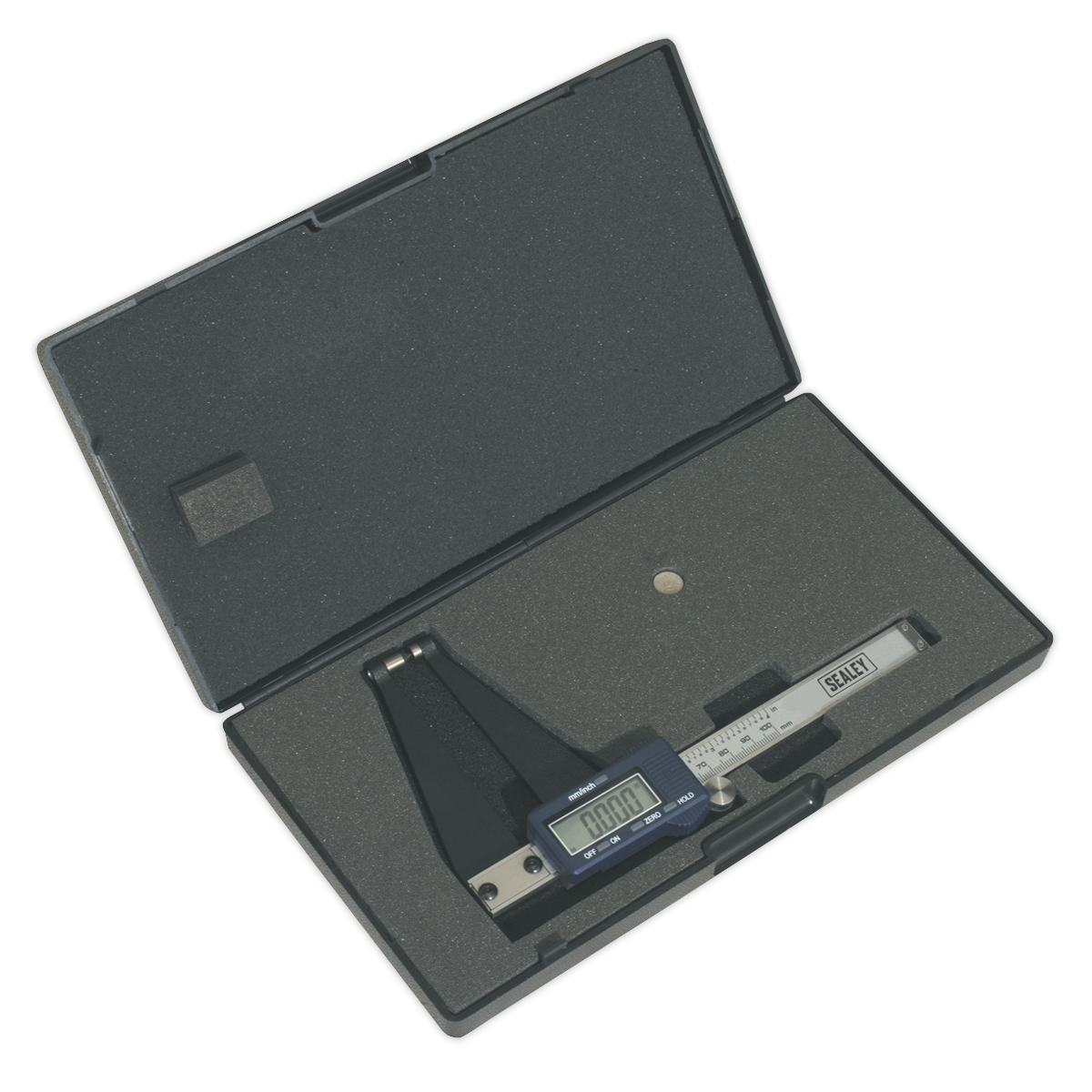

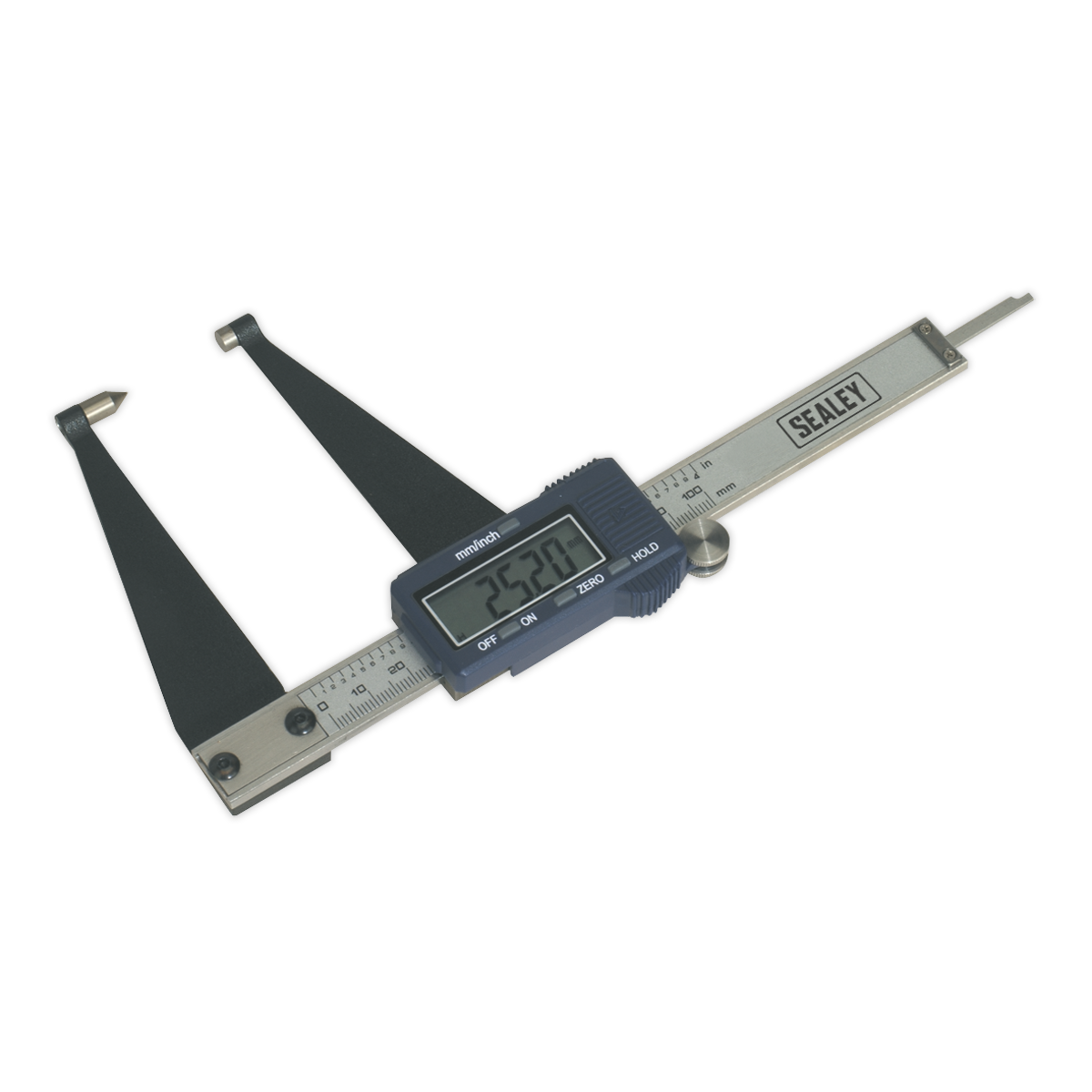

Worn or uneven brake discs are a common cause of vibration and pulling under braking, yet measuring disc thickness accurately with a standard calliper can be awkward and imprecise. The Sealey VS0561 Digital Brake Disc Caliper is purpose-built for this task, offering a measurement range of 0-100mm (0-4") with a resolution of 0.01mm (0.0005") and accuracy of ±0.02mm (0.001"). The gauge body is hardened and tempered stainless steel, and the large 11mm LCD figures make readings easy to see in workshop conditions. Switch between metric and imperial read-out at will, and use the Hold function to lock a measurement for recording. The zero setting control enables comparative measurement, so you can quickly assess wear against a known reference. A serial port connection is included for direct computer interface, useful where digital records are required. Two LR44 1.5V batteries are supplied, and the caliper comes in a protective storage case for safe keeping between uses.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | VS0561 |
|---|---|
| Accuracy | ±0.02mm(0.001") |
| Battery | LR44 - 1.5V (supplied x2) |
| Brand | Sealey |
| Nett Weight | 0.49kg |
| Range | 0-100mm(0-4") |
| Resolution | 0.01mm(0.0005") |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Brake Piston Won't Go Back? Spreader, Wind-Back or Service Mode New pads won’t fit because the caliper piston won’t go back? Without a handbrake on the caliper, it usually pushes straight back. With a cabl...
Standard Delivery: £5.99
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 2725600 FLAREMASTER2 -FLARING TOOL 4.75& 6mm
£224.61
£220.21
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | VS0566 | AK657 | 34303000 | 2725600 | 24317 |
| Type | Caliper Tool | Caliper Tool | Spring Hook | ||
| Brand | Sealey | Premier | |||
| Length (mm) | 150 | 100 | 100 | 95 | |
| Model No | VS0566 | AK657 | |||
| Nett Weight | 0.52kg | 0.09kg | |||
| Weight (kg) | 52 | 09 | 51 | 55 | |
A. The VS0561 has a range of 0-100mm (0-4").
A. Accuracy is ±0.02mm (0.001"), with a resolution of 0.01mm (0.0005").
A. Yes, the caliper offers both metric and imperial read-out, selectable as required.
A. The Hold function locks the current reading on the LCD display, allowing you to record the measurement without the figure changing.
A. Yes, the caliper includes a serial port connection for computer interface.
A. The VS0561 uses two LR44 1.5V batteries, which are supplied with the caliper.
A. Yes, the caliper is supplied in a storage case.
A. The LCD display uses 11mm high figures for ease of reading.
A. Yes, alternative tools that perform a similar function include the CV212, VS0354, VS0391, and VS0462 - please check each product listing for specification differences to find the most suitable option.
