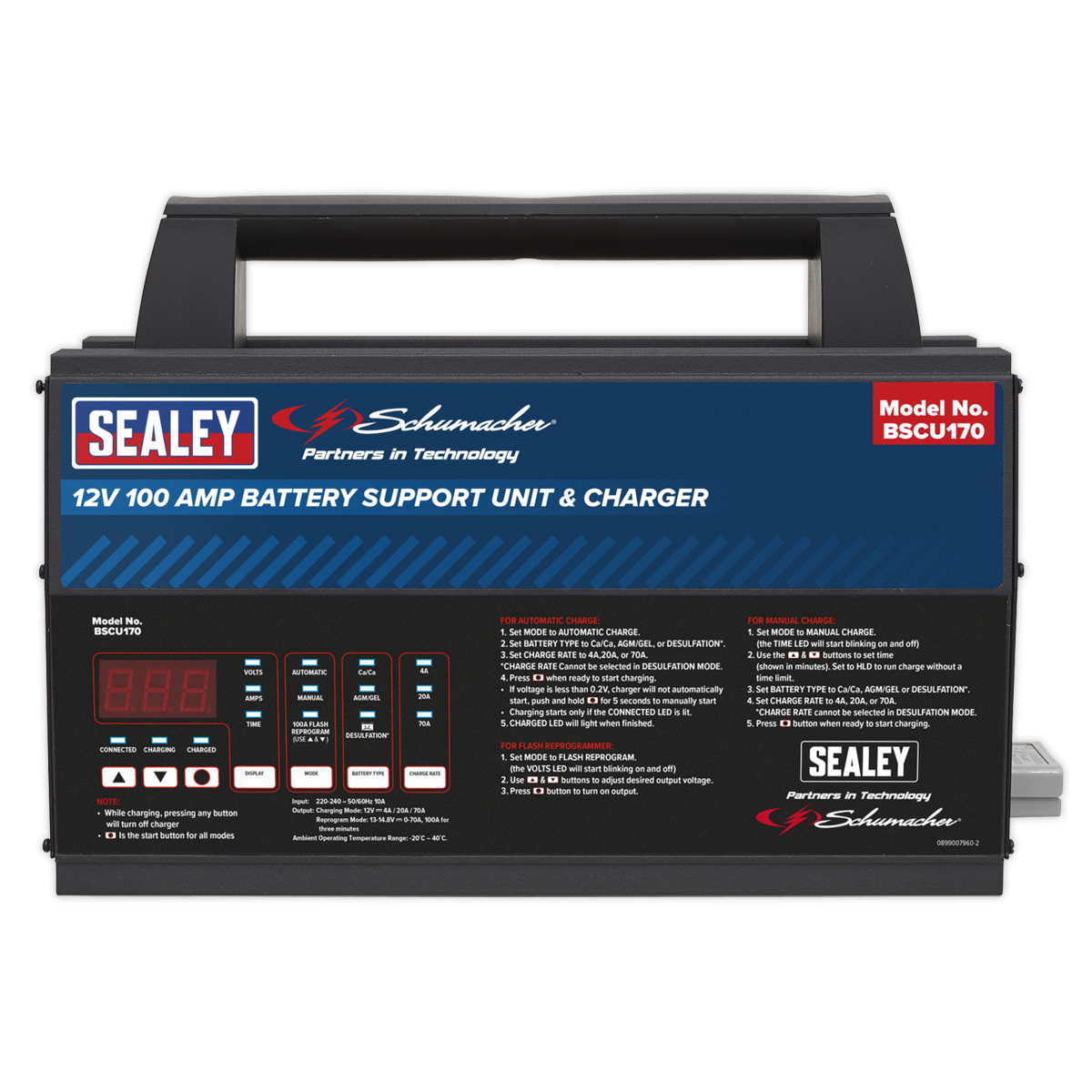

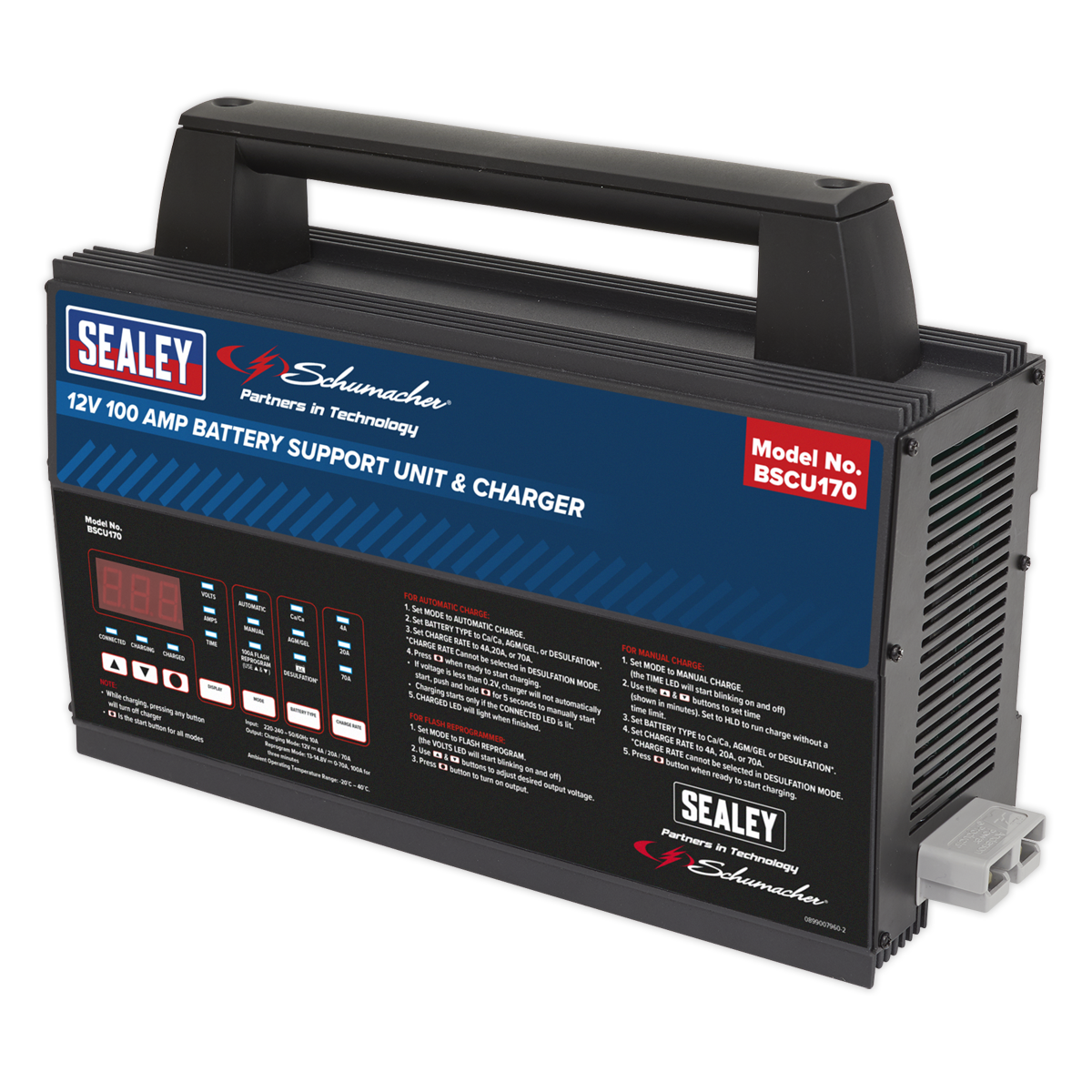

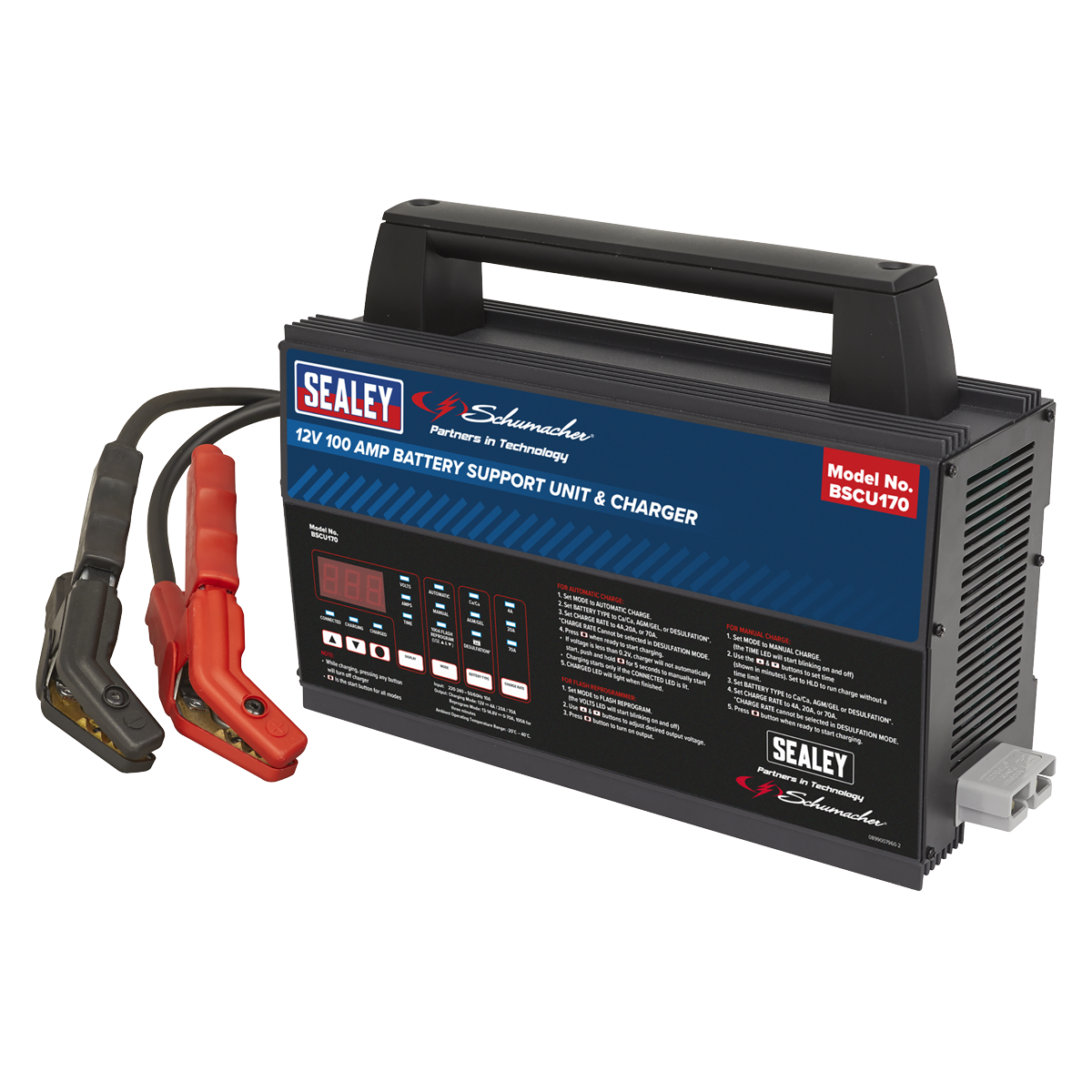

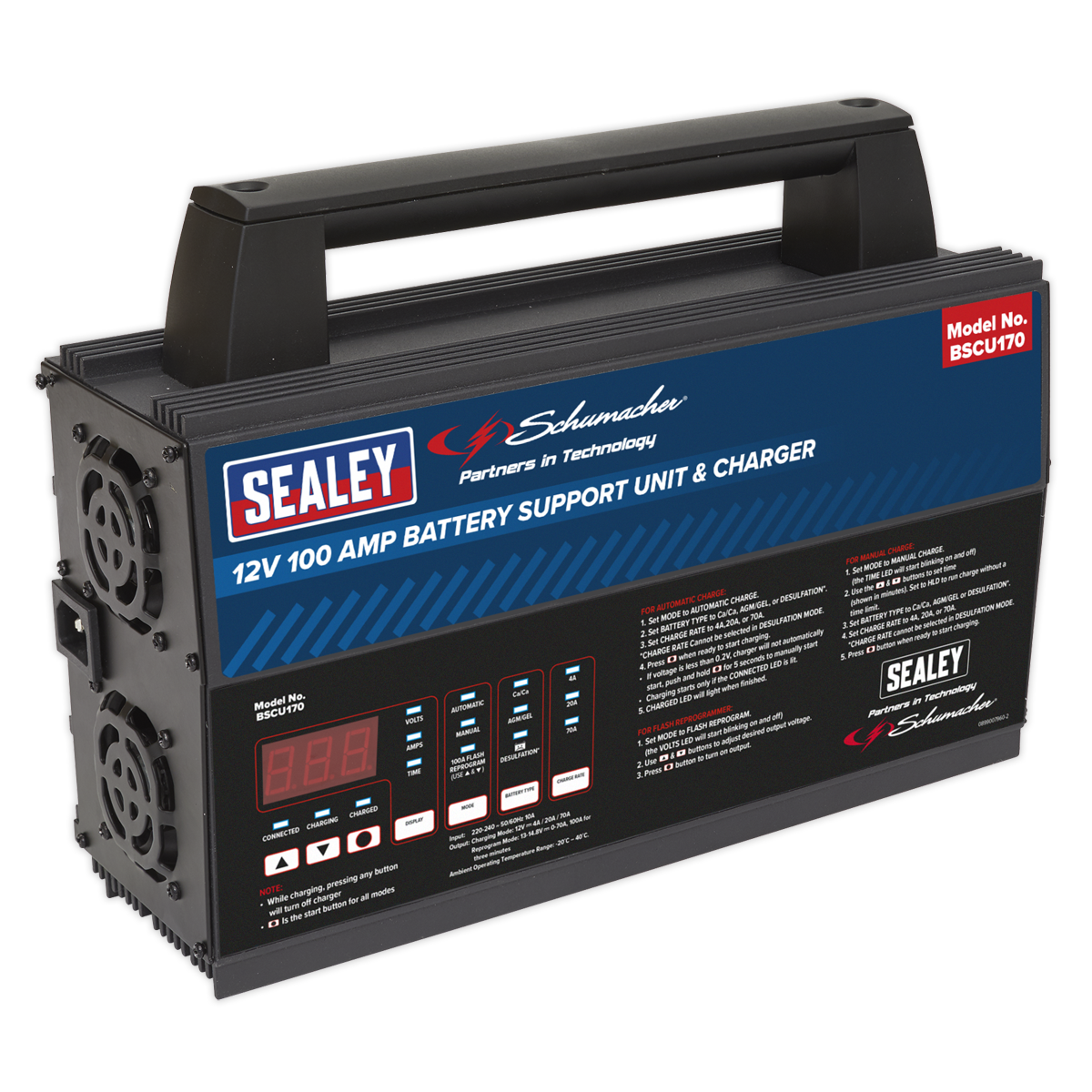

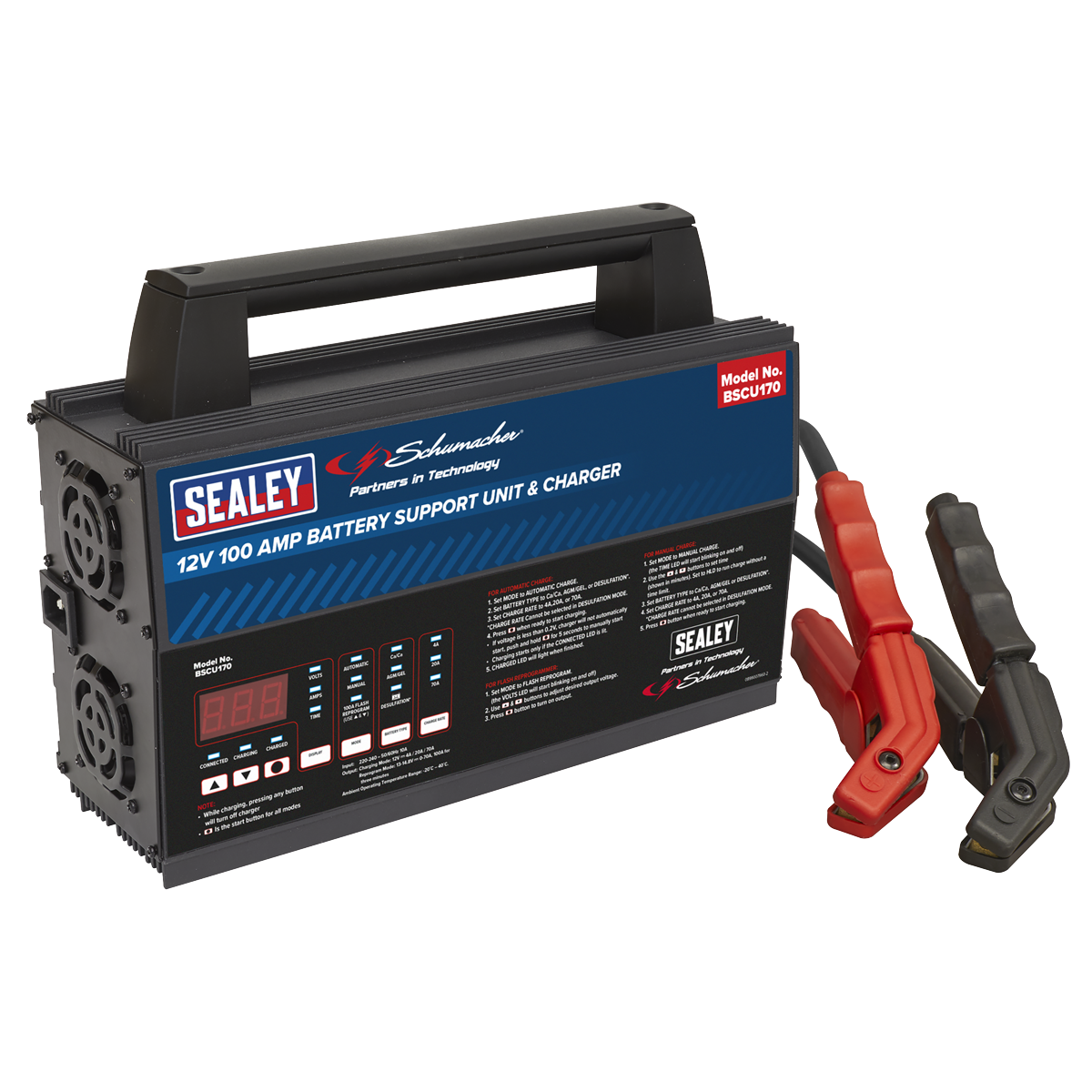

Product Number: BSCU170
During ECU reprogramming and extended diagnostic work, battery voltage can drop and fluctuate, risking incomplete programming cycles, corrupted data, or failed updates that can be costly to resolve. The Sealey BSCU170 Schumacher® Battery Support Unit and Charger delivers up to 100A of power supply to maintain stable voltage under varying loads, with a continuous 70A output and up to 100A available for a maximum of three minutes as required. Voltage is selectable between 13V and 14.8V to suit programming requirements, making it well suited to professional automotive workshop use during major vehicle ECU reprogramming and diagnostic checks. The fully automatic microprocessor-controlled unit also functions as a battery charger, capable of recovering a deeply discharged battery of greater than 2V back to almost 100% of its original capacity. It is compatible with regular automotive, lead-acid, calcium, AGM/GEL and start-stop battery types across a range of 5 to 1,000Ah. Patent-pending thermal runaway protection and algorithms support fast and safe charging, while dual temperature-controlled cooling fans manage heat during operation. Once fully charged, the battery can remain connected for automatic conditioning and maintenance. The unit is supplied with a 5m heavy-duty cable, clamps and Anderson plug, housed in a durable aluminium case, and is backed by a 2-year guarantee. Supply is 230V with a 2.6m power supply cable and 3m cable and clamp length. Charge output options are 12V at 4A, 20A or 70A.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | BSCU170 |
|---|---|
| Brand | Sealey |
| Cable & Clamp Length | 3m |
| Nett Weight | 9.56kg |
| Type | Microprocessor Controlled |
| Supply | 230V |
| Output | 12V |
| Output Charge | 12V - 4A/20A/70A |
| Battery Range | 5 - 1,000Ah |
| Battery Support Mode | |
|
100A - 3 minutes maximum.
|
|
|
70A continuous (13-14.8V selectable)
|
|
| Power Supply Cable Length | |
| Cable & Clamp Length | ??? tbc |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey SPI1224S Schumacher Intelligent Speed Charge Battery Charger 12V 15A/24V 10A
£163.86
£160.65
2% OFF
Free delivery in UK Mainland
|
Draper 12961 Schumacher SPX458 3A 12V Battery Charger
£79.23
£77.68
2% OFF
Free delivery in UK Mainland
|
Draper 13109 Schumacher SCI90 6/12V Battery Charger 20A
£196.38
£192.53
2% OFF
Free delivery in UK Mainland
|
SIP 03572 advanced Battery Charger GX5
£69.31
£67.95
2% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | SPI1224S | SPI10S | 12961 | 13109 | 03572 | 02255 |
| Warranty | 24 | |||||
| Type | Charger | Charger | Charger | Batteries | ||
| Voltage | 12 | 12 | 12 | |||
| Output Current | 5 | |||||
| Voltage (V) | 12 | 12 | 12 | 12 | 12 | 12 |
| Weight (kg) | 1.5 | 1.4 | 42 | |||
A. The BSCU170 is designed to maintain stable battery voltage during prolonged electronic diagnostic checks and major vehicle ECU reprogramming, supplying up to 100A to support the battery under varying loads throughout the process.
A. Voltage is selectable between 13V and 14.8V, suitable for use during vehicle programming procedures.
A. The unit delivers 70A continuous output current, with up to 100A maximum available for a duration of up to three minutes as required.
A. The BSCU170 is compatible with regular automotive, lead-acid, calcium, AGM/GEL and start-stop battery types, covering a battery range of 5 to 1,000Ah.
A. Yes. The unit can recover a discharged battery with greater than 2V remaining back to almost 100% of its original capacity.
A. The unit comes with a 5m heavy-duty cable, clamps and Anderson plug. The power supply cable is 2.6m and the cable and clamp length is 3m.
A. Yes. The BSCU25A and BSCU40A are variants in the same product family with different output specifications. Check individual listings for details on amperage and capacity to find the right version for your application.
A. Yes. The AUTOCHARGE100HF, AUTOCHARGE1200HF, AUTOCHARGE200HF and AUTOCHARGE400HF are listed as alternatives. These are different products that perform a similar charging function - check each listing to confirm suitability for your requirements.
A. The unit is supplied with a 2-year guarantee.
A. Every product comes with a different guarantee and warranty. Warranty details are shown in the product's tech specs or datasheet where available.
