Product Number: TA320

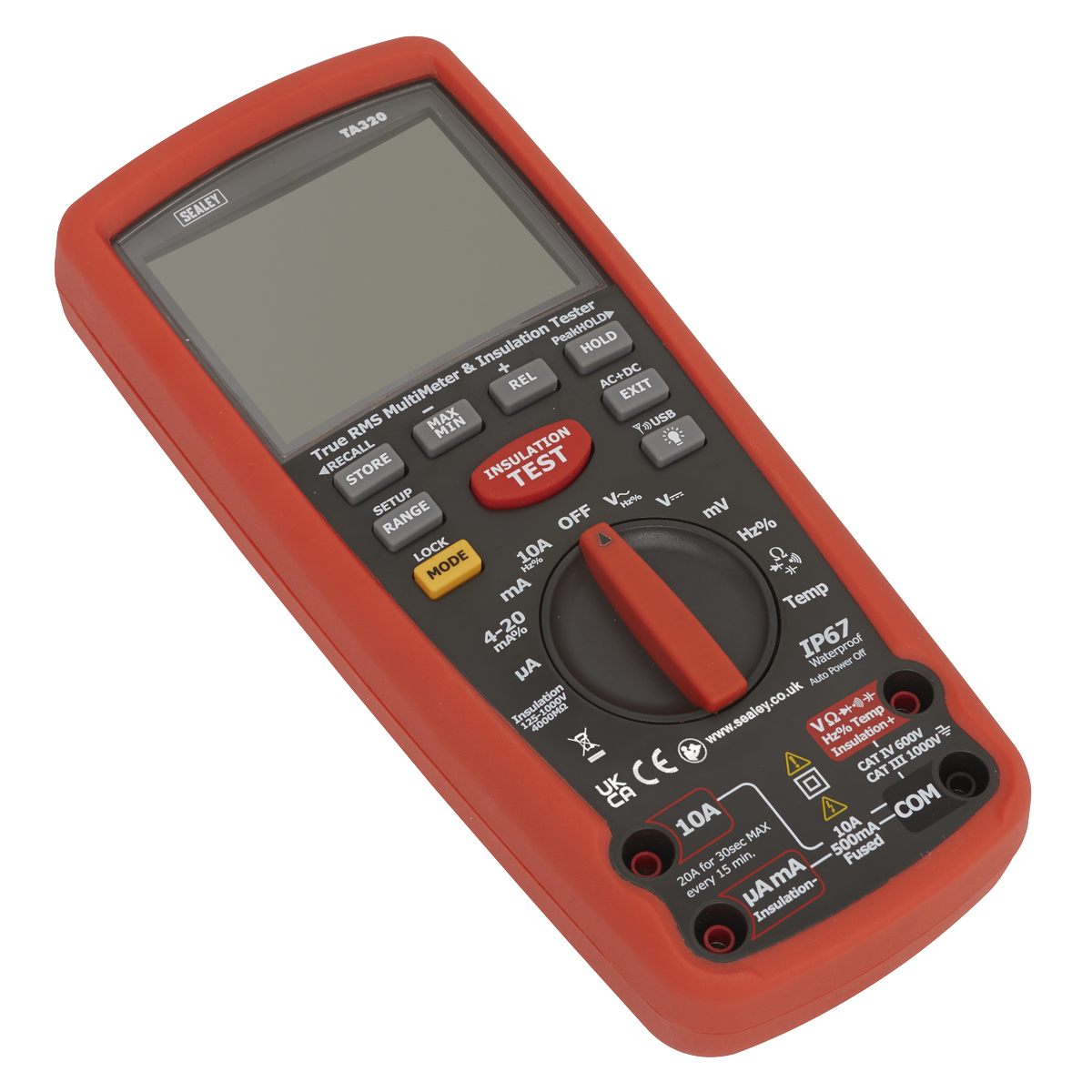

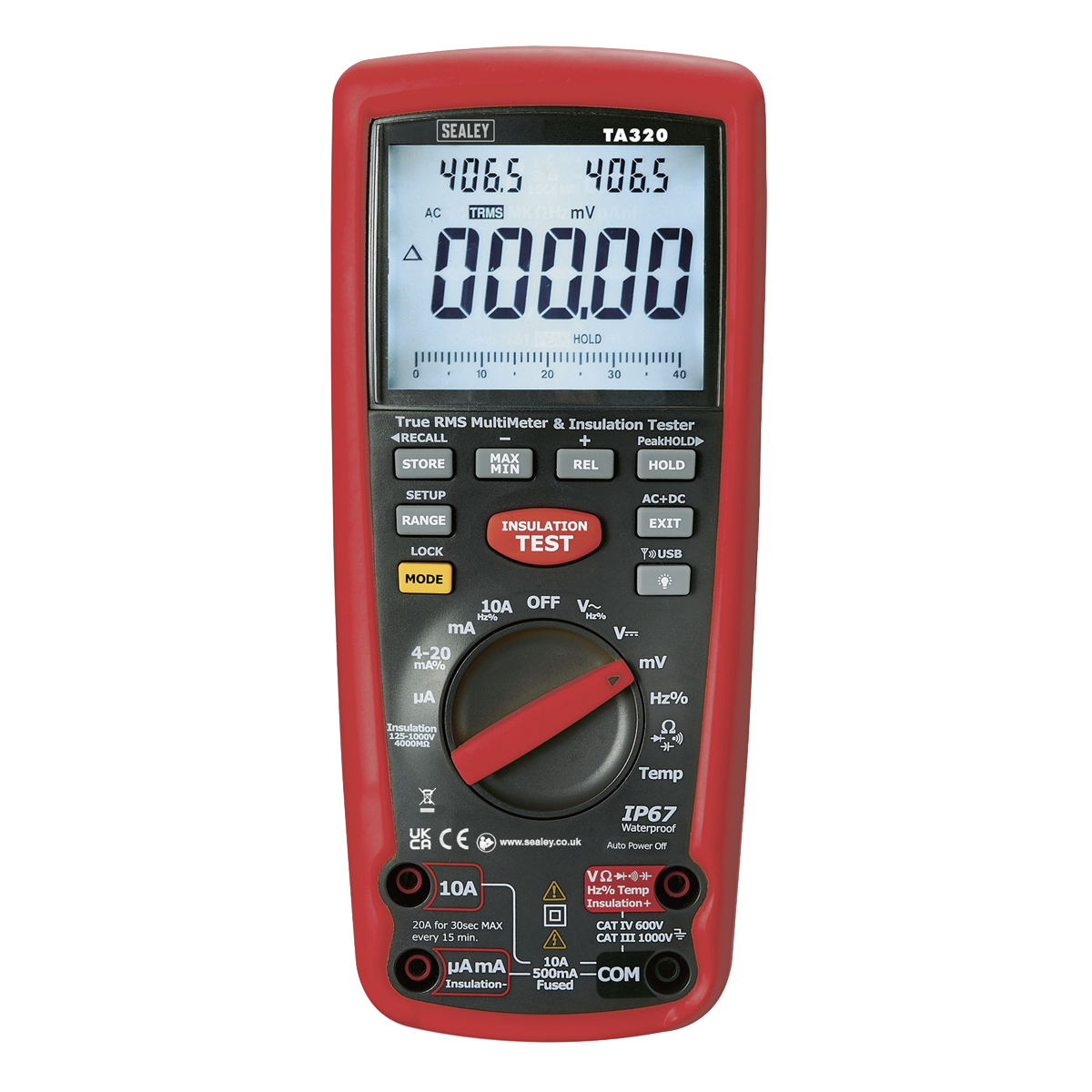

Hybrid vehicles present a unique diagnostic challenge: their high-voltage cables and motor generator units require insulation testing that a standard multimeter simply cannot perform. The Sealey TA320 Digital Automotive Analyser is specially designed for hybrid vehicles and fills that gap, incorporating a dedicated insulation test function alongside the full measurement capabilities expected of a professional-grade instrument. It conforms to EN61010 CAT III (1000V) and CAT IV (600V), making it suitable for working safely around hybrid high-voltage systems. AC and DC voltage measurement covers five ranges from 400mV up to 1000V, while AC and DC current measurement spans 400µA through to 10A across five ranges. Resistance measurement runs from 400Ω to 40MΩ, and continuity is confirmed at under 35Ω. Additional functions include capacitance across seven ranges from 40nF to 40mF, frequency from 40Hz to 10kHz, duty cycle from 0.1 to 99.9%, and pulse width from 100µs to 100ms. True RMS measurement ensures accurate readings on non-sinusoidal waveforms, and the IP67 waterproof rating provides protection against dust and water ingress in workshop environments. The unit can be used as a stand-alone device or linked wirelessly via a USB interface to a PC or laptop, enabling results to be graphed, saved, or printed for reporting or record-keeping. Supplied complete with high voltage probes, thermocouple, soft storage bag, and wireless USB cable.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | TA320 |
|---|---|
| Brand | Sealey |
| Nett Weight | 700g |
| Tach (rpm) | No |
| Dwell | No |
| AC Voltage | 400mV, 4V, 40V, 400V, 1000V |
| DC Voltage | 400mV, 4V, 40V, 400V, 1000V |
| AC Current | 400µA, 4000µA, 40mA, 400mA, 10A |
| DC Current | 400µA, 4000µA, 40mA, 400mA, 10A |
| Capacitance | 40nF, 400nF, 4µF, 40µF, 400µF, 4000µF, 40mF |
| Frequency | 40Hz-10kHz |
| Duty Cycle | 0.1-99.9% |
| Pulse Width | 100µs-100ms |
| Resistance | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ |
| Continuity | <35Ω |
| Temperature | -50 to +1000°C, -58 to +1832°F |
| IR Temperature | No |
| Insulation Test | 125V, 250V, 500V, 1000V |
| Diode Check | Yes |
| Transistor Test | No |
| Back Light | Yes |
| Bar-Graph Display | Yes |
| Display Hold | Yes |
| Auto-Ranging | Yes |
| Inductive Coupler | No |
| PC Interface | Yes |
| Digits Height | 20mm |
| Auto Power Off | Yes |
| Low Battery Indicator | Yes |
| Batteries (Supplied) | 6 x 1.5V AA |
| Hi-Impact Case | Yes |
| Size (L x W x D) | 220 x 95 x 56mm |
| Weight | 700g |
| PC Compatibility | Windows 2000, XP, Vista, Win7 |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sykes Pickavant 53400800 Automotive Smoke Diagnostic Machine
£407.37
£399.38
2% OFF
Free delivery in UK Mainland
|
Sykes Pickavant GO2114 Diagnostic Can Test
£916.98
£899.00
2% OFF
Free delivery in UK Mainland
|
Sealey TA203 Digital Automotive Multimeter 15-Function with Bar Graph & PC Link
£176.59
£173.06
2% OFF
Free delivery in UK Mainland
|
|||
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | VS211 | 48325 | 53400800 | GO2114 | GO2100PRO | TA203 |
| Type | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester | Automotive Analysers and Tester |
| Brand | Sealey | Sealey | ||||
| Model No | VS211 | TA203 | ||||
| Nett Weight | 0.30kg | 605g | ||||
| Voltage (V) | 12 | 12 | 24 | 40 | ||
| Weight (kg) | 30 | 605g | ||||
A. The TA320 is specially designed for hybrid vehicles and includes a dedicated insulation test function that allows testing of the insulation of the high-voltage cables and motor generator units found on hybrid vehicles - a capability not available on standard multimeters.
A. The TA320 conforms to EN61010 CAT III (1000V) and CAT IV (600V), making it appropriate for use with the high-voltage systems found on hybrid vehicles.
A. Both AC and DC voltage can be measured across five ranges: 400mV, 4V, 40V, 400V, and 1000V.
A. Yes. The unit can be used as a stand-alone device or linked wirelessly with a USB interface to a PC or laptop, enabling results to be graphed, saved, or printed.
A. Yes. The TA320 includes true RMS (Root-Mean-Square) measurement for accurate readings on non-sinusoidal waveforms.
A. The TA320 carries an IP67 waterproof rating, providing protection against dust and water ingress.
A. The TA320 is supplied with high voltage probes, thermocouple, soft storage bag, and wireless USB cable.
A. Yes. Capacitance is measured across seven ranges from 40nF to 40mF, and frequency is measured from 40Hz to 10kHz.
