Product Number: YK10ECF

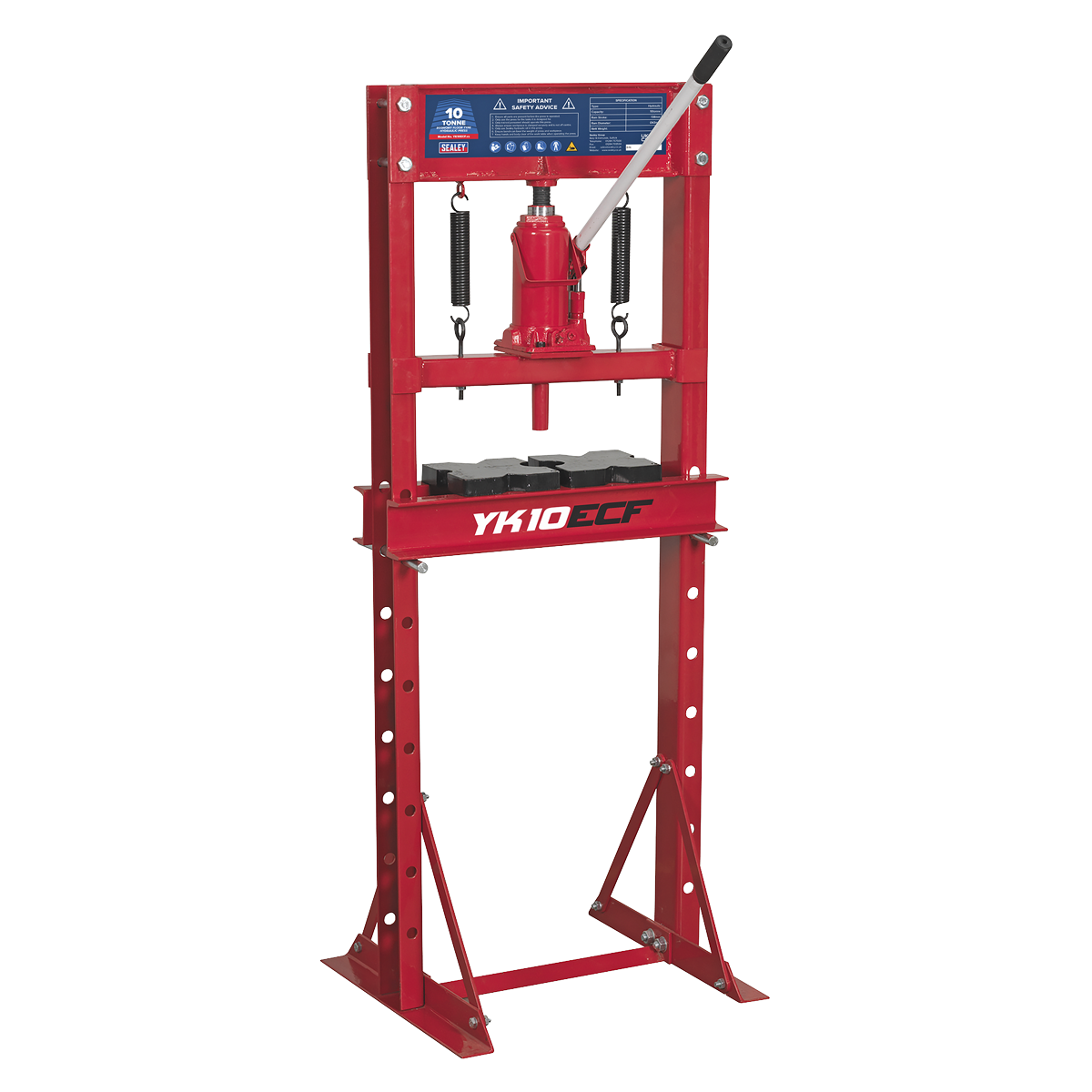

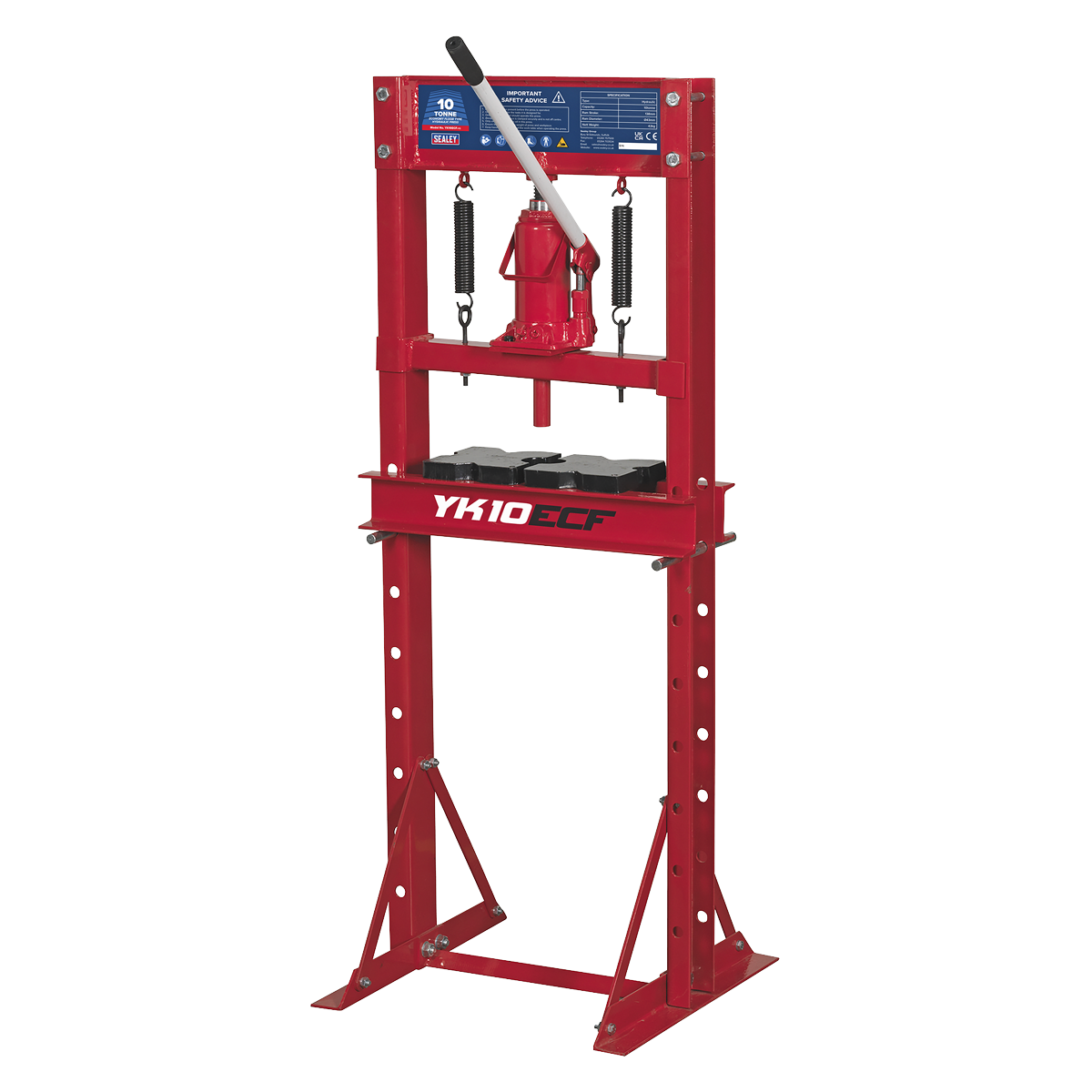

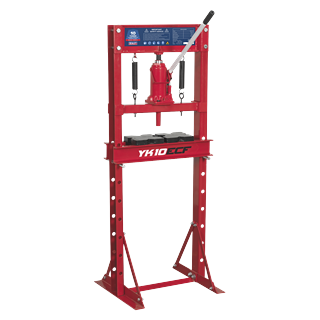

Removing and installing bushings, bearings, ball joints, universal joints, pulleys, and gears requires a floor press that can be set at the right working height for each job without wasting time. The Sealey YK10ECF is a 10-tonne economy floor-mounting hydraulic press built from high-quality steel with a powder-coated paint finish to resist corrosion over years of workshop use. The adjustable table is repositioned simply by relocating two pins, letting you set your optimum working height quickly. Two arbor plates are included to assist with alignment and strengthen the press point position. The ram diameter is 43mm with a 125mm stroke, and the operating table width is 420mm with a 165mm working depth and 80mm aperture. Ram-to-table height spans from -150mm to 603mm, offering a wide adjustment range to suit different workpiece heights. The overall height of the unit is 1230mm. No pressure gauge is included with this model please refer to the product label for guidance, or contact Parts for Machines for confirmation if a gauge is required.
Key Features:PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Model No | YK10ECF |
|---|---|
| Bench or Floor Mounting | Floor |
| Brand | Sealey |
| Capacity | 10 Tonne |
| Gauge Included | No |
| Lateral Ram Travel | N/A |
| Maximum Height - Ram to Table | 435mm |
| Minimum Height - Ram to Table | 70mm |
| Nett Weight | 42kg |
| Optional Accessories | N/A |
| Overall Height | 1305mm |
| Overall Width | 515mm |
| Ram Diameter | Ø43mm |
| Ram Stroke | 138mm |
| Table Aperture | 82mm |
| Type | Hydraulic |
| Working Table Depth | 165mm |
| Working Table Width | 418mm |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price |
|---|
sealey-hydraulic-press-10tonne-economy-floor-type.pdf
|
Open Now |
Hydraulic Floor Press: 12 or 20 Tonnes, Hand Pump or Air? Will a 12-tonne floor press do, or will you wish you had bought 20? Tonnage is only part of the answer: bed width, the gap under the ram and the type of pump matte...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey YK20ECF 20 Tonne Economy Hydraulic Floor Press
£318.84
£312.59
2% OFF
Free delivery in UK Mainland
|
Sealey YK759F 75 Tonne Floor Type Hydraulic Press
£4,049.50
£3,968.51
2% OFF
Free delivery in UK Mainland
|
Chicago Pneumatic CP86150, 15 Tonne Hydraulic Workshop Press
£682.88
£662.99
3% OFF
Free delivery in UK Mainland
|
||
| Technical Specification | |||||
|---|---|---|---|---|---|
| PRODUCT NUMBER | YK20ECF | YK759F | 8941086150 | 7615201 | 7614055 |
| Type | Floor Presse | Floor Presse | Floor Presse | ||
| Capacity | 20 Tonne | 75 Tonne | |||
| Capacity (metric tons) | 20 | ||||
| Length (mm) | 700 | 260 | 160 | ||
| Overall Height | 1450mm | 1925mm | |||
| Ram Stroke | 145mm | 250mm | |||
| Weight (kg) | 83.2 | 435 | |||
| Show More | |||||
A. The YK10ECF has a 10-tonne capacity.
A. The YK10ECF is a floor-mounting press with an overall height of 1230mm.
A. The table height is adjusted by simply relocating two pins, allowing you to set the table at your optimum working height.
A. Two arbor plates are included to assist with alignment and strengthen the press point position.
A. It is designed to remove and install bushings, bearings, ball joints, universal joints, pulleys, and gears.
A. The ram diameter is Ø43mm with a 125mm stroke. The operating table width is 420mm, working table depth is 165mm, and the table aperture is 80mm. Ram-to-table height ranges from -150mm to 603mm.
A. Yes. Variants in the same Sealey press family include the YK10B (10-tonne bench press), the YK10F (10-tonne floor press), the YK12F (12-tonne floor press), and the YK20ECF (20-tonne economy floor press).
A. Yes. Alternatives that serve a similar function include the PPB15S, PPF100S, PPF20S, and PPF301S. Please refer to each product listing for full specifications to find the best fit for your requirements.
