Product Number: 05813

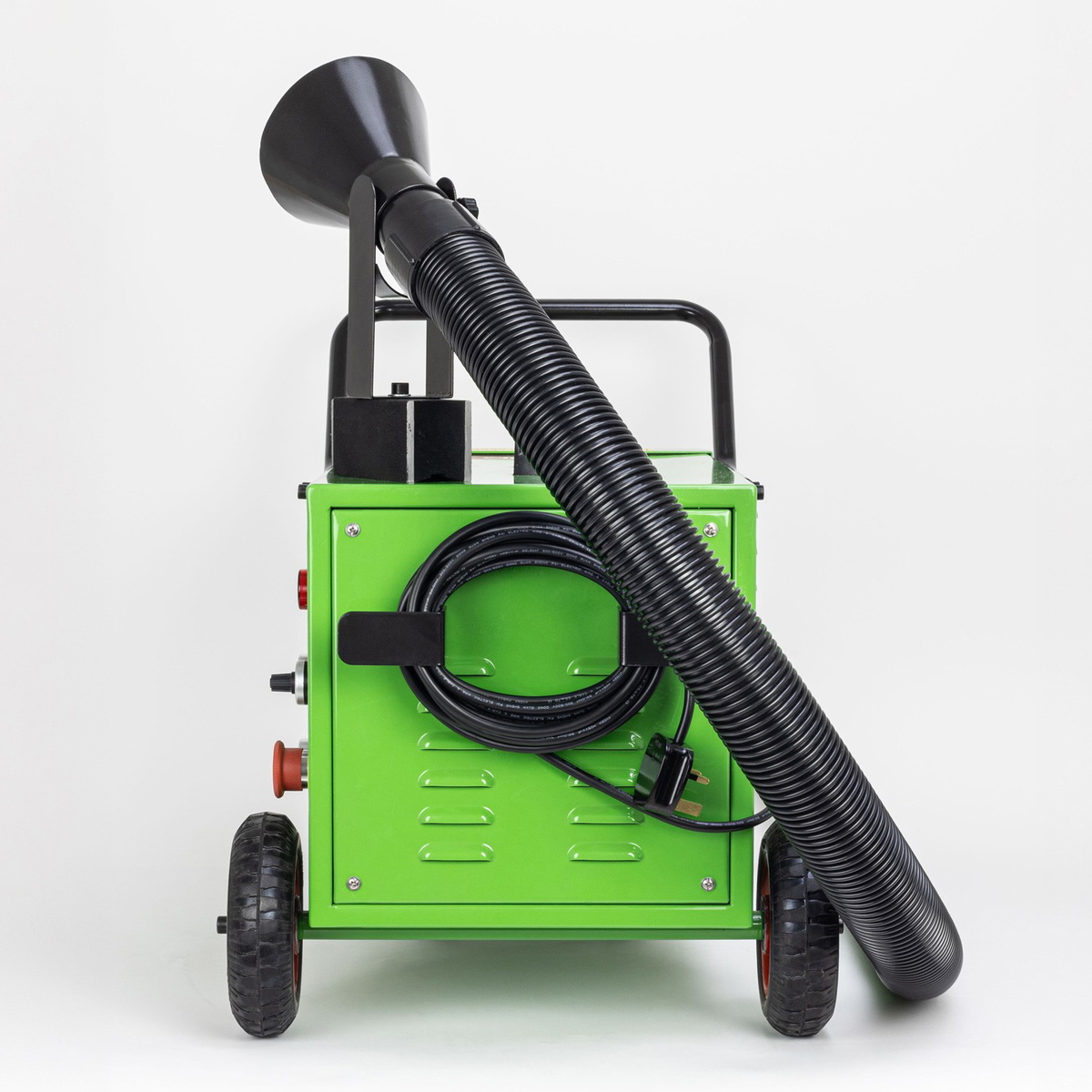

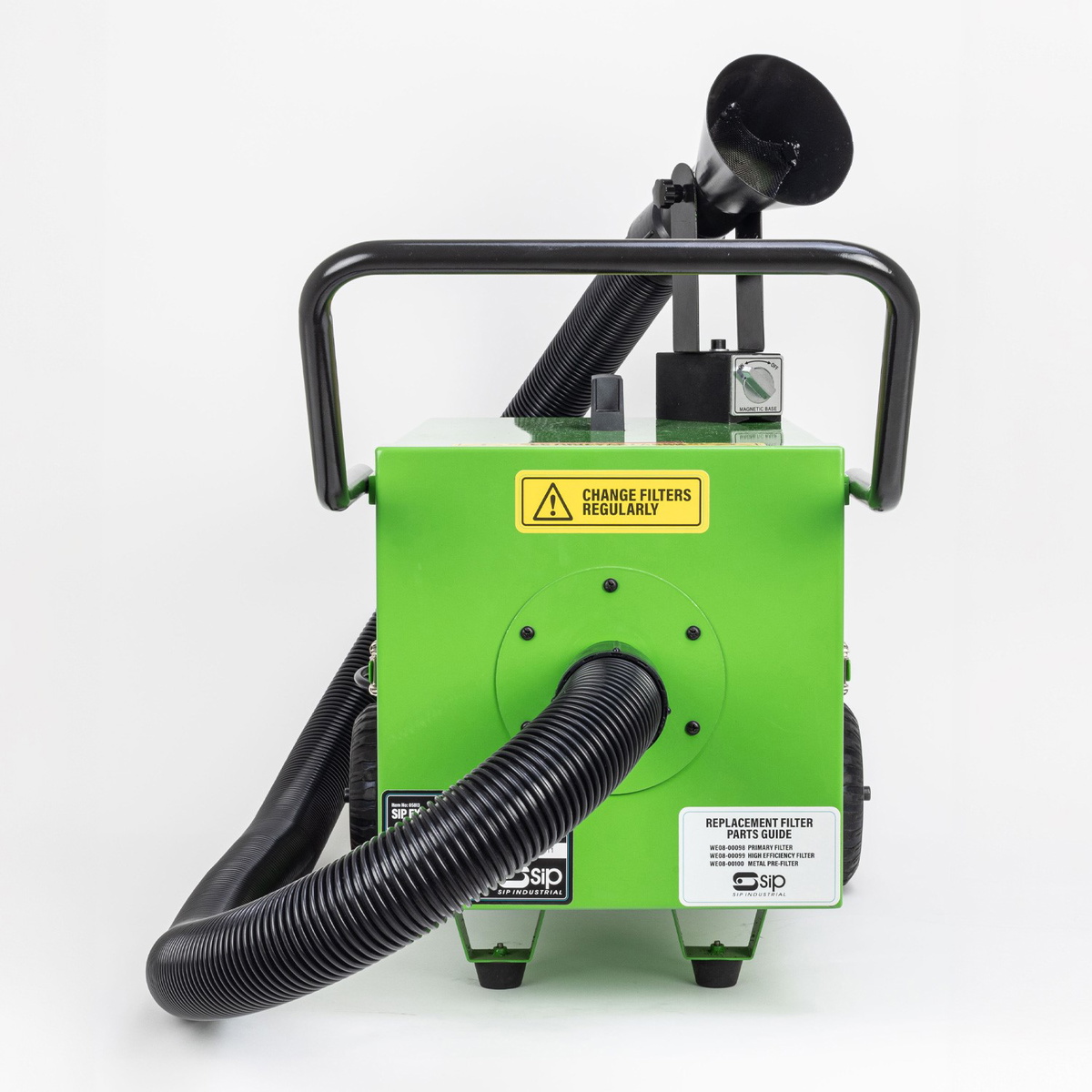

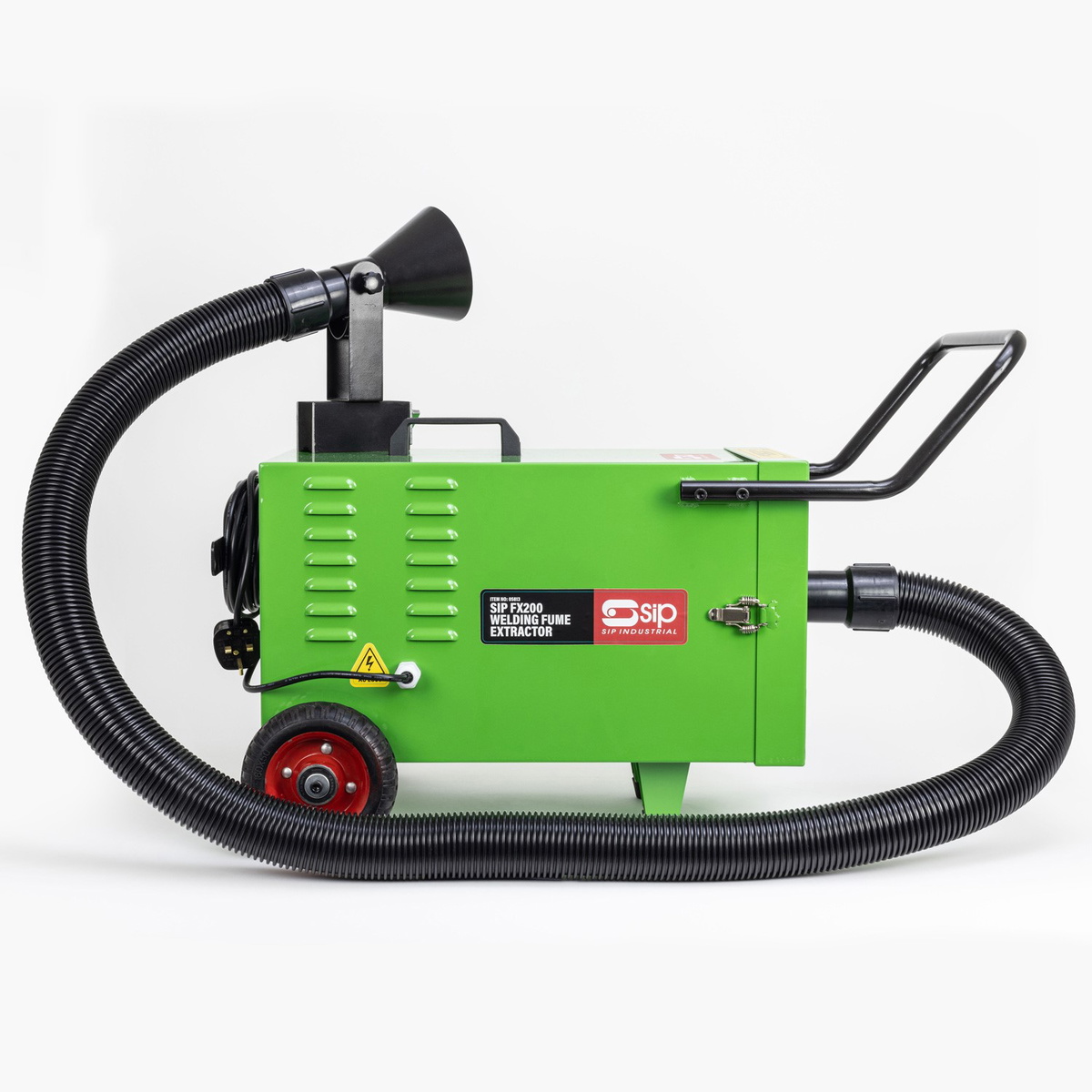

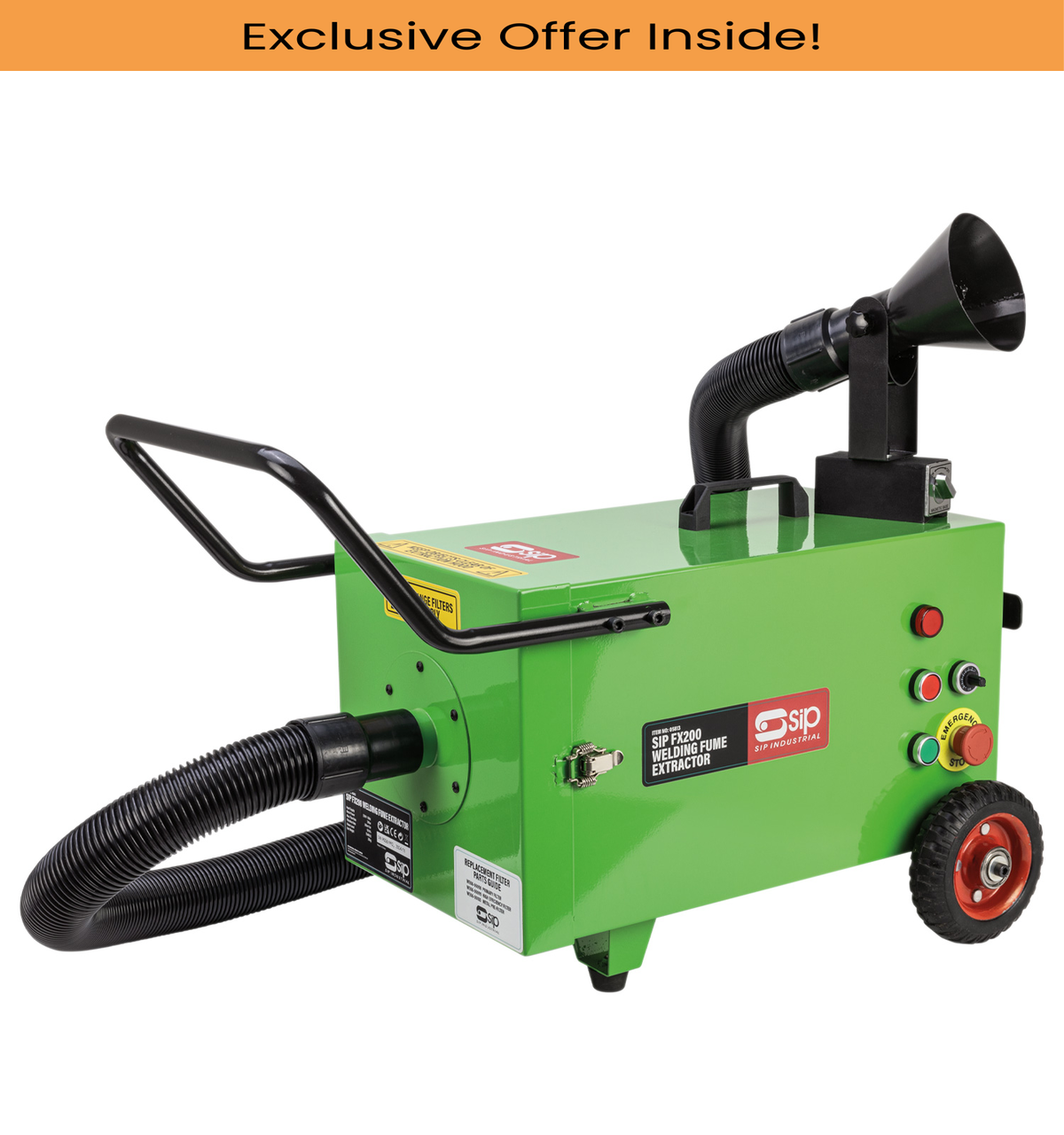

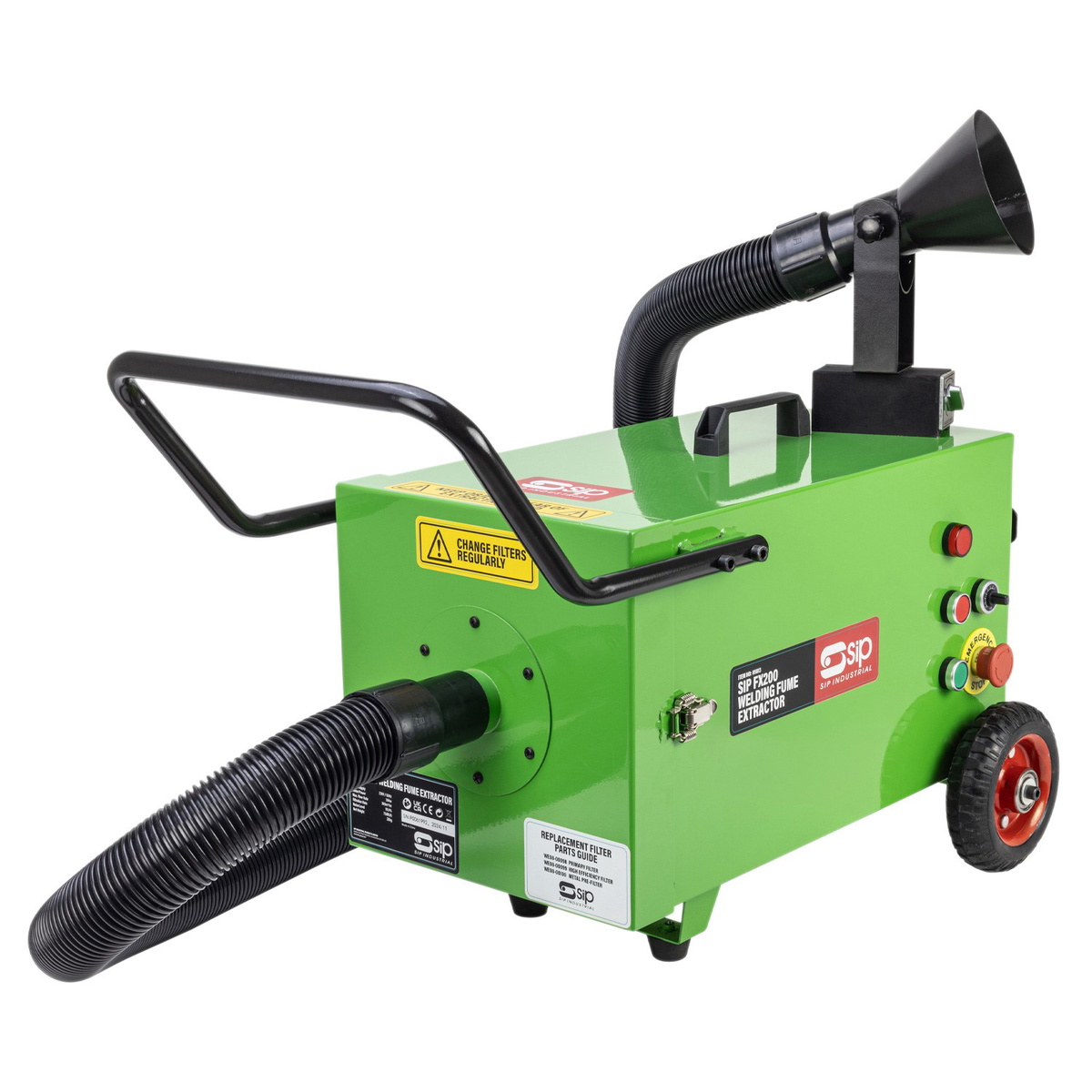

The SIP 05813 welding fume extractor — Input Supply: 230v (13A). The SIP FX200 Welding Fume Extractor is a variable speed fume extractor designed to capture mid-level concentrates of welding fume pollutants. Suitable for small fabrication workshops, welding stations and automotive settings. Featuring a 3-stage H13 filtration system and fitted with a 2mtr heavy-duty suction hose and large switchable magnetic suction hood, the FX200 filters 99. Compatible across the sip welding, sip fume extraction welding range — check product specifications for exact model fit. Also known as welding fume extraction or portable fume extractor in welding supplies catalogues.
Additional Information:

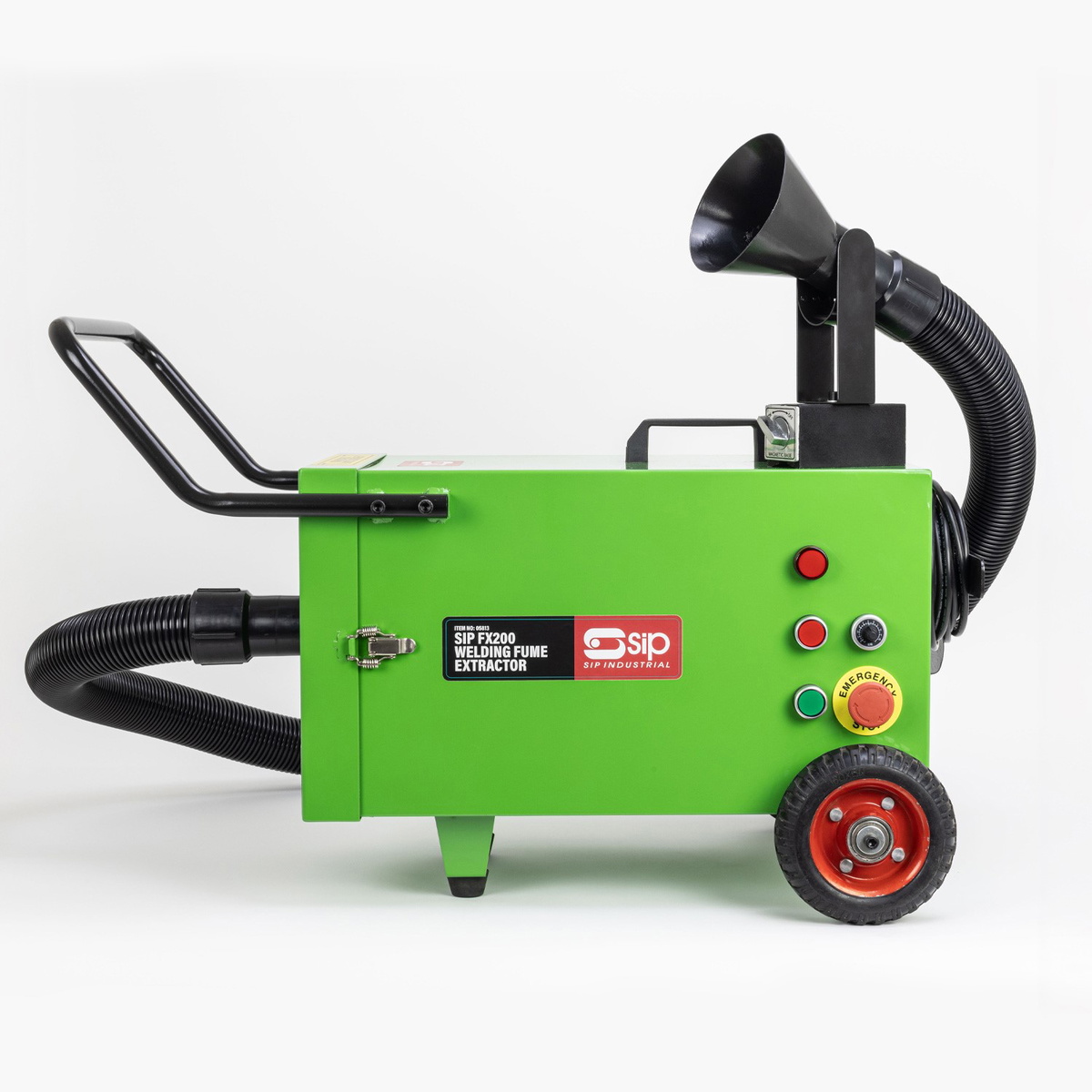

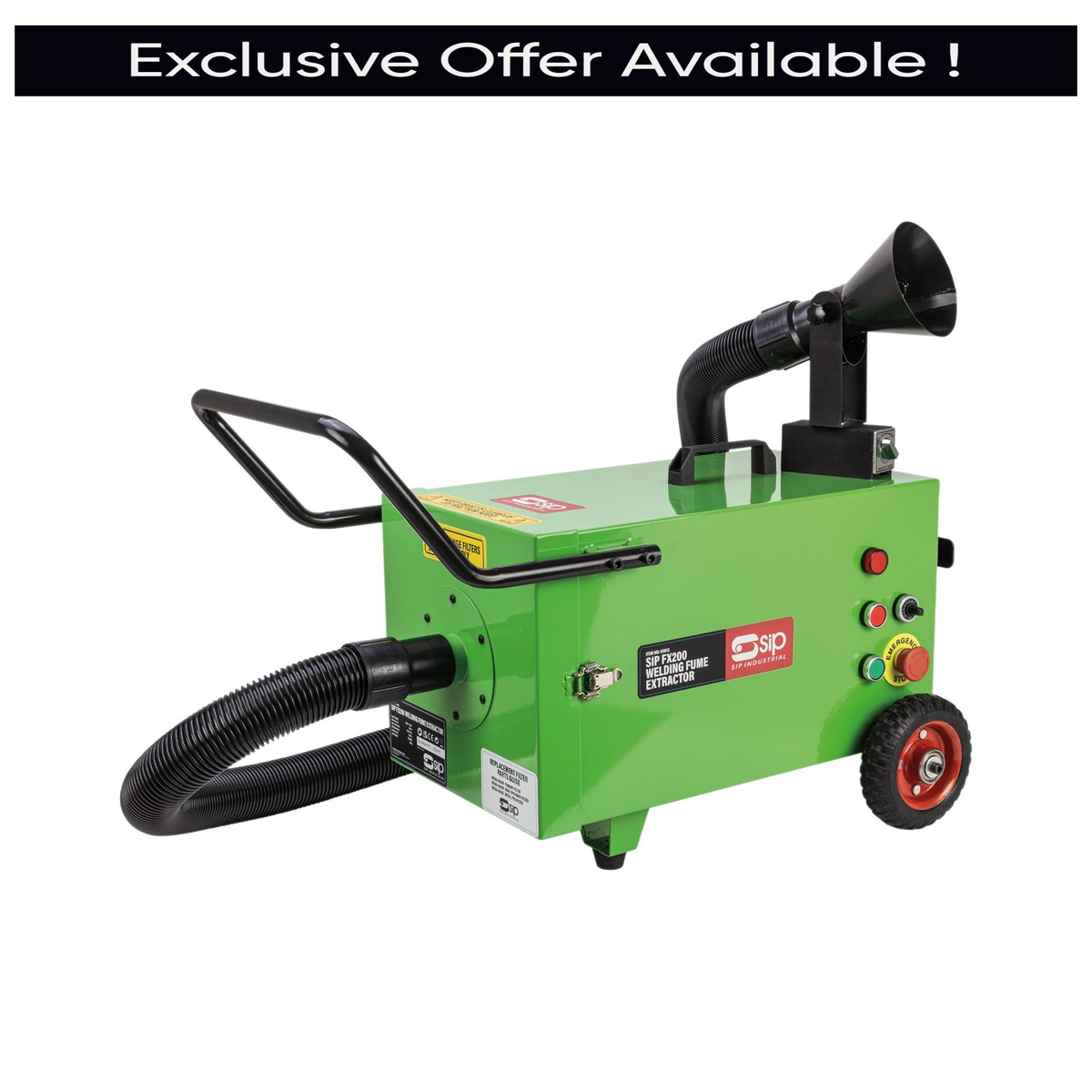

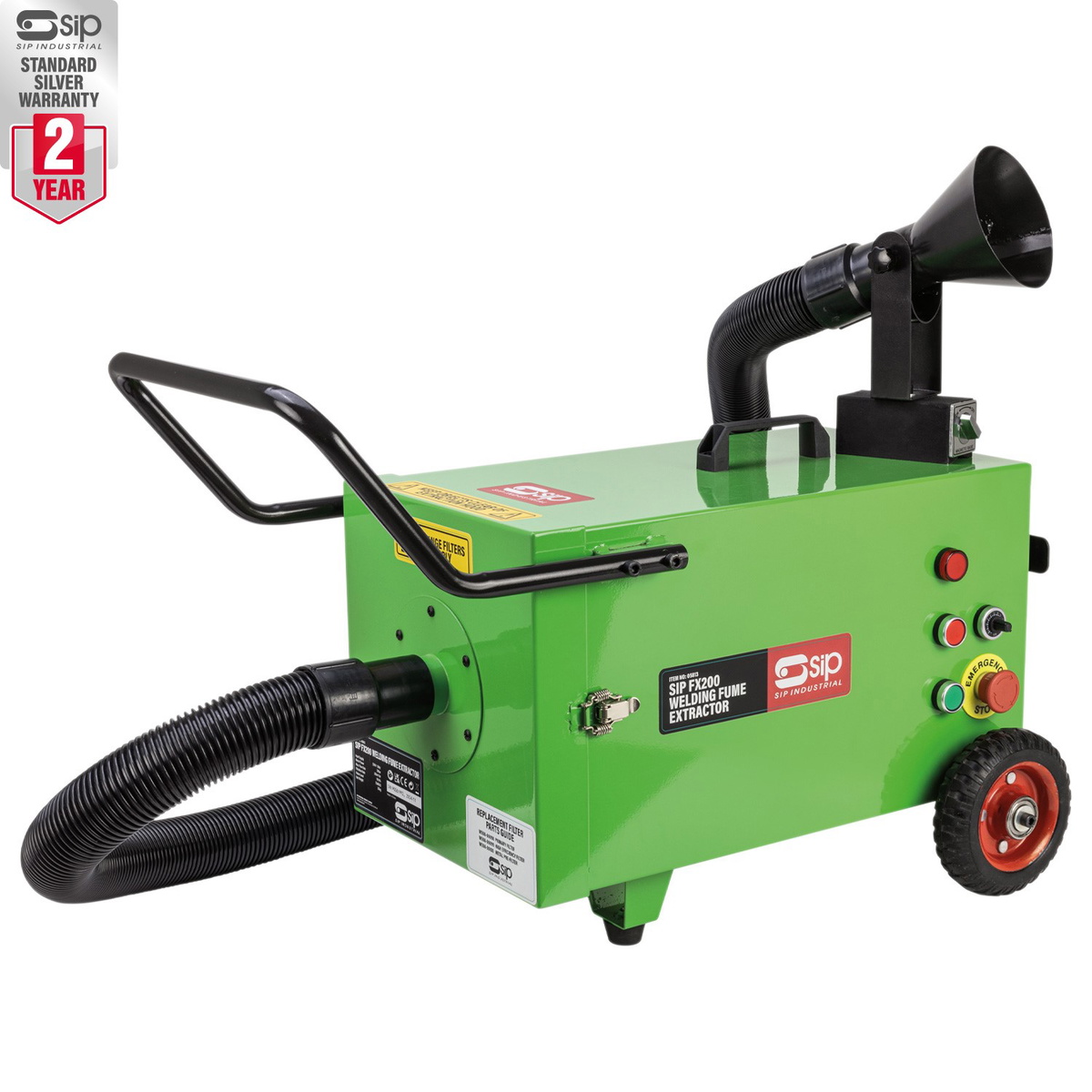

The SIP FX200 Welding Fume Extractor is a variable speed fume extractor designed to capture mid-level concentrates of welding fume pollutants. Suitable for small fabrication workshops, welding stations and automotive settings.

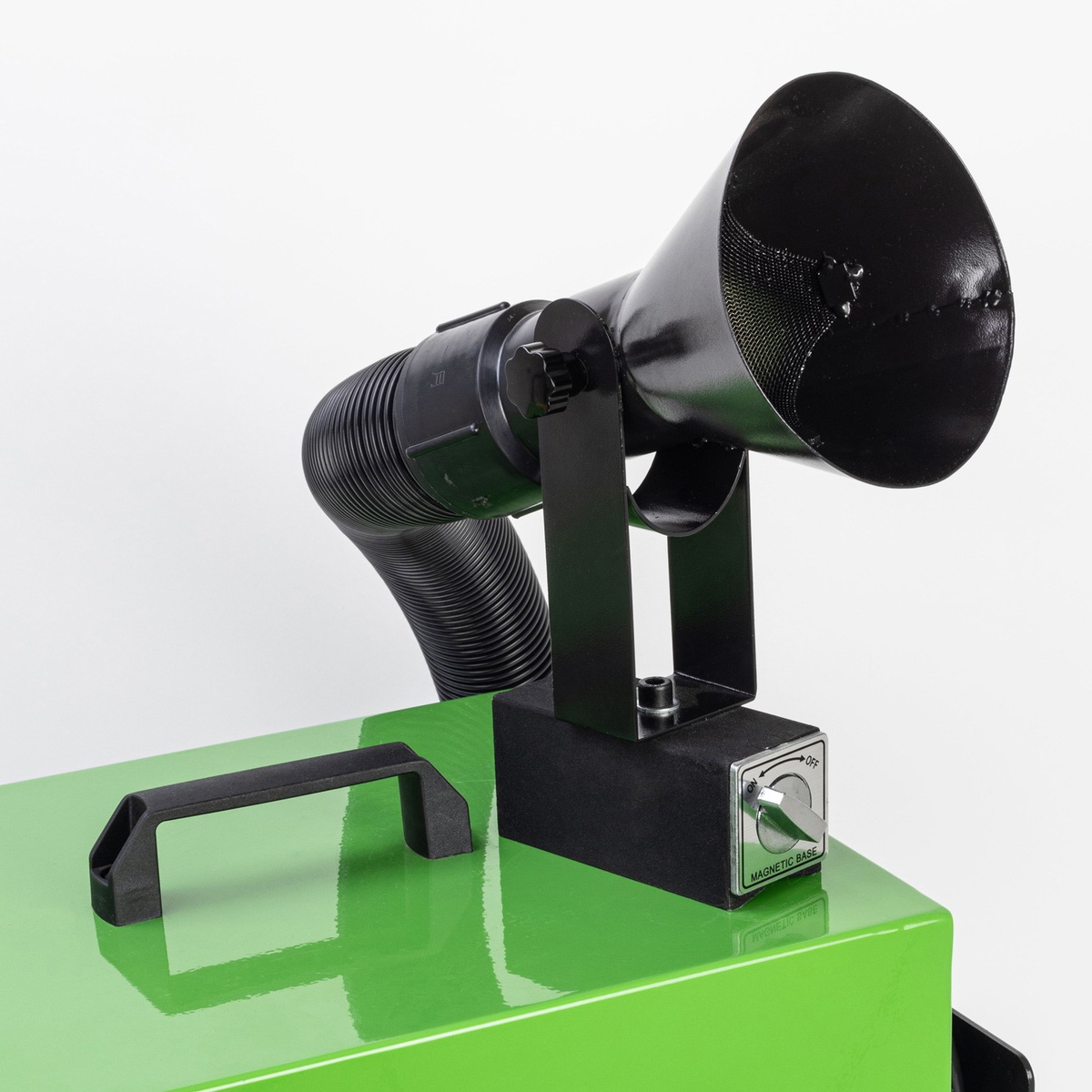

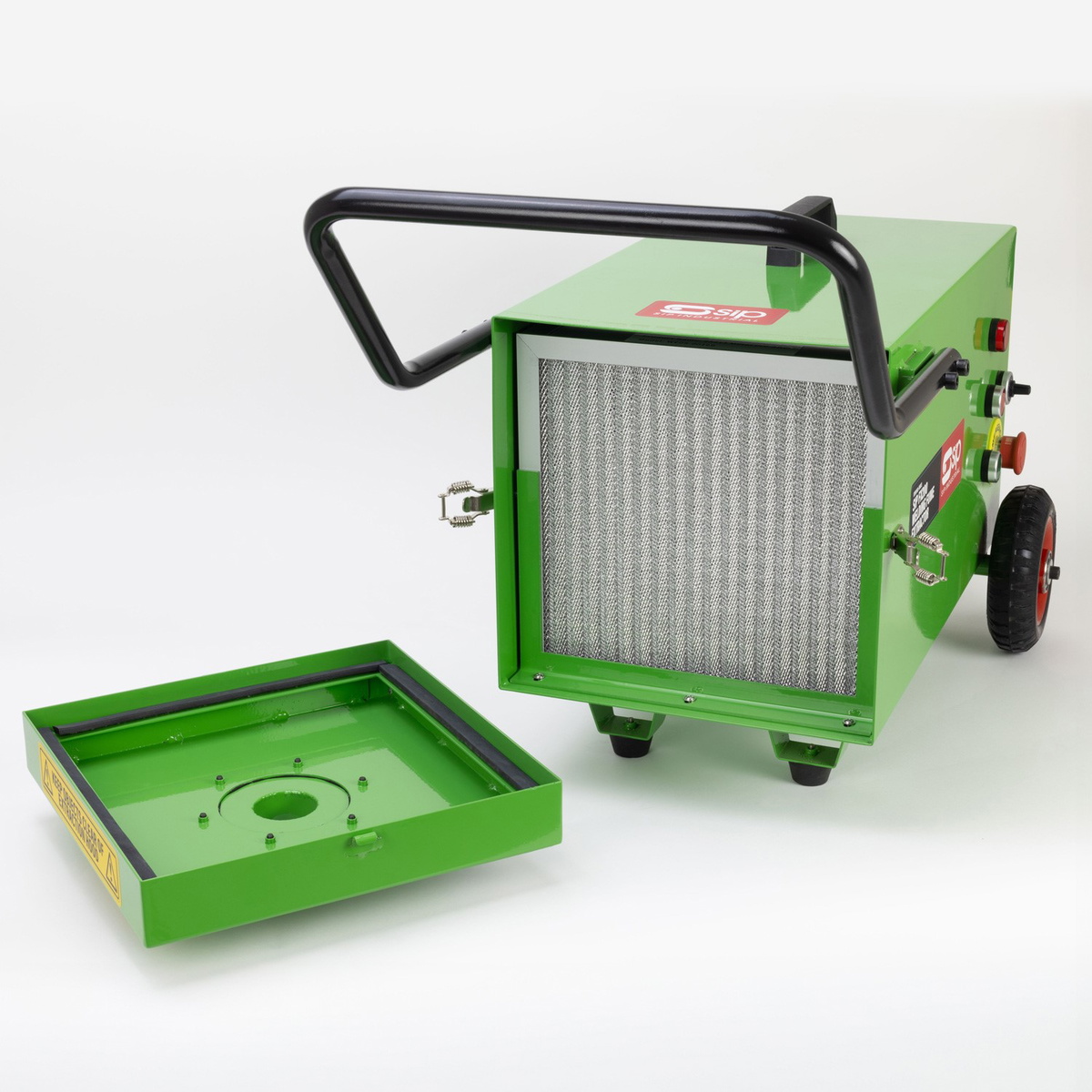

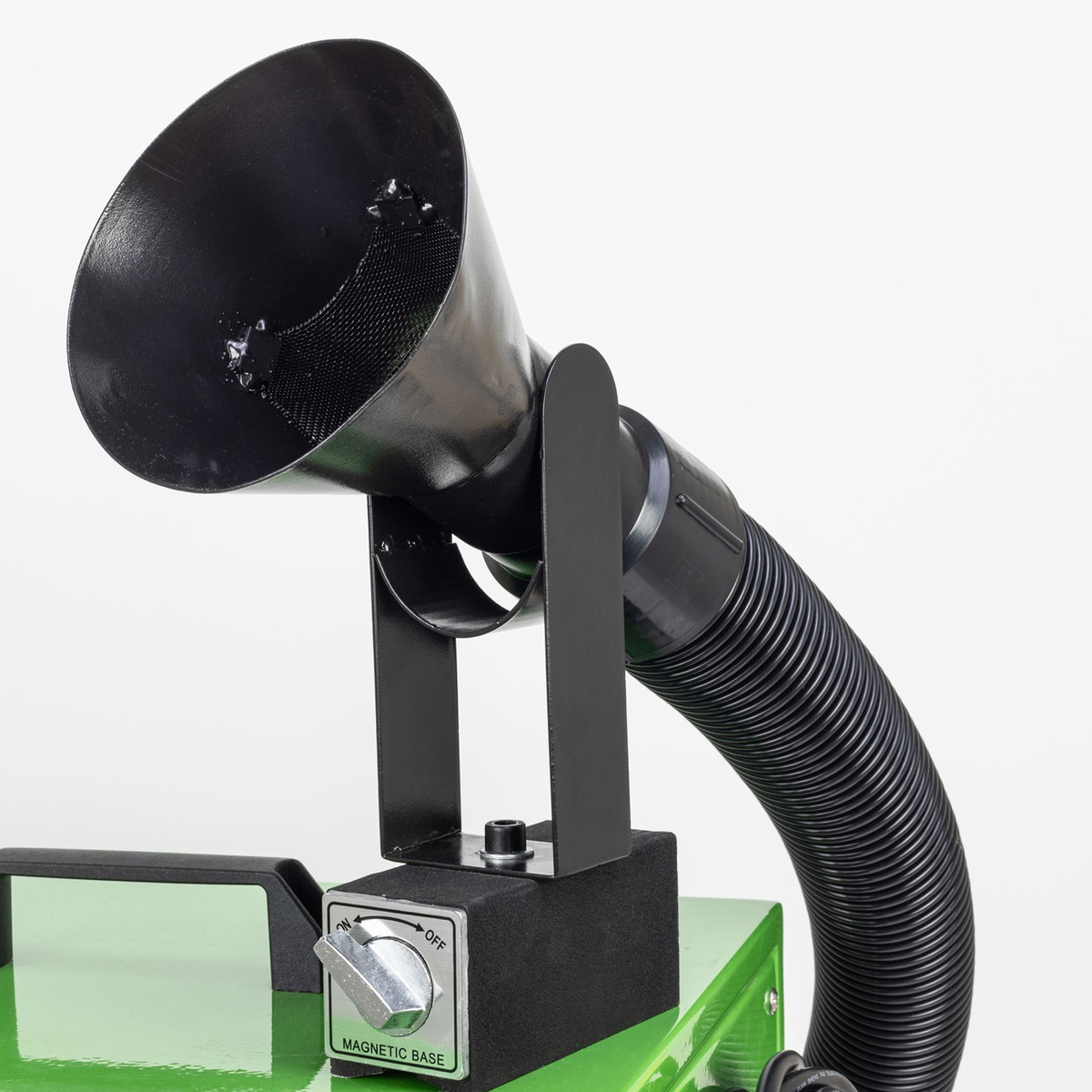

Featuring a 3-stage H13 filtration system and fitted with a 2mtr heavy-duty suction hose and large switchable magnetic suction hood, the FX200 filters 99.97% of sparks, spatter and dust as well as harmful gases and fumes.
This supports HSE requirements for handling weldable materials, which helps to reduce exposure to hazardous pollutants and improve work area quality.
About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
|
ITEM NO. 05813
|
|
| Input Supply | 230v (13A) |
|---|---|
| Motor Power | 200w (0.27hp) |
| Max. Flow Rate | 300mtr³/hr |
| Filtration Level | 99.97% |
| Hose Length | 2mtr |
| Noise Level | 65dB(A) |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

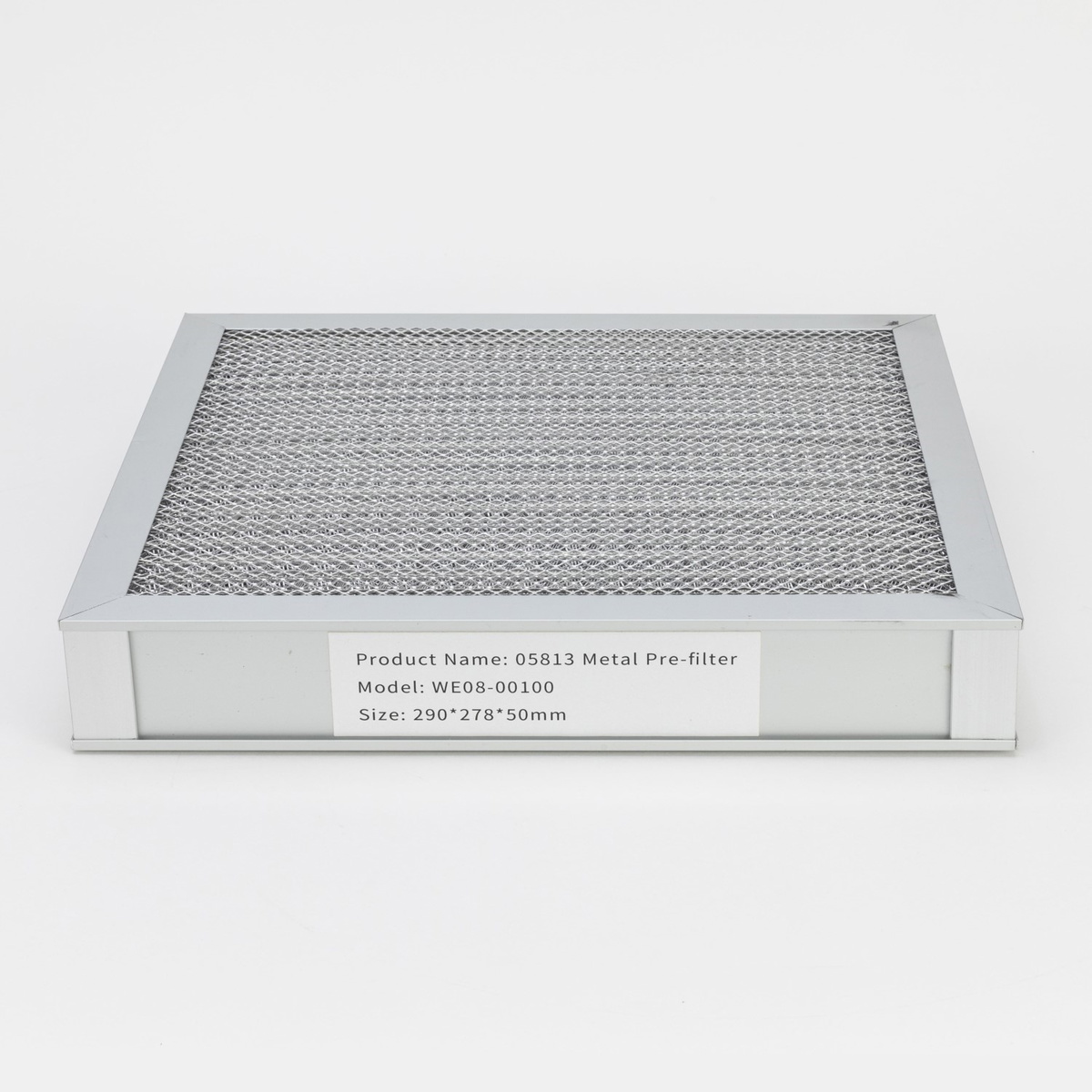

WE08-00100 | SIP WE08-00100 Multi-Layer Mesh Spark Arrestor for 05813 | 1 Unit |
£84.19
£82.54
|
Add |
|
05812 | SIP 05812 FX-WM Mounted Welding Fume Extractor 230v, Single Phase | 1 Unit |
£3,425.23
£3,358.07
|
Add |
|
05806 | SIP 05806 FX-WM Mounted Welding Fume Extractor 230v, Single Phase | 1 Unit |
£4,151.80
£4,070.39
|
Add |
|
05800 | SIP 05800 FX Portable Welding Fume Extractor 230v, Single Phase | 1 Unit |
£931.71
£913.44
|
Add |
|

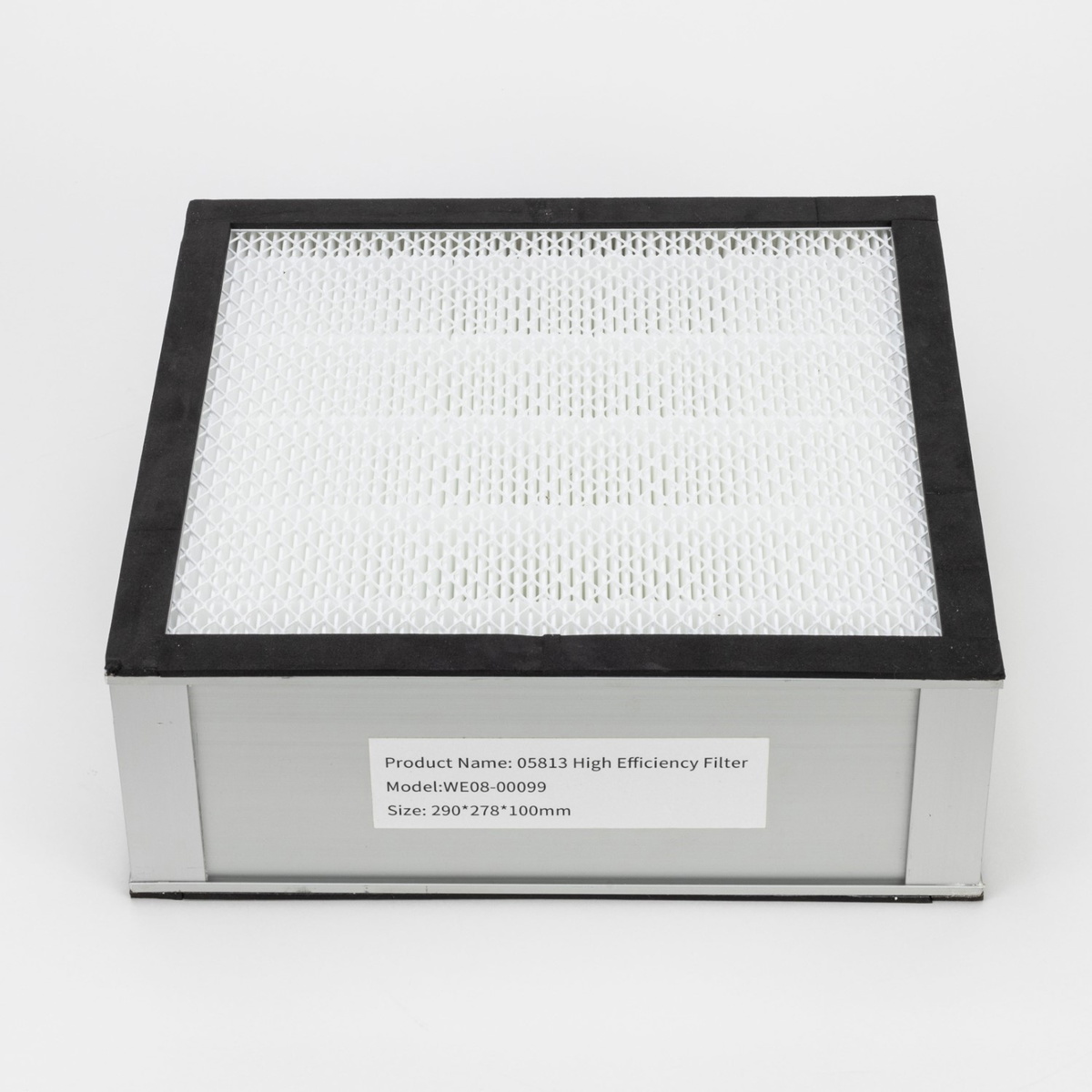

WE08-00099 | SIP WE08-00099 High Efficiency Filter for 05813 | 1 Unit |
£99.92
£97.96
|
Add |
|
WE08-00098 | SIP WE08-00098 Primary Filter for 05813 | 1 Unit |
£83.11
£81.48
|
Add |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: Channel Island Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05800 FX Portable Welding Fume Extractor 230v, Single Phase
£931.71
£913.44
2% OFF
Free delivery in Channel Island
|
SIP 05806 FX-WM Mounted Welding Fume Extractor 230v, Single Phase
£4,151.80
£4,070.39
2% OFF
Free delivery in Channel Island
|
Clarke 220A MIG/MMA/TIG Inverter Welder - MIG250MULTI
£673.15
£659.95
2% OFF
Free delivery in UK Mainland
|
Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A
£647.07
£634.38
2% OFF
Free delivery in UK Mainland
|
||||
| Technical Specification | ||||||||
|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05800 | 05806 | 05815 | 05814 | CAP0936 | 6015607 | CAP1031 | INVMIG200 |
| Input Supply | 230 | 230 | 230 | 230 | 230 | 230 | 230 | |
| Warranty | 24 | 24 | ||||||
| Input current | 13 | 13 | 16 | 16 | ||||
A. The SIP 05813 is suitable for fume extraction from all common arc welding processes — MIG, TIG, ARC/MMA, and plasma cutting. The capture rate depends on correct positioning of the extraction arm or nozzle close to the source.
A. Position the extraction inlet 150–300mm from the arc, upwind of the fume plume. The fume plume rises from the arc — the extractor inlet should be positioned to intercept it before it reaches the welder's breathing zone. Repositioning as you move around the job is important.
A. Check the product specification for filter classification. Multi-stage extractors typically use a pre-filter for coarse particles, a main filter for fine welding fume, and in some models a carbon filter for gaseous by-products. Filter efficiency class (W2, W3) indicates capture rate for welding fume particles.
A. Filter replacement interval depends on usage intensity and the materials being welded. Heavy production welding on stainless or coated steel generates more fume and requires more frequent filter changes. Replace when suction noticeably reduces or per the manufacturer's service schedule.
A. Fume extraction at source significantly reduces fume exposure but does not replace general workplace ventilation. HSE guidance requires both: local exhaust ventilation (LEV) at source and general dilution ventilation for the workspace. For welding in confined spaces, forced air supply may also be required.
A. Yes — the SIP 05813 captures the fine chromium and nickel oxide particles from stainless steel welding, which are classified as Category 1 carcinogens. Ensure the extractor is positioned correctly and filters are replaced on schedule when welding stainless, as these fumes are particularly hazardous.
A. Regular maintenance: replace pre-filters and main filters on schedule, clean the exterior housing, check the extraction arm/hose for blockages, and verify suction by holding your hand near the inlet. An extractor with reduced suction is not providing adequate protection even if it is switched on.
A. Check the product specification — some welding fume extractors are rated for grinding dust (coarser particles) as well as fume. Using an extractor outside its rated particle size range reduces filter life and may not provide adequate capture.
A. UK workplace regulations require adequate ventilation when welding. Welding fume is classified as a carcinogen. A portable fume extractor captures fume at the source before it reaches the breathing zone. Fixed workshop extraction or local exhaust ventilation is required for regular welding. Home and occasional users should weld outdoors or in well-ventilated areas as a minimum.
A. Yes — UK stocked for fast despatch. Check availability at PartsForMachines.com. Orders placed before the daily cut-off are dispatched same or next working day. Check the product page for current delivery estimates.
