Product Number: 05724

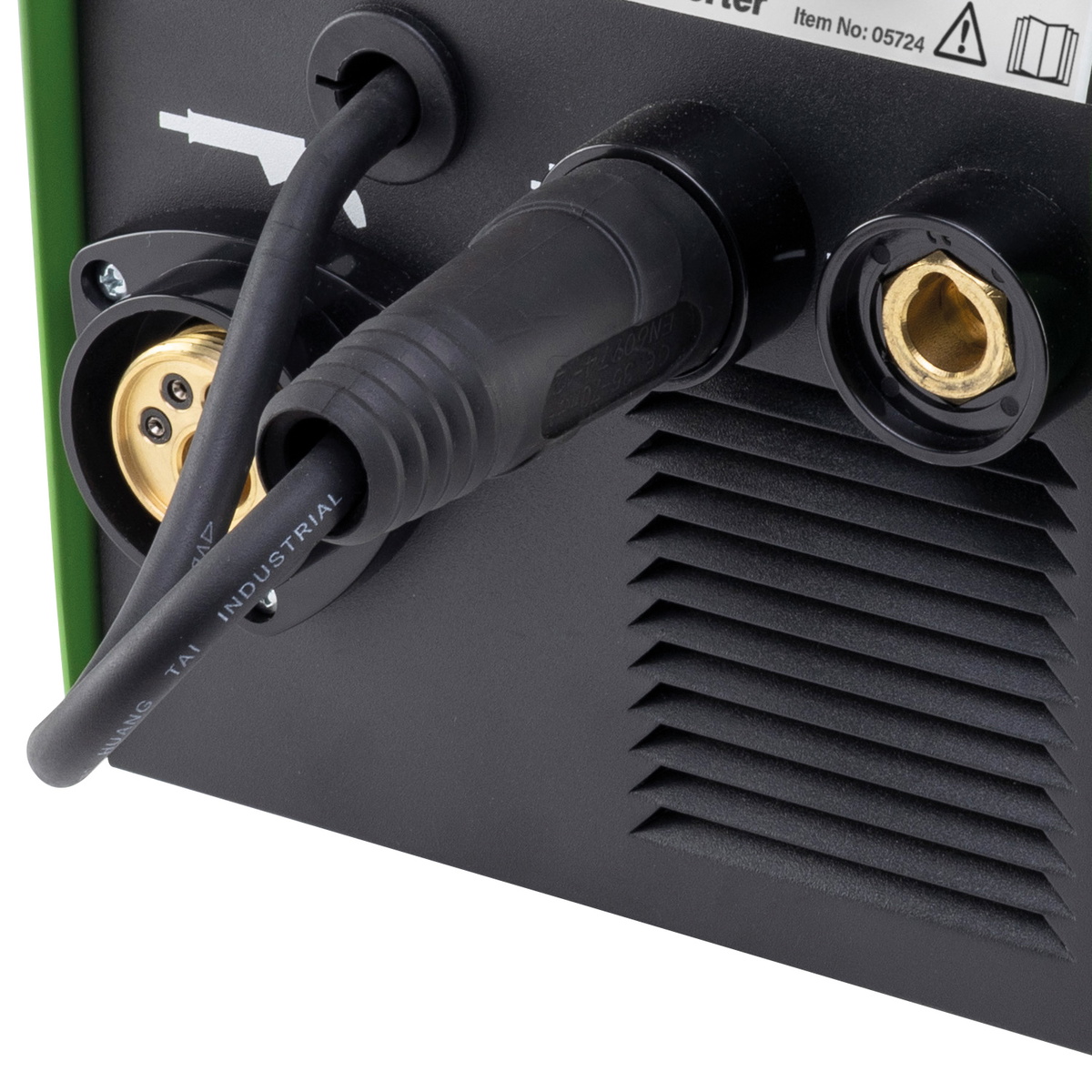

Workshop-grade MIG with Euro torch connection for quick torch changes. Suitable for mild steel.

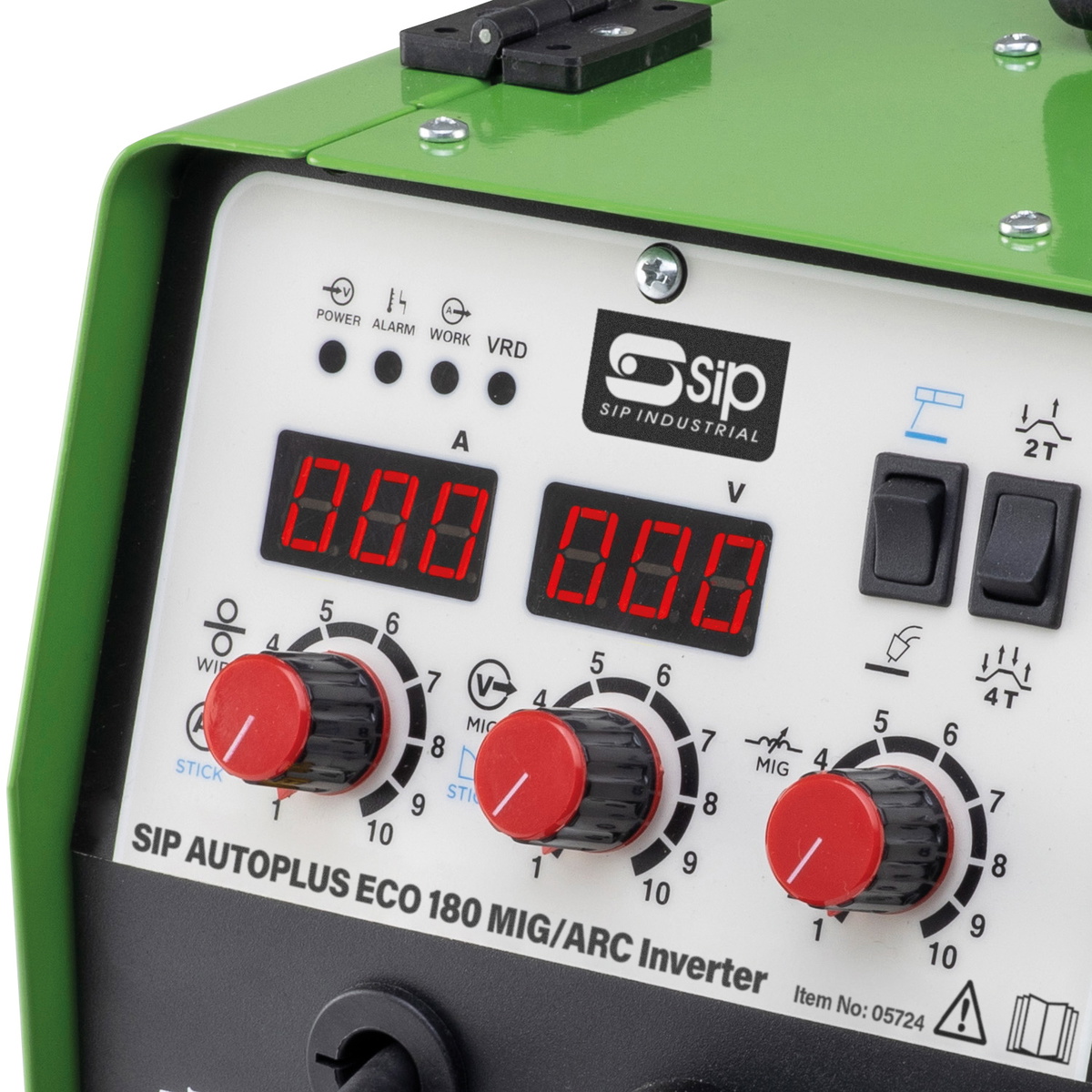

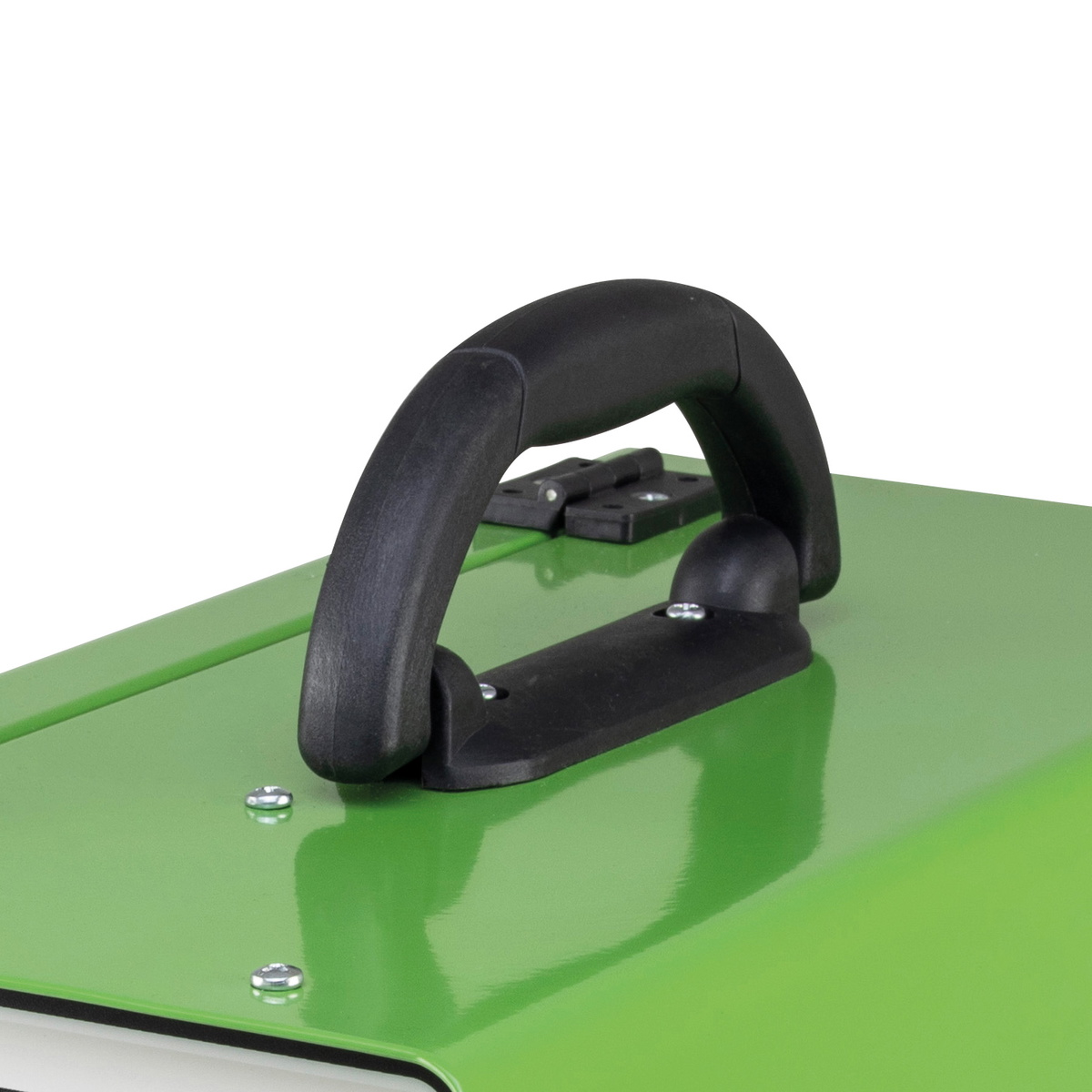

Dual LED display panel: Indicates both the volts and amps in use when the welder is in operation. Compact and portable design: The compact unit is easy to move between locations using the fitted carry handle.
Features:
Supplied with:
Suited to automotive, workshop environments.
The 05724 is a gas-shielded MIG welder. It uses CO₂, Argon, or CO₂/Argon mix shielding gas for clean welds on mild steel and stainless steel. A gas cylinder, regulator, and hose are required separately. Buyers searching for a gas MIG welder, inverter MIG welder, or gasless MIG welder will find the 05724 covers both gas and gasless modes. Gas shielding with CO₂ or Argon mix produces clean welds on mild steel and stainless steel; switch to flux-cored wire for outdoor and site work.
Additional Information:

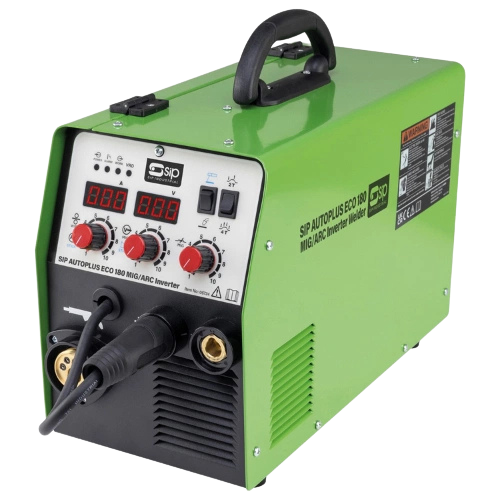

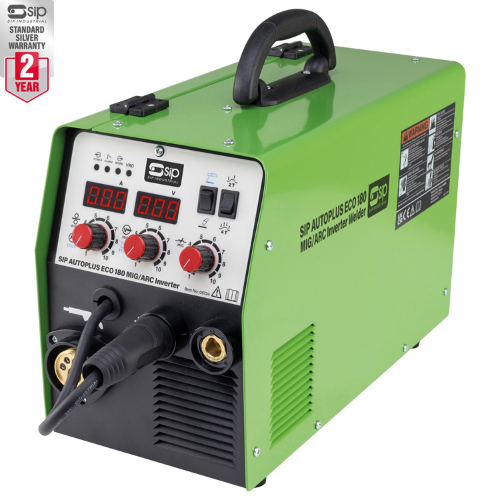

The SIP AUTOPLUS ECO 180 MIG/ARC Inverter Welder is a dual process inverter welder specifically designed for use in automotive environments and sheet metal applications. Compliant with Regulation EU 2019/1784 (Eco Design for Welding Equipment), the powerful inverter technology can perform gas and gasless MIG and ARC welding tasks for outstanding versatility. With superior ARC stability for greater welding control and reduced spatter, this AUTOPLUS delivers great performance for an assured weld in demanding applications. Applications & uses: Perfect for automotive environments. Ideal for sheet metal applications. Suitable for gas and gasless MIG and ARC welding.About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| ITEM NO | 05724 |
|---|---|
| Input Supply | 230v (16A) |
| Output Current | 30A - 180A (MIG) / 30A - 150A (ARC) |
| Output Voltage | 15.5v - 23v (MIG) / 21.2v - 26v (ARC) |
| Duty Cycle | 180A @ 15% (MIG) / 150A @ 20% (ARC) |
| Electrode Diameter | ⌀ 1.6mm, 2mm, 2.4mm, 3.2mm, 4mm |
| Wire Diameter | ⌀ 0.6mm - 1mm |
| Wire Spool Size | 0.7kg - 5kg |
| Protection Level | IP21S |
| Insulation Class | Class F |
| Engine Parts | Product Number | Product Name | Recommended Units | Product Price | |
|---|---|---|---|---|---|
|

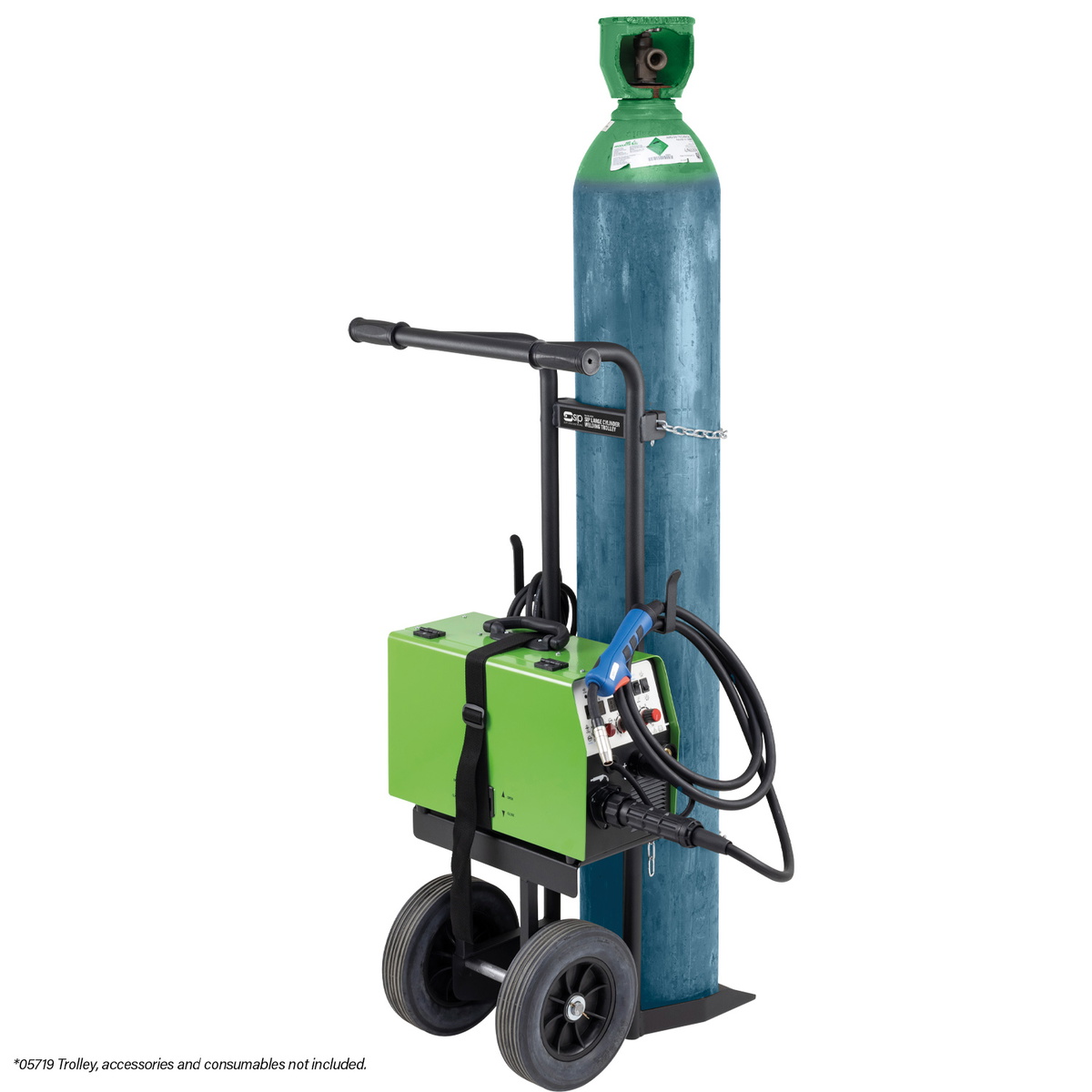

05719 | Welding Large Cylinder Trolley, 05719 SIP | 1 Unit |
£131.37
£128.79
|
Add |
|
09070 | MIG Welding Tip M6 0.6mm 15, 09070, SIP | 1 Unit |
£7.91
£7.75
|
Add |
|
02782 | Welding Large Cylinder Conversion Kit, 02782 SIP | 1 Unit |
£32.13
£31.50
|
Add |
More Info
|
Open Now |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
SIP 05800 FX Portable Welding Fume Extractor 230v, Single Phase
£933.36
£915.06
2% OFF
Free delivery in Channel Island
|
SIP 05806 FX-WM Mounted Welding Fume Extractor 230v, Single Phase
£4,200.76
£4,118.39
2% OFF
Free delivery in Channel Island
|
SIP 05812 FX-WM Mounted Welding Fume Extractor 230v, Single Phase
£3,465.62
£3,397.67
2% OFF
Free delivery in Channel Island
|
Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A
£544.47
£533.58
2% OFF
Free delivery in UK Mainland
|
Draper 70011 MMA Inverter Welder with TIG-Lift Dti, 200A
£163.54
£160.33
2% OFF
Free delivery in UK Mainland
|
Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A
£907.82
£890.02
2% OFF
Free delivery in UK Mainland
|
SIP 05795 PEDAL PRO AC/DC TIG/ARC Welder with Foot Pedal, Input Supply - 230V, Single Phase, Output Current - 200A / 160A
£1,017.36
£997.41
2% OFF
Free delivery in Channel Island
|
SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse
£971.42
£952.37
2% OFF
Free delivery in Channel Island
|
|||||||
| Technical Specification | |||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 05800 | 08202 | 08203 | 05806 | 05812 | INVMIG200 | 70011 | 70052 | 70057 | TIG130 | TIG160 | 05795PEDAL | 05795 | 05813 | 05814 |
| Type | MIG/ARC/TIG | MIG/ARC/TIG | MIG/ARC/TIG | ||||||||||||
| Output Current | 15A - 120A (MIG) / 15A - 70A (MMA/TIG) | 30A - 140A (MIG) / 30A - 120A (MMA/TIG) | |||||||||||||
| Input Supply | 230v | 230v (13A) | 230v (13A) | 230v | 230v | 230v (16A) (not supplied) | 230v (16A) (not supplied) | 230v (13A) | 230v (13A) | ||||||
| Voltage (V) | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 | 230 |
| Weight (kg) | 15 | 5.3 | 25.5 | 7.5 | 02 | 38 | 90 | 90 | 70 | ||||||
A. Yes. The 05724 supports both gas MIG (CO₂, Argon, or Argon/CO₂ mix) and gasless flux-cored wire welding. Switch between modes by reversing the torch polarity — no other changes needed.
A. The 05724 requires a 230V / 16A supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.
A. The 05724 has a duty cycle of 180A @ 15% (MIG) / 150A @ 20% (ARC). Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 05724 is supplied with 3mtr Euro fitting MIG welding torch. Additional consumables such as contact tips, nozzles, and electrodes are available separately.
A. The 05724 weighs 50kg. It is intended as a fixed workshop machine. Adequate assistance should be available for initial positioning.
A. The 05724 is primarily suited to mild steel.
A. Yes. The 05724 is fitted with automatic thermal overload protection that cuts output if the machine exceeds safe operating temperature. It will restart automatically once it has cooled. Operating within the rated duty cycle minimises the frequency of thermal interruptions.
A. Yes — the 05724 is specifically designed for automotive and body panel applications. Its output range and wire diameter compatibility make it well suited to the thin-gauge steel used in vehicle body panels.
A. For gas MIG welding, yes — you need a CO₂, Argon, or CO₂/Argon mix cylinder with a regulator and hose (purchased separately at PartsForMachines.com). The 05724 also supports gasless flux-cored wire for outdoor work or sites where bottled gas is impractical — switch between modes by reversing the torch polarity.
