WELDMATE® PRO AC/DC TIG/ARC Welder with Pulse & 05727 Pedal

SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse

Product Number: 05795

£971.42 £952.37

BUY NOW

ADD TO CART

AC TIG output enables aluminium welding; DC TIG covers steel and stainless steel. The SIP 05795 WELDMATE® PRO 200A AC/DC TIG/ARC Welder with Pulse (05795) provides both in a single professional inverter, delivering (TIG AC/DC): 5A - 200A (AC) / 5A - 200A (DC) from a 230V / 16A (not supplied) supply with a duty cycle of / 10min :200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC). TIG Pulse is included for superior heat control on thin materials and aluminium. A foot pedal is supplied for hands-free current control during the weld.

Duty cycle: / 10min :200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
Machine weight: 15.90kg
Protection: IP21S

AC/DC TIG (aluminium capable).

Supplied with:

AC balance

Suitable for welding mild steel, stainless steel, aluminium, copper and brass. suited to garage, workshop, fabrication environments. For operators comparing AC/DC TIG welders for aluminium and steel, the 05795 provides both AC output for aluminium and DC output for mild steel and stainless steel in a single machine — no need for separate dedicated units.

Additional Information:

The SIP PRO 200A AC/DC TIG/ARC Welder with Pulse is a dual process welder with AC/DC TIG capability for professional applications. This powerful inverter welder can be used for both TIG and ARC welding processes for outstanding versatility in demanding environments. Featuring TIG Pulse functionality, a multi-stage pulse parameter program and 4 AC waveforms, the adaptable settings and high duty cycles are designed to meet specific user needs and ensure greater control of precision welds. Available separately, the 05727 SIP Foot Pedal Control offers hands-free welding for skilled professionals, allowing greater control of the weld pool and welding process. Applications & uses: Ideal for professional fabrication workshops. Perfect for engineering and garage settings. Suitable for aluminium, stainless steel, mild steel, brass and copper.
Product Key Features:-

AC/DC TIG welding capability for greater versatility in professional applications: AC current is ideal for welding aluminium and its alloys. Allows the welder to create a deeper penetration weld. DC current is suitable for mild steel, stainless steel, brass and copper. Offers a smoother and more controlled weld. Working within a highly adaptable amperage range allows a variety of material thicknesses to be welded.
Dual TIG and ARC processes for flexibility at high duty cycles: For efficient and versatile application use in a range of professional settings. TIG AC/DC (40°C / 10min): 200A @ 25% / 150A @ 60% / 120A @ 100%. ARC (40°C / 10min): 160A @ 25% / 110A @ 60% / 90A @ 100%.
TIG pulse facility for smoother and more controlled weld with enhanced stability: Frequency fluctuations achieve deeper workpiece penetration for stronger and more durable welds. Produces a smoother and more controlled weld bead for a cleaner quality finish. Also helps to prevent warping or cracking of thinner materials for reduced distortion.
Multi-stage pulse parameter adjustment for greater welding arc control: This allows customisation of the welding settings to suit specific user needs. Includes adjustable slope-up, slope-down, pre-flow, post-flow and AC balance.
4 AC waveforms for superior control with different material types: Square - offers high heat input coupled with good puddle control and arc stability. Ideal for production applications. Triangular - quick puddle formation with reduced weld distortion. Ideal for thin materials. Trapezoidal - recommended for welding thin aluminium plates which require less penetration. Sine - produces a smooth welding arc with slower energy transfer and travel rates.

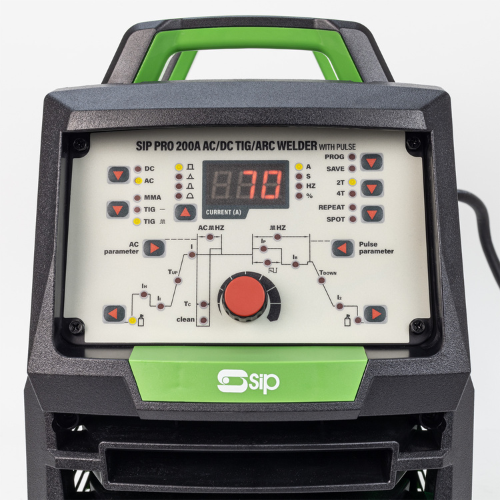

LED display with infinitely variable dial and intuitive control panel: Easy-to-use settings ensure precise control of the welding functions.
Programmable memory storage for easy recall of specific welding jobs: Select and save up to 10 different 'favourites' using the control panel settings.
Durable steel casing with heavy-duty carry handles for long life use: High-quality finish is resistant to work area damage and aids mobility.
Accessories included: Supplied with 4mtr TIG torch, electrode holder with lead, earth clamp, gas hose and hose clamps.
SIP Foot Pedal Control offers hands-free welding for skilled professional users: The 05727 SIP Foot Pedal Control allows the user to set a minimum and maximum output current. The pedal action varies between those settings for greater control of the weld pool and welding process.
SIP 2-Year Standard Silver Warranty

About PartsForMachines:

PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.

BUY NOW

ADD TO CART

ITEM NO	05795
Input Supply	230v (16A) (not supplied)
Output Current (TIG AC/DC)	5A - 200A (AC) / 5A - 200A (DC)
Output Current (MMA DC)	30A - 160A (DC)
TIG AC/DC
Duty Cycle @ 40°C / 10min	200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC)
160A @ 25% / 110A @ 60% / 90A @ 100% (MMA)
Duty Cycle @ 20°C / 10min	200A @ 60% / 150A @ 100% (TIG AC/DC)
160A @ 60% / 130A @ 100% (MMA)
Protection	IP21S/H
Net Weight	15.90kg
Gross Weight	17.50kg
Product Dimensions	395(H) x 480(W) x 225mm(D)
Packaged Dimensions	440(H) x 560(W) x 330mm(D)

BUY NOW

ADD TO CART

Product Number	Product Name	Recommended Units	Product Price
WE04-00282	SIP WE04-00282 26 Air-Cooled 4mtr TIG Welding Torch for 05795	1 Unit	£1,021.02 £1,001.00	Add
15063	Welding Zirconiated Tungsten Electrodes 2.4mm 0.9% , 15063, SIP	1 Unit	£10.23 £10.03	Add
15072	Welding Zirconiated Tungsten Electrodes 1.6mm 0.9%, 15072, SIP	1 Unit	£8.34 £8.18	Add

BUY NOW

ADD TO CART

Pro Tips for Buying Welding Machines: Types, Uses, and Choos...

Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...

BUY NOW

ADD TO CART

Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 4 working days
Save Extra With 1 Offer
Compare With Similar Items
Use promo code "RMPK1" to get Additional 1% OFF

Question about this product? Click here

Compare with Similar products	Compare SIP 05800 FX Portable Welding Fume Extractor 230v, Single Phase £933.36 £915.06 2% OFF Free delivery in Channel Island ADD	Compare TIGREN TGN120MAT MIG/ARC/TIG Inverter Welder £187.65 £183.97 2% OFF Free delivery in UK Mainland ADD	Compare TIGREN TGN150MAT MIG/ARC/TIG Inverter Welder £285.51 £279.91 2% OFF Free delivery in UK Mainland ADD	Compare SIP 05806 FX-WM Mounted Welding Fume Extractor 230v, Single Phase £4,200.76 £4,118.39 2% OFF Free delivery in Channel Island ADD	Compare SIP 05812 FX-WM Mounted Welding Fume Extractor 230v, Single Phase £3,465.62 £3,397.67 2% OFF Free delivery in Channel Island ADD	Compare Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A £544.47 £533.58 2% OFF Free delivery in UK Mainland ADD	Compare Draper 70011 MMA Inverter Welder with TIG-Lift Dti, 200A £163.54 £160.33 2% OFF Free delivery in UK Mainland ADD	Compare Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A £907.82 £890.02 2% OFF Free delivery in UK Mainland ADD	Compare Draper 70057 TIG/MMA Welder, 145A £173.30 £169.90 2% OFF Free delivery in UK Mainland ADD	Compare Sealey TIG130 TIG/MMA Inverter Welder 130A 230V £182.36 £178.78 2% OFF Free delivery in UK Mainland ADD	Compare Sealey TIG160 TIG/MMA Inverter Welder 160A 230V £233.56 £228.98 2% OFF Free delivery in UK Mainland ADD	Compare SIP 05795 PEDAL PRO AC/DC TIG/ARC Welder with Foot Pedal, Input Supply - 230V, Single Phase, Output Current - 200A / 160A £1,017.36 £997.41 2% OFF Free delivery in Channel Island ADD	Compare SIP 05813 FX200 Welding Fume Extractor £1,155.20 £1,132.55 2% OFF Free delivery in Channel Island ADD	Compare SIP 05814 FX300 Welding Fume Extractor £1,669.28 £1,636.55 2% OFF Free delivery in Channel Island ADD	Compare SIP 05815 FX100 Welding Fume Extractor £866.95 £849.95 2% OFF Free delivery in Channel Island ADD
Technical Specification
PRODUCT NUMBER	05800	08202	08203	05806	05812	INVMIG200	70011	70052	70057	TIG130	TIG160	05795PEDAL	05813	05814	05815
Type		MIG/ARC/TIG	MIG/ARC/TIG			MIG/ARC/TIG
Output Current		15A - 120A (MIG) / 15A - 70A (MMA/TIG)	30A - 140A (MIG) / 30A - 120A (MMA/TIG)
Input Supply	230v	230v (13A)	230v (13A)	230v	230v							230v (16A) (not supplied)	230v (13A)	230v (13A)	230v (13A)
Voltage (V)	230	230	230	230	230	230	230	230	230	230	230	230	230	230	230
Weight (kg)						15	5.3	25.5	7.5	02	38	90		70

Technical

Q 1. Can the SIP 05795 weld aluminium?

A. Yes. The 05795 features AC TIG output specifically for aluminium welding, in addition to DC TIG for mild steel and stainless steel. TIG Pulse is also available for reduced heat input on thin aluminium sections. You will need appropriate tungsten electrodes and shielding gas for aluminium TIG work.

Q 2. What power supply does the SIP 05795 require?

A. The 05795 requires a 230V / 16A (not supplied) supply. If you are unsure whether your supply is adequate, consult a qualified electrician before installation.

Q 3. What is the duty cycle of the SIP 05795?

A. The 05795 has a duty cycle of / 10min :200A @ 25% / 150A @ 60% / 120A @ 100% (TIG AC/DC). Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.

Q 4. What accessories are included with the SIP 05795?

A. The 05795 is supplied with AC balance. Additional consumables are available separately through PartsForMachines.com.

Q 5. How heavy is the SIP 05795?

A. The 05795 weighs 15.90kg and includes a carry handle for transport between locations. It can be moved by a single person and is suited to workshop use.

Q 6. What metals can the SIP 05795 weld?

A. The 05795 welds mild steel, stainless steel, aluminium, copper and brass. Use the appropriate electrode type for each base metal.

Q 7. What does TIG Pulse do on the SIP 05795?

A. TIG Pulse varies the welding current between a high peak value and a low background level at a set frequency. This reduces average heat input, giving better control of the weld pool — particularly useful for aluminium, thin materials, and out-of-position welding where heat management is critical.

Q 8. Does the SIP 05795 need a foot pedal?

A. The 05795 is supplied with a foot pedal for hands-free current control during the weld — useful for precision work and positional welding.

Q 9. When would I choose TIG welding over MIG or ARC on the SIP 05795?

A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. ARC/MMA is faster for thicker sections and suits outdoor or on-site work. The 05795 lets you switch between TIG and ARC to match the job.
