Product Number: 70052

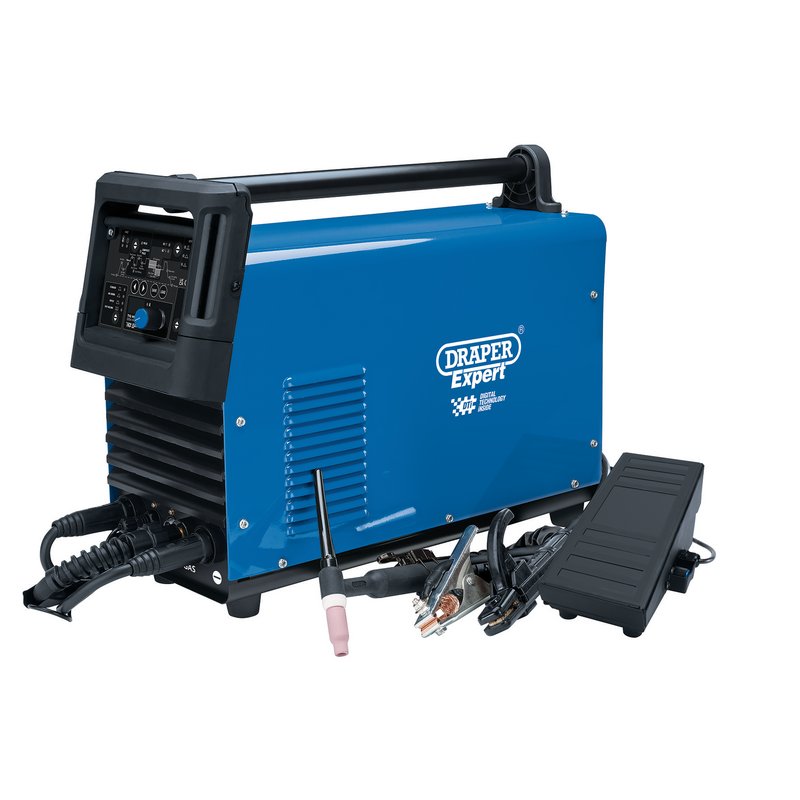

AC TIG output enables aluminium welding; DC TIG covers steel and stainless steel. The Draper 70052 High Frequency AC/DC TIG/MMA Aluminium Welder Dti, 200A (70052) provides both in a single professional inverter, delivering 10-200A from a 230V / 32A supply with a duty cycle of 20% @200A / 100% @155A. A foot pedal is supplied for hands-free current control during the weld.
IGBT Inverter technology. High frequency start. Additional features include pulse function, foot pedal supplied, latest digital technology for superior performance and precision control, HF arc start.
Supplied with:
Suitable for welding stainless steel and aluminium.
Fan-assisted cooling manages operating temperature during sustained welding. Automatic thermal overload protection cuts output if the machine exceeds safe temperature. For operators comparing AC/DC TIG welders for aluminium and steel, the 70052 provides both AC output for aluminium and DC output for mild steel and stainless steel in a single machine — no need for separate dedicated units.
Additional Information:
Dual function (TIG/MMA) high frequency ignition multi-purpose welder. It includes powerful IGBT invertor technology. Equipped with AC/DC TIG function for welding stainless steel and aluminium. Robust machine fitted with carry bar.
Product Key Feature:About PartsForMachines:
PartsForMachines is a premier e-commerce platform, founded in 2019 in Warwickshire, UK, specializing in aftermarket parts and services for construction, agriculture, and industrial machinery. We offer an extensive catalog of over 500,000 products. Standard delivery: 1–3 working days within UK mainland. We are proud to be an authorised distributor, giving customers extra confidence when purchasing genuine products from us. In addition, we provide a 30-day return policy for eligible items.
| Amperage range | 10-200A |
|---|---|
| Power supply | 230V-32A |
| Electrode size | 1.6-5.0mm |
| Duty cycle | 20% @200A / 100% @155A |
| Dimensions | 557 x 210 x 395mm |
| Weight (net) | 25.5kg |
| IGBT Tech | YES |
| Euro Torch Connector/Dinse Type Coupling | 35/50 |
| High Frequency Start | YES |
| Suitable for MMA welding | YES |
| Foot Pedal | YES |
| Suitable for Welding Aluminium | YES |
| Pulse Welding | YES |
| DTi | YES |
| Digital Display | YES |
| Plug Fitted | NO |
Pro Tips for Buying Welding Machines: Types, Uses, and Choosing the Perfect Fit Introduction:Welding, the art of joining metals through heat and precision, has evolved significantly with the advent of adv...
Standard Delivery: UK Mainland Free
Next Day Delivery Available
Delivery Estimate: 2 to 3 working days
Save Extra With 1 Offer
Compare With Similar Items
Compare with Similar products
|
Sealey INVMIG200 Inverter Welder MIG, TIG & MMA 200A
£647.07
£634.38
2% OFF
Free delivery in UK Mainland
|
Sealey MINIMIG160i MIG/TIG & MMA (ARC/STICK) Inverter Welder 160A 230V
£185.86
£182.22
2% OFF
Free delivery in UK Mainland
|
Sealey MIG200i MIG/TIG & MMA (ARC/STICK) Inverter Welder 200A
£367.93
£360.72
2% OFF
Free delivery in UK Mainland
|
Sealey POWERMIG300i 300A Professional Gas/Gasless MIG/TIG/MMA Inverter Welder 400V 3ph
£1,466.85
£1,438.09
2% OFF
Free delivery in UK Mainland
|
Clarke MIG200 S-MULTI 200A MIG/TIG/MMA Synergic Inverter Welder
£693.75
£680.15
2% OFF
Free delivery in UK Mainland
|
|
| Technical Specification | ||||||
|---|---|---|---|---|---|---|
| PRODUCT NUMBER | 70057 | INVMIG200 | MINIMIG160i | MIG200i | POWERMIG300i | 6015605 |
| Voltage (V) | 230 | 230 | 230 | |||
| Weight (kg) | 7.5 | 15 | 6.9 | 11.1 | 67 | 25 |
A. Yes. The 70052 features AC TIG output specifically for aluminium welding, in addition to DC TIG for mild steel and stainless steel. You will need appropriate tungsten electrodes and shielding gas for aluminium TIG work.
A. The 70052 requires a 230V / 32A supply to achieve its full rated output. A 32A circuit is recommended — consult a qualified electrician if you are unsure of your supply capacity.
A. The 70052 has a duty cycle of 20% @200A / 100% @155A. Duty cycle is measured over a 10-minute period — a 60% duty cycle means 6 minutes of continuous welding followed by a 4-minute cool-down. Operating at lower amperages increases available run time.
A. The 70052 is supplied with TIG torch, Cable, 3.6m, Electrode holder, 200A, Earth clamp, 300A, Gas hose. Additional consumables are available separately through PartsForMachines.com.
A. The 70052 weighs 25.5kg. It is intended as a fixed workshop machine. Adequate assistance should be available for initial positioning.
A. The 70052 welds stainless steel and aluminium. Use the appropriate electrode type for each base metal.
A. The 70052 uses high-frequency (HF) arc start, which ignites the arc without the tungsten electrode touching the workpiece. This prevents tungsten contamination and weld porosity — important for quality TIG work on stainless steel and precision applications.
A. The 70052 is supplied with a foot pedal for hands-free current control during the weld — useful for precision work and positional welding.
A. TIG produces the cleanest, most precise welds — ideal for stainless steel, thin sheet, and visible joints where appearance matters. ARC/MMA is faster for thicker sections and suits outdoor or on-site work. The 70052 lets you switch between TIG and ARC to match the job.
